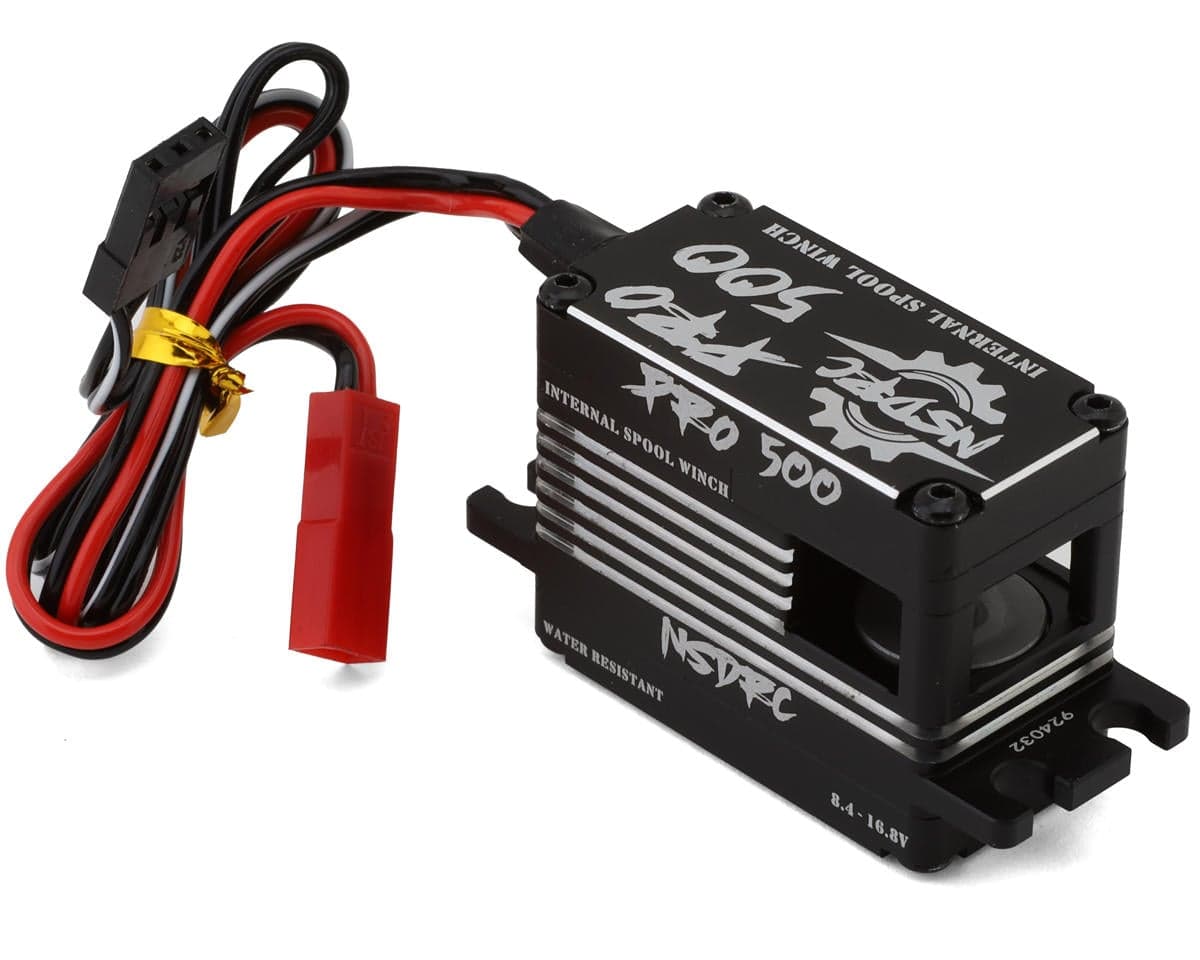

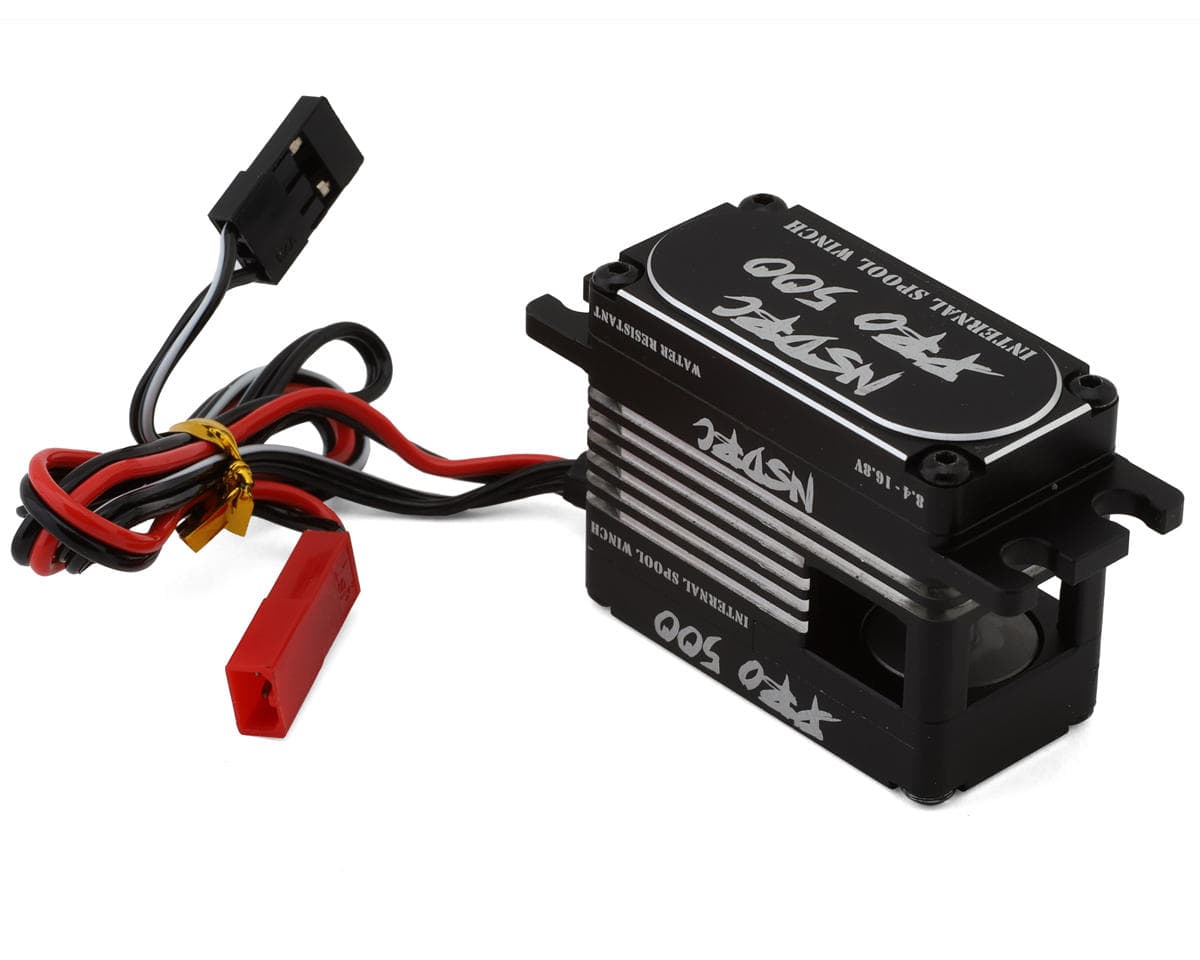

No Superior Designs RC PRO 500 Servo Winch (Internal Spool) (High Voltage)
About this part
No Superior Designs PRO 500 Servo Winch with an Internal Spool. The ultimate machine for those looking for the all in one compact winch with killer speed, brute power, and the best holding power! Featuring a full CNC-machined aluminum case, hardened stainless steel gears, 11-point O-ring seals, water resistant design, high voltage (HV) capable and built-in winch controller and an internal spool, the Pro 500 has incredible brake/hold technology, durability, and super smooth actuation! With the built-in winch controller and direct power, you no longer need to spend extra money and effort on an external controller or BEC! Get this PRO 500 servo winch and experience the the high quality, performance, reliability and pure power of this all-around capable servo!
NOTE:
- Does not work as steering servo
- Winch Line, Hook, and Mounts Sold separately
Features:
- Hardened stainless steel gears
- High Quality Magnetic Encoder Angle Sensor
- Full CNC-machined Aluminum Case
- 11-Point O-ring seals
- Water resistant (Not Submersible)
- High voltage (HV) capable
- Built-in Winch controller and an internal spool (Requires remote and receiver with 3rd channel momentary or 3 position switch)
Specifications:
- Type: Winch
- Motor Type: Coreless
- Operating Voltage: 8.4V-16.8V
- Gears: Hardened Stainless Steel
- Dimension (LxWxH): 40x30x20mm
- Weight: 61g
- Case: CNC-Machined Aluminum
- Torque:
- 8.4V: 285oz
- 12.6V: 405oz
- 16.8V: 513oz
- Speed:
- 8.4V: 0.09 sec/60°
- 12.6V: 0.06 sec/60°
- 16.8V: 0.045 sec/60°
Includes:
- (1) PRO 500 Servo Winch with an Internal Spool

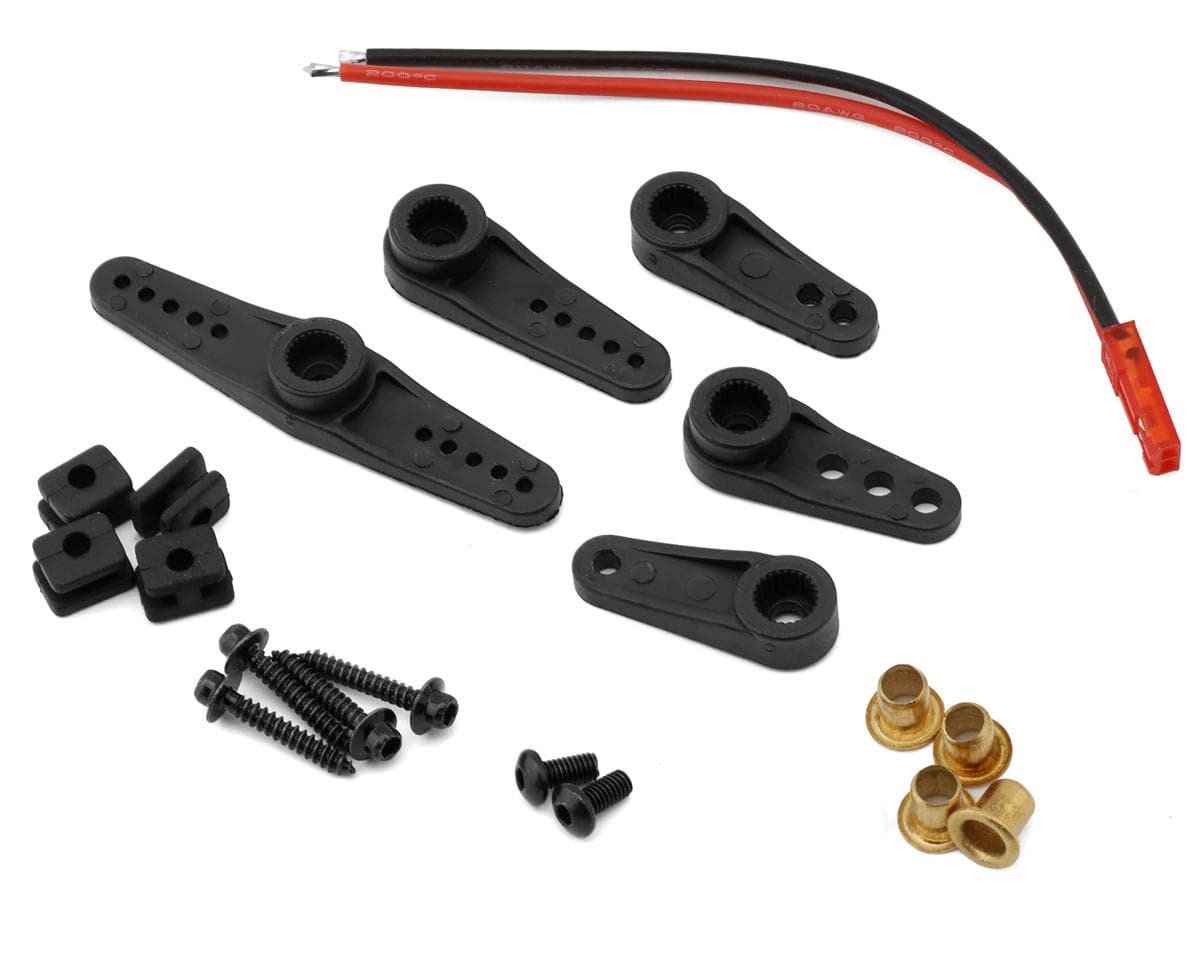

- Mounting screws
Reviews5.0 · 7 reviews
I have this winch on 2 of my trucks. The power and speed from this winch is crazy. You know it will always back you up if you get in a bind.
Have this servo in my c2 build, fast strong and reliable could move a mountain with this winch
Perfect size and fit. Very strong and quick in and out speed, makes for the perfect choice for my comp trucks!
Power with internal spooling, awesome combo for my C1 comp rig
Best combo of speed and power. Great winch. My favorite for comp builds.
Seven reviews, all rating the High Voltage internal-spool variant 5 out of 5. Reviewers consistently praise its combination of speed and pulling power, and describe it as suitable for competition builds and everyday trail use. Installations mentioned include C1 and C2 comp rigs and an SCX10.3. Reviews are uniformly positive, with no reported problems, though most are brief and none discuss long-term durability in detail.
- + Strong pulling power
- + Fast in and out speed
- + Good fit for comp builds
- + Suitable for trail use
- − No criticisms reported
- − Long-term durability not discussed
