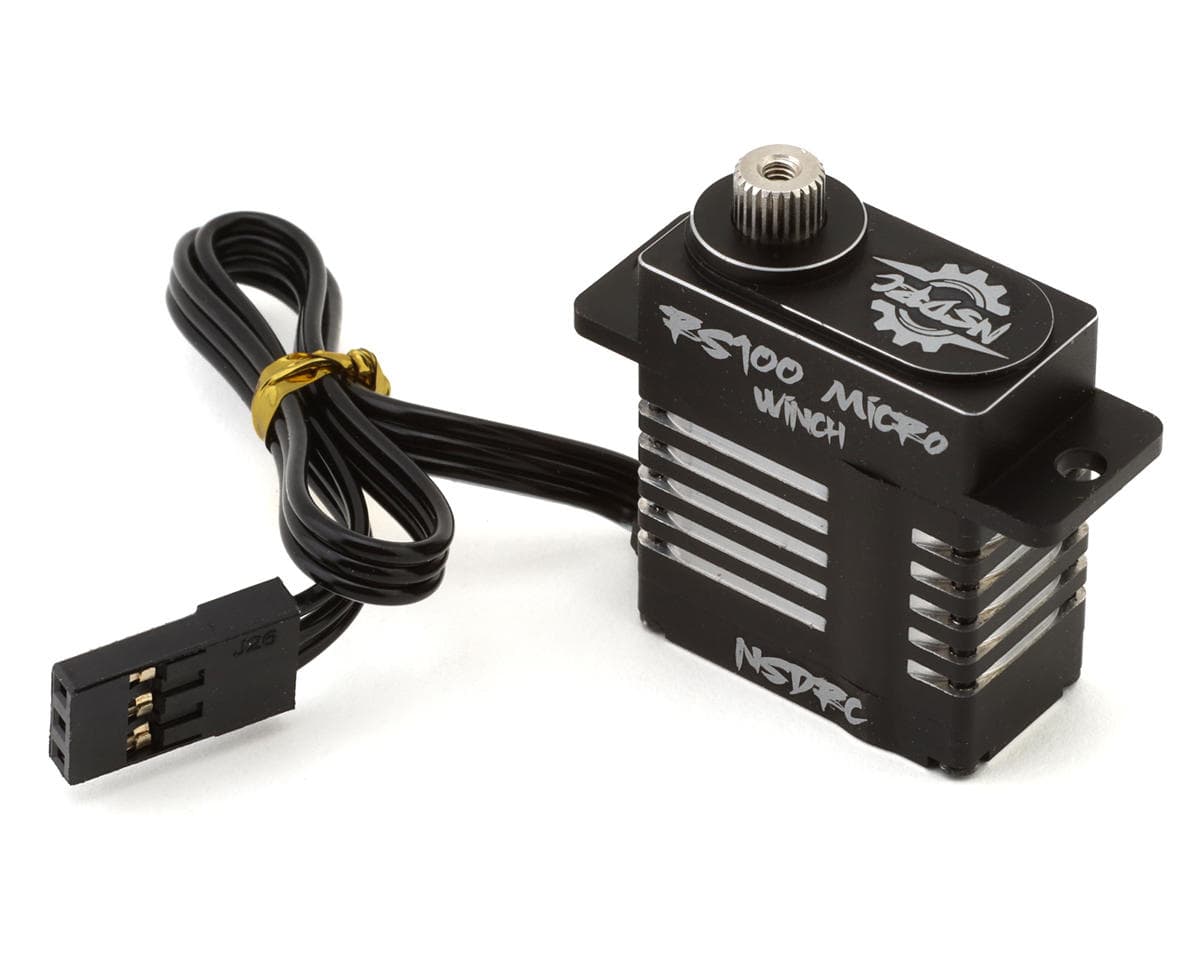

No Superior Designs RC RS100 High Torque-Speed Micro Winch Servo (High Voltage)
About this part
No Superior Designs RS100 High Torque Micro Winch Servo. With an updated motor and heavy duty stainless steel gears for supreme power delivery and durability, this powerful RS100M micro servo is an excellent low budget option for applications in need of a reliable, durable and powerful micro winch servo! Features a black anodized all CNC-machined aluminum Case, water resistant with 7-point O-ring seal, hardened stainless steel gears for maximum durability, high quality Angle sensor and high voltage (HV) capability!
NOTE:
- Winch Line, hook, and adapter plate are (Sold - Separately)
- Does not work as steering servo
Features:
- Built-in controller
- Black anodized all CNC-machined aluminum Case
- Water Resistant with 7-point O-ring seal
- Hardened Stainless Steel Gears
- CNC-Machined micro spool
- Magnetic angle sensor for superior brake/hold!
- High voltage (HV) capable
Specifications:
- Type: Standard Micro
- Motor Type: Coreless
- Operating Voltage: 5V - 8.4V
- Gears: Hardened Stainless Steel
- Spline: 25T (4.9mm - Micro)
- Dimension (LxWxH): 26x23x12mm
- Weight: 20g
- Case: CNC-Machined Aluminum
- Torque:
- 6V: 152oz/ 11kg
- 7.4V: 175oz/ 12.7kg
- 8.4V: 197oz/ 14.2kg
- Speed:
- 6V: 0.09 sec/60°
- 7.4V: 0.07 sec/60°
- 8.4V: 0.06 sec/60°

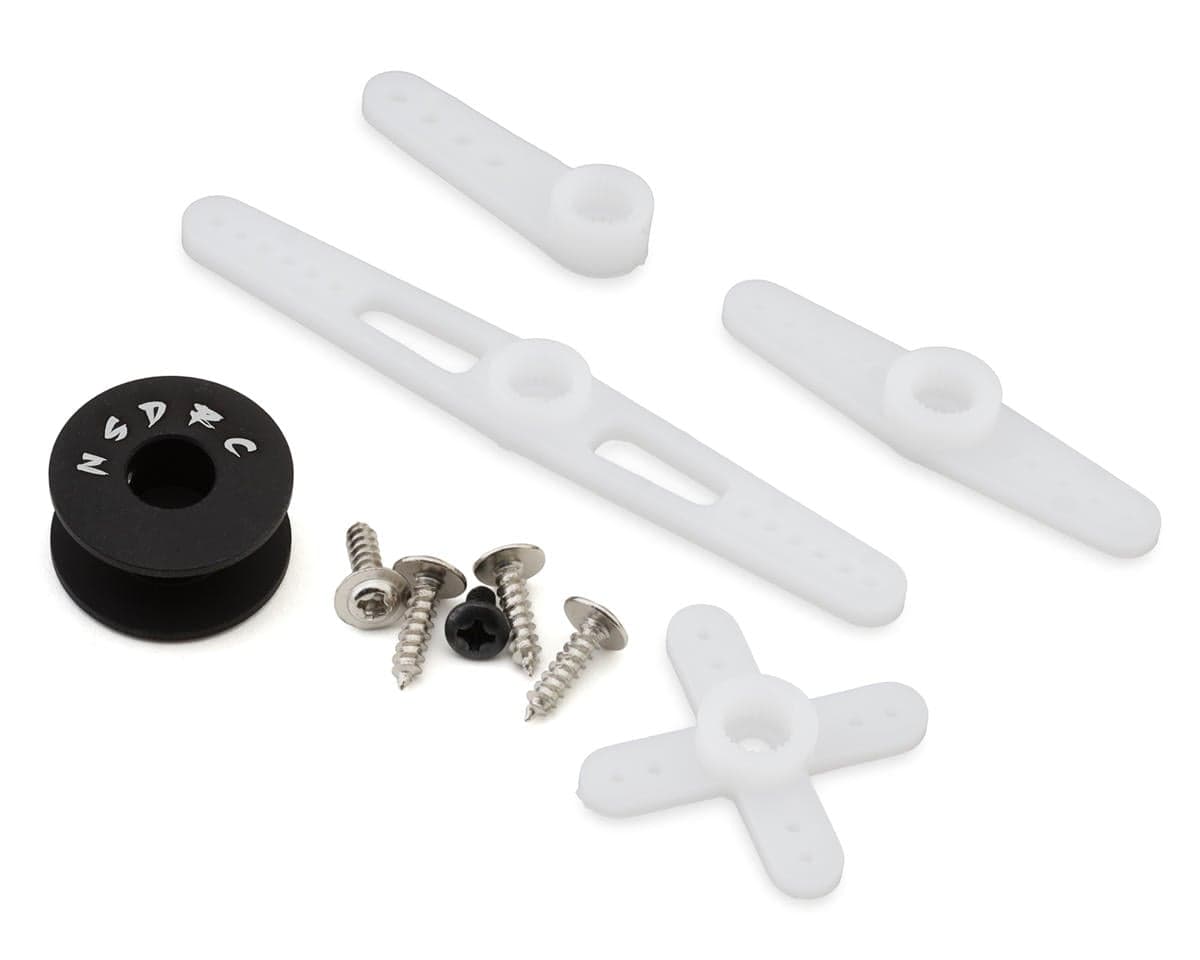

Includes:
- (1) RS100 High Torque Micro Winch Servo
- (1) CNC-Machined micro spool
- Multiple composite horns
- Mounting screws, bushing and rubber grommets
Reviews5.0 · 5 reviews
I love the micro winch very strong and compact! Highly recommend!
Best Micro Servo on the market. I have about 12+ of these for all my micro or 1/24 scale crawlers, I’m no comp driver, I use the NSDRC rs100m servo just for my fun days on the rocks and with my buddies. Awesome amount of power that comes out this micro servo, it’s so tough it’ll help my rigs to get out stuck and awkward position on the rocks or the course. I would recommend to this to anyone and everyone!
Installed one of these in my c1 and i was blown away how this little guy was able to handle my rig over obsticles!
Awesome little winch for micros or if you need to save room for multiple winches on a larger truck
This is one of my go to winches. Tiny in size which makes mounting anywhere possible.
All five reviews are five-star ratings for the High Voltage variant of this micro winch servo. Reviewers consistently describe it as compact and small, with strong pulling power for its size, and say it handles obstacles and recovery on micro and 1/24 scale crawlers. One reviewer uses a dozen units across rigs for casual trail driving. Reviewers also note it suits mounting in tight spaces or multi-winch setups on larger trucks. No reviewers report problems, and no disagreements appear. The sample is small and reviews focus on general impressions rather than measured specifications.
- + Strong pulling power for its size
- + Compact and small footprint
- + Easy to mount in tight spaces
- + Handles obstacles on micro crawlers
