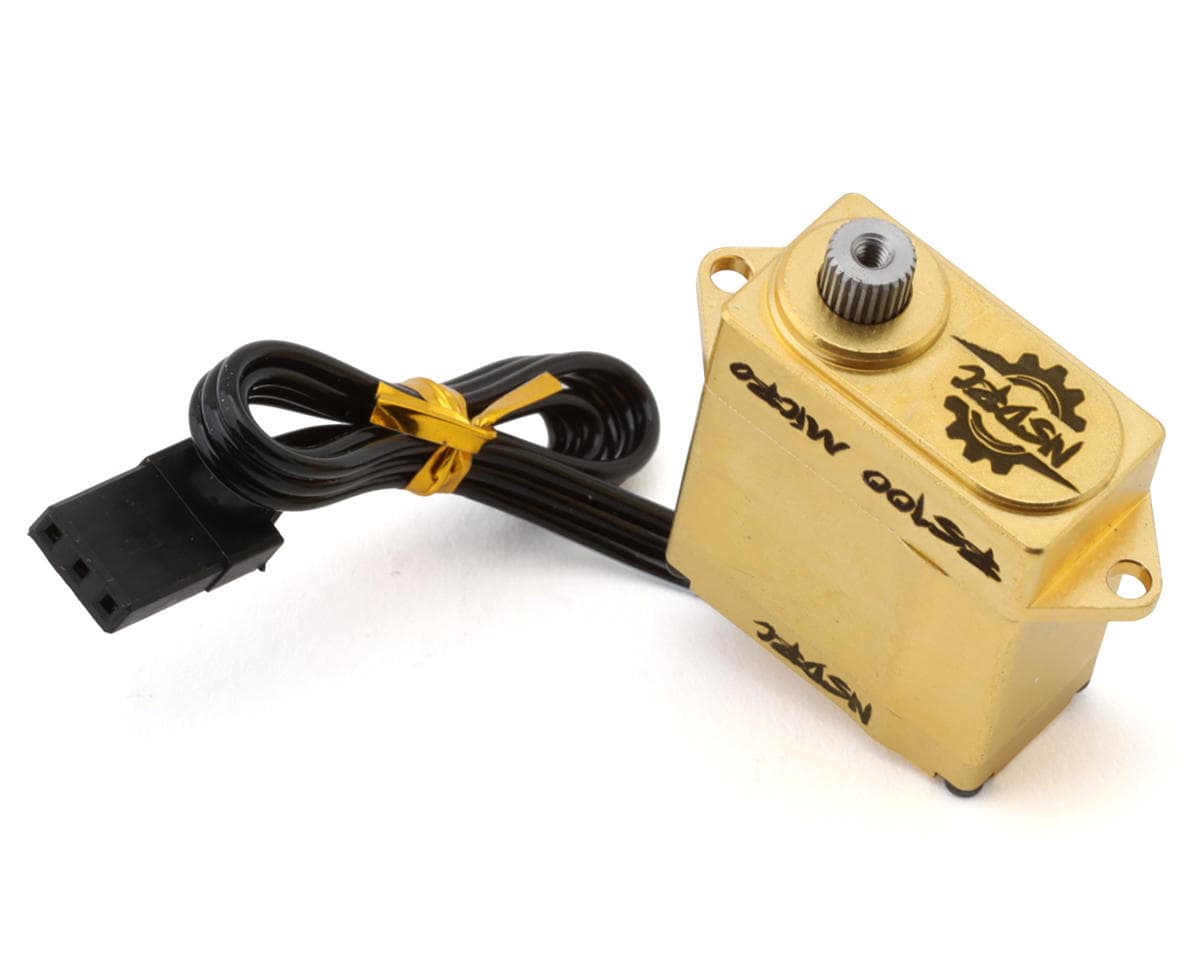

No Superior Designs RC RS100 High Torque Waterproof Micro Servo (HV) (Brass) (36g)
About this part
The Ultimate High-Performance Mini Servo
Meet the No Superior Designs RC RS100 Micro Servo — a compact, waterproof power upgrade packed with high torque, stainless steel gears, and brass-weighted stability for serious crawling performance.
About the RS100 High Torque Brass Servo
Powerful Micro Performance
The No Superior Designs RC RS100 High Torque Waterproof Brass Micro Servo delivers exceptional power and speed in a compact size. Its upgraded coreless motor, hardened stainless steel gears, and high-voltage capability provide smooth, precise control for demanding steering, shift, and dig applications.
Rugged Waterproof Construction
Built for long-lasting durability, the RS100 features a CNC-machined brass and aluminum case, dual ball bearings, and a waterproof design with a 7-point O-ring seal. Combined with a high-quality angle sensor and full metal geartrain, it is engineered to handle tough trail and crawler conditions with confidence.
Stability Enhancing
The heavy brass case adds 36 grams of unsprung weight to help lower your vehicle's center of gravity for improved stability and crawling performance. Perfect for 1/24 micro crawlers, 1/18 mini platforms, and 1/10 scale crawler shift systems, the RS100 is an affordable upgrade that delivers strength, reliability, and performance.
Features:
- High-torque performance for steering, shift, and dig functions
- Fast response speed for precise vehicle control
- Heavy-duty brass case adds 36g of low-mounted weight
- Lowers the center of gravity for improved stability
- Waterproof design with a 7-point O-ring seal
- Hardened stainless steel gears for long-lasting durability
- Powerful coreless motor delivers smooth, efficient operation
- High-voltage compatible from 6V to 8.4V
- Dual ball bearings provide smooth and reliable performance
- Perfect fit for mini rigs and 1/10 crawler shift systems
Includes:
- (1) RS100 High Torque Waterproof Micro Servo

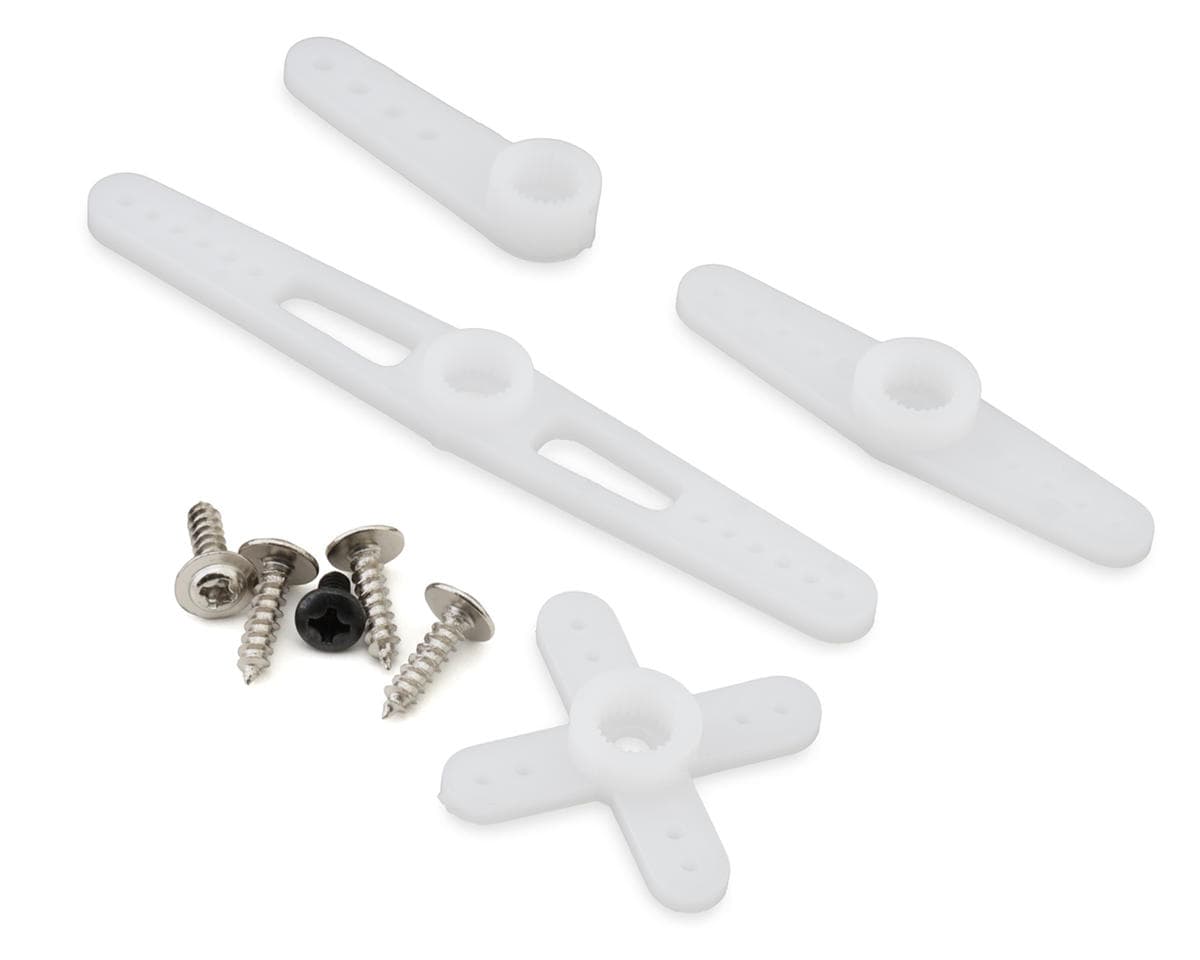

- (2) Composite Servo Horns
- Mounting Hardware
Specifications:
| Application | 1/24, 1/16 & 1/18 |
|---|---|
| Input Voltage | 6V-8.4V |
| Speed | |
| @6.0V: | 0.08 sec/60° |
| @7.4V: | 0.07 sec/60° |
| @8.4V: | 0.06 sec/60° |
| Torque: | |
| @6.0V: | 152oz.in (11Kg-cm) |
| @7.4V: | 175oz.in (12.6Kg-cm) |
| @8.4V: | 197oz.in (14.2Kg-cm) |
| Motor | Coreless |
| Output Shaft | Mini 25T |
| Shaft Diameter | - |
| Gear Material | Metal |
| Dimensions (LxWxH) | 0.9x0.47x1.04in (23x12x26.5mm) |
| Weight | 1.26oz (36g) |
*Tech Note: It is recommended to run our Nano Bec - Aftermarket high power micro servos used with stock micro esc's and even many aftermarket esc's, typically have weak internal bec's and need a boost in order to run high power servos properly. 4amp or greater bec recommended
