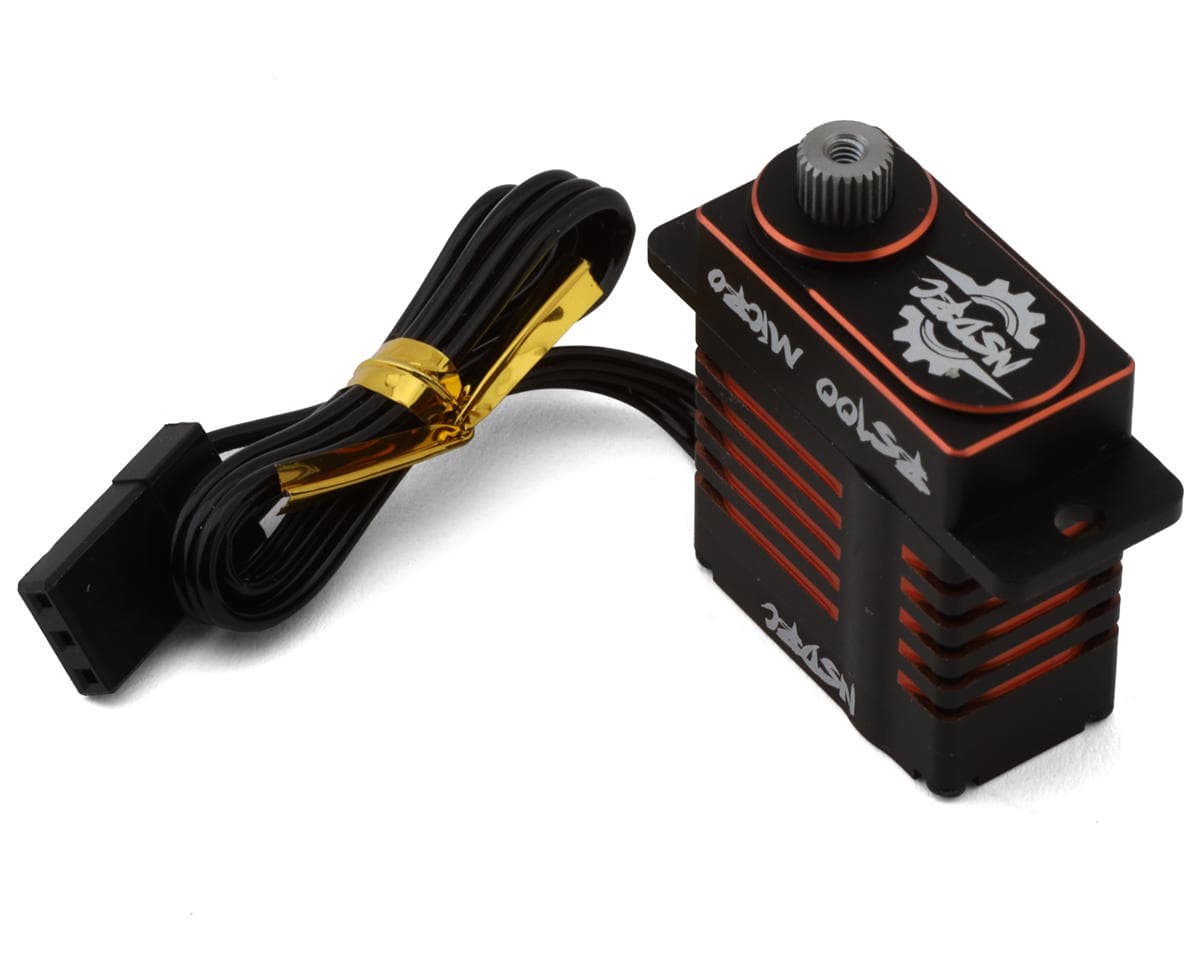

No Superior Designs RC RS100 Limited Edition Waterproof Micro Servo (HV) (Orange) w/Aluminum Horn
About this part
RS100 Limited Edition Micro Servo Overview:
No Superior Designs RS100 Limited Edition High Torque Micro Servo. With an updated motor and heavy duty stainless steel gears for supreme power delivery and durability, this powerful RS100 limited edition micro servo is an excellent low budget option for applications in need of a reliable, durable and powerful micro servo! This servo features a black and orange anodized all CNC-machined aluminum case, water resistant with 7-point O-ring seal, hardened stainless steel gears for maximum durability, high quality angle sensor and high voltage (HV) capability!
NOTE:
- Micro BEC is recommend for Micro servos being used in 1/24 and 1/18 Micro
- Not Submarine proof, do not submerge
Features:
- Black & Orange anodized all CNC-machined aluminum Case
- Water Resistant with 7-point O-ring seal
- Hardened Stainless Steel Gears
- High voltage (HV) capable
Specifications:
- Type: Standard Micro
- Motor Type: Coreless
- Operating Voltage: 5V - 8.4V
- Gears: Hardened Stainless Steel
- Spline: 25T (4.9mm - Micro)
- Dimension (LxWxH): 26x23x12mm
- Weight: 20g
- Case: CNC-Machined Aluminum
- Torque:
- 6V: 152oz/ 11kg
- 7.4V: 175oz/ 12.7kg
- 8.4V: 197oz/ 14.2kg
- Speed:
- 6V: 0.09 sec/60°
- 7.4V: 0.07 sec/60°
- 8.4V: 0.06 sec/60°
Includes:

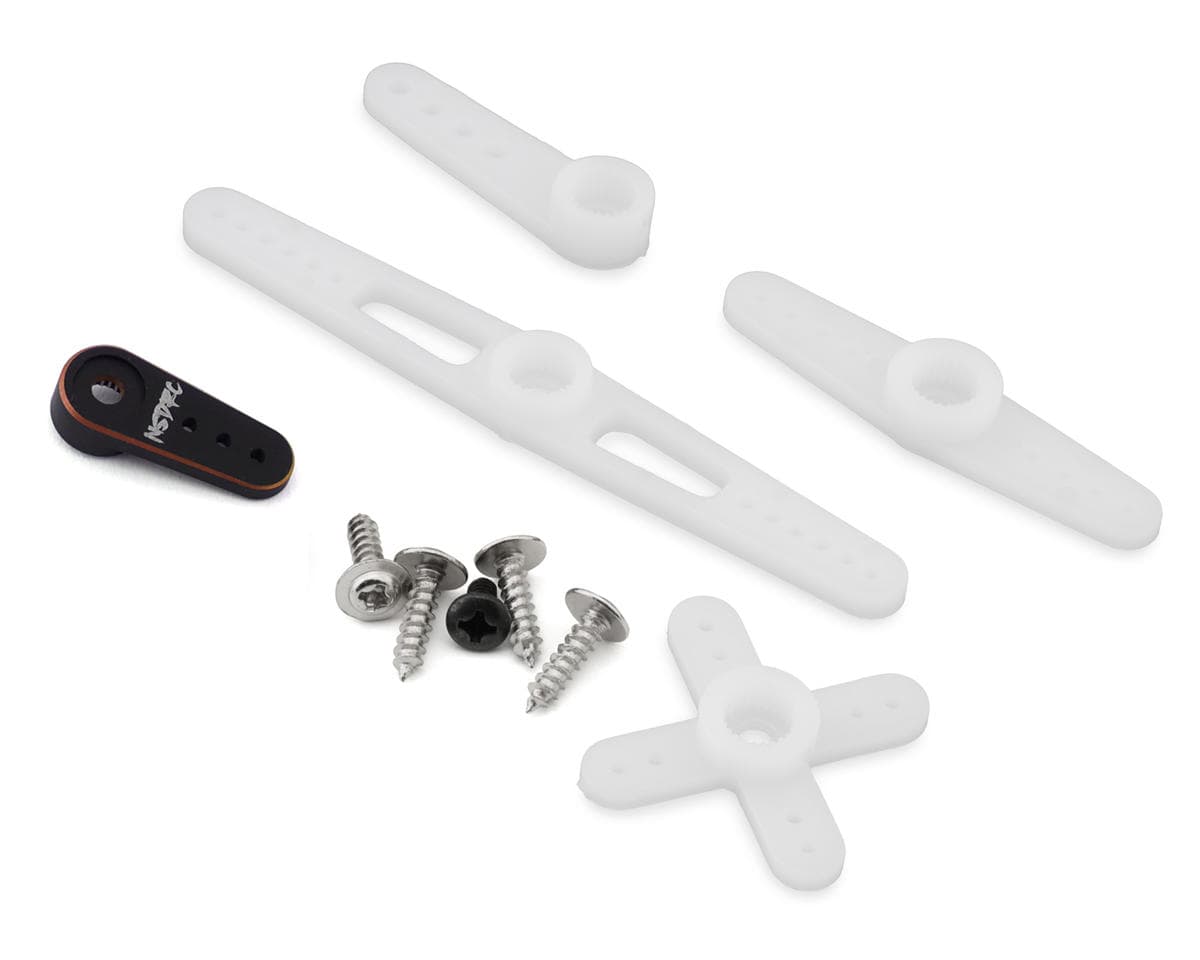

- (1) RS100 Limited Edition High Torque Micro Servo
- (1) Anodized CNC-Machined micro horn
- Multiple composite horns
- Mounting screws, bushing and rubber grommets
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
picked up this servo and wow does it perform. i noticed using a bad servo on a mini b made the steering much less direct and hard to center. this servo has no play in the horn. steel gears extremely strong. the wire has a little groove protection thing that makes the wire more durable. absolutely loved this servo lasted me around 4 months and then i had the option to mail it to them for them to fix it or get a replacement gear set for 12 dollars which i got. standard gear replacement process and good as new. great job nsdrc loved the customer support from a main for my second one for mini t. the first one from nsdrc straight from there had just as good customer support. Please don't go with reefs as I've seen people destroy them in minutes. its either savox and hot racing servo saver or this and servo horn.
Great little servo for using it in a VP dig unit. Plenty fast and strong
I have two of these in my trx4m tarantula. Just a great servo and the color is cool too.
All three reviewers rate the Orange RS100 Limited Edition Waterproof Micro Servo (HV) 5/5 and praise its performance, strength and precision in micro RC builds, including a VP dig unit and TRX-4M setups. One reviewer reports that steel gears and a horn with no play gave direct, easy-to-centre steering on a Mini B. Another reports about four months of service before a warranty-style gear replacement, which they describe as a 12-dollar gear set and a standard process; they also praise the manufacturer's support. The reviews do not describe other recurring problems, but the sample is small and all three reviews are very positive.
- + Strong, direct steering performance
- + Steel gears feel durable
- + Responsive customer support and gear replacement
- + Good speed and strength for micro builds
- − One unit needed a gear replacement after about four months
- − Limited sample size with only positive reviews
