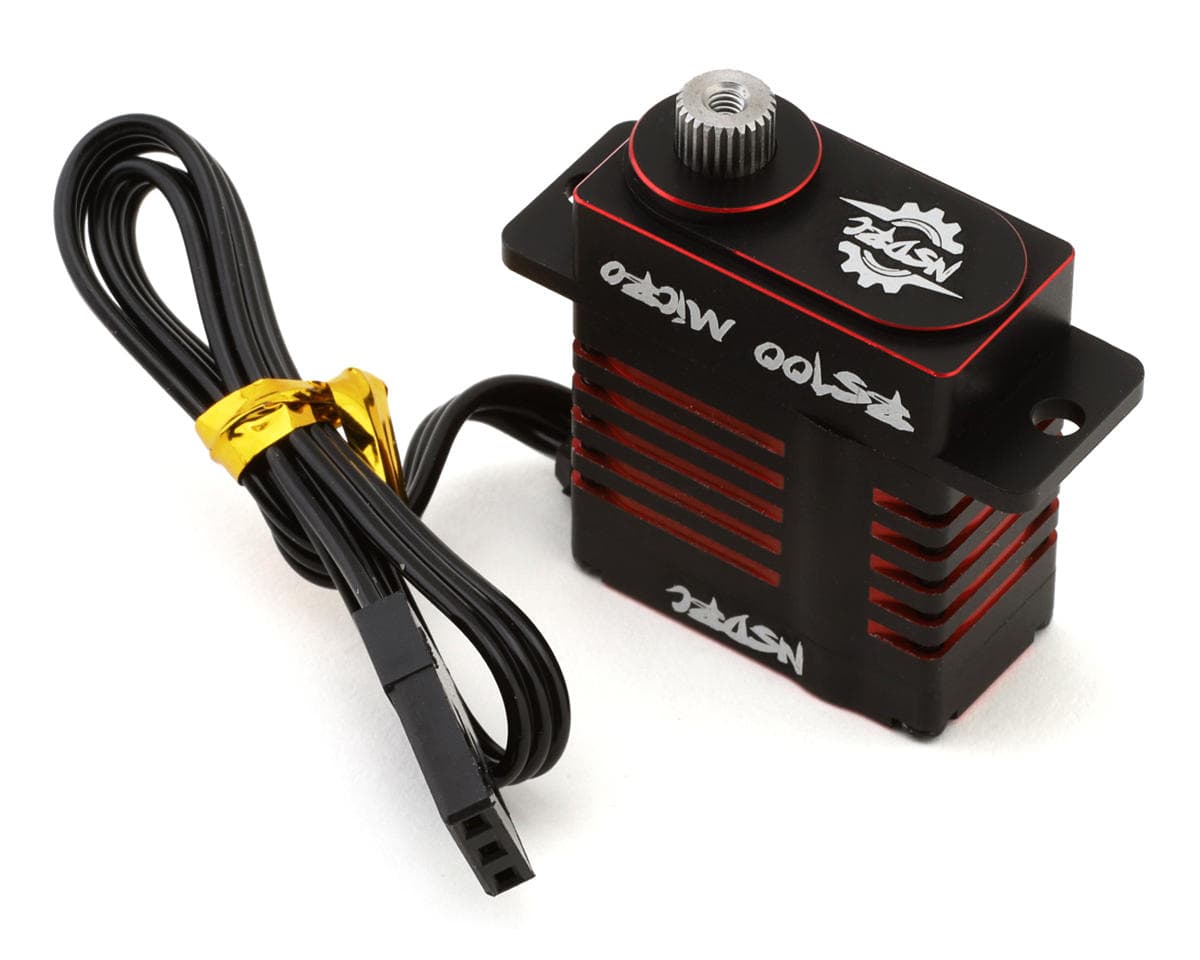

No Superior Designs RC RS100 Limited Edition Waterproof Micro Servo (HV) (Red) w/Aluminum Horn
About this part
RS100 Limited Edition Micro Servo Overview:
No Superior Designs RS100 Limited Edition High Torque Micro Servo. With an updated motor and heavy duty stainless steel gears for supreme power delivery and durability, this powerful RS100 limited edition micro servo is an excellent low budget option for applications in need of a reliable, durable and powerful micro servo! This servo features a black and red anodized all CNC-machined aluminum case, water resistant with 7-point O-ring seal, hardened stainless steel gears for maximum durability, high quality angle sensor and high voltage (HV) capability!
NOTE:
- Micro BEC is recommend for Micro servos being used in 1/24 and 1/18 Micro
- Not Submarine proof, do not submerge
Features:
- Black & Red anodized all CNC-machined aluminum Case
- Water Resistant with 7-point O-ring seal
- Hardened Stainless Steel Gears
- High voltage (HV) capable
Specifications:
- Type: Standard Micro
- Motor Type: Coreless
- Operating Voltage: 5V - 8.4V
- Gears: Hardened Stainless Steel
- Spline: 25T (4.9mm - Micro)
- Dimension (LxWxH): 26x23x12mm
- Weight: 20g
- Case: CNC-Machined Aluminum
- Torque:
- 6V: 152oz/ 11kg
- 7.4V: 175oz/ 12.7kg
- 8.4V: 197oz/ 14.2kg
- Speed:
- 6V: 0.09 sec/60°
- 7.4V: 0.07 sec/60°
- 8.4V: 0.06 sec/60°

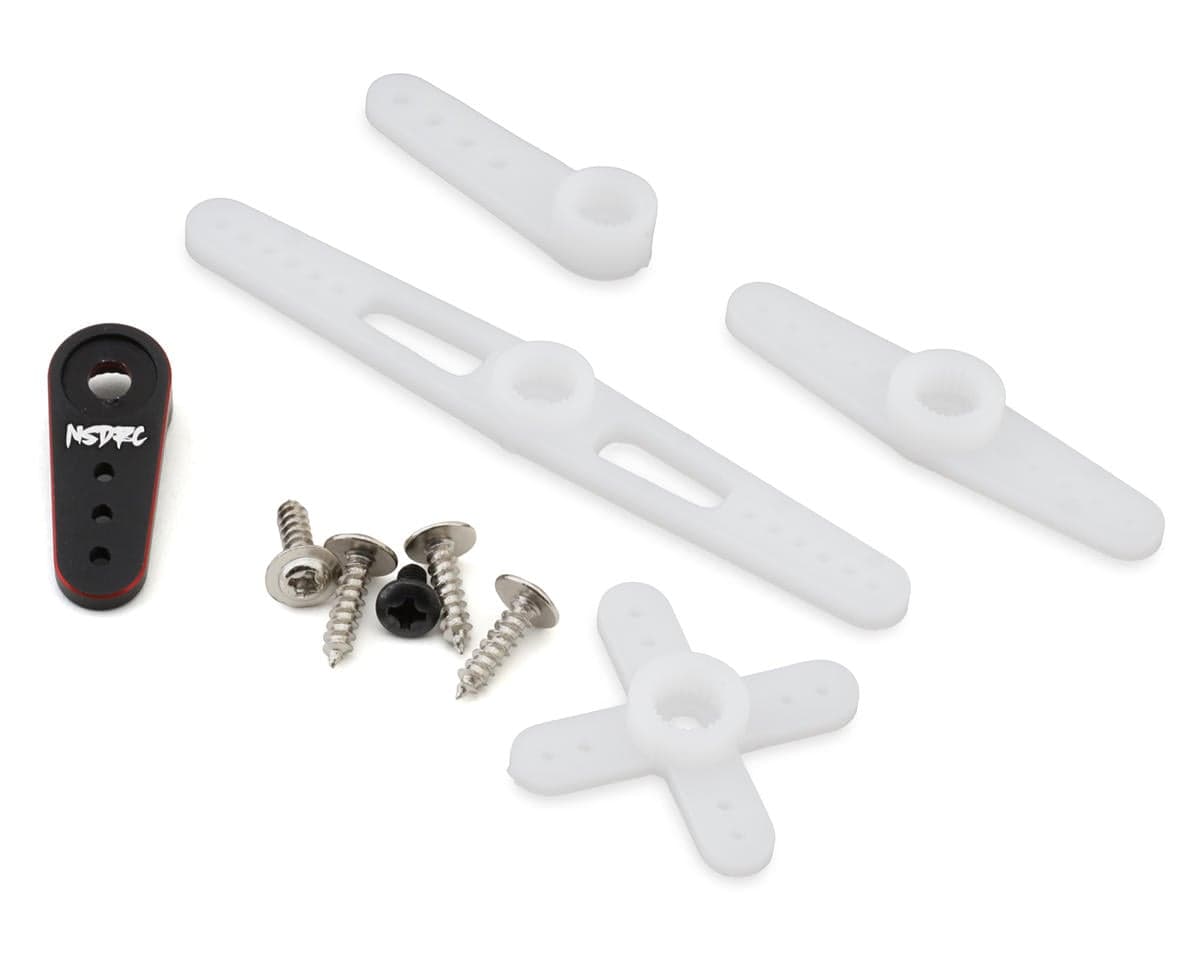

Includes:
- (1) RS100 Limited Edition High Torque Micro Servo
- (1) Anodized CNC-Machined micro horn
- Multiple composite horns
- Mounting screws, bushing and rubber grommets
Reviews5.0 · 4 reviews
I have this servo in my scx10iii mount on the hi/lo gear shift. This replaces the weak spectrum servo I had before. This rs100m will shift your gears no problem’o
I currently have this servo in my Mini-T and couldn't be happier. The response is so quick and it's full of power for such a small servo.
Easily pulls my comp and trail rigs around. I run it with the micro 8.4v bec for awesome compact strength
Purchased one at my LHS last week, and couldn’t be happier with it. Outstanding quality, machining and anodizing is flawless. The speed and torque is fantastic, and the price for all of this can’t be beat, not to mention they throw in an aluminum horn!
Four reviews, all rating the servo 5/5. Reviewers describe fast response and strong torque for a micro size, with use reported in a SCX10 III gear shift mount, a Mini-T, and crawler and trail rigs run on a micro BEC. One reviewer praises the machining and anodizing quality and the included aluminum horn, and calls the price competitive. Reviews are few and uniformly positive, and none report problems. Reviewers do not describe any drawbacks.
- + Fast response
- + Strong torque for small size
- + Good machining and anodizing quality
- + Includes aluminum horn
