No Superior Designs RC RS1500 1/5 Waterproof Brushless Low Profile Servo (HV) (High-Torque)
About this part
Servo Overview:
RS1500 1/5 Brushless High-Torque Low Profile Servo. Features an all-aluminum case that provides excellent heat dissipation, and a Powerful brushless motor with all metal gears that ensure supreme durability against the harshest conditions! Designed and specified to suit and feed the demand for 1/5 throttle, brake in gas setups, large scale planes, 1/6 crawlers, 1/5 on-road racing for steering and throttle/brake, and many other large scale applications needing great power and incredible speed! Get the RS1500 Low Profile 1/5 Servo to elevate your steering performance and precision to a higher level!
Features
- Ideal for large scale airplanes, on-road racing, crawlers and many other large scale applications needing great power and incredible speed!
- Low Profile waterproof design
- Powerful brushless motor
- Incredible speed and torque!
- 2-4S lipo capable, with direct power superior efficiency
- Capable of High Voltage (HV) operation
- Aluminum case provides cooler operating temperatures
- All stainless steel gears
Specifications:
- Speed:
- @8.4V: 0.12sec/60°
- @12.6V: 0.08sec/60°
- @16.8V: 0.06sec/60°
- Torque:
- @8.4V: 830oz-in (60kg-cm)
- @12.6V: 1165oz-in (84kg-cm)
- @16.8V: 1500oz-in (108kg-cm)
- Motor: Brushless
- Operating Voltage: 8.4V-16.8V
- Rotation: 180 Degrees
- Dimensions: 62.5x33x30mm
- Weight:-
- Operating Spline: 15T
Includes:

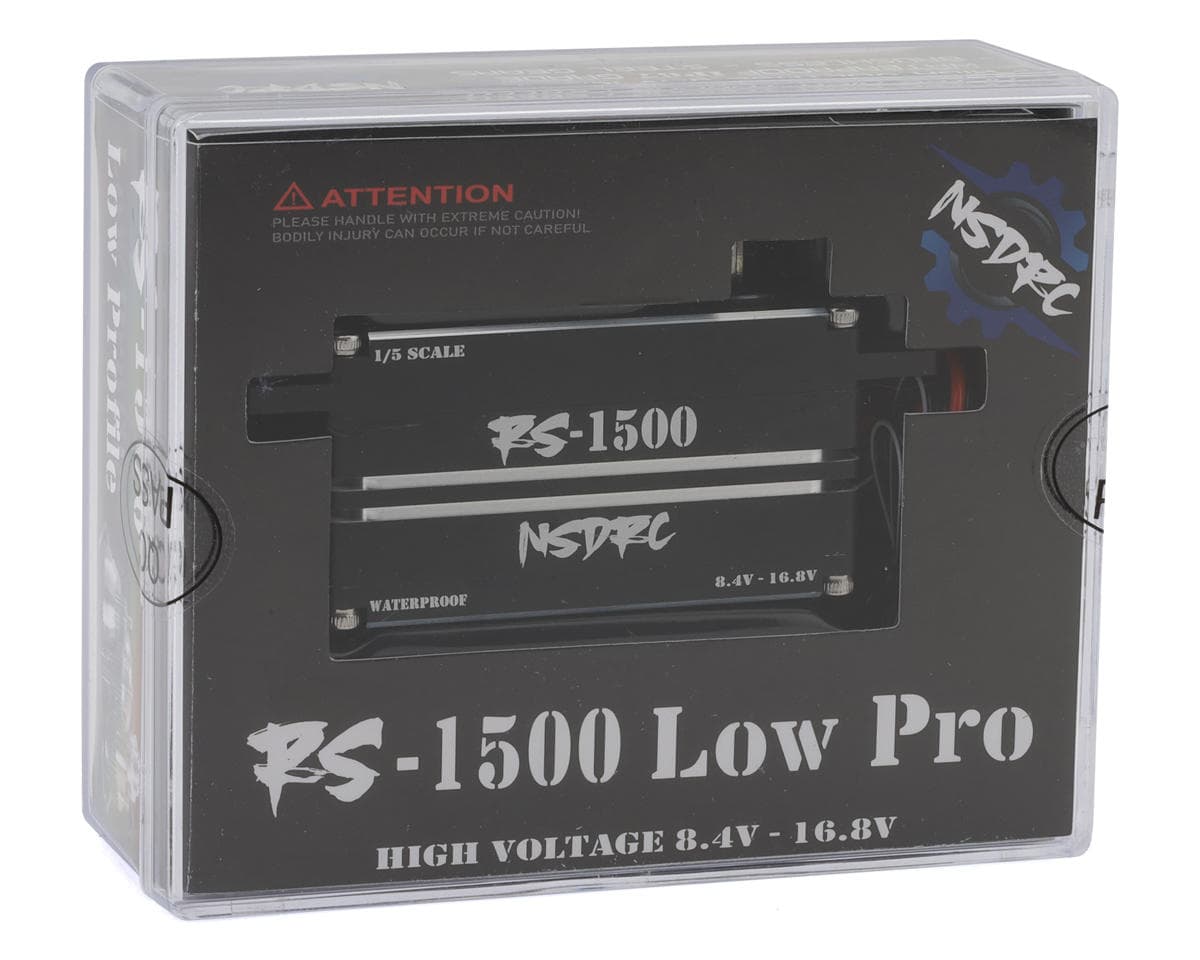

- (1) RS1500 1/5 Low Profile Servo

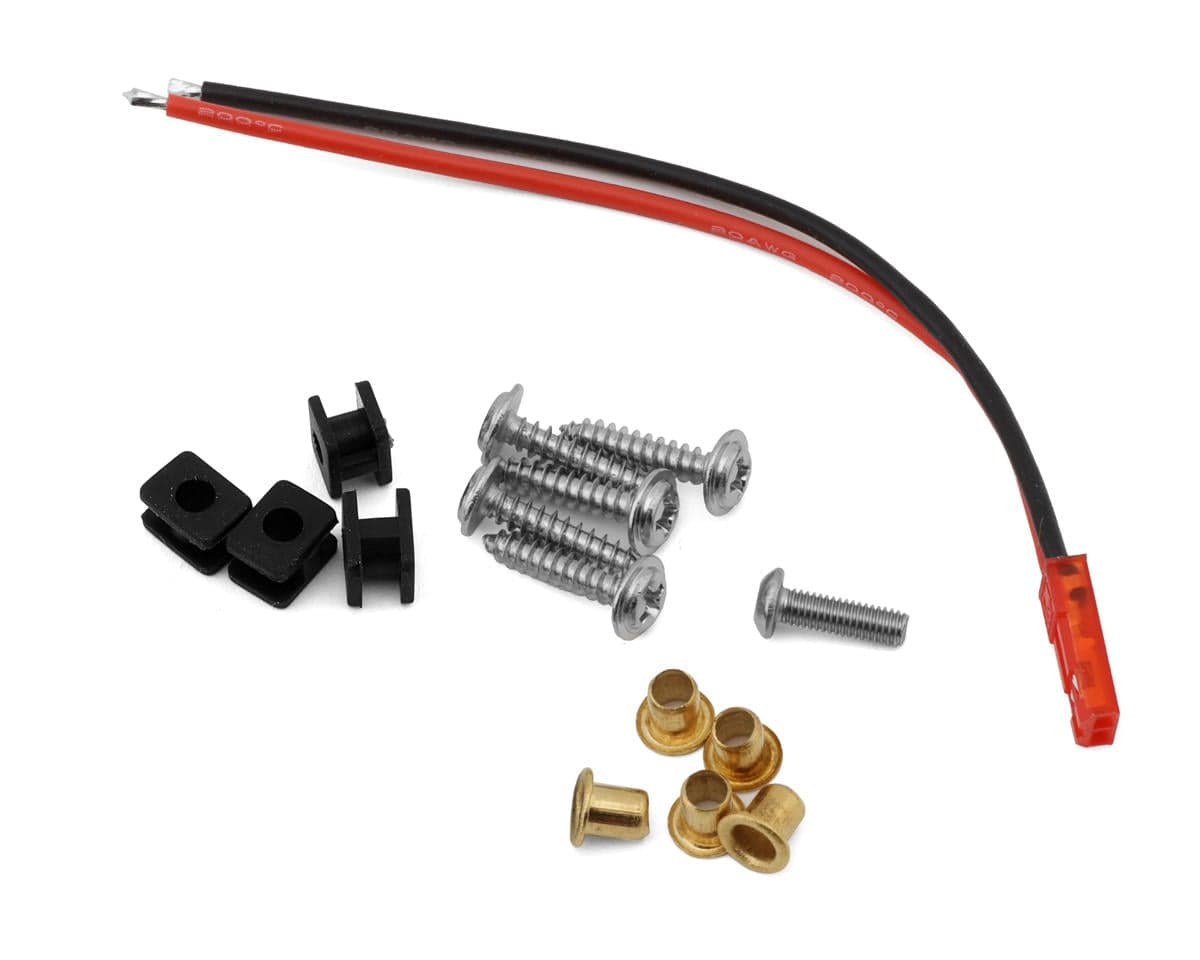

- Mounting Hardware
Reviews5.0 · 2 reviews
Used this servo in a scx6 metal buggy build. Fit perfect in a tight spot for cms.
This is the most compact large scale winch on the market. It’s crazy strong! I’ve lifted my modded SCX6 straight off the ground with this thing. Check out the NSDRC website for videos.
