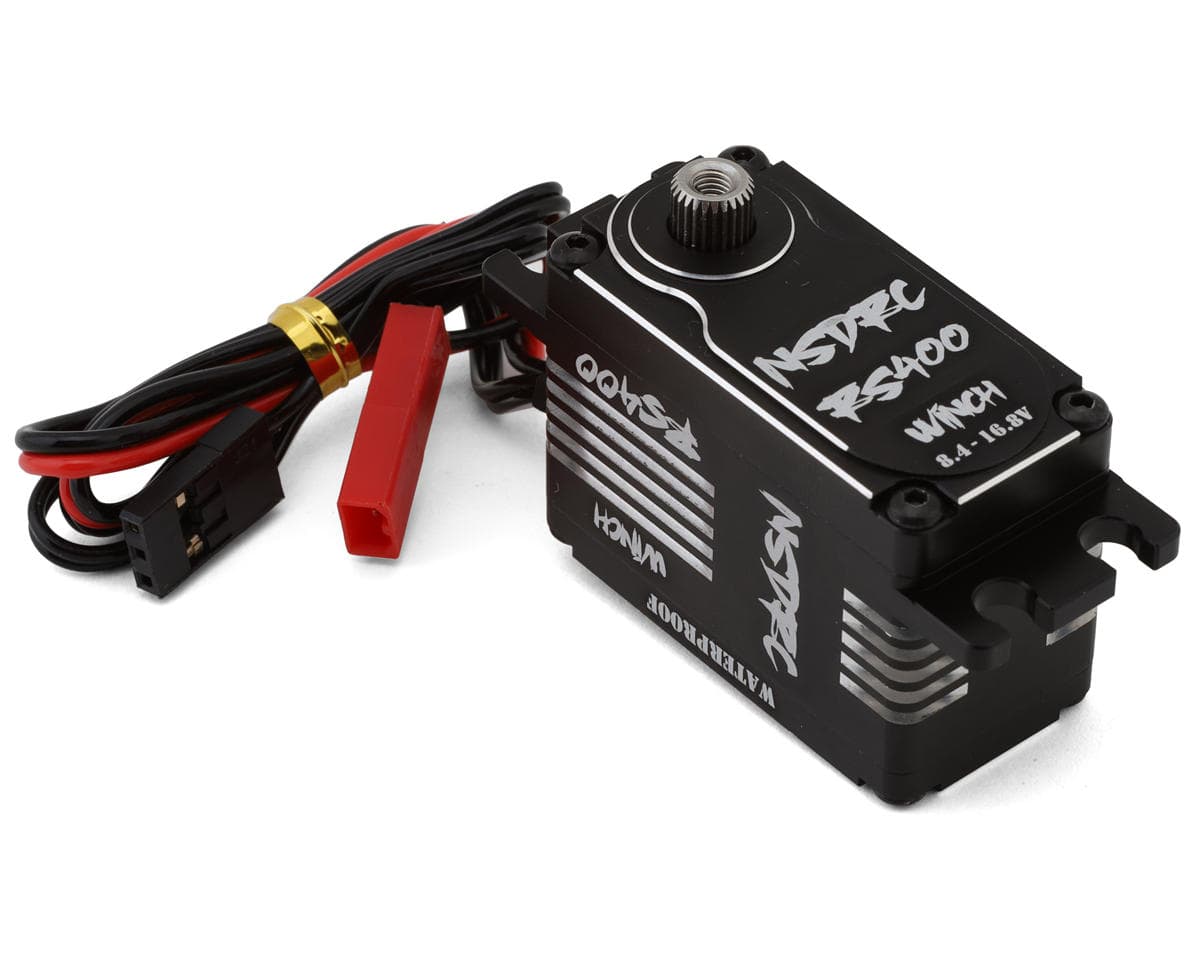

No Superior Designs RC RS400 Low Profile Servo Winch (High Voltage)
About this part
No Superior Designs RS400 Low Profile Servo Winch. Featuring killer speed, power, and precision brake hold this RS400 is one of the fastest and strongest low profile winches on the market with up to 450oz-in of pure torque and 0.05sec/60° of speed at 16.8V! Built-in winch controller and direct power so you no longer need to spend the extra money and effort on a controller or BEC to get the full performance out of the winch! Using the industry leading 5-gear design and magnetic angle sensor, the RS400 will provide you with an incredible brake hold, durability, and reliability that you can always count on!
NOTE:
- Does not work as steering servo
- Winch Line, Hook, and Mounts sold separately
Features:
- Hardened stainless steel gears
- CNC-machined aluminum Nano spool capable of holding 3 ft of line
- Full CNC-machined Aluminum Case
- Water resistant (Not Submersible)
- High voltage (HV) capable
- Built-in Winch controller (Requires remote and receiver with 3rd channel momentary or 3 position switch )
Specifications:
- Type: Micro Winch
- Motor Type: Coreless
- Operating Voltage: 8.4V-16.8V
- Gears: Hardened Stainless Steel
- Spline: 15T 3.8mm Nano
- Dimension (LxWxH): 20x17x10mm
- Weight: 10g
- Case: CNC-Machined Aluminum
- Torque:
- 8.4V: 215oz
- 12.6V: 330oz
- 16.8V: 450oz
- Speed:
- 8.4V: 0.09 sec/60°
- 12.6V: 0.06 sec/60°
- 16.8V: 0.05 sec/60°
Includes:

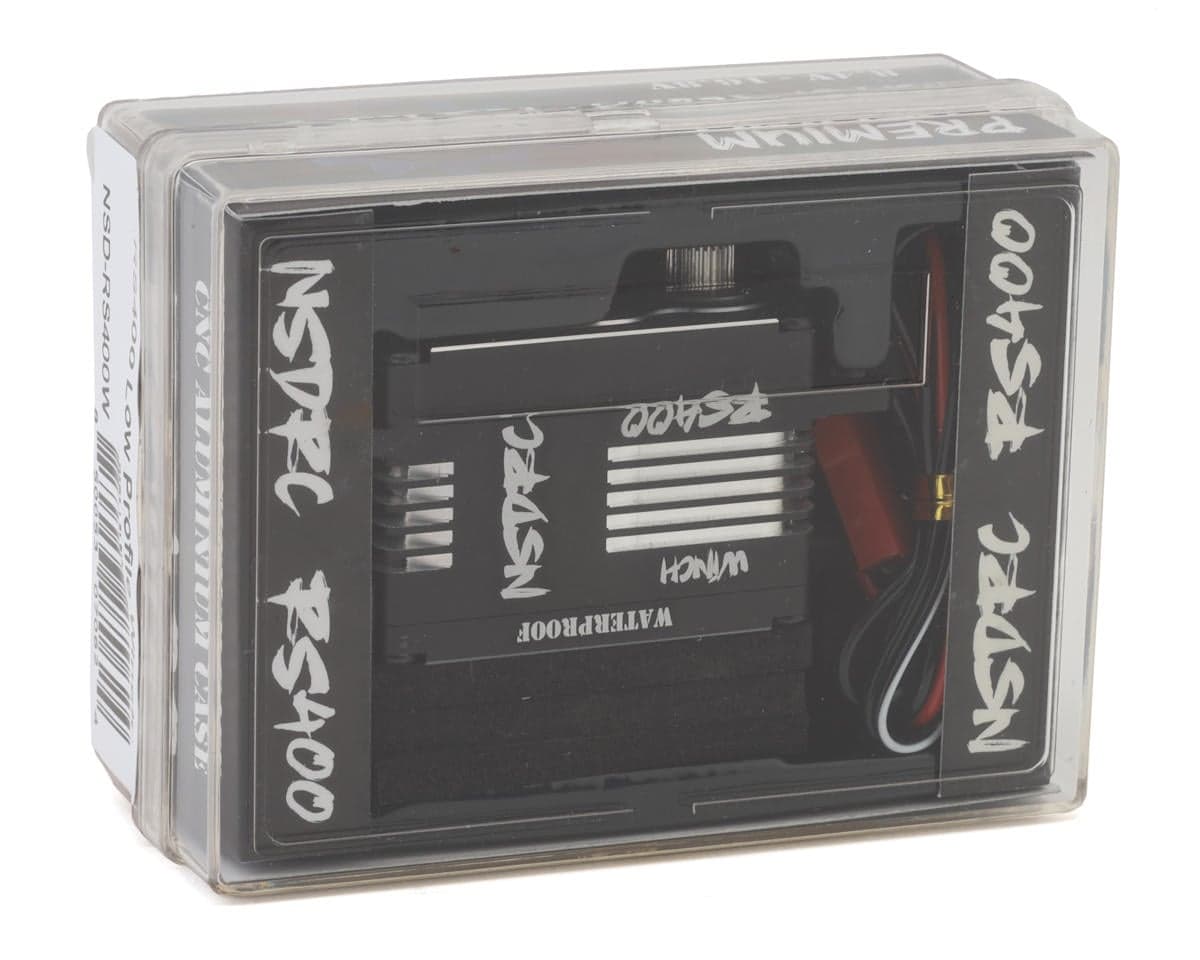

- (1) RS400 Low Profile Servo Winch

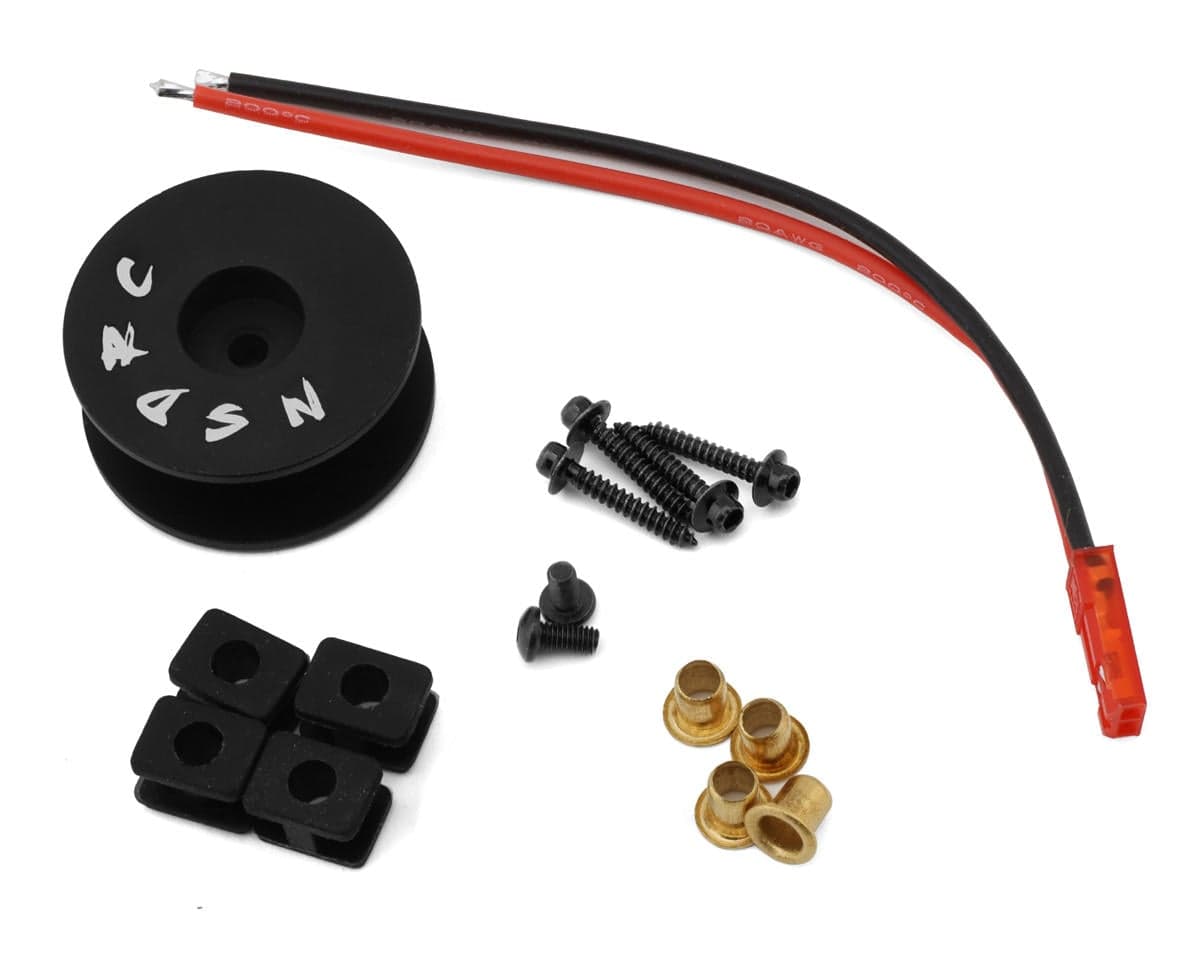

- (1) CNC-machined Aluminum Spool
- Mounting screws
Reviews4.6 · 9 reviews
The majority of the NSDRC product reviews are fake. All their products have reviews that are unverified, submitted around 6/1/2024, and from the same group of people. Open any two NSDRC products and compare the reviews to confirm.
This is a great servo winch. Fast and strong. Spool size is perfect. You can get a ton of line on it for that long reach.
I have 2 of these for a reason, mind blowing performance and there when I need it. My go to for my C2 comp rig
Awesome external spool winch. Tons of power and plenty fast for competition builds.
Installed this in my son’s vs410 trail rig and the amount of new lines unlocked at the trails was incredible ! His rig weighs around 9 pounds and the winch not once struggled to pull the rig over the line! Highly recommend getting one !
Eight of nine reviews rate this low-profile servo winch 5/5, and reviewers agree it is fast and strong, with a spool that holds a long line. Several use it in competition, trail, scale, and custom buggy builds, and one reviewer reports it pulled a roughly 9-pound rig over obstacles. Customer support is praised in one review. A single 1/5 review does not comment on performance. Instead, it alleges that the brand's reviews are unverified, were submitted around the same date, and come from the same group of people. This claim is not verified in the catalogue data, and no reviewer disputes the product's performance.
- + Fast and strong performance
- + Low-profile design
- + Spool holds a long line
- + Good customer support
