No Superior Designs RC RS700 V2 High Torque Low Profile Servo (High Voltage) (Black)
About this part
No Superior Designs RC RS700 V2 Servo and Horn. RS700 V2 is here and better than ever! Fully redesigned to fit larger hardened 416 stainless steel gears, a custom 4-pole brushless motor and an updated PCB to control it all! The RS700 V2 is the highest performing low profile servo on the market. Not only is the RS700 more powerful, more power efficient, and has a more durable gear train, but it is also more affordable than the competition! The RS700 V2 is built with the highest quality parts, designed for the performance demands of competition level
One of the most notable features of the RS700 servo is the industry leading 5-gear gear train design! With the reduction of the 5 gears, durability and precision have been dramatically increased over the standard 4-gear design! The compact, low profile design allows you to shed some weight and provide more space without sacrificing performance. If you're looking for that hire end with an extra performance edge in your build, the RS700 V2 is all you need!
NOTE:
- Not recommended for rock bouncers or bashers
- The power connection plug, or power switch on your ESC, must be disconnected and turned off when not in use to prevent damage to the servo and/or battery! Not recommended to power using balance plug
- Black anodized all CNC-machined aluminum Case
- Water Resistant
- Hardened Stainless Steel Gears
- Direct Power Superior Efficiency
- 4-Pole Custom Brushless Motor
- Industry Leading 5-Gear Design
- Magnetic Angle Sensor
- High voltage (HV) capable
- Type: Standard Low-Profile
- Motor Type: 4-Pole Brushless sensored
- Operating Voltage: 8.4V - 16.8V
- Gears: Hardened Stainless Steel
- Spline: 25T
- Dimension (LxWxH): 40x30x20mm
- Weight: 70g
- Case: CNC-Machined Aluminum
- Torque:
- 8.4V: 634oz-in / 46kg-cm
- 12.6V: 912oz-in / 66kg-cm
- 16.8V: 1115oz-in / 80kg-cm
- Speed:
- 8.4V: 0.15 sec/60°
- 12.6V: 0.11 sec/60°
- 16.8V: 0.09 sec/60°

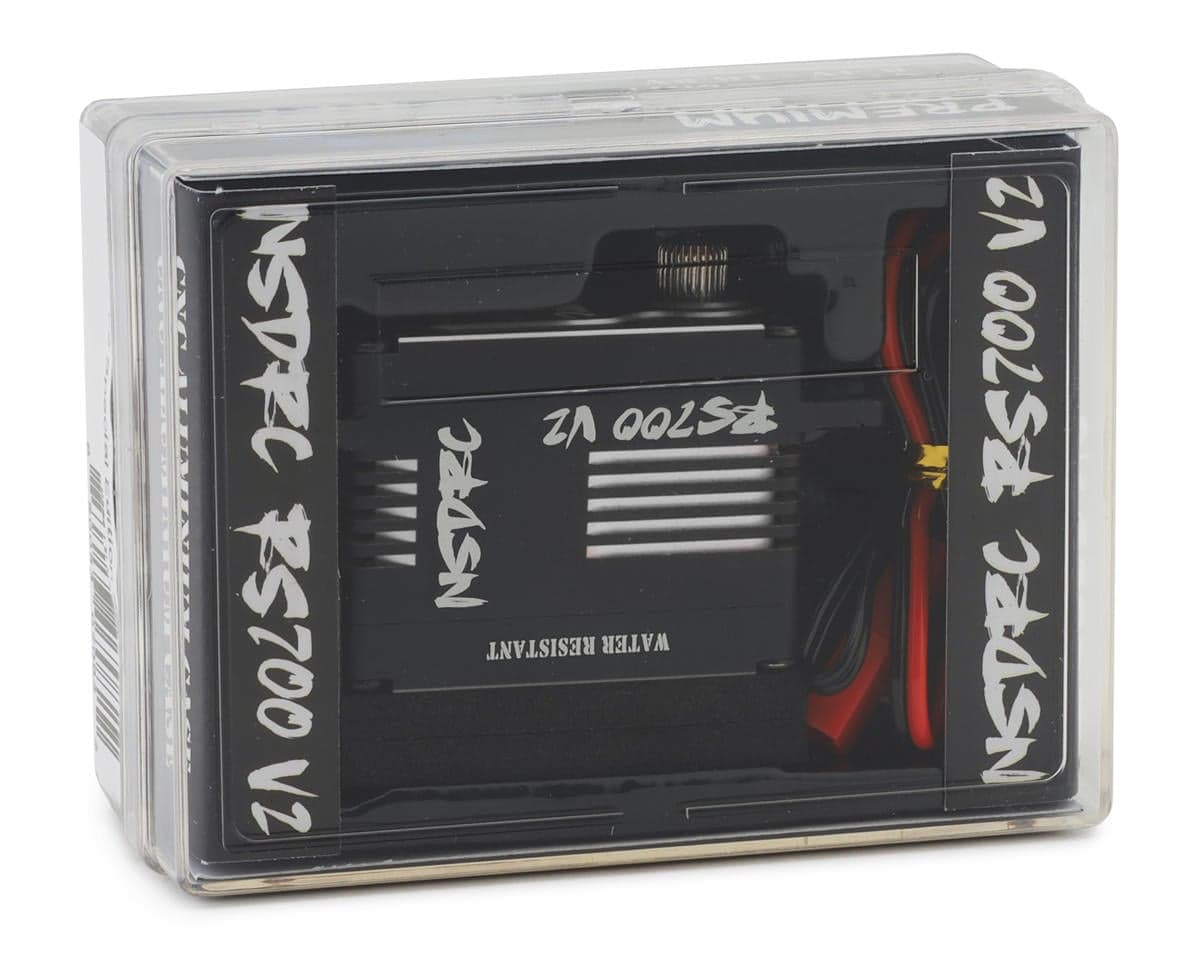

- (1) S700 V2 High Torque servo

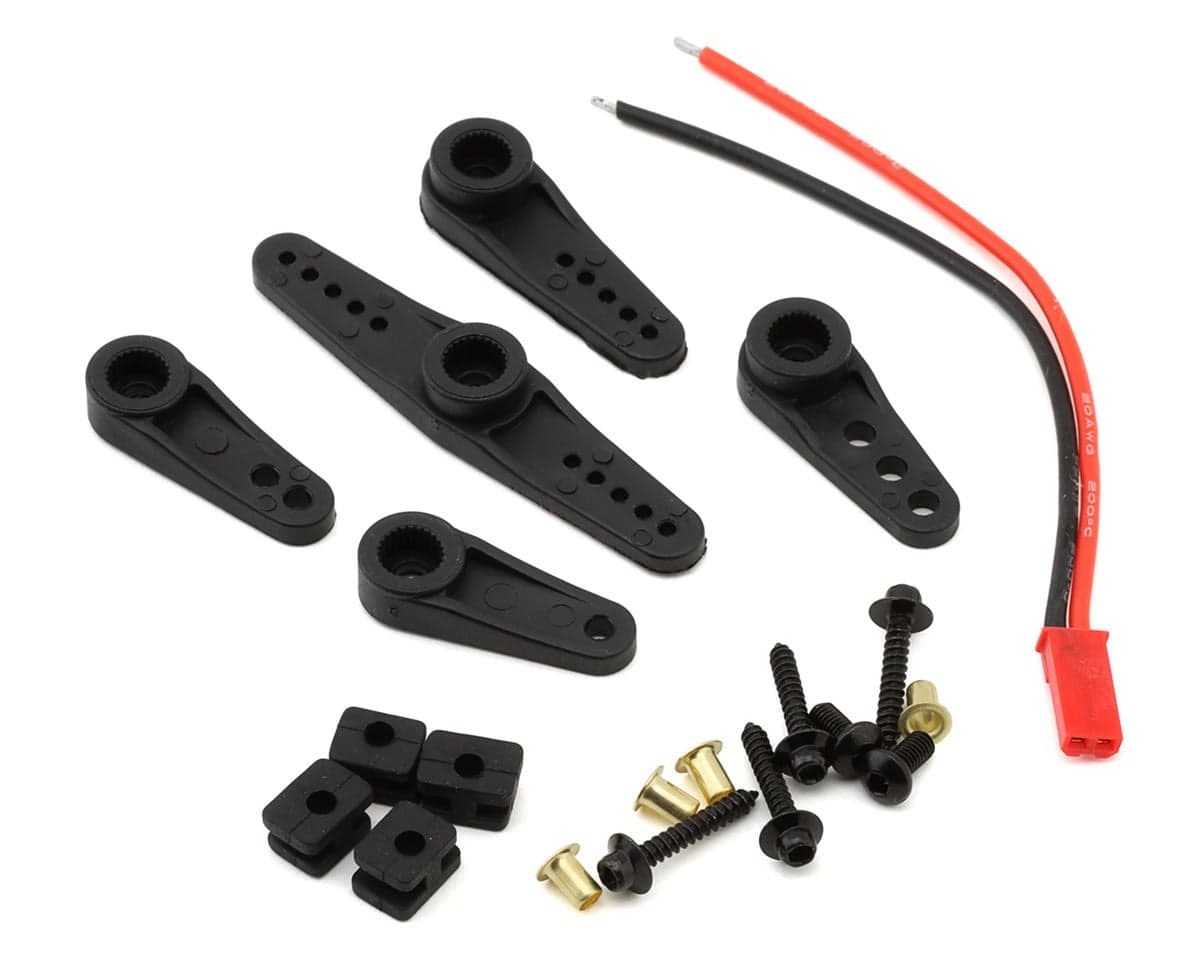

- (1) Pre-wired 2-Pin JST plug
- Multiple composite horns
- Mounting screws, bushing and rubber grommets
Features:
Specifications:
Includes:
Reviews4.6 · 17 reviews
The majority of the NSDRC product reviews are fake. All their products have reviews that are unverified, submitted around 6/1/2024, and from the same group of people. Open any two NSDRC products and compare the reviews to confirm.
I use two of these in my Redcat Ascent and they perform flawlessly. So powerful and so fast plus it in a low profile body.
Best lo pro servo available. One of my absolute favorites
My cheater rig servo, small, light and plenty of power on my minimal weight builds.
Crazy strong and fast in a bite size package … if you need power and you’re cramped on space … this is the servo for you
Reviewers consistently describe the RS700 V2 low-profile servo as compact and powerful, with strong speed, and many say it suits tight spaces such as behind-the-axle mounts in crawlers, sporty builds and minimal-weight rigs. Most reviews are five-star. One verified owner reported jitter on power-up when mounted behind the axle, which the manufacturer's support attributed to placement; that owner switched to a different servo. Several reviews appear to share similar wording and timing, and one reviewer argues the brand's reviews are unreliable, so the rating pattern should be read with caution. Reviews are for the High Voltage variant.
- + Compact low-profile size
- + Strong torque for its size
- + Fast response
- + Suits behind-the-axle mounting
- − Jitter on power-up reported by one verified owner
- − Manufacturer support response criticised
- − Authenticity of reviews questioned
