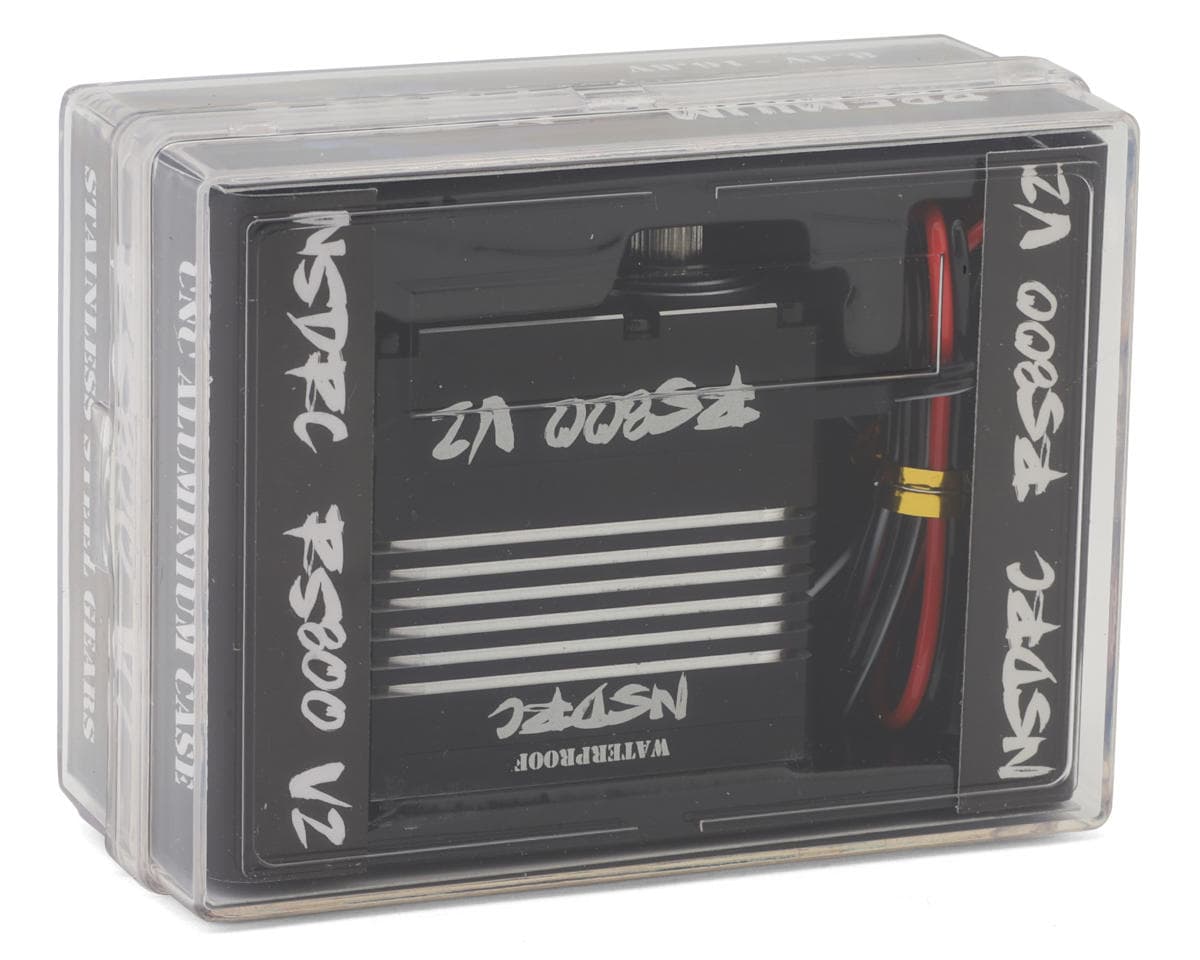

No Superior Designs RC RS800 V2 Ultra High Torque Brushless Servo (High Voltage)
About this part
No Superior Designs RS800 V2 Ultra High Torque Brushless Servo. Designed to fulfill the power and speed demanded for competition level 1/10 RC crawlers and to be one of the top performing servos on the market! This powerful RS800 V2 features hardened stainless steel gears, black anodized all CNC-machined aluminum case, high quality powerful brushless motor, high voltage (HV) capability and a water resistant design. In addition, this RS800 V2 can put out up to 1100oz-in/80kg-cm of pure torque and 0.10 sec/60° of speed on 16.8V! With all these features and more at a budget friendly cost, this servo offers an incredibly unbeatable value!
NOTE:
- The power connection plug, or power switch on your ESC, must be disconnected or turned off when not in use to prevent damage to the servo and/or battery.
- Not recommended to power using balance plug
Features:
- Hardened stainless steel gears
- Black anodized all CNC-machined aluminum case
- Water resistant (Not Submergible)
- Designed and built with the power and speed needed for competition level 1/10 RC crawlers
- High quality powerful brushless motor
- High voltage (HV) capable
- Built with the top quality materials
Specifications:
- Type: Standard
- Motor Type: Brushless
- Operating Voltage: 8.4V - 16.8V
- Gears: Hardened Stainless Steel
- Spline: 25T
- Dimension (LxWxH): 40x39x20mm
- Weight: 85g
- Case: CNC-Machined Aluminum
- Torque:
- 8.4V: 600oz/ 43kg
- 12.6V: 900oz/ 65kg
- 16.8V: 1100oz/ 80kg
- Speed:
- 8.4V: 0.18 sec/60°
- 12.6V: 0.14 sec/60°
- 16.8V: 0.10 sec/60°

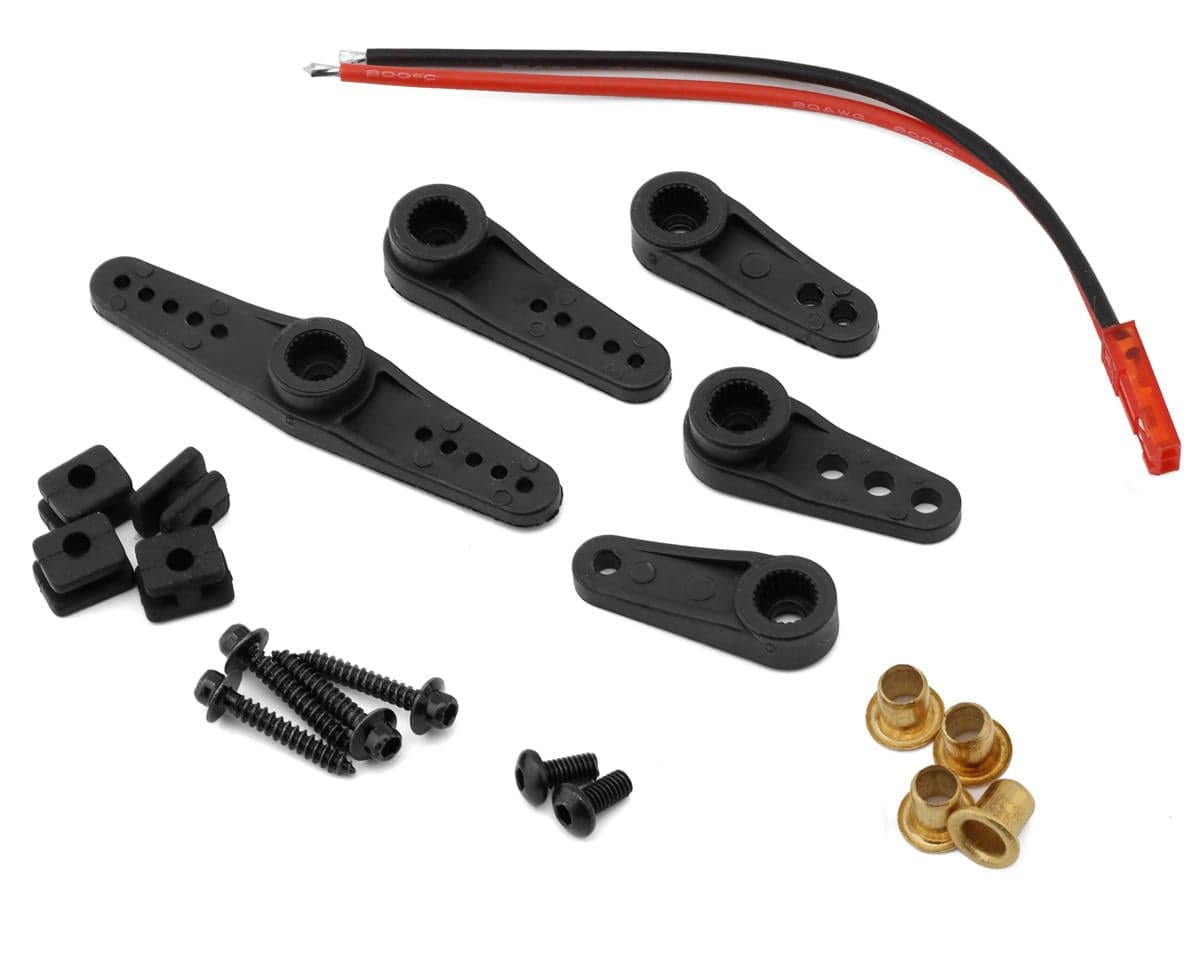

Includes:
- (1) RS800 V2 Ultra High Torque Brushless Servo
- Multiple composite horns
- Mounting screws, bushing and rubber grommets
Reviews4.7 · 25 reviews
I have been running this in my comp rigs, Ryft and Bomber. These are absolutely awesome with zero issues to date.
Great servo lots of power & fast. Perfect for a rock crawler
NSDRC are the only servos I use! I have dozens of them and have never had an issue with one of them. Rs700, rs800 or even the rs500. All great servos.
Wow! Just Wow! This servo is out of this world in my 1/10 Capra!
Done shopping with these people 2nd time my order did not show up. Plenty of other places to order from an actually get my order
Most of the 25 reviews are 5/5 and describe the RS800 V2 high-voltage servo as strong, fast and durable, with several reviewers using it for over three years in rock crawlers, trucks and racing. Reviewers mention its direct power and torque and say it has few or no failures. Two 1/5 reviews do not address servo performance. One concerns a missing order, and the other alleges that the product's reviews are fake, a claim that is not substantiated in the review itself. Few reviews mention drawbacks with the servo.
- + Strong torque and power
- + Fast response
- + Durable with long-term use
- + Suited to crawlers and rock racing
- − Order fulfilment problem reported by one buyer
- − Unsubstantiated claim of fake reviews
