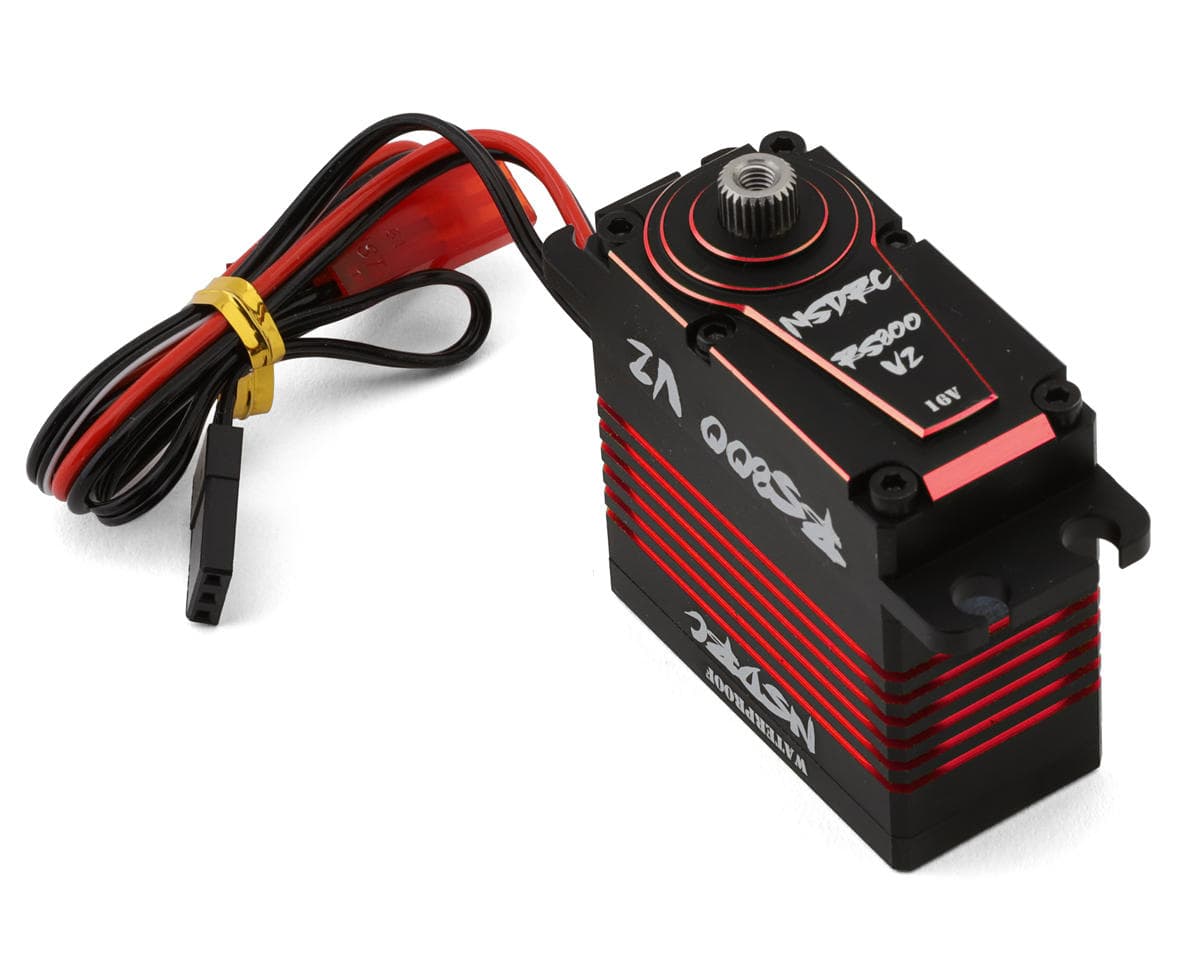

No Superior Designs RC RS800 V2 Waterproof Brushless Aluminum Case Servo (HV) Special Edition (Red) w/Aluminum Horn
About this part
Servo Overview:
This is the RS800 V2 Special Edition Brushless Servo from No Superior Designs RC, designed with hardened 416 stainless steel gears, and a powerful 4-pole brushless motor to redefine speed, power, and precision in RC applications. With an astonishing 1100oz-in of torque and fast 0.10 transit speed at 16.8V, the RS800 V2 is the top contender for application requiring extreme torque, speed and durability in a brushless servo!
NOTE:
- The power connection plug, or power switch on your esc, MUST be disconnected/ turned off when not in use to prevent damage to the servo and/or battery
- Not recommended to power using balance plug
Features:
- Extreme Performance: Delivers 1115oz-in of torque and 0.09 transit speed at 16.8V
- Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability
- Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions
- Waterproof Design: Perfect for outdoor tracks and trails!
- High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance
Specifications:
- Speed:
- @8.4V: 0.18sec/60°
- @12.6V: 0.14sec/60°
- @16.8V: 0.10sec/60°
- Torque:
- @8.4V: 600oz-in (43kg-cm)
- @12.6V: 900oz-in (65kg-cm)
- @16.8V: 1100oz-in (83kg-cm)
- Motor: Brushless
- Operating Voltage: 8.4V-16.8V
- Operating Temp.: 14F-122F (-10C/50C)
- Dimensions(LxWxH): 1.57"x0.78"x1.53" (40x20x39.1mm)
- Weight: 2.99oz (85g)
- Operating Spline: 25T
Includes:
- (1) RS800 V2 Special Edition Brushless Servo (High Voltage)

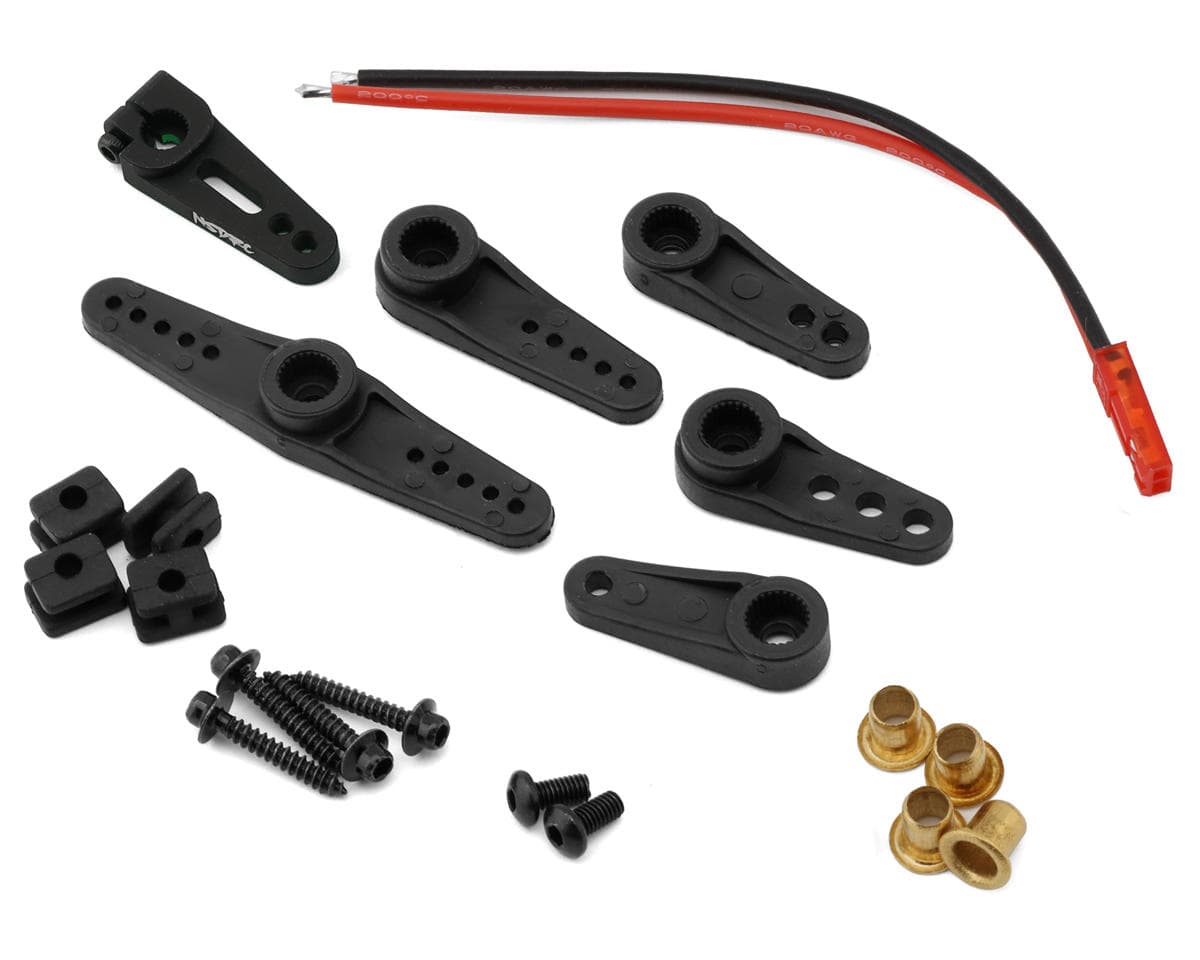

- (1) Aluminum Servo Horn
- Servo Horns and Mounting Hardware
Reviews4.8 · 6 reviews
I really like this servo compared to the cheap big box ones I normally use. Kind of a steep price point but hopefully you get what you pay for. The steering angles I can achieve with this are unreal. I’ve never had to adjust the settings as much as this one which is a good thing. You could make an awesome drift car with this but works great on my crawler.
Love the red. Goes perfectly on one of my color match builds. And it’s on a rs800. Can’t beat the power and speed.
If you’re looking for a direct power servo that can do it all this is the servo for you! I highly recommend!
Love the color and power of this servo If your color matching this is the way!
Love the color options. Killer servo!!! Highly recommend it.
Six reviews, mostly five-star, describe the RS800 V2 HV servo as powerful, fast and well suited to colour-matched builds. One verified owner using it on a crawler reports strong steering angles and says it has needed less adjustment than cheaper servos, though they note the price is steep. Another reviewer uses two in a 4WS build and calls its direct power class-leading. The reviews do not discuss durability, waterproofing or the aluminium horn in detail, and the one negative remark concerns price only. Several reviews praise the red colour option specifically. Most reviews are brief and do not describe long-term use, so the evidence on reliability is limited.
- + Strong power and speed
- + Steering angles and adjustment
- + Appealing red colour for colour-matched builds
- + Direct power performance
- − Steep price point
