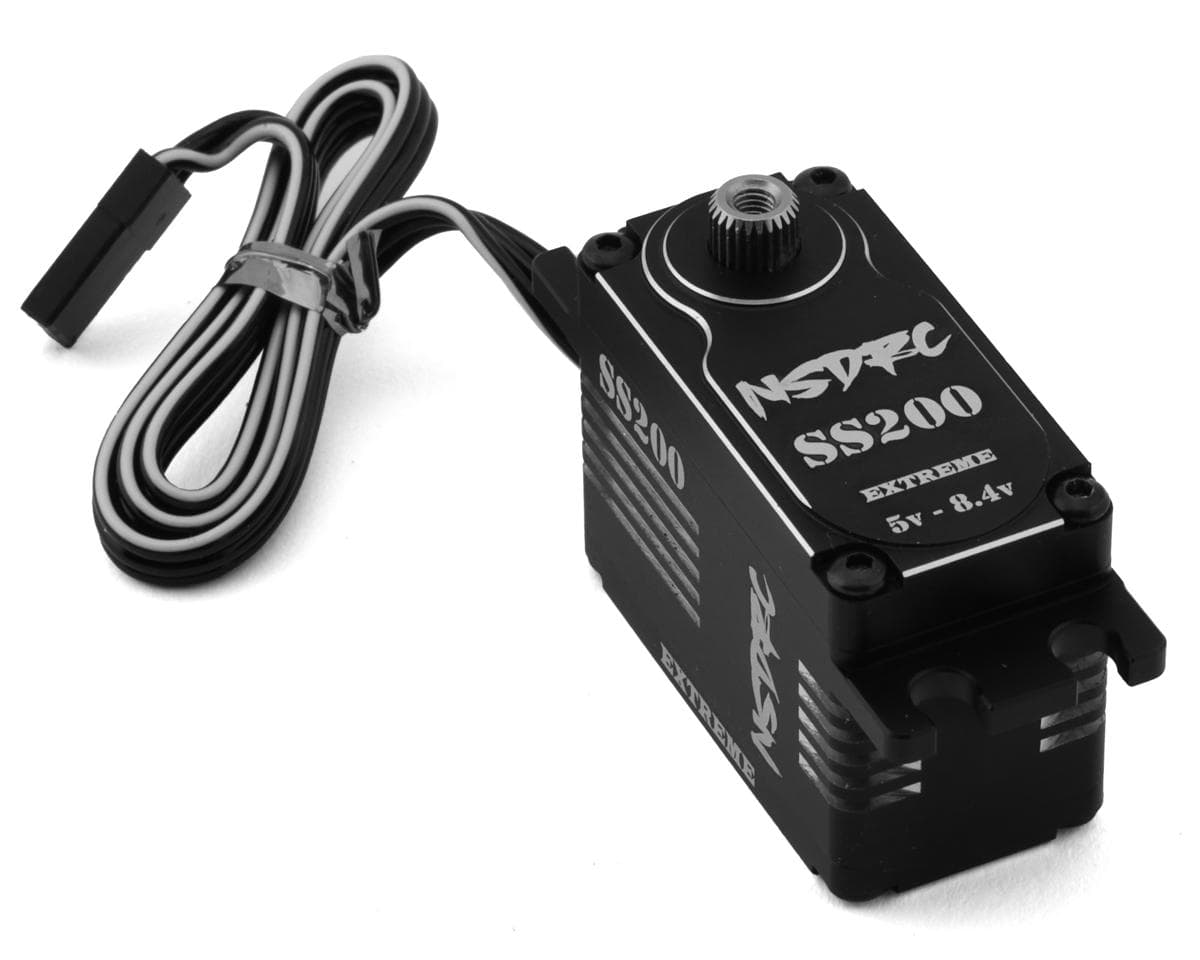

No Superior Designs RC SS200 Extreme Performance Low Profile Servo (High Voltage)
About this part
Servo Overview:
This is the SS200 Extreme Performance Low Pro Servo from No Superior Designs RC, designed to redefine speed, power, and precision in RC applications. With an astonishing 244 oz-in of torque and lightning-fast 0.033 transit speed at 8.4V, the SS200 is the top contender for 1/12 to 1/8 scale on/off-road racing, large scale planes, helicopters, low riders, robotics, and any other application requiring extreme speed, unparalleled responsiveness, and excellent power.
Features:
- Extreme Performance: Delivers 244 oz-in of torque and 0.033 transit speed at 8.4V.
- Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability.
- Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions.
- High-Efficiency Motor: Powered by a high-quality brushless motor for next-level precision and performance.
Specifications:
- Speed:
- @6.0V: 0.045sec/60°
- @7.4V: 0.037sec/60°
- @8.4V: 0.033sec/60°
- Torque:
- @6.0V: 177oz-in (12.8kg-cm)
- @7.4V: 215oz-in (15.5kg-cm)
- @8.4V: 245oz-in (17.6kg-cm)
- Motor: Digital Coreless
- Operating Voltage: 5.0V-8.4V
- Dimensions(LxWxH): 1.57"x0.79"x1.06" (40x20x27mm)
- Weight: 2.30oz (65g)
- Operating Spline: 25T
Includes:

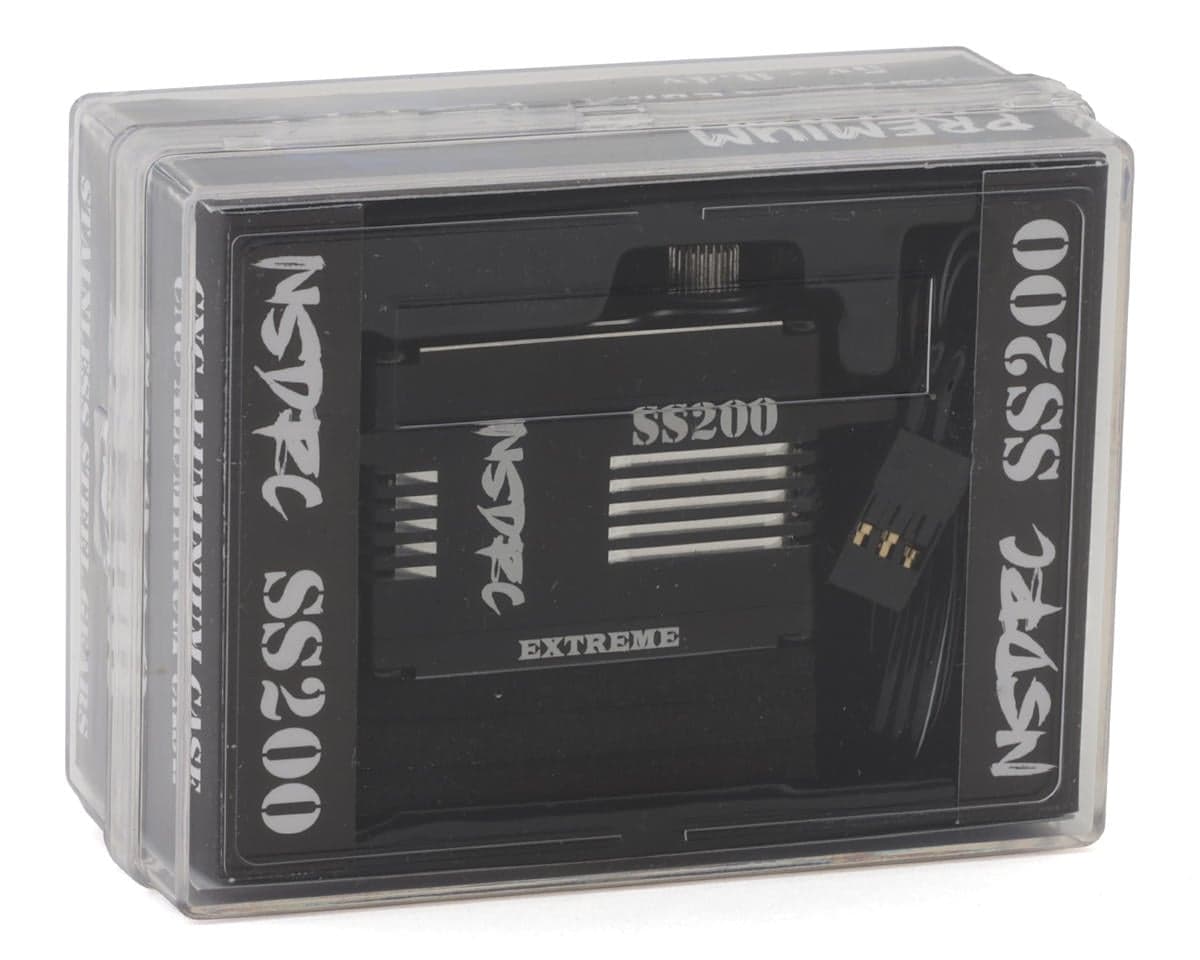

- (1) SS200 Extreme Performance Low Pro Servo

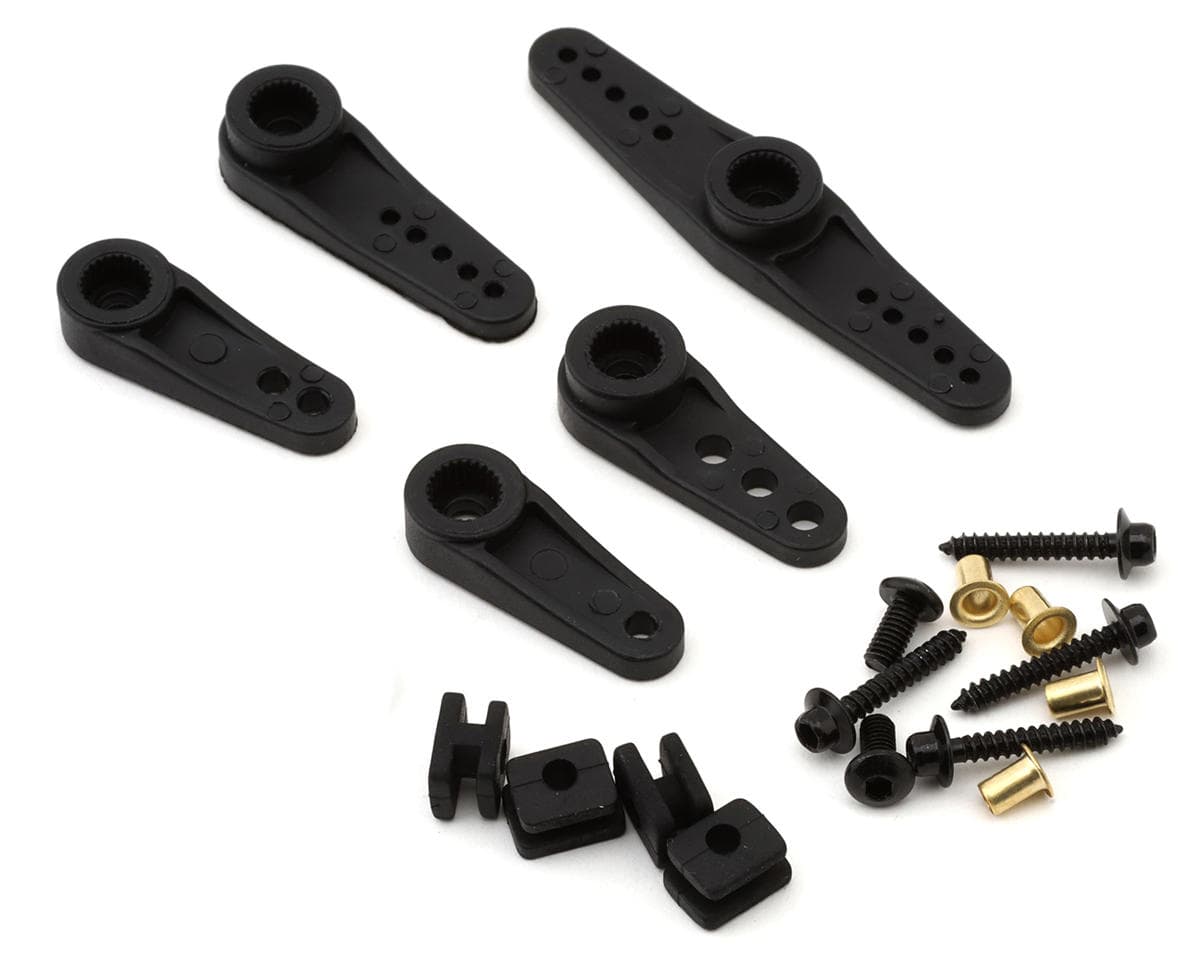

- Servo Horns and Mounting Hardware
Reviews5.0 · 2 reviews
Used this servo in a buggy. This thing is insane fast and powerful! Works perfect for my driving.
Outstanding servo! I installed this into my recent B7D build. It's fast and fit perfectly. I went with the ProTek horn that perfectly matches the AE version. I highly recommend NSDRC for any RC!
