O.S.

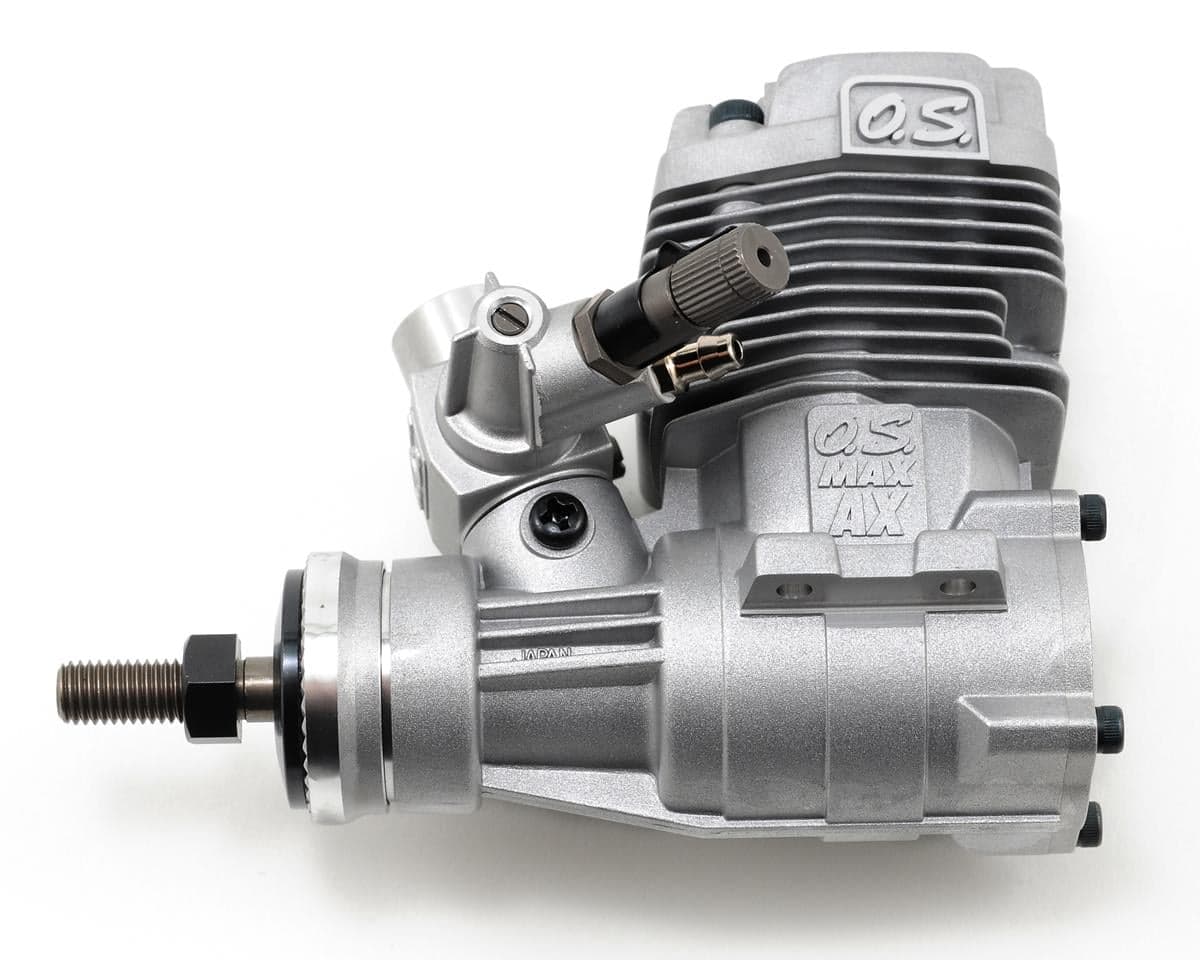

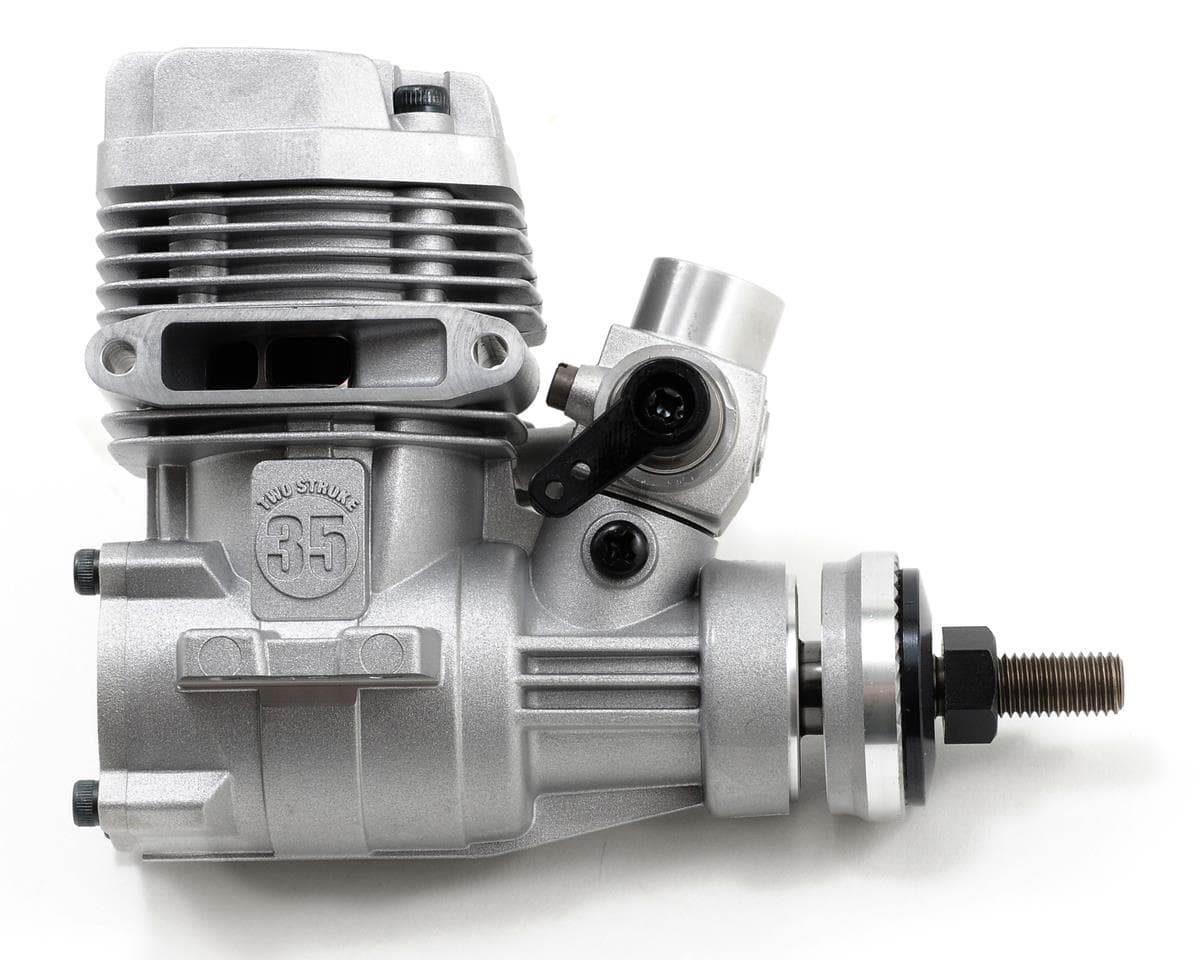

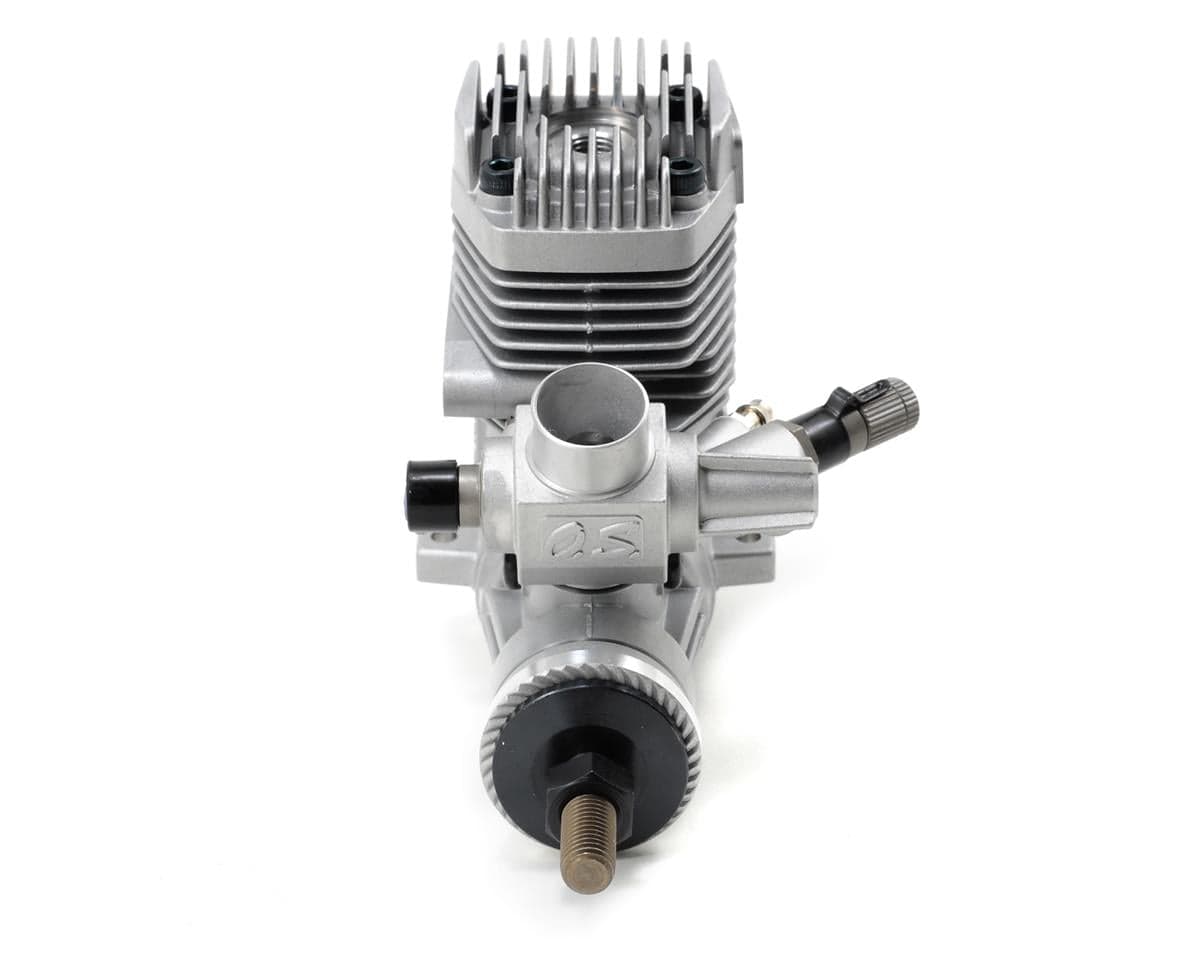

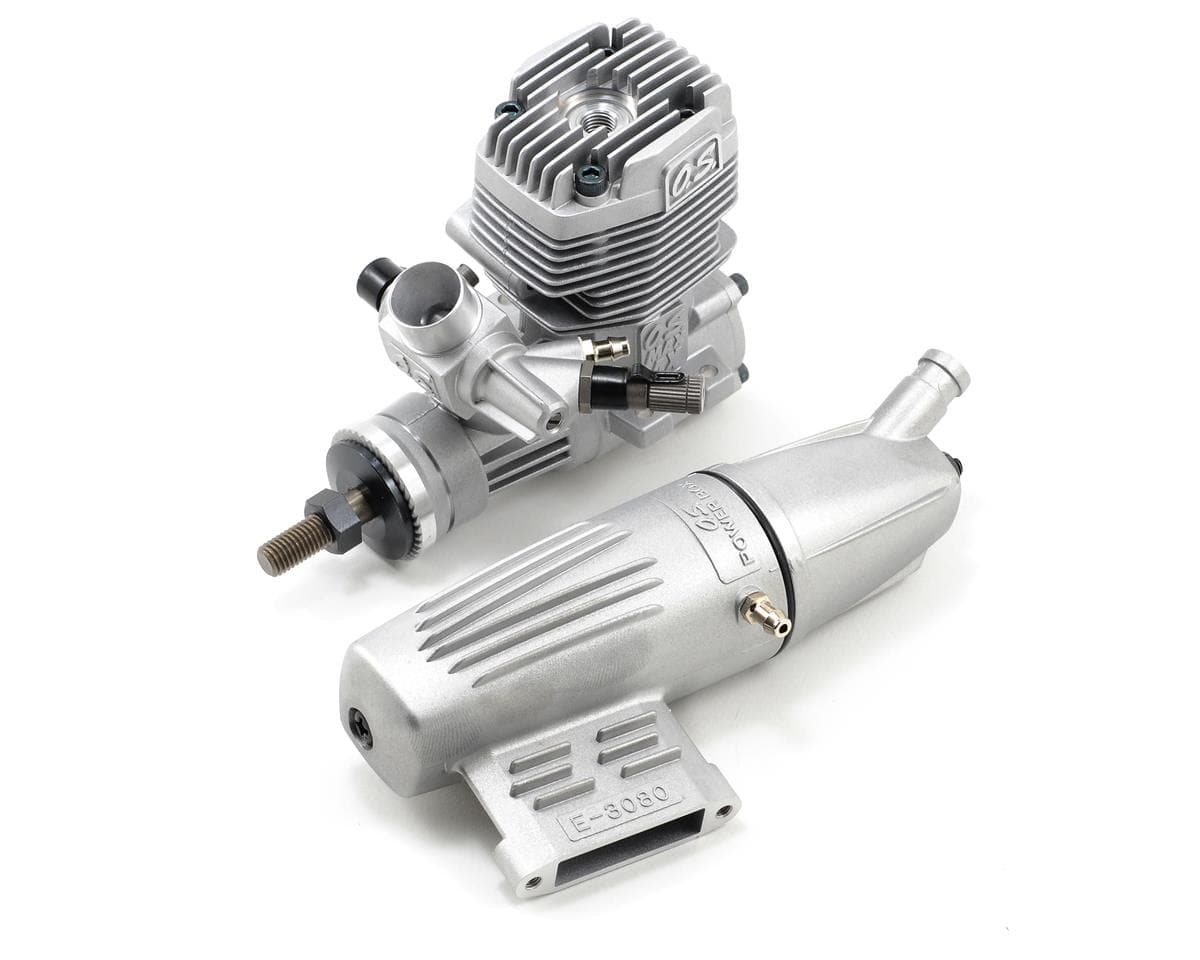

O.S. 35AX ABL .35 Airplane Glow Engine w/Muffler
Part # OSM131005.0(2)
Where to buy
$189.99
Prices are as last seen at the store; stock is not tracked.
About this part
Specifications:
Output: 1.3PS @ 16,000 RPM
Oil Type & Content: At least 18% synthetic lubricant
Crankshaft Type: Threaded
Muffler Weight: 2.93 oz (83 g)
Bore: 0.795" (20.2mm)
Stroke: 0.709" (18mm)
Plug Type: O.S. #8
Muffler Type: 2-piece aluminum
Prop Range: 10x6 - 12x6
Crankshaft Threads: UNF1/4-28
Benchmark Prop: 10x6 break in
Engine (Only) Weight: 9.88 oz (280 g) w/o muffler
RPM Range: 2,500 - 13,000
Cylinders: Single
Displacement: 0.352 cu in (5.77 cc)
Product Length: 3.0" (75.5mm) from back plate to front of drive hub
Product Width: 1.8" (45mm) at mounting tabs
Power Type: Glow
Product Height: 2.4" (61.5mm) bottom of mounting tab to top of cylinder head
