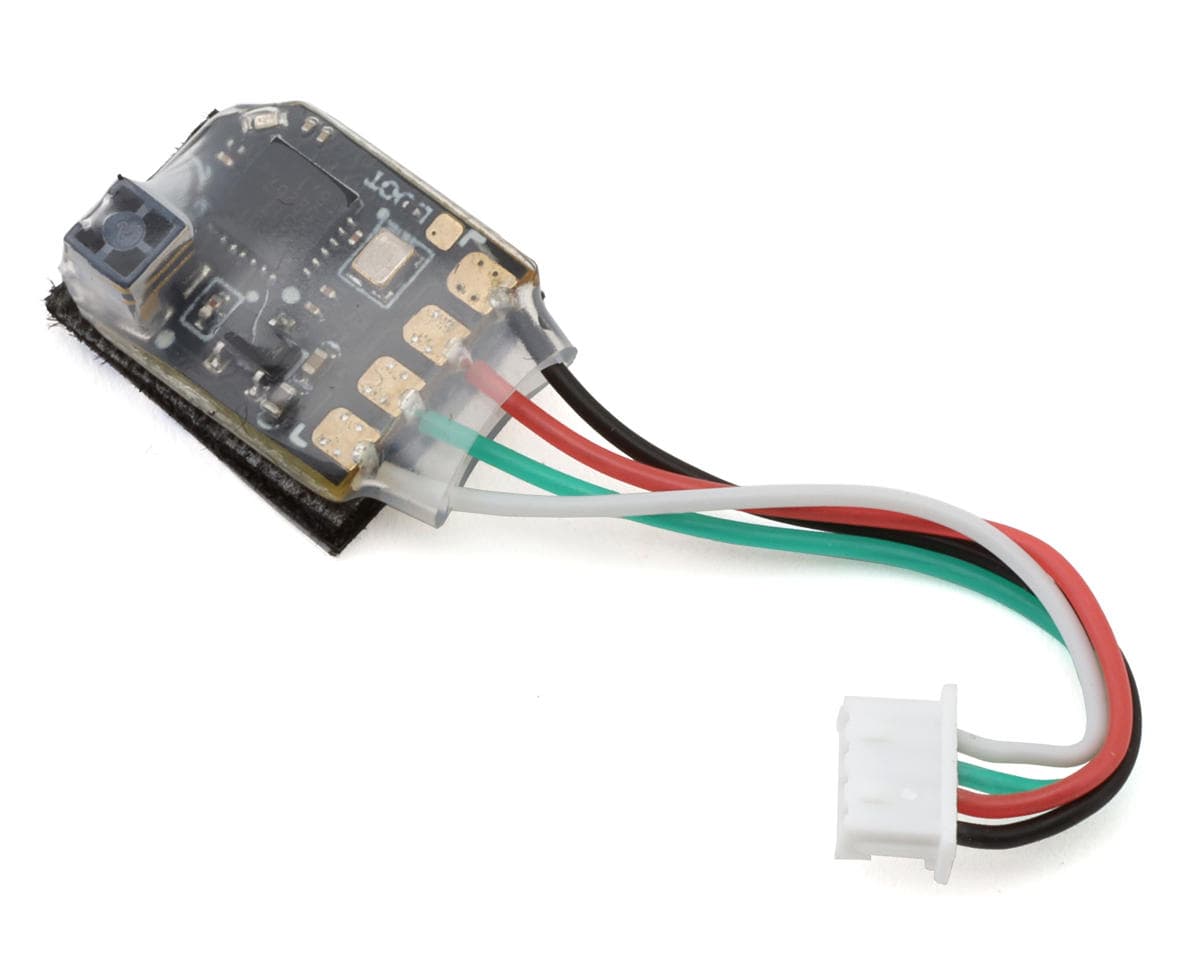

OMPHobby Radiomaster RP2 ELRS 2.4GHz Nano Receiver (Pre-wired)
About this part
Nano Receiver Overvie:
Fly with confidence and precision using the RadioMaster RP2 ELRS 2.4GHz Nano Receiver — an ultra-compact, smart, and reliable solution built for racers and long-range pilots alike.
About the RP2 ELRS 2.4GHz Nano Receiver
Compact Power, Smarter Design
The RadioMaster RP2 ELRS 2.4GHz Nano Receiver packs incredible performance into a lightweight, ultra-small form factor, making it perfect for FPV racing and tight builds. With a built-in ceramic antenna, improved PCB for better heat dissipation, easier-to-use solder pads, and a top-mounted LED, it’s designed for both durability and convenience. Its nano size ensures it can fit in nearly any model without sacrificing range or reliability.
Stable, Reliable Signal Performance
Equipped with a TCXO (temperature-compensated crystal oscillator), the RP2 maintains accurate frequency control and minimizes signal drift even in extreme conditions. Built on ExpressLRS 2.4GHz open-source firmware with the ESP8285 MCU and SX1280 RF chip, it delivers ultra-low latency and long-range capability. Plus, with built-in WiFi, pilots can easily update firmware and configure settings directly from a PC or mobile device for maximum ease of use.
Features:
- Ultra-compact and lightweight design
- Built-in micro antenna
- Improved PCB for better cooling
- Factory pre-wired
- Easier-to-use solder pads
- LED on the top side
- Built-in TCXO for stable signals
- ExpressLRS 2.4GHz open-source firmware
- Built-in WiFi for easy updates
Includes:
- (1) RP2 ELRS 2.4GHz Nano Receiver
Specifications:
| Type | ISM |
|---|---|
| Frequency | 2.4GHz |
| Frequency Range | 2.404-2.479Ghz |
| Firmware | ExpressLRS V2.4 |
| Operating Voltage | 5V |
| Dimension | 0.51x0.43x0.27in (13x11x7mm) |
| Weight | 0.019oz (0.55g) |
