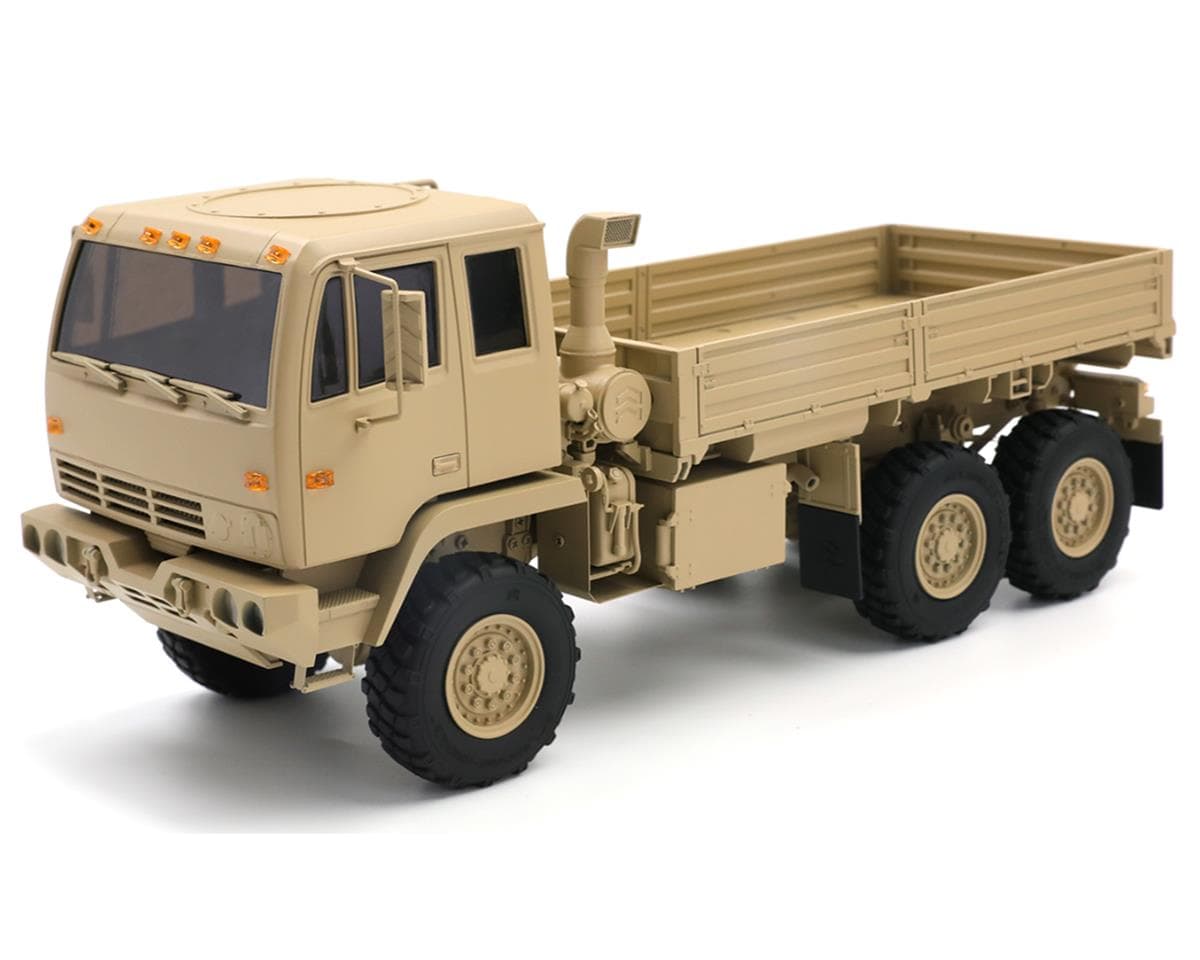

Orlandoo Hunter OH32M02 1/32 Micro Scale Military 6x6 Truck Kit
About this part
The Orlandoo OH32M02 1/32 Micro Scale Military 6x6 Truck Kit is an incredibly detailed micro sized scale truck. This cellphone sized kit includes an extremely detailed hard plastic military truck body, super soft scale tires, tilt cab, scale axles with pass-through axle and six ten lug wheels. But don't let the micro size fool you! This scale truck is equipped with solid axles, motor forward transmission and trunnion style leaf spring suspension with friction shocks all the way around. Either on the trail or on a desk this truck is a true performer.
The OH32M02 is an unassembled kit, and requires servo, ESC, motor and battery for completion. We recommend you choose Orlandoo Hunter components to complete the package. You will need one 2.2g micro digital servo, one Orlandoo micro motor, one 260mAH 2S LiPo battery, one PCB/LED/ESC board and a 3 channel radio system to finish off the kit. Some building experience is recommended.

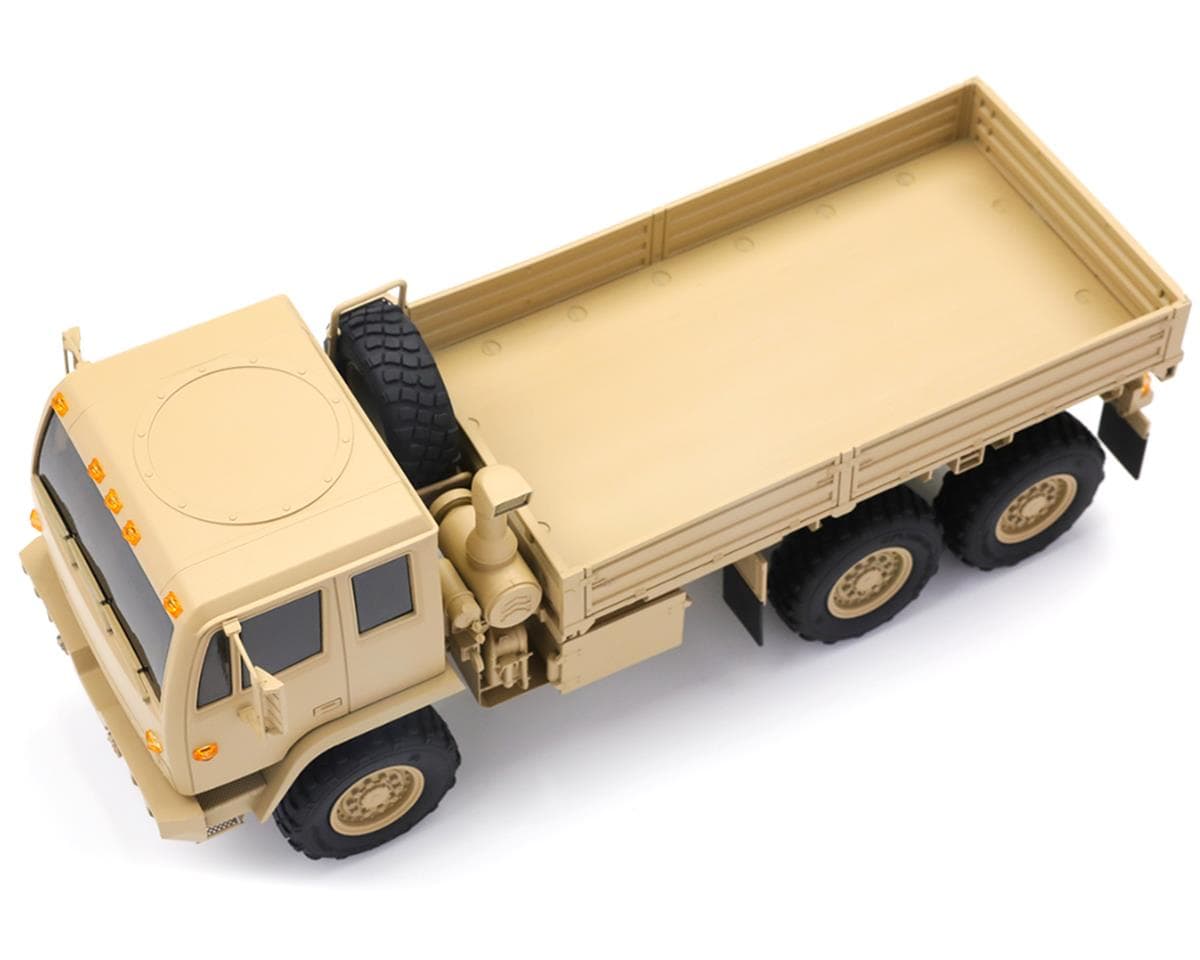

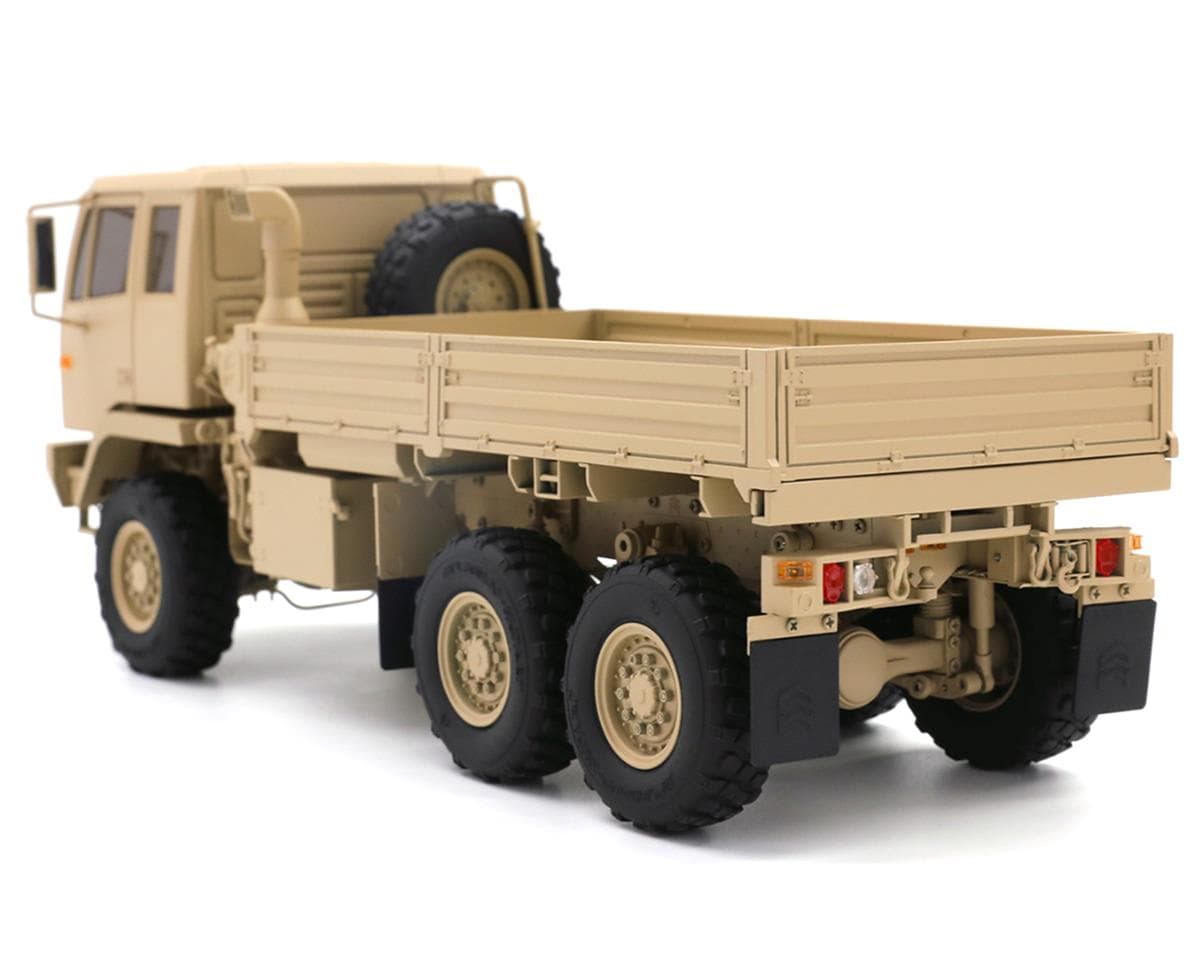

NOTE: Finished and painted kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.
Features:
- Detailed hard plastic body
- Motor forward transmission
- Micro size perfect for home or office use
- Full time shaft driven 6WD
- Super grippy scale tread pattern tires
- Includes building tools

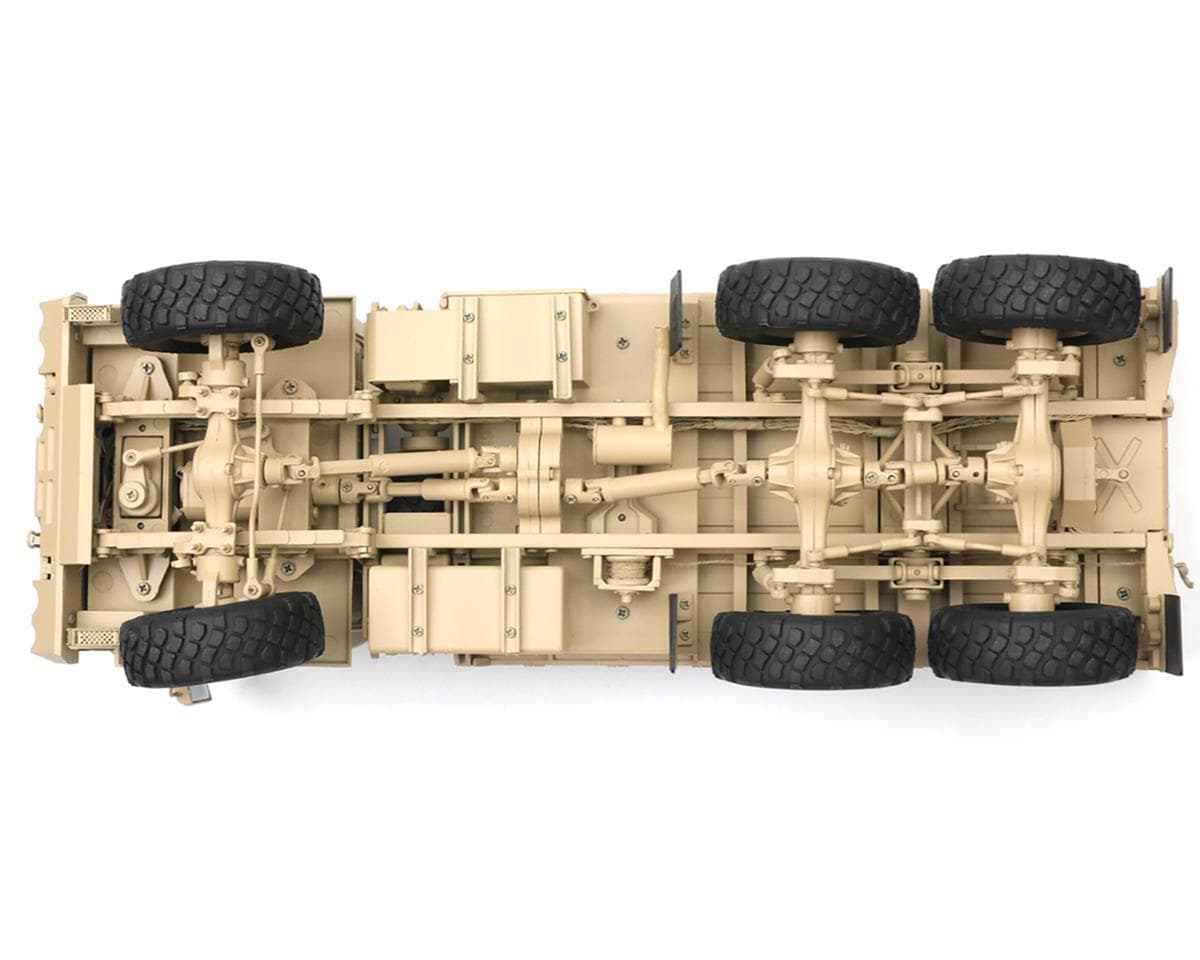

- Realistic Trunnion style leaf spring suspension
- Friction Dampers
- Photo Etched parts
- Length: 223mm
- Width: 75mm
- Height: 93mm
- Tread: 64mm
- Wheelbase: 112+40mm
- 2-3 Channel Radio System or D4L Radio System (transmitter & receiver)
- 2.2g Micro Digital Servo
- Orlandoo Hunter Motor w/reduction gear
- PCB/LED/ESC Board or D4L Radio System
- 7.4V 2S 260mAh LiPo Battery (OLHLS7401-B)
- Batteries for Transmitter
- Plastic model paint (for body)
- First time builders should not attempt assembly without the guidance from an experienced modeler.
- When using the D4L Radio system, a PH2.0 to Female JST adapter is required to connect a JST battery to the receiver.
Reviews5.0 · 3 reviews
Great kit that goes together well and has detailed instructions. Only consider building this kit if you are an experienced model or RC kit builder. The parts are extremely small and tweezers are a must. If you enjoy scale model building you will absolutely love this kit. Go with a lower RPM motor in this kit because you will need the extra torque to drive all six wheels. So I wouldn’t get anything above 500 RPM. I have the furitek brushless in mine but in order to run it I had to modify the placement of the motor mount in order for the motor can to not hit the front bumper. The brushless is probably overkill for this truck but it makes it extremely controllable and easy to crawl. This truck was a blast to build and even more fun to drive now .
Excellent scale model with incredible detail. I definitely recommend this kit.
Sweet ride and Amazing bodystyle.I like the 6x6 drivetrain.
All three reviewers rate the Orlandoo Hunter OH32M02 1/32 micro scale 6x6 military truck kit five out of five. Reviewers praise its detail, scale appearance, and the six-wheel drivetrain. One reviewer describes the kit as going together well with detailed instructions. Reviewers agree it suits experienced builders: parts are very small and tweezers are recommended. One reviewer advises a lower RPM motor (no higher than about 500 RPM) to provide torque for all six wheels, and reports needing to move the motor mount so the motor can clears the front bumper when fitting a Furitek brushless motor. That reviewer considers the brushless motor more than necessary but found it gave good control and crawling. The sample is small, with three reviews.
- + Excellent scale detail
- + Goes together well with detailed instructions
- + Appealing bodystyle
- + Six-wheel drivetrain
- − Very small parts require tweezers
- − Best suited to experienced builders
- − Motor mount may need modification for a brushless motor
- − Requires low-RPM motor for six-wheel torque
