Pro-Line Axial SCX24/AX24 Big Bore Scaler Shocks (50mm) (4)
About this part
Shocks Overview:

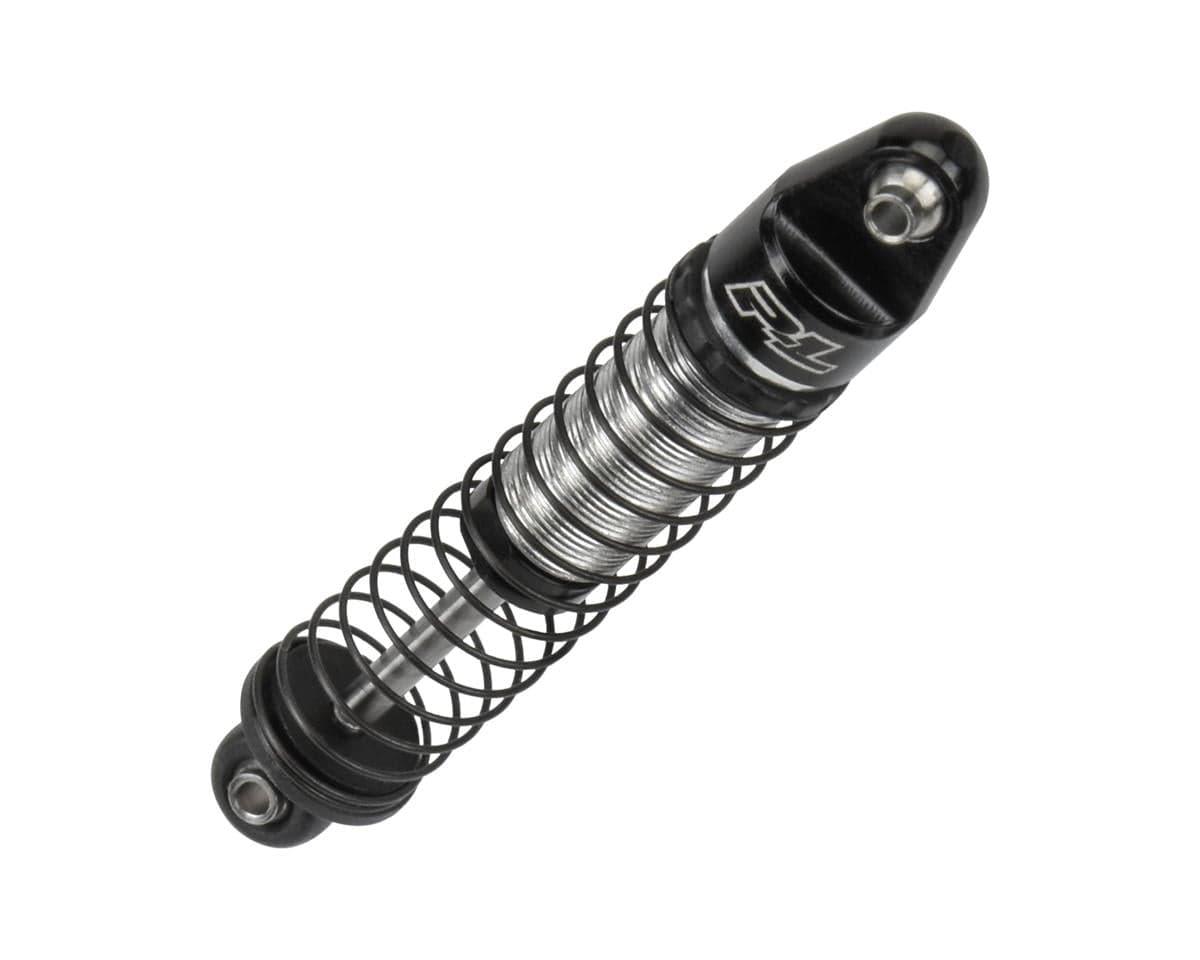

This a set of Big Bore Scaler Shocks, designed specifically for the Axial AX24 and SCX24. Take your AX24 and SCX24 to the next level of performance in Pro-Line Style! Just like Pro-Line's best-selling 1/10 version, these miniature Big Bore scaler shocks feature CNC machined aluminum shock caps, threaded bodies, bottom caps, and polished steel shock shafts for added style and durability over the stock shocks. In addition, the double O-ring seal on the main shaft eliminates leaks and provides a smooth and low-friction shock action!

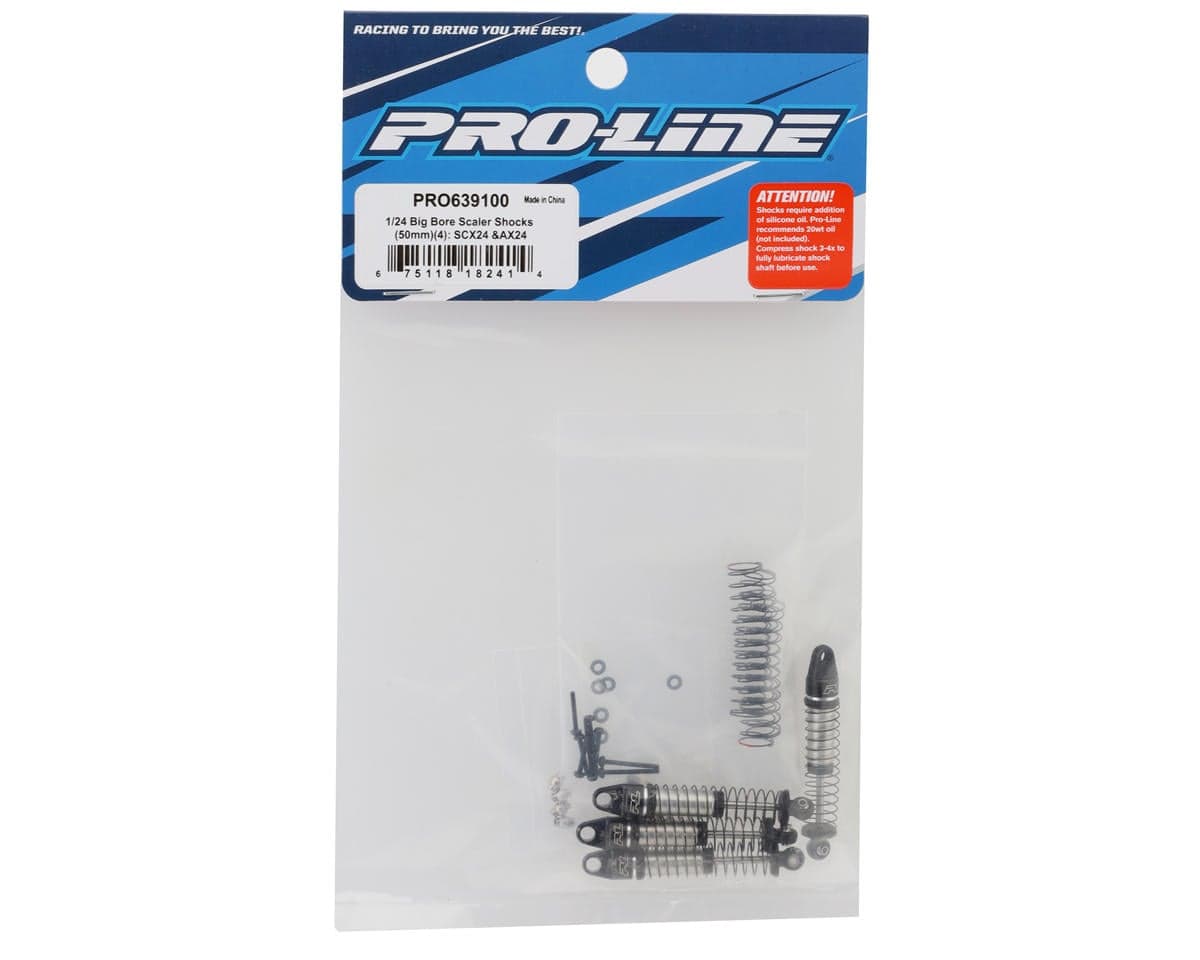

The Big Bore Shocks come pre-assembled in a set of 4 with all mounting hardware included. All you need to do is unscrew the top cap and add silicone shock oil to fill the shock body and experience the supreme damping action! Get your own Pro-Line Big Bore Scaler shocks and elevate your Axial AX24 and SCX24 performance and crawling abilities!
NOTE: Shock Oil is not included
Features:
- Ultimate Performance Shocks for the Axial AX24 and SCX24
- CNC Machined Aluminum Shock Caps, Bodies, and Bottom Caps
- True Big Bore Holds More Oil for Better Performance
- Pre-Assembled, Just Add Oil! (20wt Oil Recommended)
- Includes Optional Stiff Springs
Specifications:
- Scale: 1/24
- Extended Length: 50mm (eye-to-eye)
- Collapsed Length: 35.25mm (eye-to-eye)
- Stroke: 14.75mm
- Spring Length: 36mm

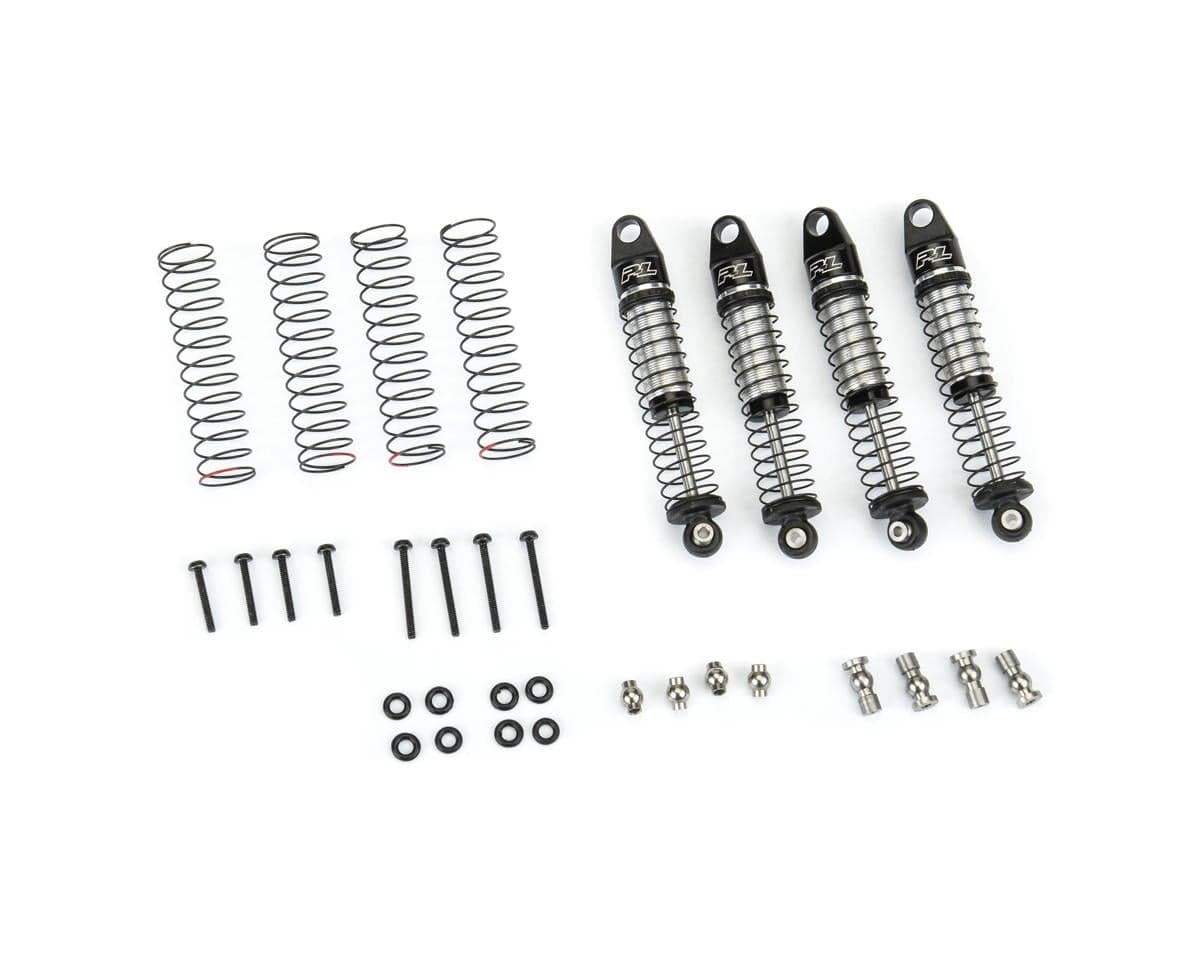

Includes:
- (4) Big Bore Scaler Shocks
- (4) AX24 Upper Shock Ball
- (4) SCX24 Upper Shock Ball
- (8) SCX24 Upper Shock Ball O-Rings
- (4) Stiff Springs
- (4) 1.4x14mm Upper SCX24 Screws
- (4) 1.4x10mm Lower Screws
Reviews3.3 · 3 reviews
It comes with soft springs. The extra set of springs DO NOT match. Three of the springs measure .4 and the fourth one is .3. Makes a $45 set of shocks worthless.
I have always had excellent success with Proline shocks. For some reason they did not meet my expectations. Amain was quick to resolve the problem! 5 stars to Amain!
Shocks are good: much smoother than stock. They are the correct length for the ax24, however there is a slight loss of compression. One issue was that the included mounting screws are not long enough to pass through the shock eye and a frame rail. Unable to mount with included hardware. Grab some longer screws and they’re fine. Finding heavier (45+) weights work well with weighted builds.
Three reviews, with mixed results. One reviewer found the included springs soft and mismatched, with two measuring .4 and one .3, and rated the set poorly. Another reported the shocks are smoother than stock and the correct length for the AX24, though with a slight loss of compression. Both the 4/5 reviewer and the 1/5 reviewer note that the included mounting screws are too short to pass through the shock eye and frame rail, and longer screws resolved it. The 5/5 reviewer had an initial problem that the seller resolved quickly. The 4/5 reviewer suggests heavier 45+ weight springs work well with weighted builds.
- + Smoother than stock shocks
- + Correct length for the AX24
- + Seller resolved an issue quickly
- − Included springs are soft and mismatched
- − Included mounting screws are too short
- − Slight loss of compression
