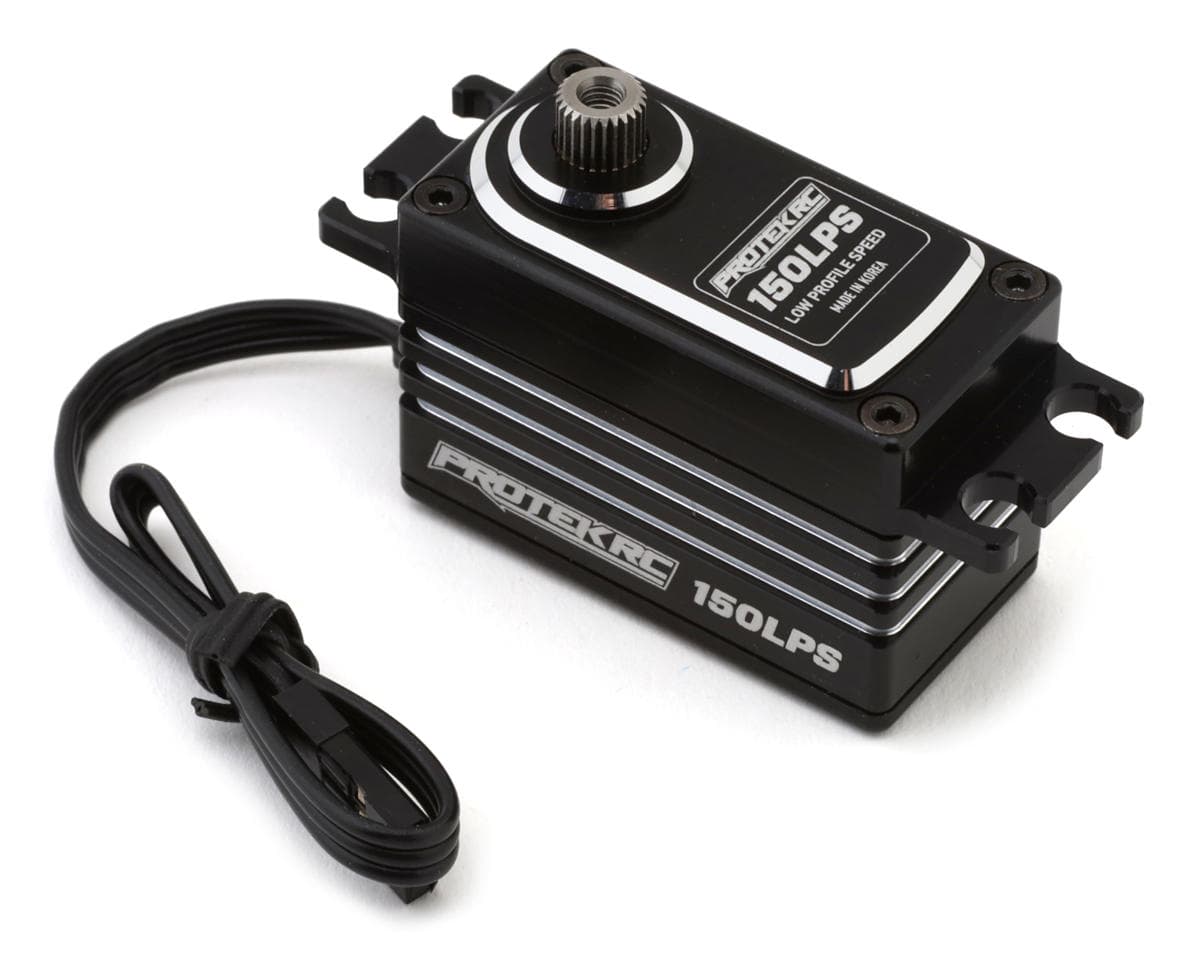

ProTek RC 150LPS Low Profile Racing Servo
Built for racers who want instant steering response and proven control, the ProTek R/C 150LPS Low Profile Super Speed Metal Gear Servo delivers serious speed, high-voltage power, and race-ready durability in one compact package. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 150LPS Low Profile Servo
Lightning Fast Response
The ProTek R/C 150LPS Low Profile Super Speed Metal Gear Servo is built for racers who demand instant steering response and razor-sharp precision. Delivering up to 152 oz-in of torque and an incredible 0.04-second transit speed on 7.4V, it provides the speed and accuracy needed to attack tight corners with confidence in 1/10 and 1/12 scale on-road and off-road vehicles.
Proven Performance Refined
Based on the proven and trusted ProTek R/C 160SS servo, the 150LPS is a refined evolution that delivers the same dependable performance in a compact low-profile design. The full aluminum case improves durability and heat dissipation, while the coreless motor, hardened metal gears, and dual ball bearings ensure smooth, consistent operation through demanding race conditions.
Race Ready Durability
Designed to perform right out of the box, the 150LPS includes a durable aluminum single-arm servo horn instead of a standard plastic horn, along with optional blue aluminum servo ear guides for increased mounting rigidity. Combined with high-quality wiring, gold-plated connectors, and high-voltage compatibility, it offers exceptional reliability, precision, and value for competitive racers.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Delivers up to 152 oz-in of torque on 7.4V
- Ultra-fast 0.04-second transit speed with lightning-quick response
- Low-profile design fits most 1/10 scale vehicles
- Full aluminum case improves durability and heat dissipation
- Coreless motor provides smooth, precise, and efficient performance
- Hardened metal gears increase strength and long-term reliability
- Dual ball bearings ensure smooth operation under heavy loads
- Includes an aluminum clamping servo horn
- Aluminum servo ear guides provide a more rigid and secure installation
Includes:
- (1) Lifetime Gear Warranty
- (1) 150LPS Low Profile High Torque Brushless Servo

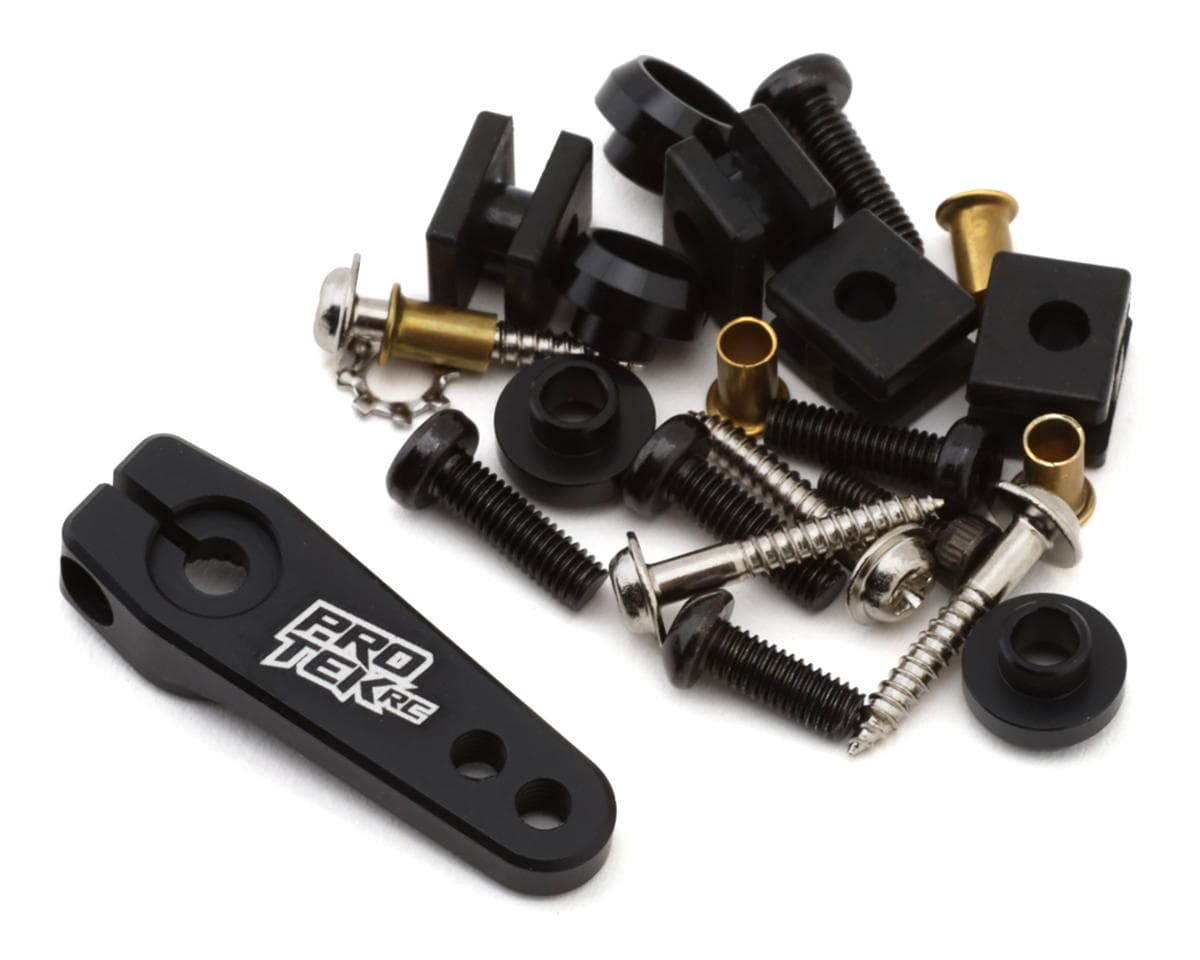

- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 Scale |
|---|---|
| Operating Voltage | 6.0V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.05/60° sec |
| Operating Speed @ 7.4V | 0.04/60° sec |
| Dynamic Torque @ 6.0V | 127oz-in (9.1 kg-cm) |
| Dynamic Torque @ 7.4V | 152oz-in (11 kg-cm) |
| Motor Type | High Efficiency Coreless Motor |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.92oz (54.5g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x0.79x1.2in (39.5x20x30.3mm) |
| Length (Bottom to Mount) | 0.75in (19.10mm) |
*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
