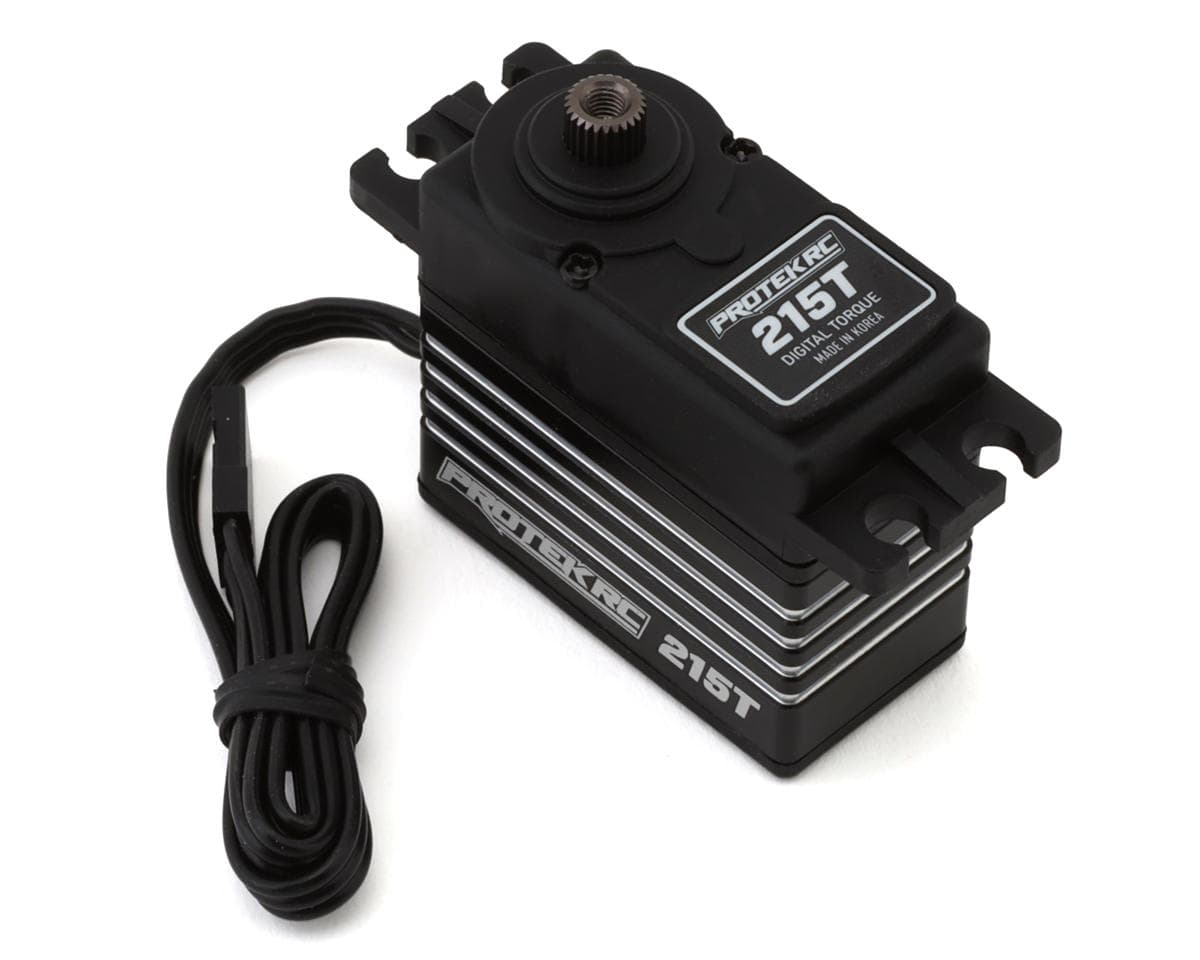

ProTek RC 215T Standard Digital "High Torque" Metal Gear Servo
About this part
ProTek RC 215T Standard Racing Servo
Need reliable steering power without the premium price? The ProTek R/C 215T Digital High Torque Servo delivers proven durability, smooth response, and dependable torque in a race-ready metal gear design built for 1/10 scale on-road and off-road performance. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 215T Standard Servo
Reliable Torque Performance
The ProTek R/C 215T Digital Torque Metal Gear Servo delivers dependable steering power with 216 oz-in of torque at 6.0V and a responsive 0.14-second transit speed. Designed for 1/10 scale on-road and off-road vehicles, it provides smooth control and consistent performance for racers and enthusiasts.
Refined Reliable Design
Building on the trusted performance of the ProTek R/C PTK-100T Digital "High Torque" Servo, the 215T is a refined upgrade featuring improved durability and efficiency. Its full metal gear train, dual ball bearings, cored motor, and aluminum middle case deliver reliable operation and long-lasting performance.
Exceptional Value
The 215T combines ProTek quality with an accessible price point, making it an excellent option for drivers looking for dependable torque without unnecessary cost. With gold-plated connectors, a durable aluminum center case, and a 200mm 22awg wire, this servo is built to perform in demanding RC applications.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- 216 oz-in of torque at 6.0V for strong steering power
- Fast 0.14-second transit speed for responsive control
- Designed for 1/10 scale on-road and off-road vehicles
- Full metal gear train provides reliable durability
- Dual ball bearings ensure smooth operation
- Aluminum middle case helps dissipate heat
- Cored motor delivers dependable performance and efficiency
- Gold-plated connectors improve signal reliability
- ProTek quality performance at an affordable price point
Includes:
- (1) Lifetime Gear Warranty
- (1) 215T Standard Metal Gear Servo

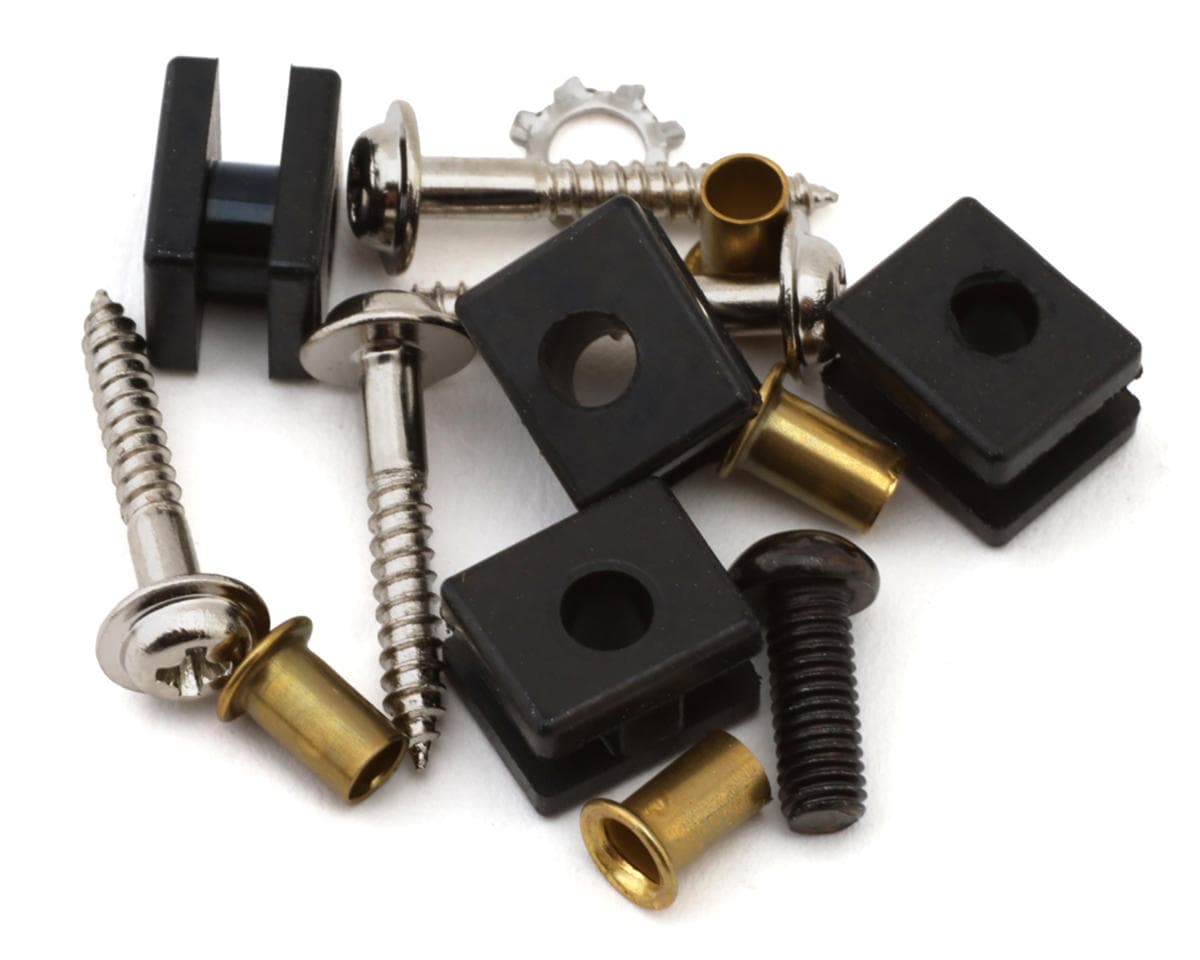

- Servo Hardware and Grommets
Specifications:
| Application | 1:10 Scale |
|---|---|
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V | 0.17/60° sec |
| Operating Speed @ 6.0V | 0.14/60° sec |
| Dynamic Torque @ 4.8V | 173 oz-in (12.5 kg-cm) |
| Dynamic Torque @ 6.0V | 216oz-in (15.6 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.93oz (54.9g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x1.51x0.78in (39.50x38.6x20mm) |
| Length (Bottom to Mount) | 1.04in (26.6mm) |
*Tech Note: This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
