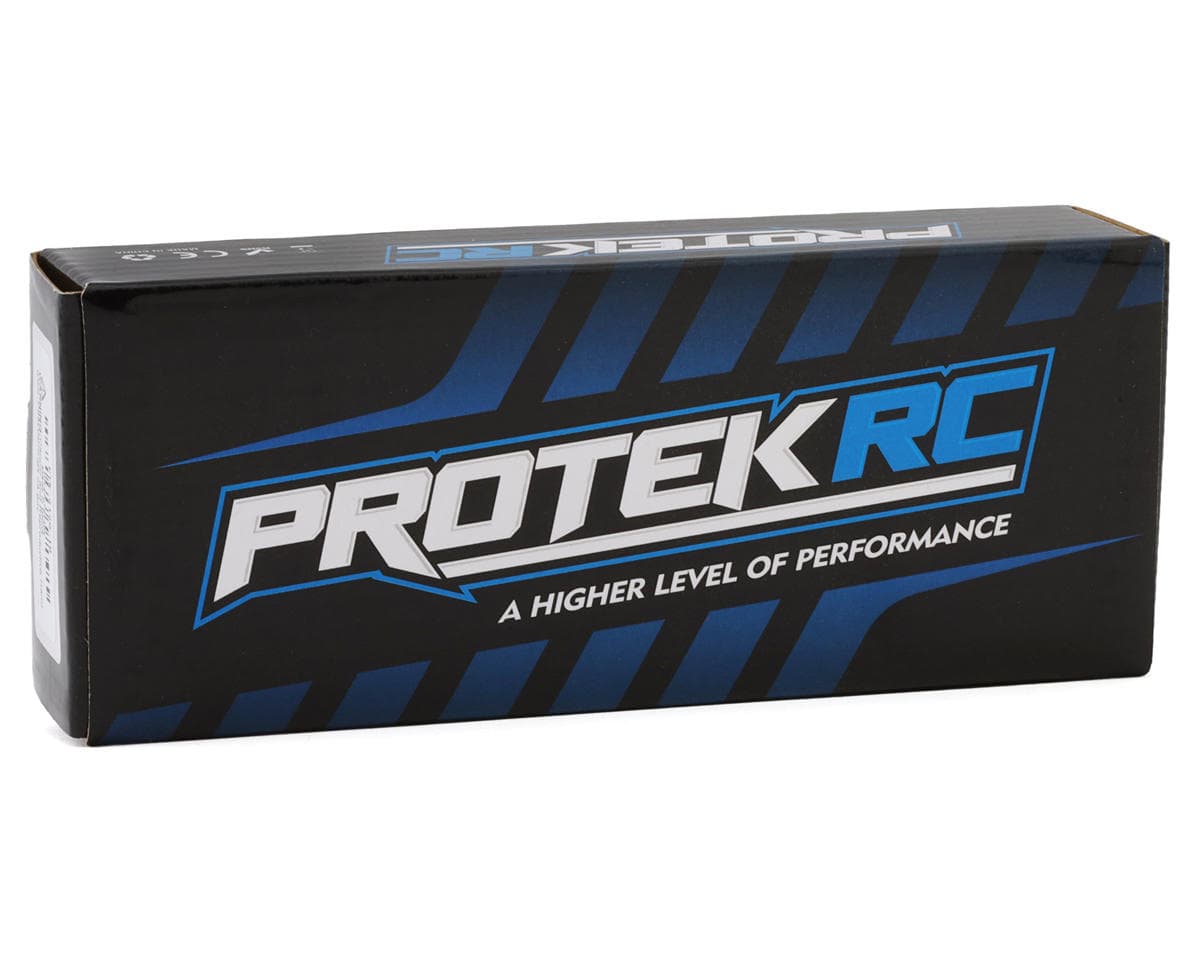

ProTek RC 2S 100C Si-Graphene + HV LiPo Stick Pack TCS Battery (7.6V/5000mAh) w/T-Style Connector (ROAR Approved)
About this part
The ProTek R/C 2S 100C Si-Graphene + HV LiPo Stick Pack Battery is built using a hard plastic case that is the same dimensions as a standard NiMH stick pack. This makes them a great choice for Tamiya TCS Series racing, including Euro Truck, all GT classes, M-Chassis and Formula One - as well as Euro Truck Racing League. Plus, its a great choice for any chassis that will accept a 6 cell NiMH stick pack. Weighing in at 235 grams, this Si-Graphene + HV battery weighs less than a standard 5000mAh LiPo battery of the same configuration - making your car lighter and faster!
When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, increased run time, increased cycle life and increased voltage - but Graphene + 100C LiPo batteries take that a step further with more power and lower internal resistance when compared to the previous ProTek LiHV Graphene packs! This provides more runtime, and a dramatic increase in voltage and punch over the course of a run.
Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries, Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 7.6V nominal voltage, 100C discharge ratings, incredibly high charge rates and huge variety of models to choose from, ProTek R/C 100C Graphene + packs are perfect for racers and bashers that demand the absolute best.
Features:
- Perfect for Tamiya TCS Series racing
- Hard case is the same dimensions as a standard NiMH stick pack
- Lighter than a hardcase 2S LiPo pack of equal capacity
- Improved power to weight ratio and a lower overall CG
- More runtime, with a dramatic increase in voltage and punch
- Silicone Graphene can handle more abuse and deliver more current than a standard LiPo battery
- Improved efficiency, lower operating temperatures, and lower internal resistance!
- Increased run time, increased cycle life and increased voltage!
- More capacity gram for gram when compared to standard LiPo cells
- Perfect for stock class racers looking to shave grams
- 10C max charge rates - 1C charge rate recommended for longest life
- 7.6V nominal voltage
- Factory installed T-style plug
| Battery Model | 2S HV LiPo |
| ROAR Approved | Yes
|
| Type | Silicon Graphene
|
| Voltage | 7.6V nominal
|
| Capacity @7.4V
|
5000mAh
|
| Capacity @7.6V
|
5400mAh
|
| Weight
|
235 g
|
| Connector Type
|
T-style
|
| Balance Connector
|
3 Pin XH
|
| Number of Cells | 2 Cell
|
| Configuration | 2S1P
|
| Dimensions (WxLxH) | 46.7x137.5x24.2mm
|
| Maximum Charge Rate | 10C (50A)
|
| Burst Current
|
100C
|
| Watt Hour @7.6V
|
38Wh
|
Includes:
- (1) ProTek R/C Battery
LITHIUM POLYMER SAFETY INFORMATION
IMPORTANT:
1) DO NOT leave the battery in your model when charging
2) DO NOT leave unattended when charging
3) ALWAYS balance charge the battery
4) ALWAYS use a LiPo charging bag
5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
6) YOU MUST not over discharge the Li-Poly battery pack
7) READ & UNDERSTAND the instructions carefully before operating this battery
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage.
Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.8 · 15 reviews
This is a good battery but don't believe what you read about it being the same size as a NiMH pack and compatible with Tamiya. Many Tamiya cars and trucks have a battery slot which is only 134mm long, exactly the length of a NiMH stick pack. This battery is 137.5mm and will not fit in many Tamiya models. 3.5mm doesn't sound like much but it is enough to cause major problems on some models. Gens Ace has the same problem and the Reedy Wolfpack is even longer. Venom has the only Tamiya comptible LiPo I've found.
It just barely fits in my Midnight Pumpkin, not a millimeter of room to spare. This along with the Torque Tuned motor made my Midnight Pumpkin hit 18mph! Box stock with bushings: 14mph Ball bearings: 15mph Ball bearings and Torque Tuned motor: 17mph Ball bearings, Torque Tuned motor, and this ProTek LiHV battery: 18mph
Got these because my wife and kids are getting started racing in the stock Slash class (brushed). These batteries fit that roll nicely, have nice and low IR's, and were economical in getting 3 newbie racers set up.
Fits in my tt-02 with no issues. Has plenty of power with the stock brushed motor and gets around 30 minutes of run time.
Protek 5000mah 7.6v 100c battery. Is great.........................................
Most reviewers rate this 2S LiHV stick pack highly, praising its power, low internal resistance, consistent cell balance and long service life, with several owners using it in Tamiya TT-02, Euro Truck and other 1/10 scale classes. Fit is the main disagreement. Most owners report a good fit, but one reviewer found the pack is about 3.5mm longer than a NiMH stick pack and would not fit some Tamiya models with a 134mm battery slot. That reviewer noted the problem also affects some other brands. One verified owner reported a speed gain from pairing it with a brushless motor, and several reviewers described good shipping and customer service. Reviews are mostly short and some are generic praise.
- + Strong power and punch
- + Low internal resistance
- + Good cell balance and long service life
- + Fits common TT-02 and Euro Truck slots
- − May not fit Tamiya slots limited to 134mm
- − Higher price noted by one reviewer
