About this part

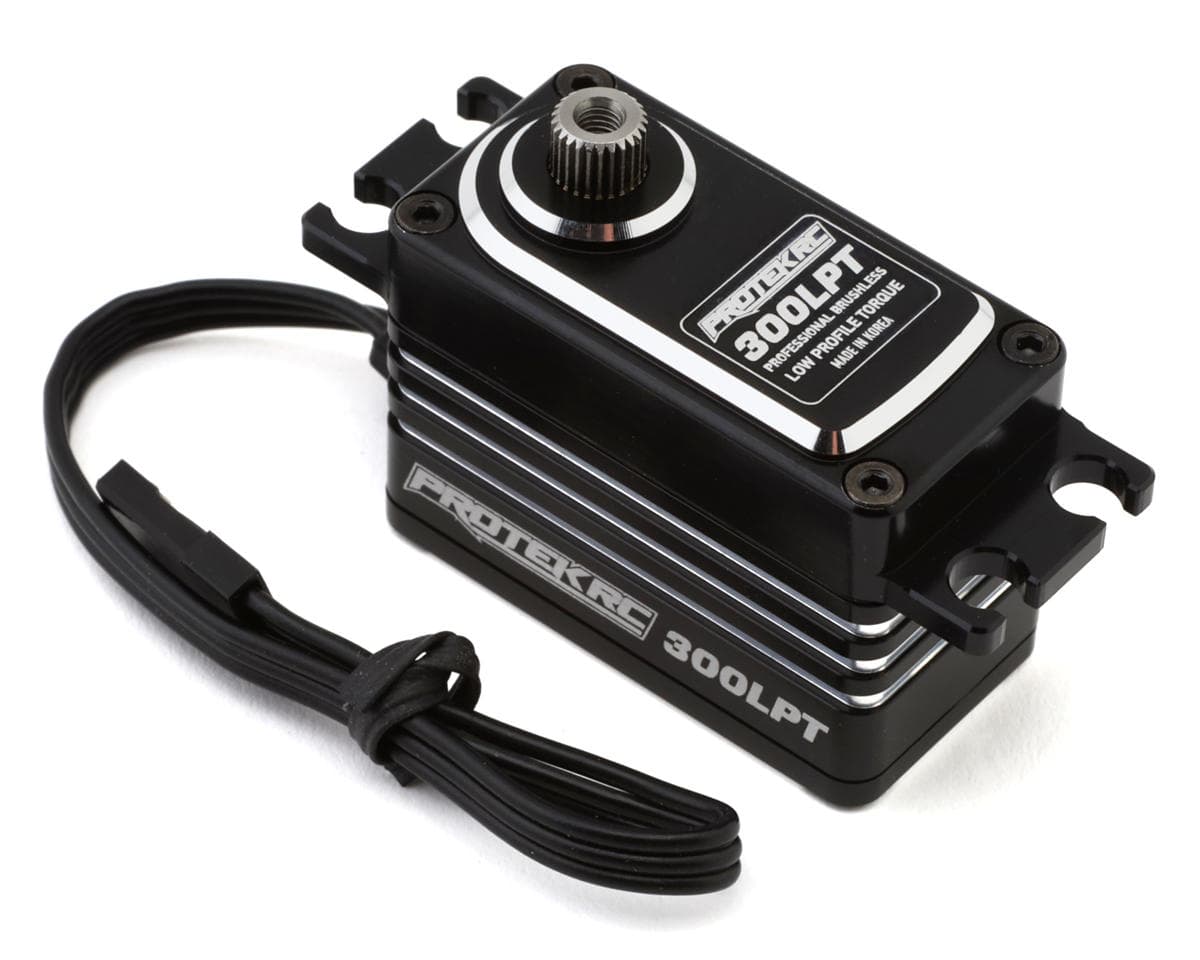

ProTek RC 300LPT Low Profile Racing Servo
Built for racers who demand the ultimate edge, the ProTek RC 300LPT Low Profile High Torque Brushless Servo delivers championship-proven speed, precision, and reliability in a lightweight 55g package. Refined from a trusted race-winning design, this brushless powerhouse gives competitive 1/10 drivers the lightning-fast response and control needed to chase the podium. Building on the proven ProTek RC 160TBL, trusted by racers Chase and Levi Raymond on their way to two ROAR National Championships and more than eight major-event victories since 2024, the 300LPT carries that race-proven design forward with refined brushless performance. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 300LPT Low Profile Servo
Race-Proven Design
The ProTek RC 300LPT Low Profile High Torque Brushless Servo is built for competitive 1/10 racers demanding maximum performance in a compact package. Trusted by professional racers and proven through more than fifty podium finishes, including Ryan Maifield's ROAR 4WD Off-Road National Championship-winning setup, this servo delivers the speed, precision, and reliability needed to compete at the highest level.
Ultra-Fast Response
Refined from the proven and trusted ProTek RC 160TBL servo, the 300LPT takes race-proven performance to the next level with advanced brushless technology. Delivering an incredible 0.06-second response speed and up to 290 oz-in of torque, this lightweight 55g servo provides lightning-fast steering, exceptional accuracy, and the efficiency needed for today's demanding race platforms.
Built for Victory
The 300LPT combines premium performance with a sleek, durable design featuring a full black anodized aluminum case with gold accents. The heat-sink center case improves cooling while reducing weight, and the included aluminum single-arm clamping servo horn and mounting washers provide a secure, rock-solid installation. For racers chasing every advantage, the 300LPT is a true pro-level upgrade.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Proven low-profile race servo trusted by professional racers
- Refined version of the ProTek RC 160TBL servo
- High-performance brushless motor for smooth, precise control
- Ultra-fast 0.06-second response speed at 7.4V
- Delivers up to 290 oz-in of torque
- Lightweight 55g design for competitive race builds
- Full black anodized aluminum case with gold accents
- Heat-sink center case improves cooling and reduces weight
- Full metal gears and dual ball bearings provide lasting durability

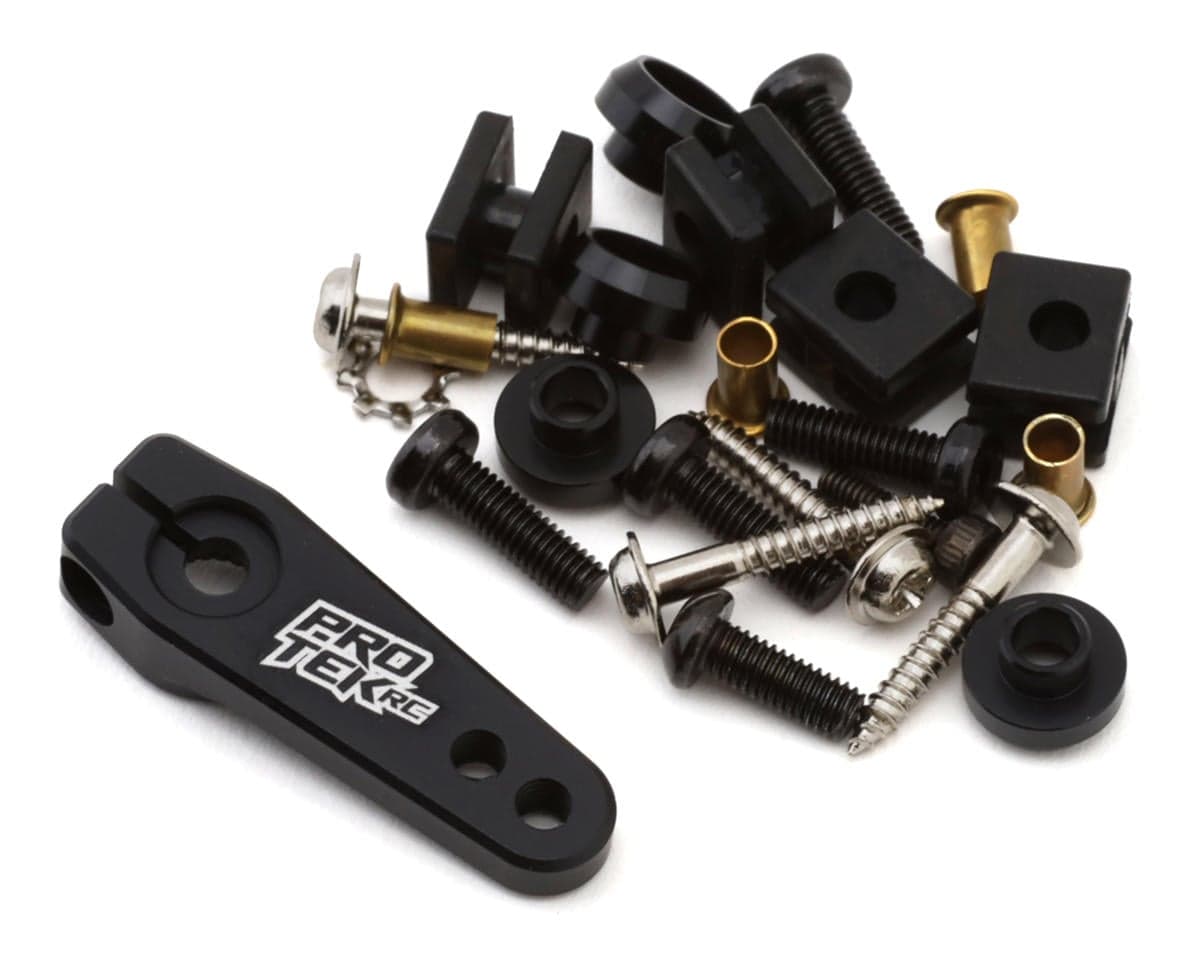

Includes:
- (1) Lifetime Gear Warranty
- (1) 300LPT Low Profile High Torque Brushless Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 Scale |
|---|---|
| Operating Voltage | 6.0V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
| Operating Speed @ 7.4V | 0.06/60° sec |
| Dynamic Torque @ 6.0V | 230oz-in (16.5 kg-cm) |
| Dynamic Torque @ 7.4V | 290oz-in (20.9 kg-cm) |
| Motor Type | Brushless Digital |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.94oz (55g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x0.79x1.2in (39.5x20x30.6mm) |
| Length (Bottom to Mount) | 0.76in (19.35mm) |
*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
I have new been using three of these servo's racing 2wd, 4wd, and Stadium Truck. I have had no issues at all. The ProTek 300LPT Low Profile High Torque Brushless Servo is an excellent choice for anyone looking for a high-performance steering servo for competitive 1/10 scale RC racing. ProTek has done an outstanding job combining impressive torque, quick response, and precise steering control into a compact, low-profile package. One of the biggest advantages of this servo is the combination of speed and holding power. Steering response is quick and consistent, allowing for precise corrections through tight corners and technical sections of the track. The strong torque provides excellent steering authority, especially when the front tires are loaded up in high-traction conditions. The brushless motor is another major benefit, providing smooth operation, consistent performance, and the durability needed for serious racing. The low-profile design is also a great feature, helping keep weight down low while providing plenty of clearance in modern racing chassis. What really stands out is the overall steering feel. A quality servo makes a noticeable difference in how connected you feel to the vehicle, and the 300LPT delivers the responsiveness and control needed to drive confidently and consistently. Whether navigating tight technical sections or making small steering corrections at speed, this servo has the performance characteristics competitive racers are looking for. Overall, the 300LPT is a premium-quality servo that offers an excellent combination of speed, torque, precision, and construction quality. It's a great upgrade for serious racers who want dependable steering performance without compromise.
Well I gotta say this is an awesome product an Amain hobbies customer service is next to none they stand behind there product as you'd wish everyone else did thank you amain hobbies for you support
