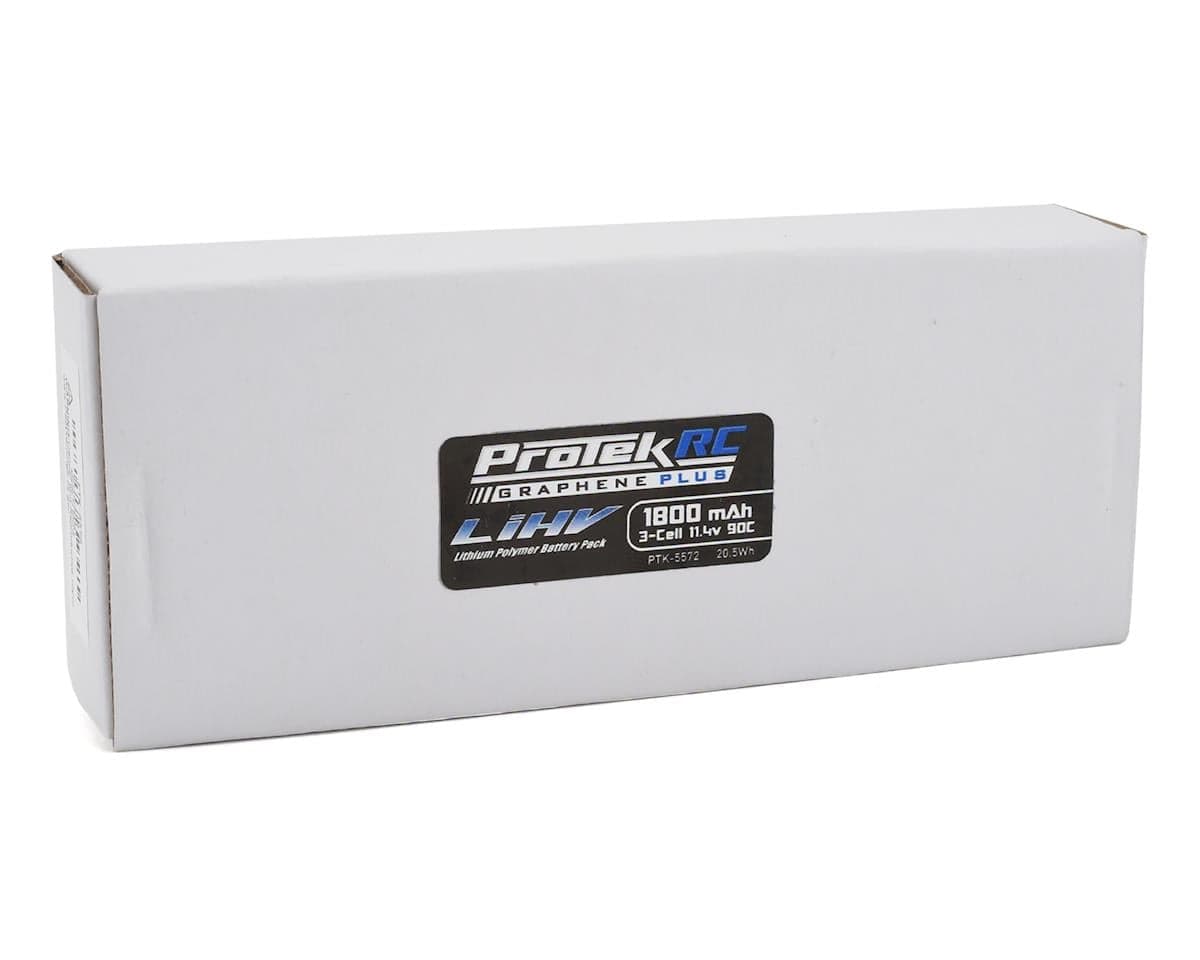

ProTek RC 3S 90C Si-Graphene + HV LiPo Battery (11.4V/1800mAh) w/XT60 Connector
About this part
Battery Overview:
The ProTek R/C 3S 90C 1800mAh Si-Graphene + HV LiPo Battery was developed for scalers, drones, airplanes - or any application where space is at a premium and light weight is critical. These micro sized packs are incredibly lightweight and shoehorn a ton of power into a compact 86.5x33.5x20.5mm form. Everything from FPV race drones, Flite Test airplanes, comp crawlers or even scale trucks with a full interior can benefit from the performance these packs deliver.
About the 3S 90C Si-Graphene LiHV Battery Pack
High-Performance LiHV Power
In addition to its small size, this featherweight pack comes in at just 135 grams and is over 20 grams lighter than a comparable LiPo battery. Plus, when charged at LiHV specs, this battery produces 13.05V instead of the standard 12.6V of a fully charged standard LiPo, meaning performance-oriented enthusiasts can take advantage of the lightweight construction and higher voltage throughout the discharge curve to give them a more consistent power delivery.
Silicon Graphene Cells
Want more reasons to run this pack? When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, better run time, increased cycle life and increased voltage, but Graphene + LiPo batteries take that a step further with even more power, more capacity, and lower internal resistance!
Lightweight Design & Reliability
Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates, with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 11.4V nominal voltage, 90C discharge ratings, incredibly high charge rates and ten different models to choose from, ProTek R/C Graphene + packs are perfect for enthusiasts that demand the absolute best.
Features:
- 20 grams lighter than a standard 1800mAh 3S LiPo
- Great choice for FPV racing, scalers, comp crawlers and airplanes
- Improved power to weight ratio and a lower overall CG
- Silicone Graphene can handle more abuse and deliver more current than a standard LiPo battery
- Improved efficiency, lower operating temperatures, and lower internal resistance!
- Increased run time, increased cycle life and increased voltage!
- More capacity gram for gram when compared to standard LiPo cells
- 2C max charge rates - 1C charge rate recommended for longest life
- 11.4V nominal voltage
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
Includes:
- (1) 3S 90C Si-Graphene + HV LiPo Battery (11.4V/1800mAh)
Specifications
| Nominal Voltage: | 11.4V |
|---|---|
| Capacity: | 1800mAh |
| Maximum Charge Rate: | 2C (3.6A) |
| Discharge Rates | |
| Continuous: | - |
| Peak: | 90C |
| Cell Configuration: | 3S1P |
| Watt Hours: | 20.5Wh |
| ROAR Approved: | - |
| Connectors | |
| Battery: | XT60 |
| Balance: | 4-Pin XH |
| Dimensions (LxWxH): | 3.41x1.32x0.81in (86.5x33.5x20.5mm) |
| Weight: | 4.76oz (135g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.4 · 7 reviews
I picked up two of these packs for my Capra - fits PERFECT! Plus, its considerably lighter than the 3S Shorty and 2200 packs most are using. I get north of 1.5 hours runtime with a 35T motor and 11T pinion, which is plenty for most. If you are driving comp gates with your Capra, your rig will perform better with a light pack - and this LiHV pack has no competition. If you are trail driving a Capra, there are batteries that will provide better run time. But the way my Capra performs with this feather light pack makes it worth hauling an extra pack around to get me back to the car if my battery dumps on me. I'd give it 10 stars if they let me...
I have 2 of these battery packs I use in Capras. They are very light and very powerful, 1 Capra has 2280kv 12t, the other Holmes 27t 13t, I get 1 hr. run time and the Holmes truck still has 40% left. I recharge batteries at least 5 times a week with no problems yet, and they recover if you may have forgotten to unplug one.
This pack fit my mini E-Revo VXL snugly, with just enough room to tuck the balance connector inside the tray. I soldered a TRX connector onto the battery, and my MERV clocked in at 52 mph. It lasts for about 10 min doing constant speed runs, which is crazy, and it lasts for about 30min regular running. While not nearly as plug and play as Traxxas batteries, it is better value and has more punch. My MERV wheelies constantly, coolly popping wheelies at 40mph! Very satisfied with this battery.
Charged it up to 4.2 volts per cell. Ran it in my Mojave Grom converted to brushless with a hobby wing fusion mini 16. Ran it around my driveway pretty hard for over 45 minutes. Lots of power. Battery stayed nice and cool. So far I’m quite impressed.
They were good while they lasted. They are my newest battery haven't had them or used them much or for very long and there is a bad connection in the pack that short circuits.... if you don't want risk of lipo fire don't buy this battery
Reviewers generally rate this 3S 1800mAh LiHV pack highly, with most giving five stars. Owners of Traxxas Mini E-Revo and Capra crawlers and Mojave Grom-type trucks report strong power, light weight and good runtime, often around 30 to 60 minutes depending on setup. One reviewer says it fit a mini E-Revo snugly and that a connector had to be soldered on. Several note it is less plug-and-play than Traxxas packs but better value. Runtime claims vary by motor and driving style, and one owner reported around one hour. One reviewer gave one star, reporting a bad internal connection that caused a short circuit after limited use, and warned against buying. Other reviewers say packs were reliable after extended use, and one advises balance charging at first.
- + Light weight
- + Strong power and punch
- + Good runtime for many setups
- + Good value
- − Reported internal connection short in one pack
- − Requires soldering a connector for some vehicles
- − Less plug-and-play than Traxxas packs
