About this part

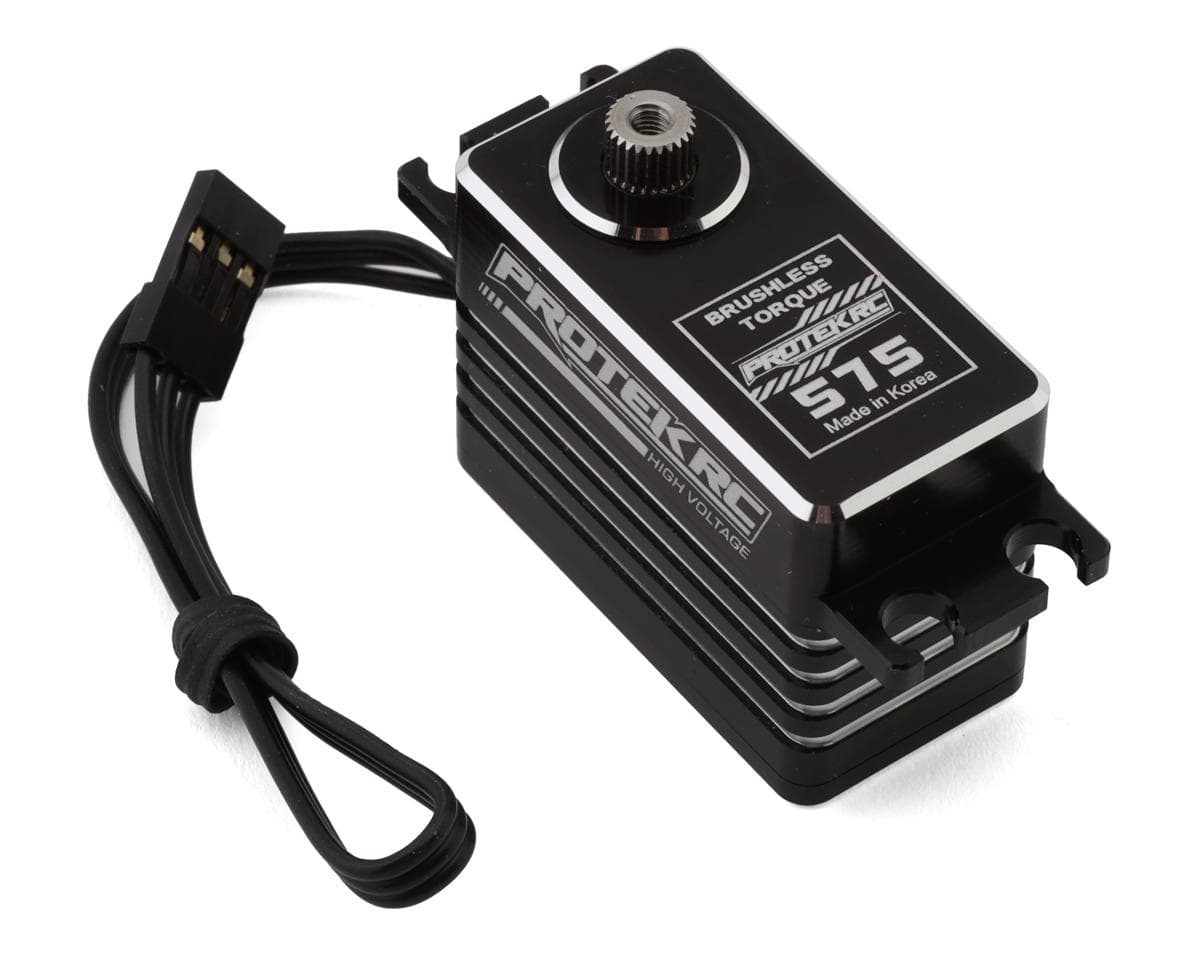

ProTek RC PTK575 "LP" High-Performance Racing Servo
The 575 Low Profile Servo brings together cutting-edge brushless technology and unmatched performance, delivering the holding power, speed, and precision that rival coreless servos. With the added advantages of brushless motors—greater efficiency and extended lifespan—this servo is the perfect choice for pro-level builds demanding top-tier reliability and accuracy. Housed in a sleek black anodized aluminum case for a premium look, the servo's design is both rugged and functional. The aluminum upper case ensures extreme durability, while the heat sink center case efficiently dissipates heat and reduces overall weight. Included is an aluminum single-arm clamping servo horn and a complete set of mounting washers for secure, long-lasting installation. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 575LP:
Size
This High-Performance Racing Servo is specifically designed for 1/10 touring cars and 1/10 off-road buggies, with its low profile design allowing it to fit seamlessly into most chassis spaces. Its compact size ensures optimal weight distribution, enhancing the performance of high-precision vehicles across both on-road and off-road environments. Perfect for demanding racing conditions, it provides the control and responsiveness needed for competitive applications.
Power & Gears
The ProTek RC PTK-575 LP servo is equipped with a high-performance brushless motor and durable steel gears, ensuring maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Additionally, the steel gears offer exceptional durability, resisting wear and maintaining precise performance even under the high-stress demands of competitive racing environments.
Application & Design
The ProTek LP servo is an ideal choice for 1/10 touring car chassis and off-road buggies, delivering optimal weight distribution for superior chassis tuning. Its low profile, combined with a sleek and compact design, ensures seamless integration increasing chassis space, helping to maintain balance and performance. This precision-engineered servo enhances control and responsiveness, making it a perfect fit for high-performance applications where agility and stability are key.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Ideal for a 1/10 Off-Road and On-Road Racing Platforms
- Brushless motor
- High voltage circuitry
- Full steel gears
- Full aluminum black anodized heat sink case
- Single offset servo spline

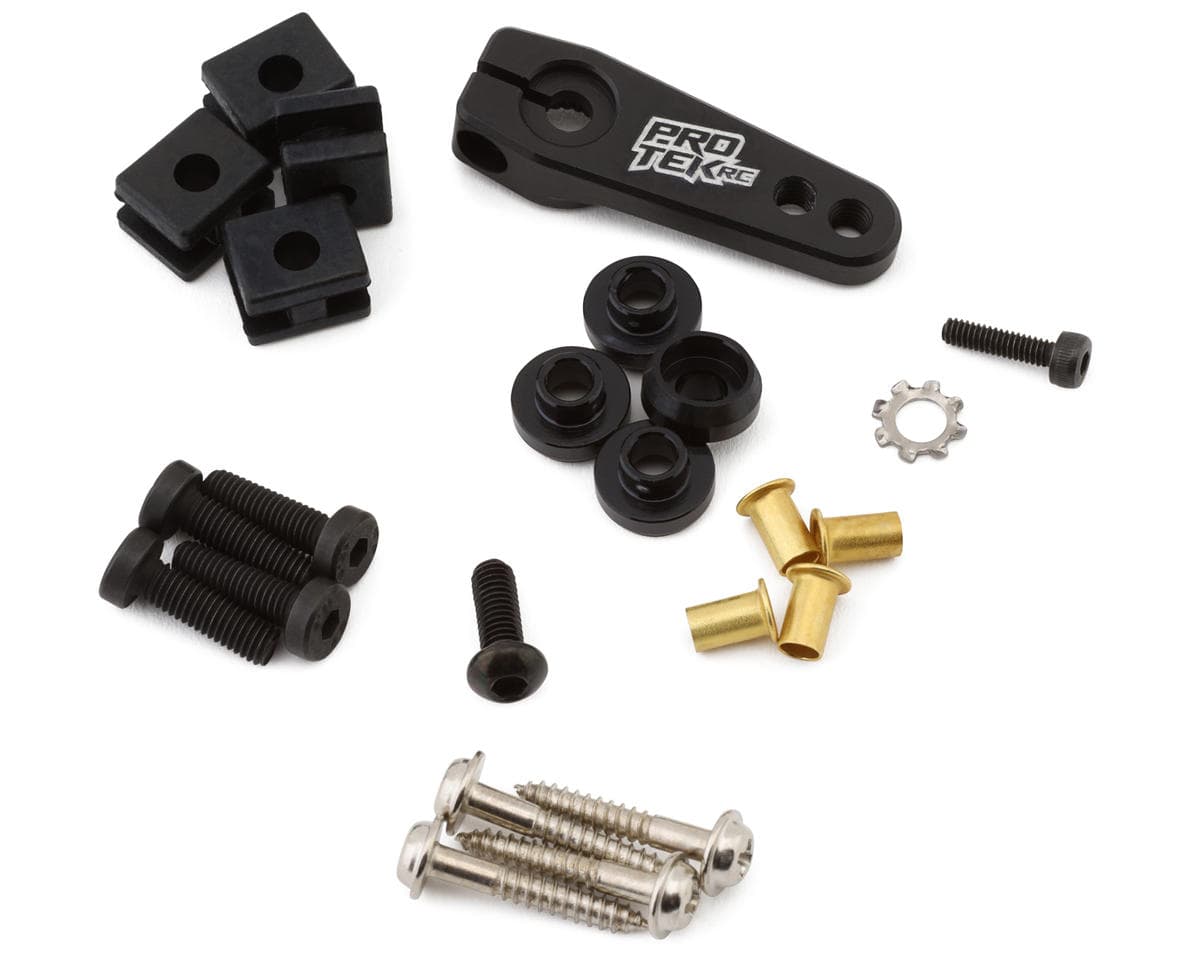

Includes:
- (1) Lifetime Gear Warranty
- (1) 575 Low Profile High Speed Brushless Servo
- (1) Aluminum Clamping Servo Horn
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 Scale |
|---|---|
| Operating Voltage | 6.0V - 8.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 7.4V | 0.06/60° sec |
| Operating Speed @ 8.4V | 0.055/60° sec |
| Dynamic Torque @ 7.4V | 511oz-in (36.7 kg-cm) |
| Dynamic Torque @ 8.4V | 575oz-in (41.4 kg-cm) |
| Motor Type | Brushless Digital |
| Output Shaft | 25T |
| Gears | Steel w/Lifetime Gear Warranty |
| Weight | 63g |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 39.5x20x30.4mm |
| Length (Bottom to Mount) | 19mm |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.6 · 9 reviews
Just Received this servo yesterday and I was eager to test it inside my AE b74.2D, First I did a bench test , with a servo horn and tried for force the servo by hand to validate the power at neutral and WOW I think that Protek HIT an homerun with these new line of servos. No more dead band issues. This servo start strong from neutral and is super smooth and quiet. After I installed it in the buggy and I was really impressed. Super strong neutral , new motor inside seems to have better precise movement. Overall for sure I need to test it at the track and report back in a couple of weeks. I need to run it and see if it will keep neutral after a couples of small bobbles or crash. So far this seems to be a good servo in the Protek Line-up, this servo at 6volts is faster than the 160TBL at the same voltage and the 575 is lightyears beyond in torque and feel. Hope more people try these and report back. (Update 24t of April 2025) unfortunately after more testing this servo is not durable , the gears gets damage way to easily ,and only after a Friday practice and one Saturday race the gears are already Crunchy. That's unfortunate. go purchase a Reefs 299 LP you will have better results at an even lower price point. Will test it more until the gears gets even worse .
The speed and power are off the charts. However I did have to replace the gears after only about 4 packs. Could have been driver error but I didn't have any bad crashes. If that didn't happen I'd give it 5 stars for sure
Using this servo in 1/10 2wd buggy and touring car. Great servo, super fast and a lot of torque.
Used in my 10th scale off-road 4wd and works flawlessly. High quality from Protek. Will buy the same servo for all my 10th scale cars.
Cant really rate it atm but it looks really nice.....
Reviewers generally describe the ProTek RC 575 High Volt / Metal Case servo as very fast and strong, with several praising its torque and smooth neutral performance across 1/10 and 1/8 buggies, touring and SCT chassis. Some reviewers note a noisy idle, which one attributes possibly to their radio. The main recurring complaint is gear stripping: one reviewer replaced gears after about four packs, and another reported stripping from side bumps. A French-language review reports two units breaking after roughly five packs without hard impacts. Ratings are split between praise from most verified and unverified owners and low scores from two owners citing durability. One reviewer had not yet formed a full judgement.
- + Fast and powerful
- + Strong torque
- + Smooth, precise neutral
- + Works across multiple chassis
- − Gears strip or fail
- − Durability concerns after several packs
- − Noisy at idle
