ProTek RC QS8 Anti-Spark Connector (1 Male/1 Female)
About this part
ProTek RC QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, the design provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology.

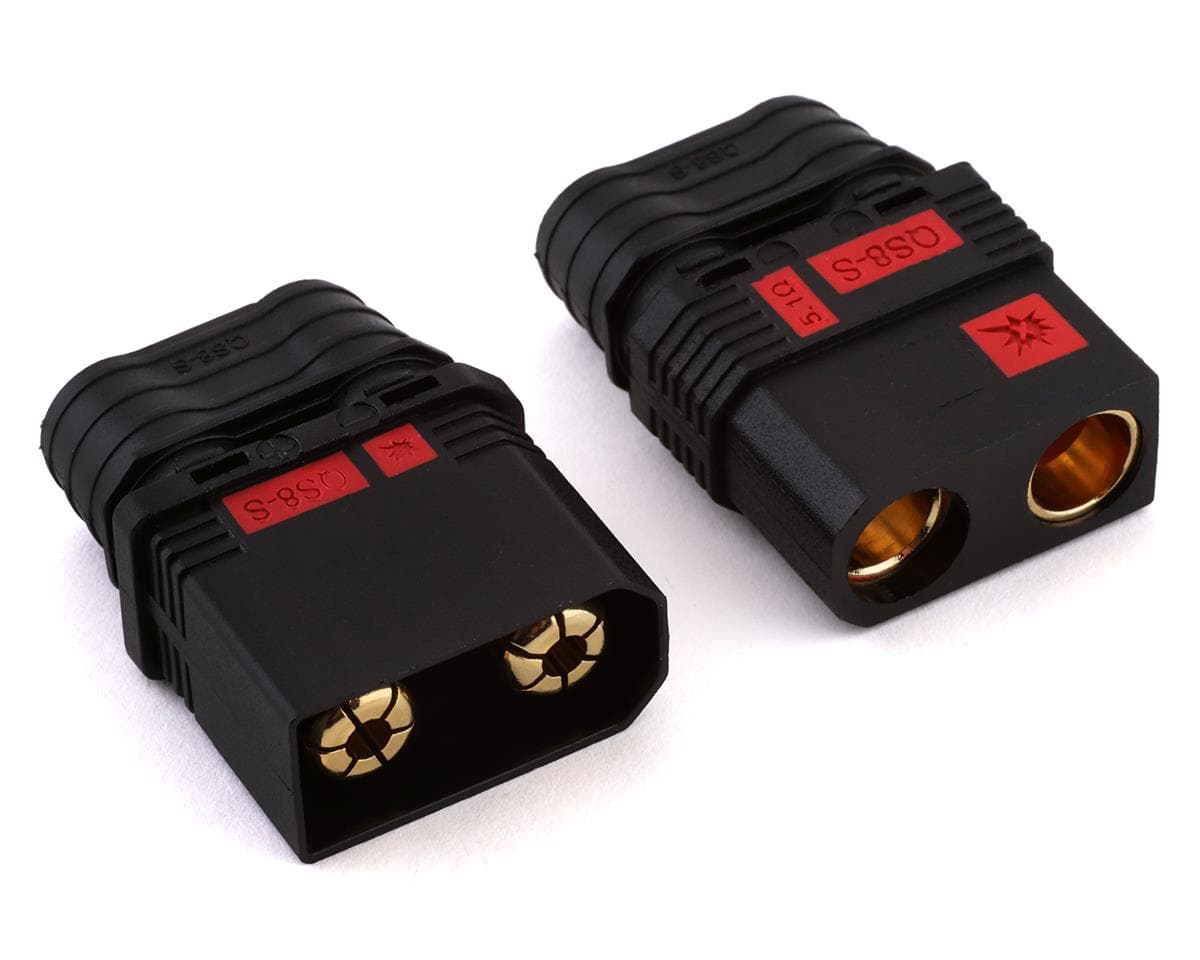

The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage.

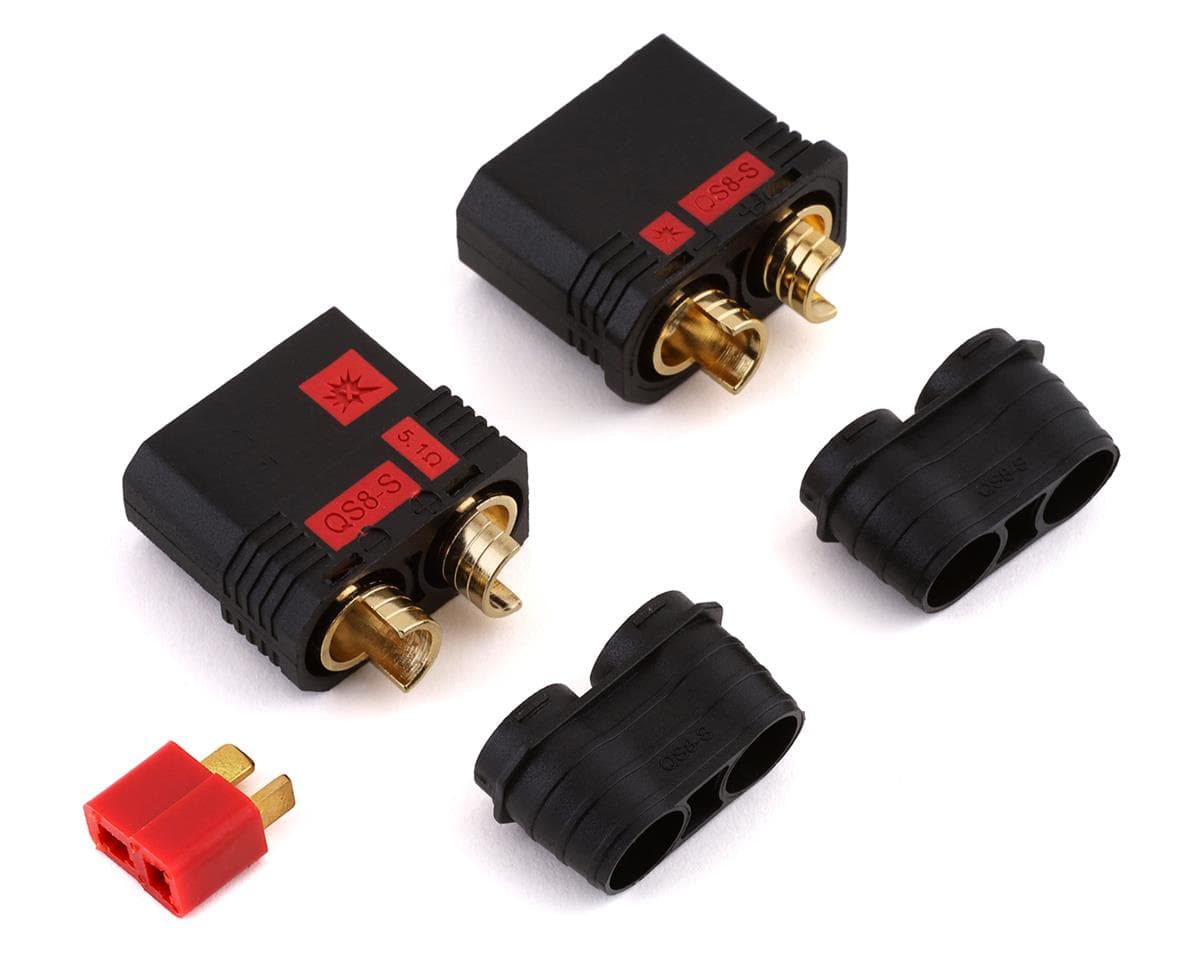

NOTE: T-style connector shown in photos is for size reference only, and is not included.
- Anti-Spark Technology Increases Lifespan of Connector
- 110A Constant/300A Peak Current Rating
- 8.0mm Gold Plated Brass Bullet
- Great for all High Voltage Applications
- Nylon/Fiber Composite Housing

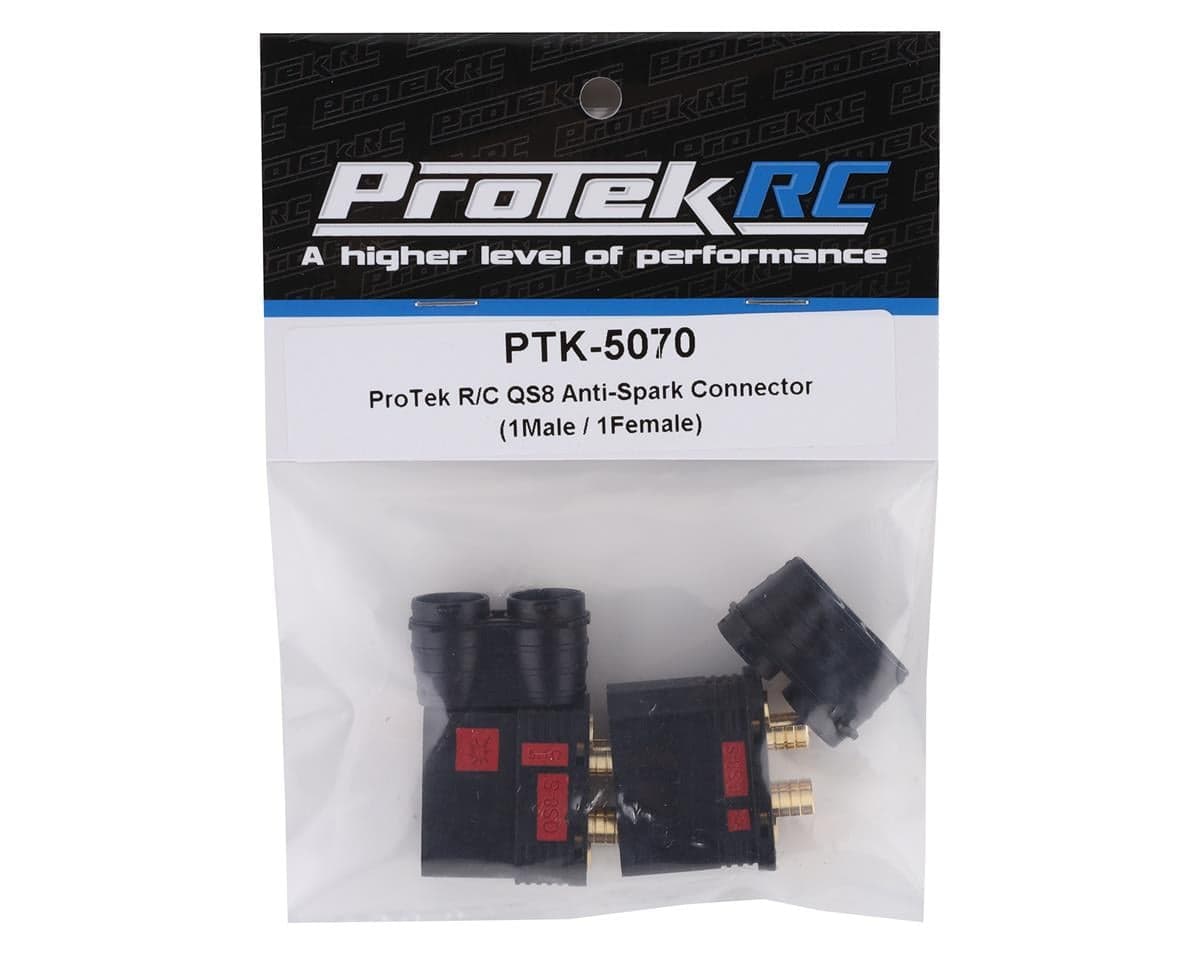

- Package Includes One Female Connector, One Male Connector & End Cap
Rated Voltage: 600V DC
Continuous Current: 110A
Peak Current: 300A+
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.0 · 4 reviews
Basically a scaled up XT90S these are made for 6 AWG to 10 AWG wire, though 10 AWG is a little on the small size for these. Great for large planes and helis with high amp power systems. Need to take care soldering them to batteries due to the two terminals being right next to each other, I'd recommend putting some temporary heatshrink or electrical tape on the first soldered cup to prevent accidental shorts. You can rotate the cups around to face sideways on the male connectors like you can with XT90s but if you do this it interferes with the back shell of the connector so I don't recommend it. If you have trouble connecting them swab a little super lube or triflow grease inside the female terminal (dialectic grease does NOT affect the conductivity of electrical connections and actually helps preserve the gold plating)
Works like a charm! I have not had a spark with this new setup. You can squeeze the connectors with needle nose pliers to get a bit less binding.
This connector is a joke. It is massive big and won't fit into anything but a huge RC model. Protein why don't you make a normal sized one? Very hard to tell size online so would have never purchased because of it's size in a store.
These connectors are garbage. Very heavy and ridiculously bulky. Also, they are a complete pain to put together because they bind. Then there’s the fact you can’t get them in single ended units makes them a complete fail.
Reviewers agree the QS8 connectors are large and bulky, which suits big planes and helicopters with high-current systems but makes them unsuitable for smaller models. Two reviewers report that the connectors bind during mating; one says lubricant or squeezing with pliers eases this, while another calls assembly a pain. One reviewer notes they are rated for 6 to 10 AWG wire, with 10 AWG on the small side, and advises insulating the closely spaced solder cups to avoid shorts. One reviewer reports no sparking in use. Opinions diverge sharply, with two 5-star and two 1-star ratings. The 1-star reviews also cite weight and lack of single-ended versions.
- + Reliable, no sparking reported
- + Suited to large high-current systems
- − Large and bulky
- − Connectors bind when mating
- − Heavy
- − Closely spaced solder cups risk shorts
