Raceform EB410 V2 Electronics Tray
About this part

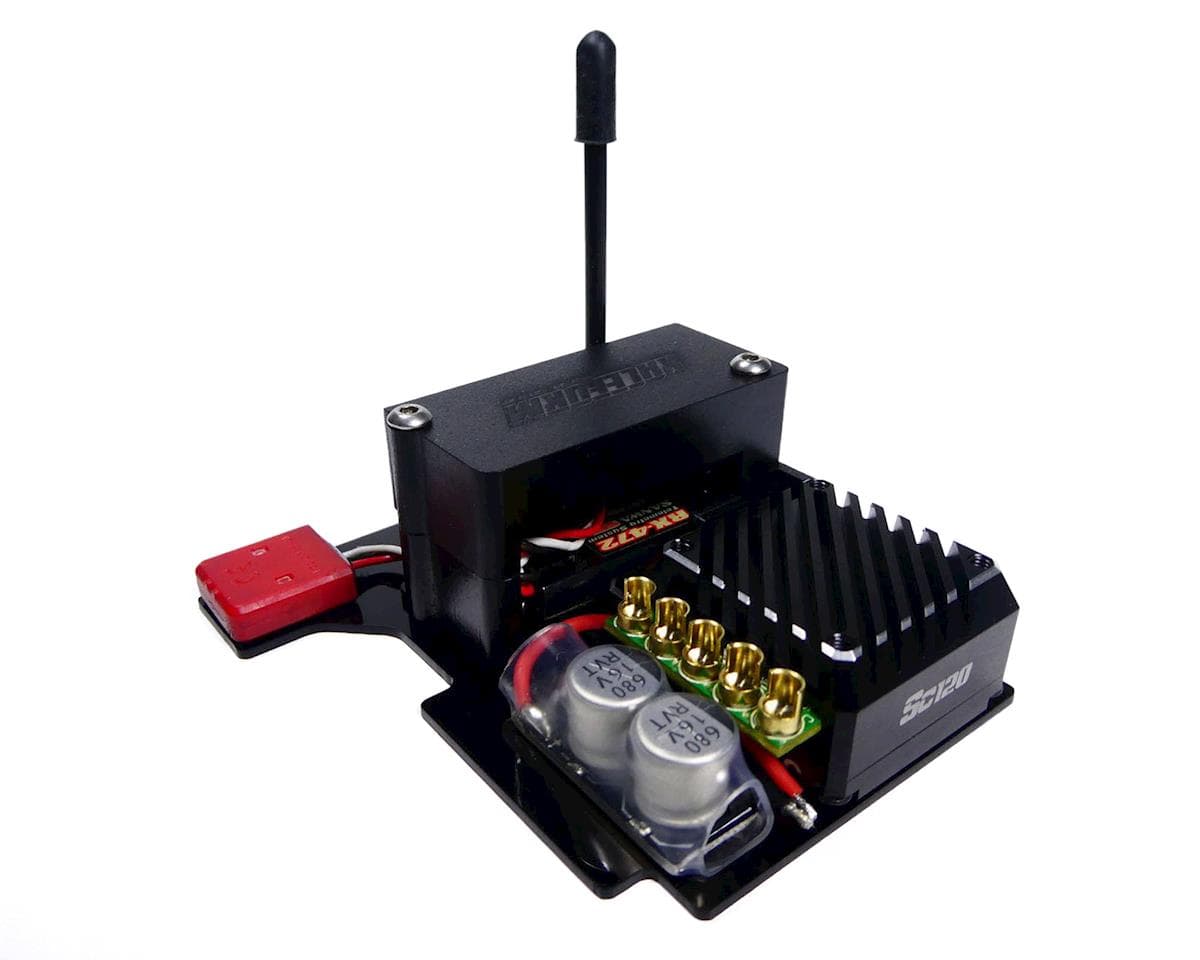

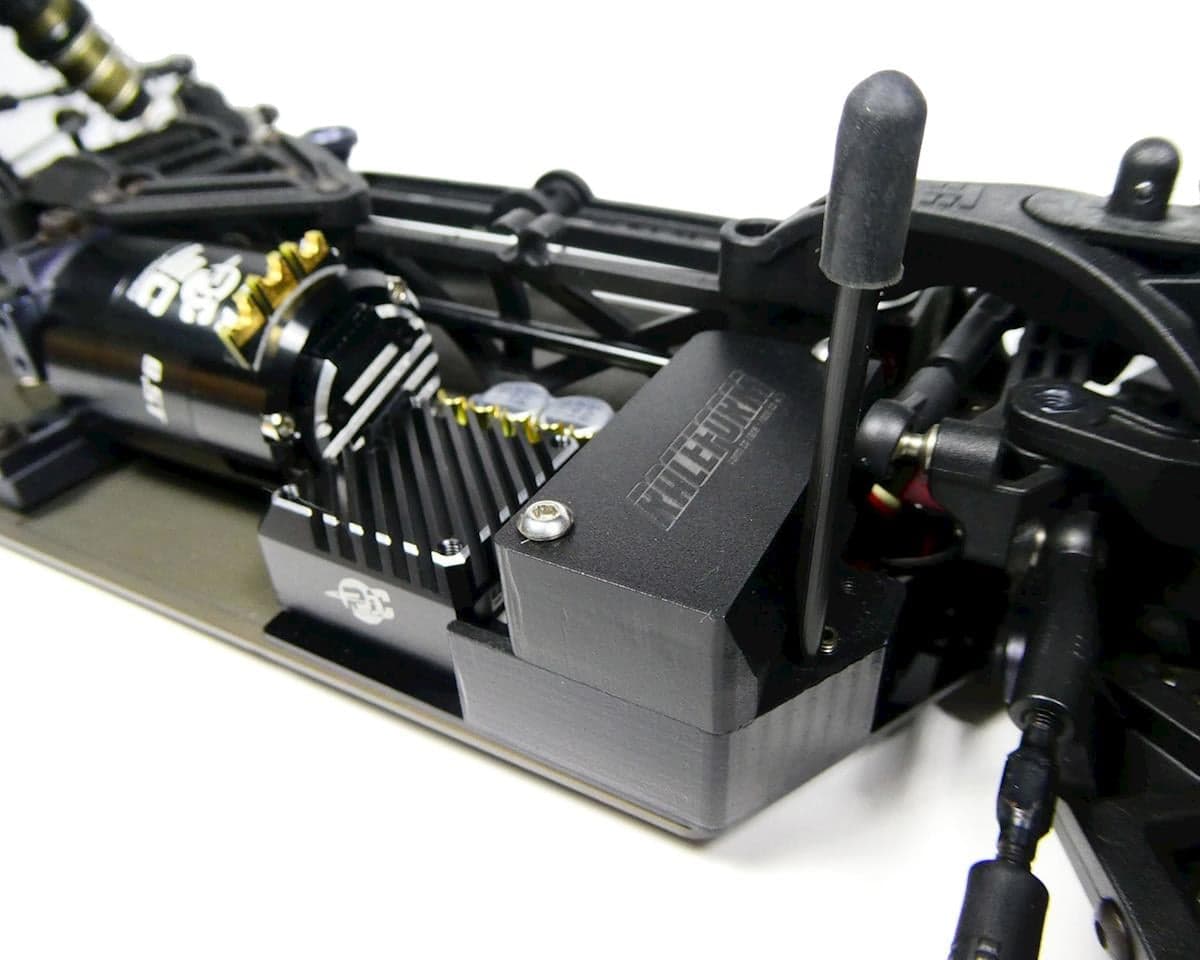

The Raceform EB410 V2 Electronics Tray is a lightweight, CNC machined tray that cleans up the inside of the EB410 while placing the transponder in the most forward location. The entire tray weighs only 28grams while securing your most critical components: transponder, receiver, electronic speed control and capacitor.
Features:
- Stronger an more durable
- Upgraded to new material and elimination of stress areas

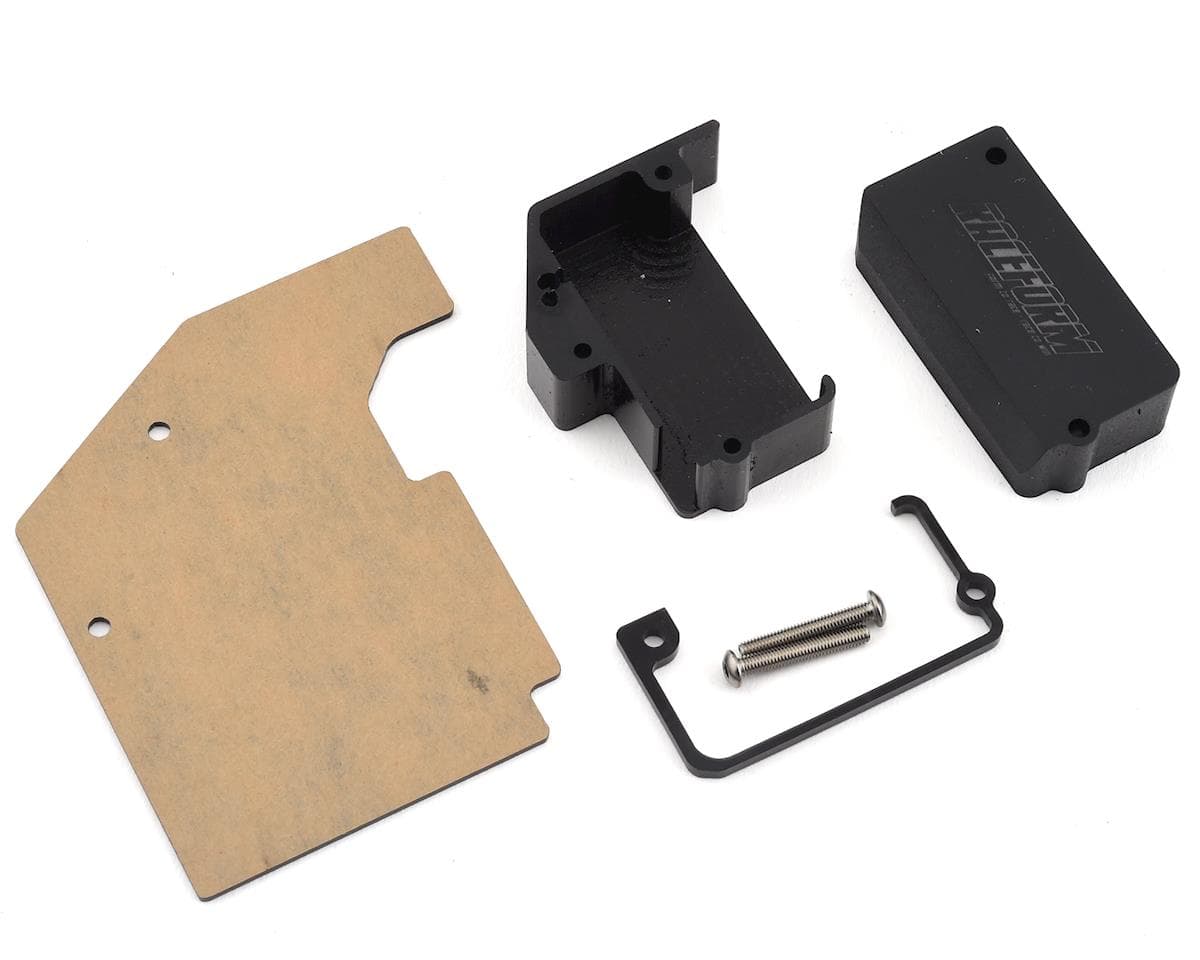

- 4 Part design. Any parts can be replaced without the need to purchase a whole uint.
- CNC machined electronic tray and laser etched Raceform Logo
- Clean look to your EB410
- No modification needed to your buggy
- PT transponder at the far most possible front
- Tray has enough area to hold Transponder, Receiver, Speed Controller and capacitor
- Only 4 screws in total including motor mount to remove full electronics section.
- 28 grams with cover and screws
- Transponder area size 31mm x17mm
- Receiver area size 24mm x 37mm x 28mm height (Internal Dimensions)
- Speed Controller and capacitor area size is 41mm x 53mm
Reviews3.2 · 6 reviews
V2 tray seems to be alot better. The base is not the color shown. Base is gloss black there is a brown protective sticker on base shown in picture. A nicer more durable material has been used for v2 tray update 4/29/2019 Ordered a base plate direct from Raceform and it seem they changed the materiel again it not a stiff acrylic materiel anymore. Its a flexible abs type of plastic base plate now. It did not come with the brown protective sticker anymore as well. I think this will be even better than the first V2 update.
Solid add on to the eb410. My biggest complaint on the build of the eb410 was the esc, motor and receiver area. The threading for the screws are really solid, so no fear of stripping. I saw the other postings about the quality of the plastic. It is different plastic than you are use to on the track. It is solid though. When putting the screws in it felt smooth and solid like aluminum. I've running several weekends and I am sold.
Very fragile and breaks if someone nails you at the track. I foolishly bought a second one after my first shattered. After #2 broke and I realized I am out $70, the stock parts went back in the car. Only buy if you like throwing away $35 chunks.
This item is super fragile. The bottom piece is painted lexan glued to the plastic upper. If you use any adhesives to fix ESC, receiver and transponder to the tray, it will break if you attempt to remove any of them. I would like to see someone make this item with a carbon fiber lower bonded to a plastic upper.
A very neat solution for some added receiver protection and lead tidying, do be careful of the transponder mounting lug though as the base material is very thin and rather brittle if carelessly handled!
Reviewers are divided on the Raceform EB410 V2 Electronics Tray. Several praise the screw-thread solidity and the way it tidies leads and protects the receiver. Multiple reviewers, including verified owners, report that the tray is brittle and can shatter after a crash, and that it breaks if adhesive-mounted components are removed. One reviewer reports the transponder mounting lug is especially delicate. Reviewers also mention that the base's colour and material differ from the product images and may have changed between production runs. Three of six reviews are one-star or three-star, so opinion is mixed.
- + Solid, strong screw threading
- + Tidies leads neatly
- + Protects receiver
- + Good for fitting ESC and receiver
- − Brittle and prone to shattering in crashes
- − Breaks when adhesive-fixed parts are removed
- − Fragile transponder mounting lug
- − Base colour and material differ from images
