RadioMaster
RadioMaster ER8-G ExpressLRS (ELRS) 2.4GHz 8 Channel Receiver
Part # RM-HP0157.RX-ER8-G5.0(1)
Where to buy
$41.49
Prices are as last seen at the store; stock is not tracked.
About this part
Receiver Overview:

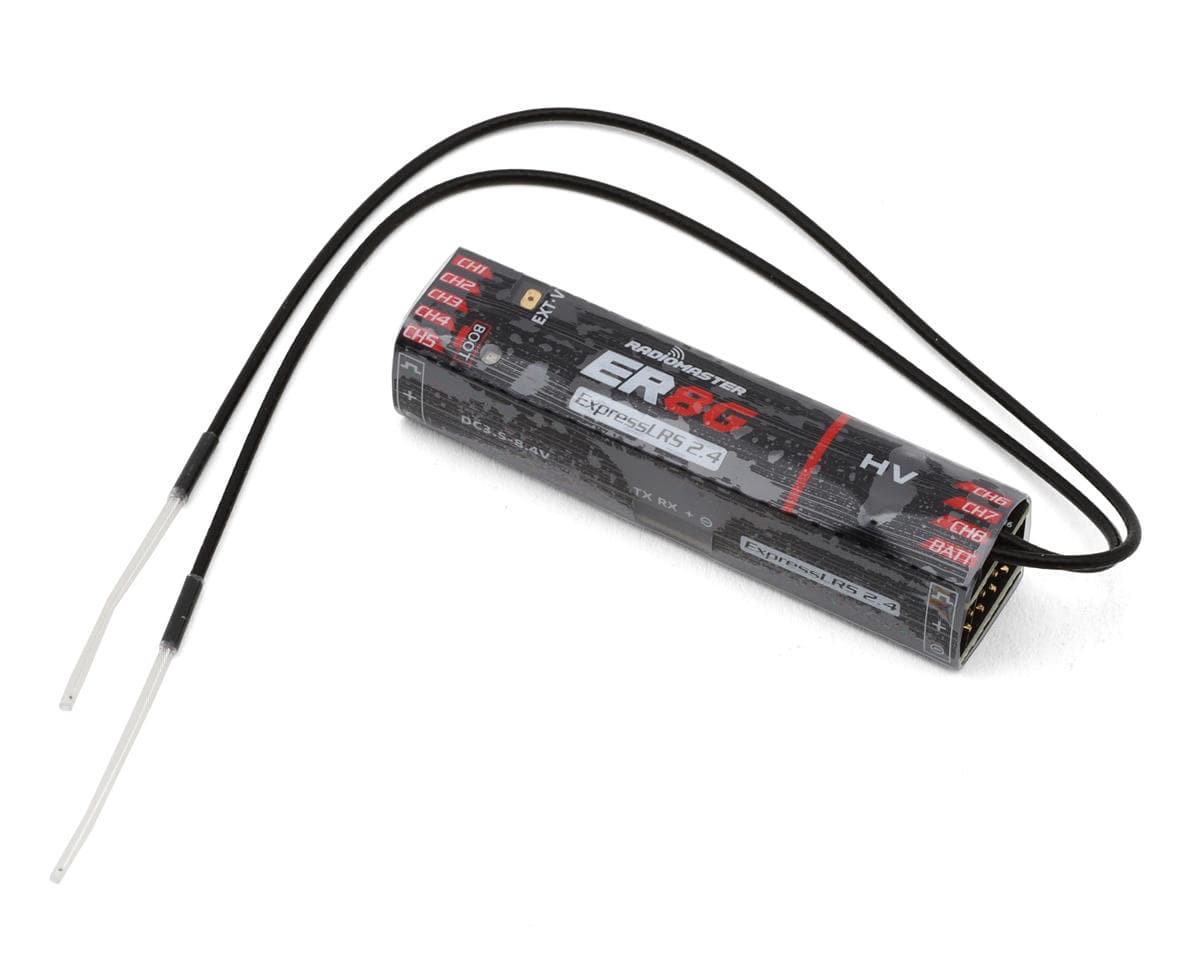

This is the ER8-G ExpressLRS (ELRS) 2.4GHz 8 Channel Receiver from RadioMaster. Designed for fixed-wing aircraft and gliders, this high-performance receiver combines advanced telemetry features, reliable communication, and compact design to elevate your flight experience.
Features:
- Based on the Revolutionary ExpressLRS System
- Supports eight PWM channels with voltage telemetry
- Optimized PCB design for enhanced performance
- Includes a high-sensitivity 20cm antenna
- Compatible with all 2.4GHz ExpressLRS modules and transmitters
Specifications:
- Power supply: DC 3.5-8.4V
- Antenna type: 20cm high sensitivity antenna
- Weight: 0.42oz (12g)
- Dimensions: 2.36x0.53x0.51in (60x13.5x13mm)
Includes:
- (1) ER8G 2.4GHz ELRS PWM Receiver

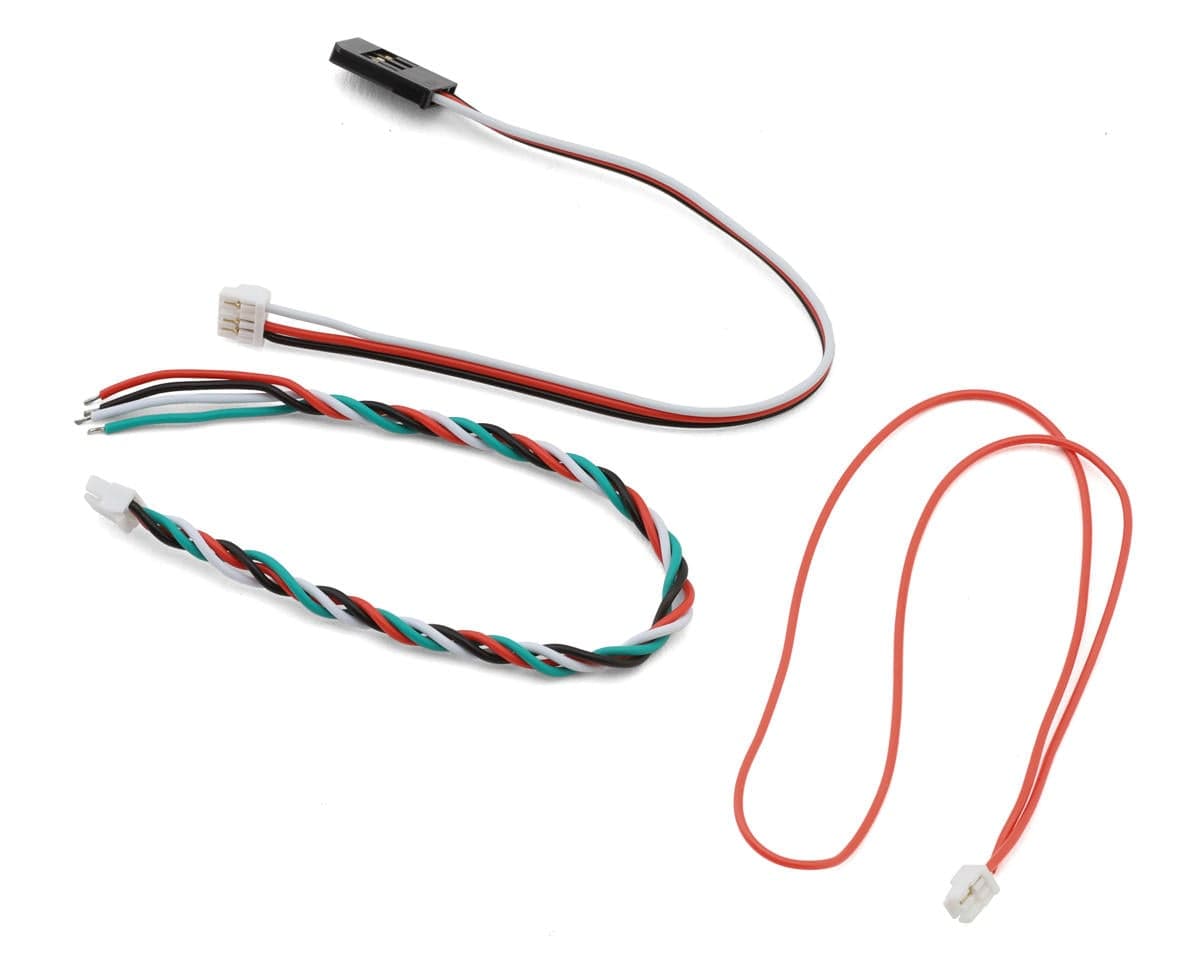

- (2) Heat-shrink tube
- (1) Voltage telemetry wire (Type-A)
- (1) CRSF wire
- (1) ELRS-RX-SBUS wire
- (1) User Card
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Larry PittsVerified owneron RadioMaster ER8-G ExpressLRS (ELRS) 2.4GHz 8 Channel Receiver
Works really well. Recommend. RadioMaster products have been reliable and fit the intended purpose.
