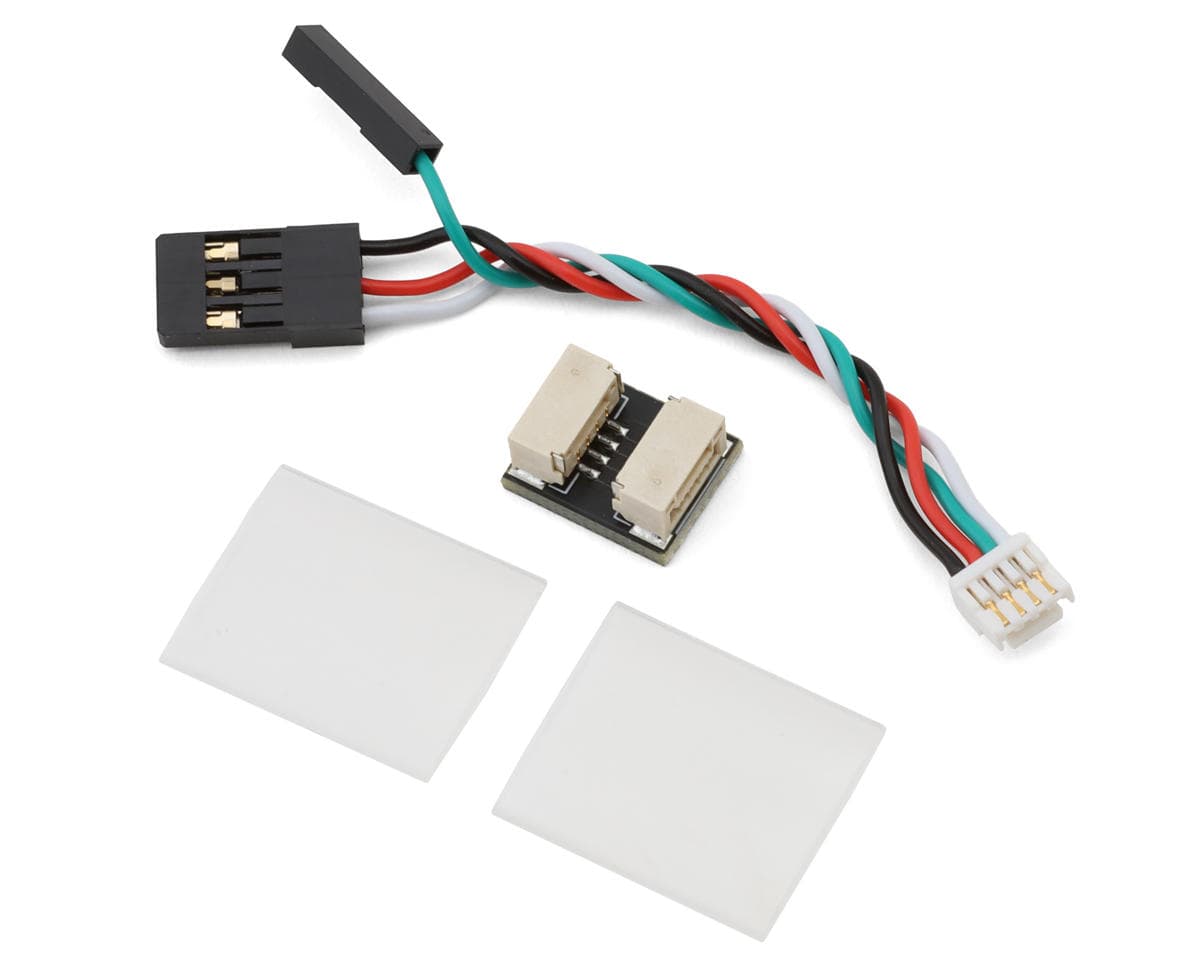

RadioMaster ERS Sensor UART to Dual PWM Telemetry Adapter Cable
About this part
Adapter Cable Overview
The RadioMaster ERS Sensor UART to Dual PWM Telemetry Adapter Cable is a compact and practical solution for expanding sensor compatibility across a wide range of ExpressLRS receivers. Designed for systems without a dedicated UART port, this adapter makes it easy to integrate ERS telemetry sensors without replacing your existing hardware.
About the ERS Sensor UART to Dual PWM Telemetry Adapter Cable
Expand Telemetry Compatibility With Simple Integration
This adapter converts a JST-GH UART connection into both a standard 3-pin servo plug and a single-pin Dupont signal line, allowing connection to two PWM channels on your receiver. By reassigning PWM outputs as TX and RX through the receiver’s Web UI or ExpressLRS LUA script, users can enable full telemetry support even on non-plug-and-play receivers. The compact PCB design keeps installations clean and efficient, while maintaining compatibility with a wide range of ERS sensors. It’s an essential tool for users looking to maximize telemetry without sacrificing channel availability.v
Features:
- JST-GH to dual PWM signal conversion
- Supports ERS telemetry sensor connectivity
- Enables UART via PWM channel reassignment
- Compatible with ExpressLRS receivers
- 3-pin servo and 1-pin Dupont outputs
- Compact and lightweight PCB design
- Simplifies non-UART receiver integration
Includes:
- (1) ERS Sensor UART to Dual PWM Telemetry Adapter Cable
Specifications:
| Dimensions | 3.35in (85mm) |
|---|---|
| Weight | 0.064oz (1.81g) |
