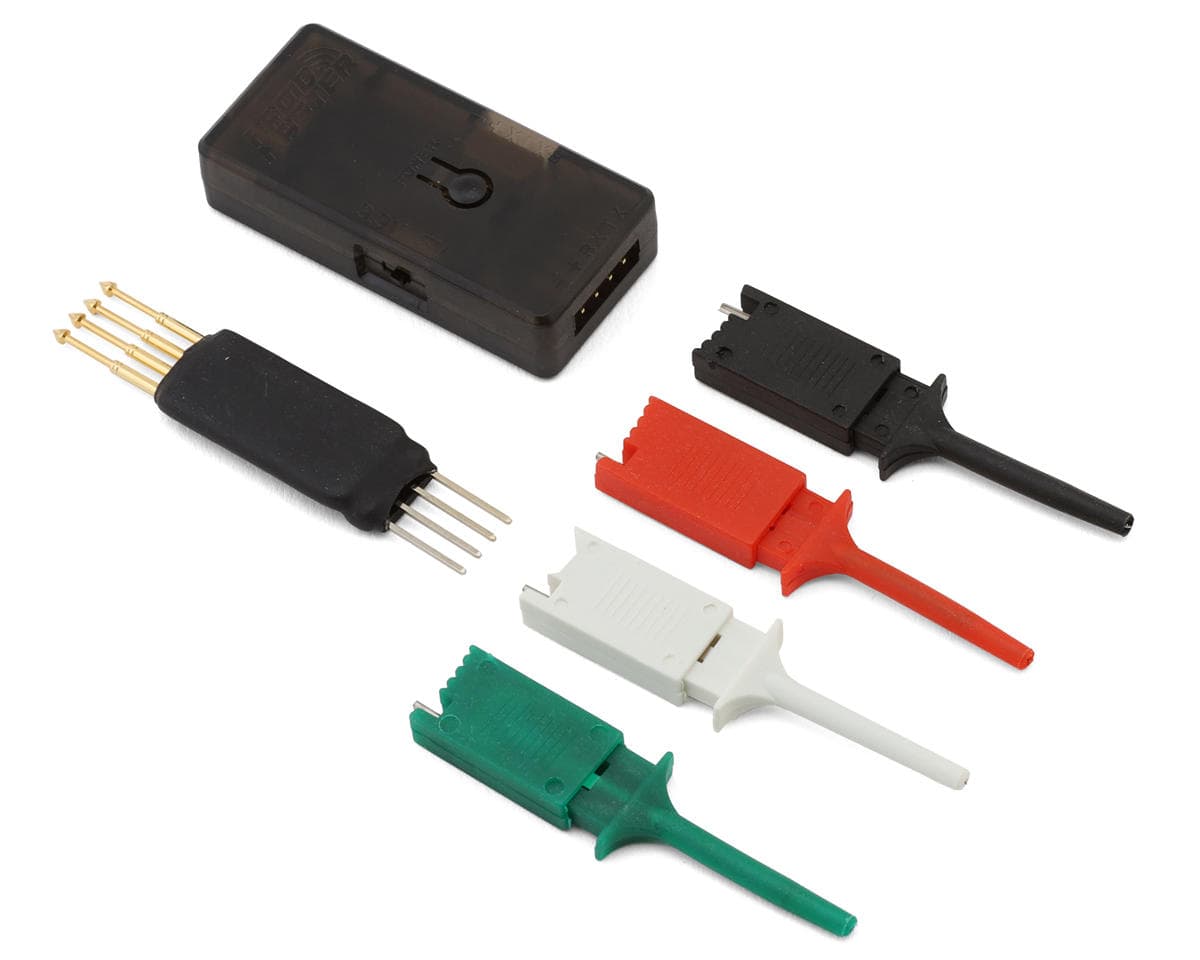

RadioMaster ExpressLRS (ELRS) USB UART Flasher V2 Programmer

ExpressLRS USB UART Flasher V2 Overview:

The RadioMaster ExpressLRS USB UART Flasher V2 is the ultimate tool for upgrading ELRS firmware with ease and reliability. Featuring a USB-C interface and a power button for seamless power cycling, this versatile flasher eliminates the complexities of firmware updates. Whether recovering from a bad flash or simply upgrading your receiver, this tool ensures a smooth and efficient process.

Designed specifically for ELRS receivers, the V2 flasher also offers compatibility with other devices requiring a UART interface, making it a must-have for firmware upgrades. Its switchable power supply between 3.3V and 5V, along with a variety of connection options, ensures adaptability to various needs.

Features:

• Upgraded USB-C interface for faster and more convenient connections
• Power button for effortless ON/OFF power cycling
• Reverse polarity and over-voltage protection for enhanced safety
• Switchable power supply between 3.3V and 5V
• Standard 2.54mm pins for versatile connections
• RM-CRSF JST-GH port for plug-and-play functionality with RadioMaster ER receivers
• Includes pin sockets and Dupont cables for easy testing

Specifications:

• Power Supply: Switchable between 3.3V and 5V
• Interface: USB-C
• Connection Types: 2.54mm pins, RM-CRSF JST-GH port
• Protection: Reverse polarity and over-voltage
• Compatibility: ELRS receivers and other UART devices
• Applications: Firmware upgrades and serial port recovery

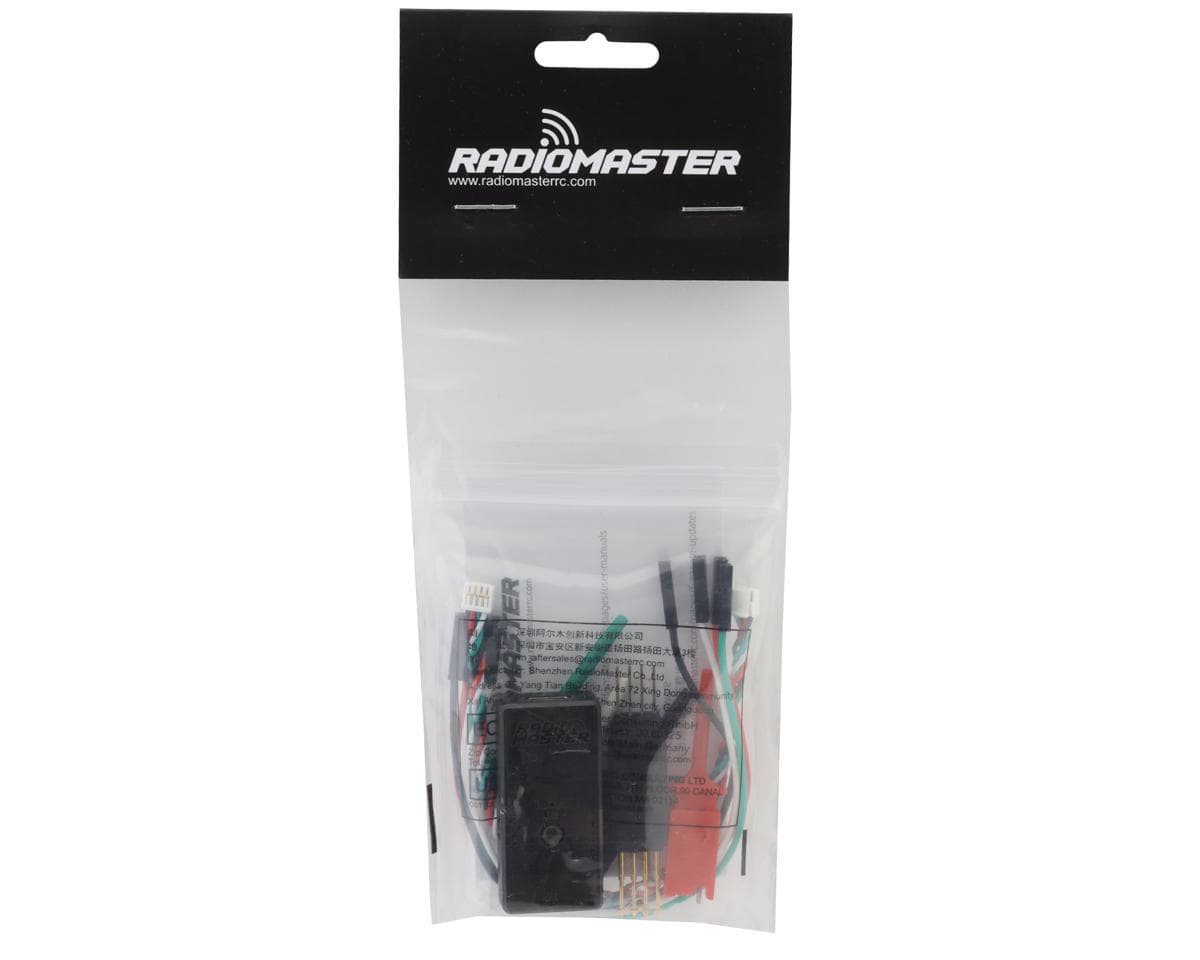

Includes:

• (1) RadioMaster ExpressLRS USB UART Flasher V2
• (1) Pogo Probe

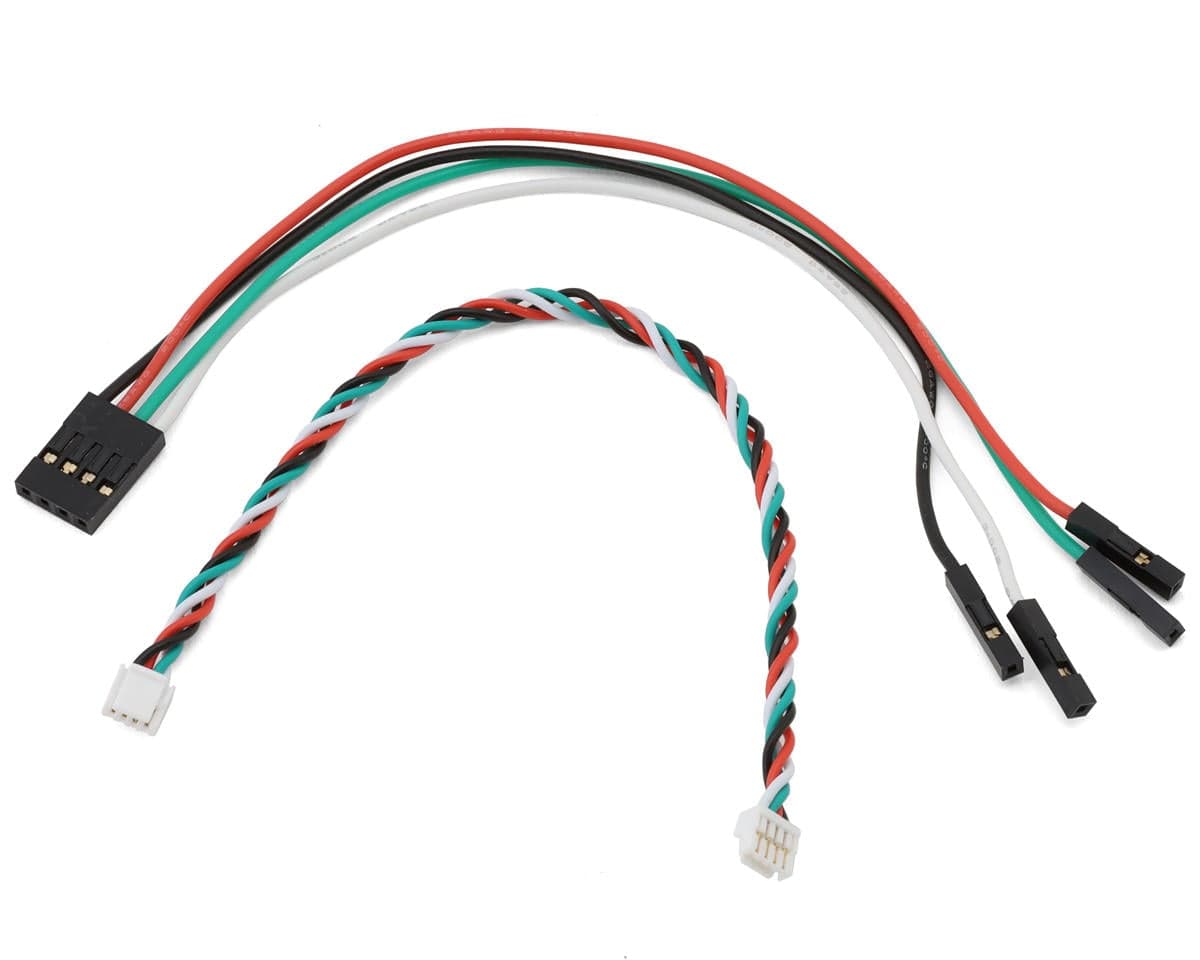

• (1) CRSF Wire
• (1) 2.54mm Serial Port Cable - Type B
• (1) Serial Port Test Hook - White
• (1) Serial Port Test Hook - Green
• (1) Serial Port Test Hook - Red
• (1) Serial Port Test Hook - Black
• (1) User Card

Compatible Receivers:

• All RP Series ELRS Receivers
• ER3C-i 2.4GHz ELRS PWM Receiver
• ER5C-i 2.4GHz ELRS PWM Receiver
• ER4 2.4GHz ELRS PWM Receiver
• ER5A 2.4GHz PWM Receiver
• ER5A V2 2.4GHz PWM Receiver
• ER5C 2.4GHz PWM Receiver
• ER5C V2 2.4GHz PWM Receiver
• ER6G & ER6GV ELRS PWM Receiver
• ER6 2.4GHz ELRS PWM Receiver
• ER8 2.4GHz ELRS PWM Receiver
• ER8G & ER8GV ELRS PWM Receiver
