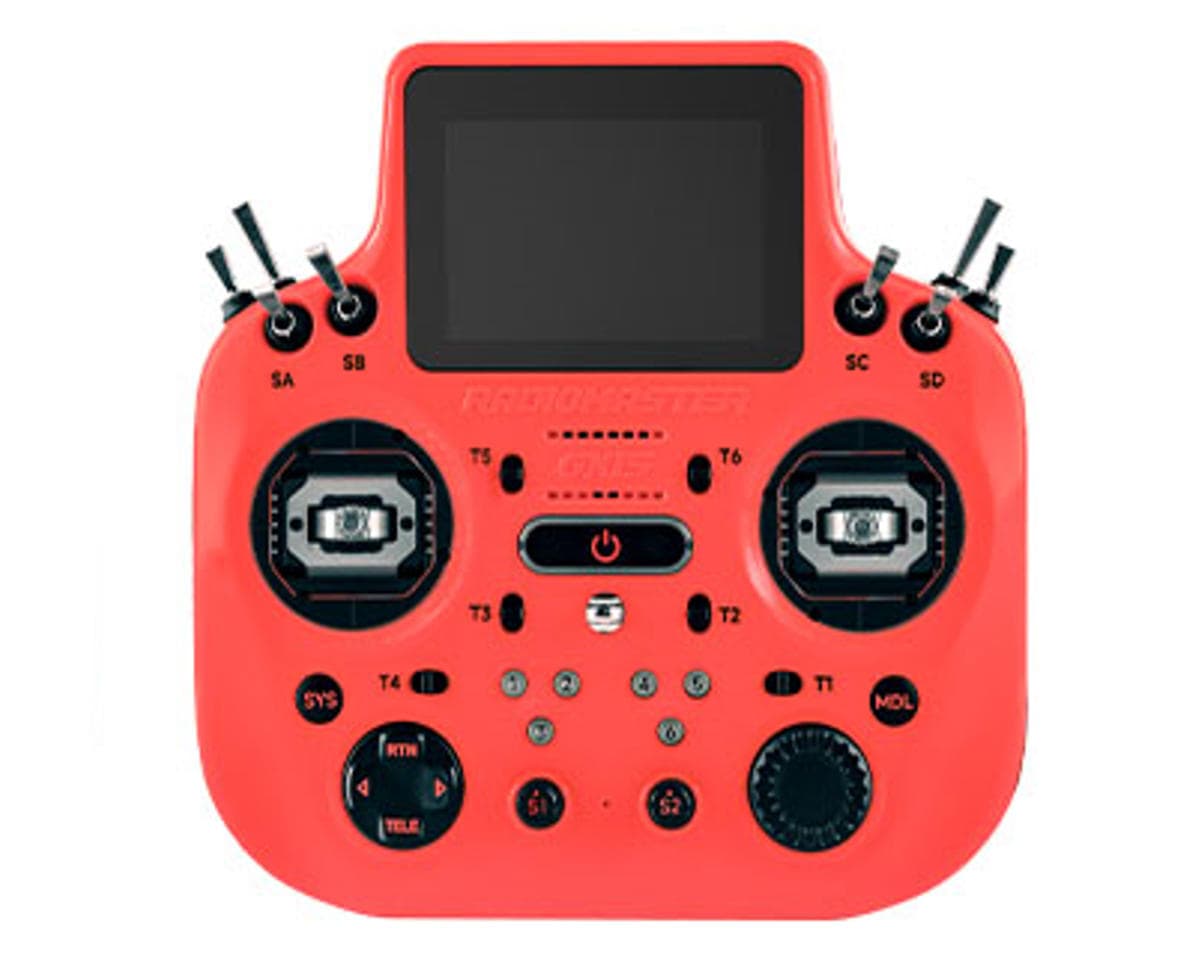

RadioMaster GX15 2.4GHz ELRS 16 Channel Radio System (Red)
About this part
16 Channel ELRS Air Transmitter
This is the GX15 2.4GHz ELRS 16 Channel Radio System from RadioMaster, designed to deliver advanced performance and precision control for serious RC enthusiasts. Built around a powerful processor and cutting-edge ExpressLRS technology, it offers fast response times and reliable signal transmission. The integrated touchscreen interface and premium components provide a modern, user-friendly experience.
About the GX15 Radio System
High-Performance Processing Powery
The GX15 is powered by a high-speed STM32 H7 processor, delivering fast system responsiveness and smooth operation across all functions. This ensures quick menu navigation, low latency control input, and reliable performance even during complex operations. Combined with EdgeTX firmware support, users gain access to a highly customizable and powerful radio platform.
Advanced ExpressLRS Connectivity
Featuring dual 2.4GHz ExpressLRS (Gemini) technology with dual SX1281 transceivers, the GX15 provides exceptional signal reliability and ultra-fast update rates. This system supports advanced modes such as F1000 when paired with compatible receivers, ensuring precise and consistent control. Dual internal antennas further enhance signal stability through polarization diversity without external clutter.
Premium Control and User Experience
Equipped with V6 Hall-effect sensor gimbals, the GX15 offers smooth, accurate, and consistent control inputs. The 3.5-inch IPS touchscreen provides clear visibility with vibrant colors and high brightness for outdoor use. Additional features like a built-in gyroscope, cooling system, and flexible battery options enhance usability, making this radio both versatile and future-ready.
Features:
- STM32 H7 high performance processor
- Dual 2.4GHz ExpressLRS Gemini system
- Up to sixteen channel support
- 3.5 inch IPS touchscreen display
- V6 hall effect sensor gimbals
- Dual internal antenna design
- Built in cooling fan system
- Integrated gyroscope functionality
- USB-C connectivity and upgrades
- Flexible battery compatibility
Includes:
- (1) GX15 Radio Controller
- (1) GX15 Carry Case
- (1) 18650 Battery Tray
- (2) Replacement Shoulder Panels
- (1) Type-C Cable
- (1) Screen Protector
- (1) 1.5mm Hex Wrench
- (4) Low Tension Gimbals Springs
- (2) Gimbal Stick Set Screws
- (4) 6mm Switch Delete Gromets
- (1) Lanyard
- (1) RadioMaster Sticker Set
- (1) GX15 Manual
- (1) Inventory Card
Specifications:
| Voltage Range | 6.6x8.4v |
|---|---|
| Operating Frequency | 2.4GHz |
| Channels | 16 |
| Radio Firmware | EdgeTX |
| Module Firmware | ExpressLRS |
| Dimensions (LxWxH) | 7.01x6.61x3.19in (178x168x81mm) |
| Weight | 25.57oz (725g) |
