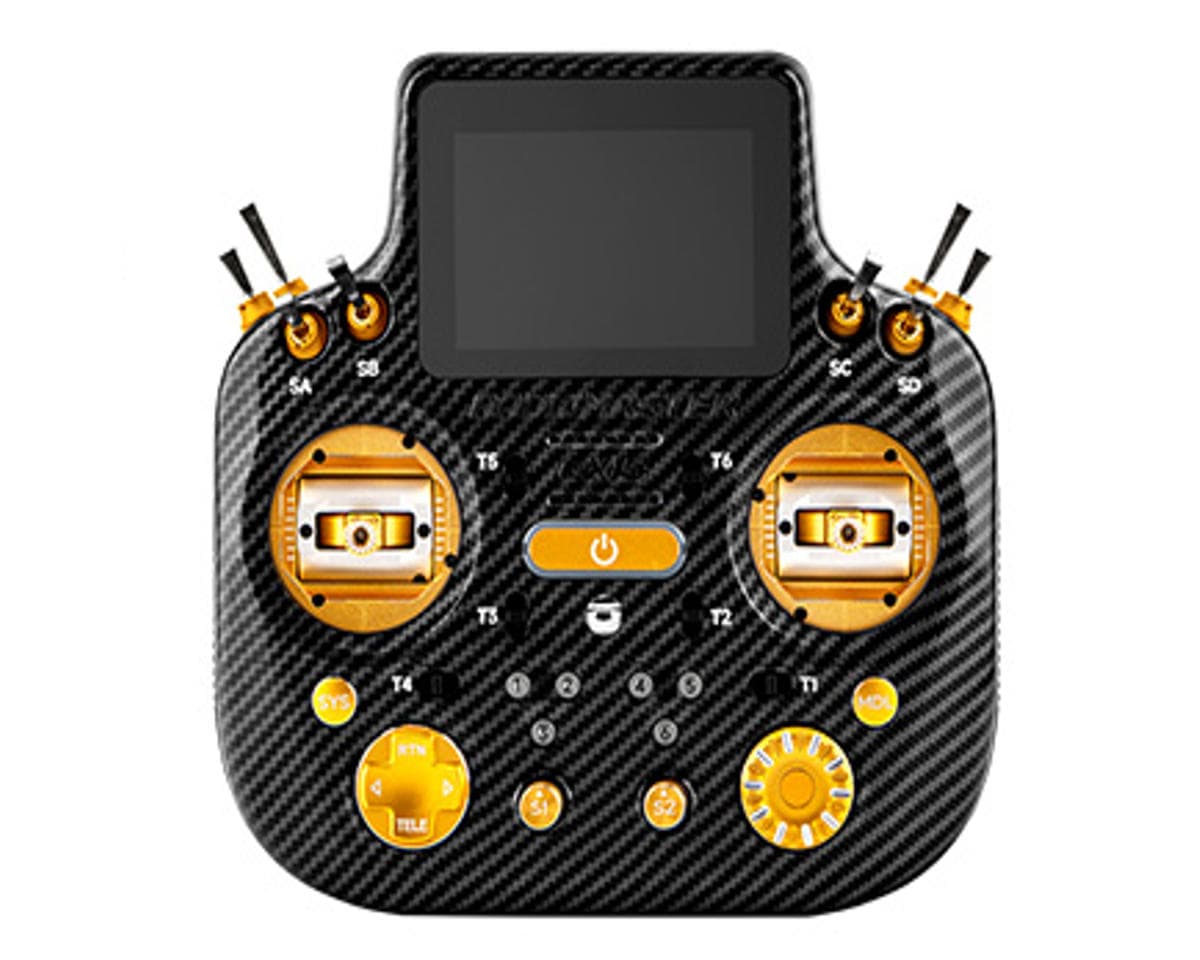

RadioMaster GX15 MAX 2.4GHz ELRS 16 Channel Radio System (Gold)
About this part
Premium Upgraded ELRS Air Transmitter
This is the GX15 MAX 2.4GHz ELRS 16 Channel Radio System from RadioMaster, designed for pilots who demand premium performance, precision, and build quality. Featuring upgraded components and refined ergonomics, this transmitter delivers a high-end control experience across a wide range of RC applications. Powered by advanced ExpressLRS technology and a fast processor, it ensures responsive and reliable operation.
About the GX15 MAX Radio System
Premium CNC Gimbals and Controls
The GX15 MAX is equipped with AG02 CNC aluminum Hall-effect gimbals, offering ultra-smooth and precise control inputs. These premium gimbals provide exceptional durability and consistent performance, making them ideal for demanding pilots. Complementing the gimbals are CNC aluminum buttons and a precision scroll wheel, delivering a refined and tactile user experience. This combination ensures accurate control and long-term reliability.
Advanced ExpressLRS Performance
With dual 2.4GHz ExpressLRS (Gemini) technology powered by dual SX1281 transceivers, the GX15 MAX delivers outstanding signal reliability and ultra-fast response times. It supports advanced update rates, including F1000 operation when paired with compatible receivers. The integrated antenna design maintains strong and stable signal performance while keeping the transmitter clean and compact. This system is engineered for precision control in high-performance environments.
High-End Design and Smart Features
The GX15 MAX features a carbon-look premium case paired with a bright 3.5-inch IPS touchscreen for excellent visibility and intuitive navigation. A built-in cooling system with aluminum heat sinks ensures stable operation under demanding conditions. Additional features such as a gyroscope, intelligent battery management, and flexible storage options make this transmitter highly versatile. Designed for modern pilots, it combines performance, durability, and future-ready functionality.
Features:
- STM32 H7 high performance processor
- Dual 2.4GHz ExpressLRS Gemini system
- Up to sixteen channel support
- AG02 CNC aluminum hall effect gimbals
- 3.5 inch IPS touchscreen display
- Integrated antenna system design
- Built in cooling fan system
- CNC aluminum buttons and controls
- Integrated gyroscope functionality
- Premium carbon look case
Includes:
- (1) GX15 MAX Radio Controller
- (1) GX15 MAX Carry Case
- (1) 18650 Battery Tray
- (2) Replacement Shoulder Panels
- (1) Type-C Cable
- (1) Screen Protector
- (1) 1.5mm Hex Wrench
- (4) Low Tension Gimbals Springs
- (2) Gimbal Stick Set Screws
- (4) 6mm Switch Delete Gromets
- (1) Lanyard
- (1) RadioMaster Sticker Set
- (1) GX15 Manual
- (1) Inventory Card
Specifications:
| Voltage Range | 6.6x8.4v |
|---|---|
| Operating Frequency | 2.4GHz |
| Channels | 16 |
| Radio Firmware | EdgeTX |
| Module Firmware | ExpressLRS |
| Dimensions (LxWxH) | 7.01x6.61x3.19in (178x168x81mm) |
| Weight | 25.57oz (725g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Ideal screen and switch placement for all types of flying / surface. Fully supported updates for EdgeTX and ExpressLRS. I flew the TX16S, Zorro and Pocket, the GX15 is my daily.
