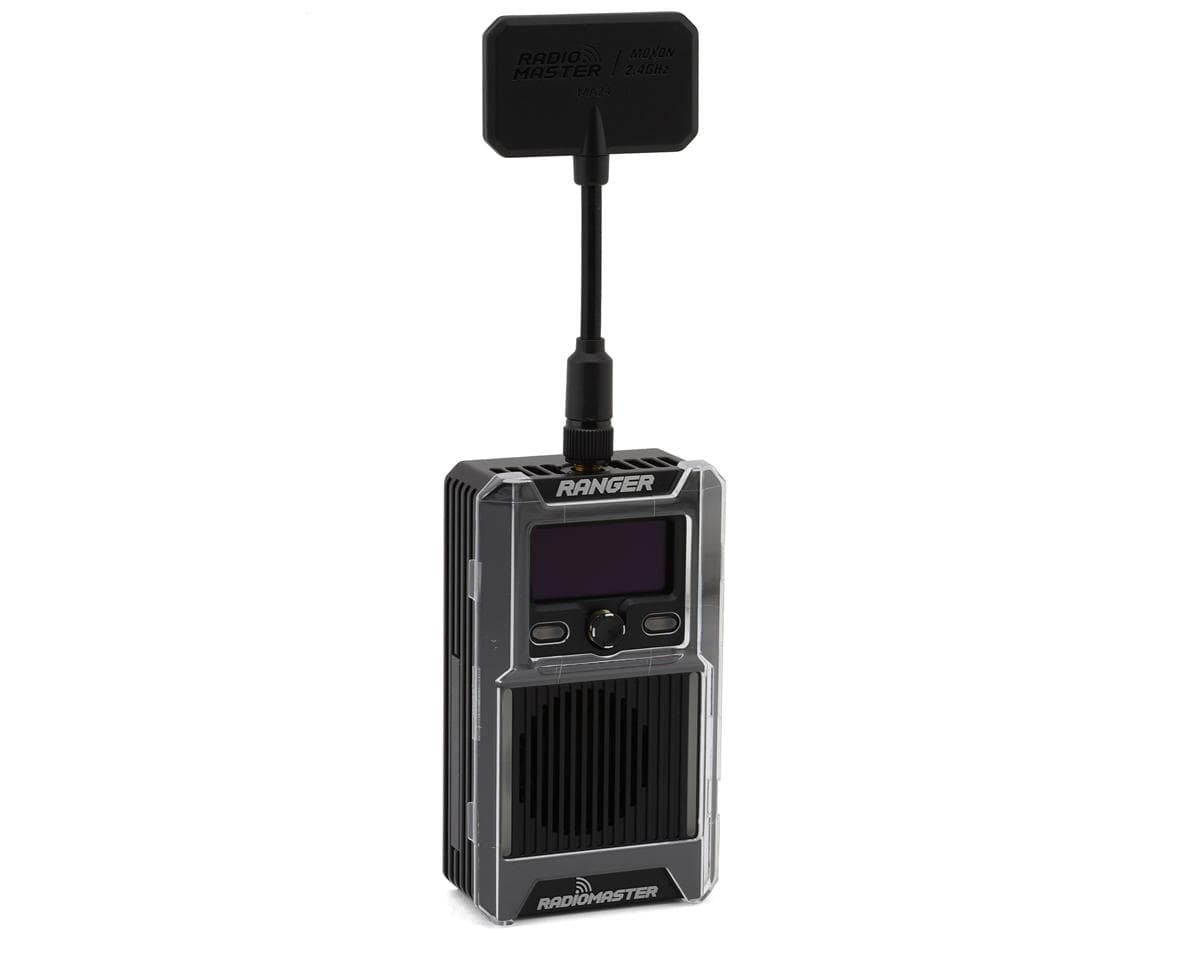

RadioMaster Ranger 2.4GHz ExpressLRS (ELRS) Transmitter Module
About this part
ELRS Module Overview:
This is the Ranger 2.4GHz ExpressLRS Transmitter Module from RadioMaster. Designed for maximum performance and durability, the Ranger features a rugged CNC machined aluminum case, OLED display, and advanced cooling system. It provides packet rates up to one thousand hertz and supports both WiFi and Bluetooth connectivity for seamless updates and configuration. The Ranger is an excellent choice for pilots demanding precision, versatility and a rock solid reliable connection you can count on.
Features:
- Built-in ExpressLRS Backpack
- OLED display for easy adjustments
- Rugged CNC aluminum case
- High-efficiency cooling system
- Customizable shortcut buttons
- Micro and Nano adapters for wide compatibility
- Moxon and T-antennas included
- Built-in accelerometer
- WiFi and Bluetooth support
- CRSF cable for compatible Futaba radios
Specifications:
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum Packet Rate: 500Hz/F-1000Hz
- RF Output Power: Default 100mW
- Weight: 138g (with Moxon antenna)
- Dimensions: 3.74x2.01x0.98in (95x51x25mm)
- OLED Screen: 64x128px
- Power Supply Voltage: DC 6-16.8V
- Adapters: JR and Nano standard sockets
- Connectivity: WiFi and Bluetooth
Includes:
- (1) Ranger Module

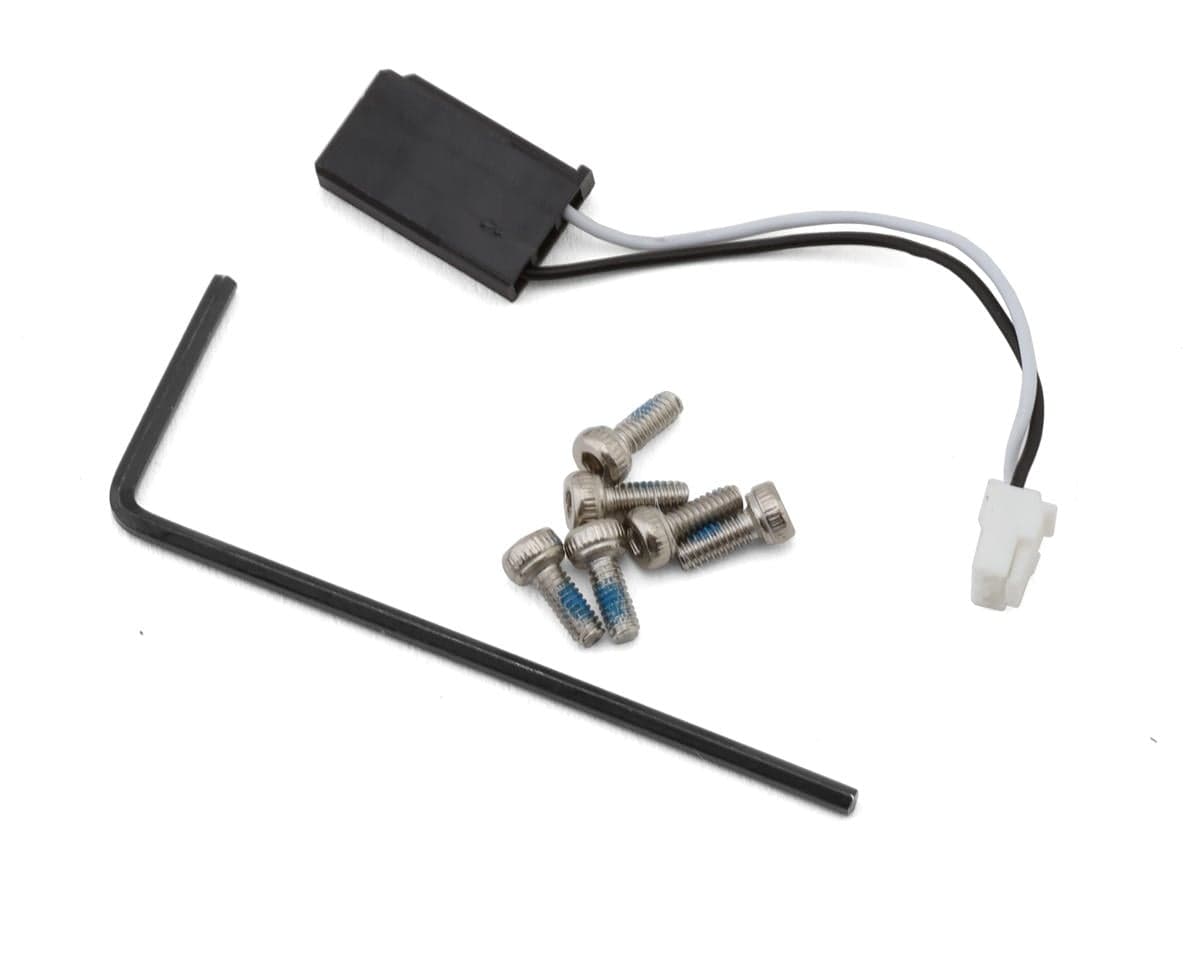

- (1) Futaba CRSF socket cable

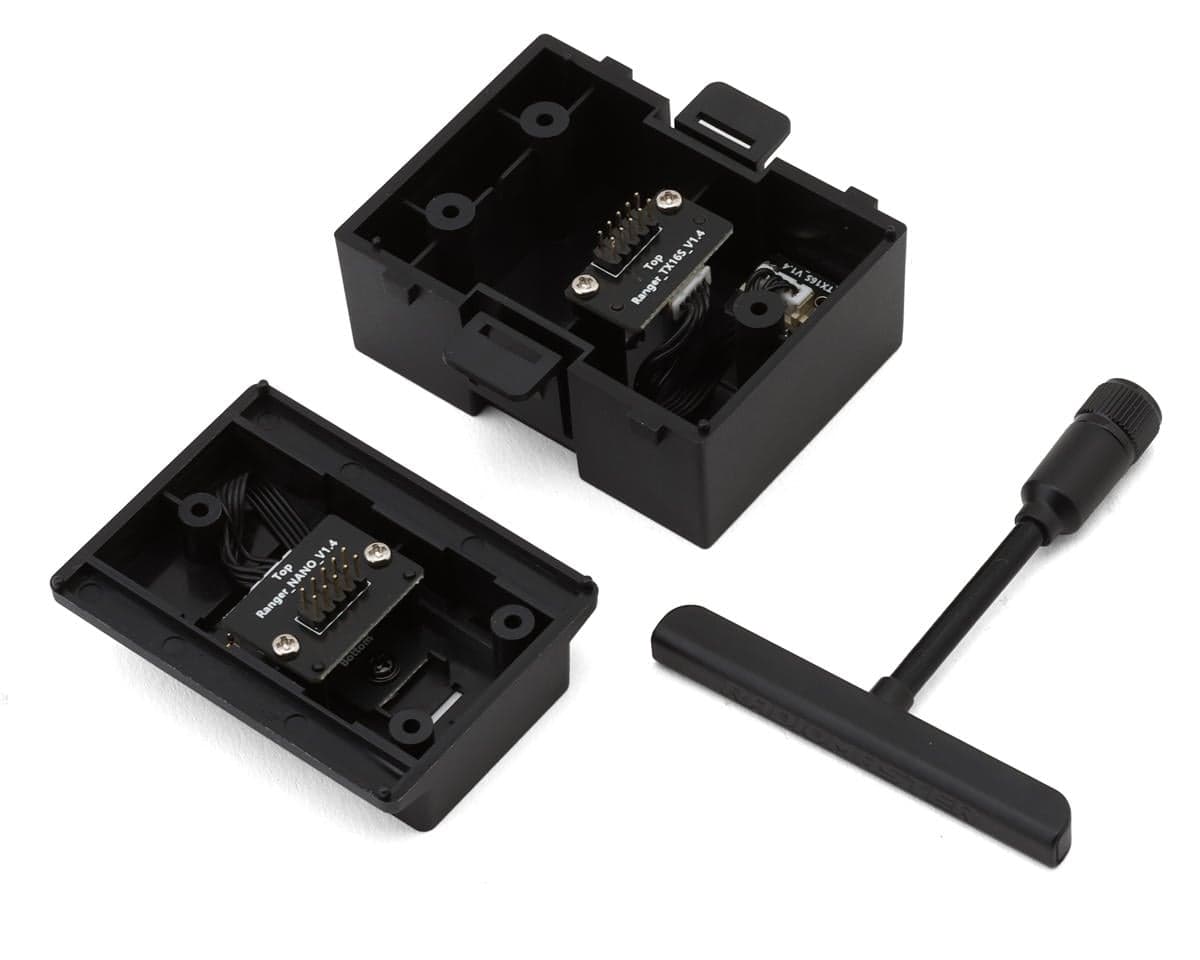

- (1) JR Adapter
- (1) Nano Adapter
- (1) T Antenna
- (1) Moxon Antenna
- (1) Hexagon socket screwdriver
- (3) 2x5mm screws
- (1) Assembly Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Very pleased with this purchase. Using it on a Radiomaster Tx16s after I found out the Flysky frm303 external module wasn’t going to be compatible (after wasting several hours), I bought this and had no problem binding receivers within 15 minutes. I was very relieved.
