RadioMaster

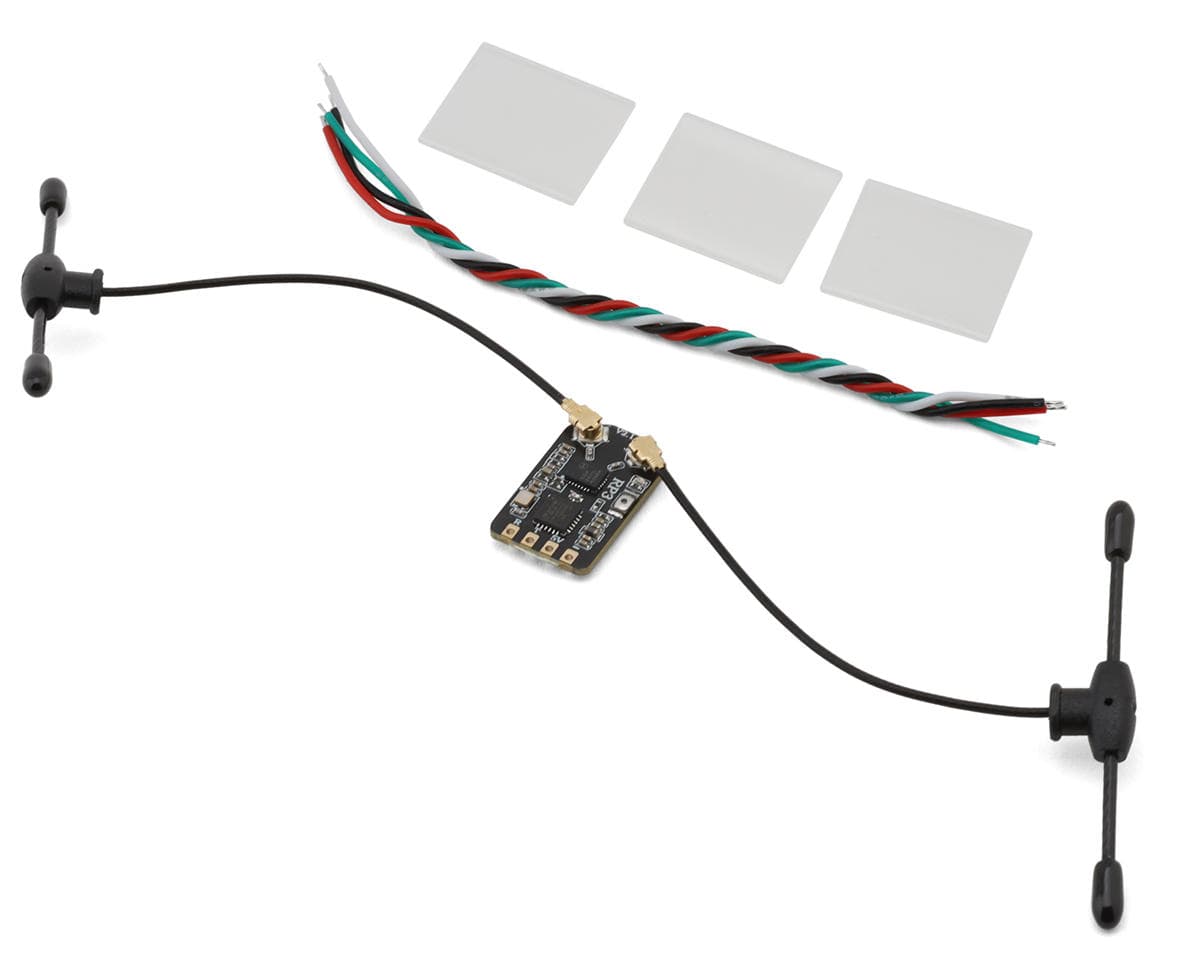

RadioMaster RP3 V2 ExpressLRS (ELRS) 2.4Ghz Receiver
Part # RM-HP0157.RX-RP3-V2
Where to buy
$19.12
Prices are as last seen at the store; stock is not tracked.
About this part
Receiver Overview:
This is the RP3 V2 ExpressLRS 2.4GHz Receiver from RadioMaster. Designed for superior performance, it features advanced antenna diversity and a built-in TCXO for reliable signal stability. The RP3 utilizes ExpressLRS open-source firmware, providing excellent range, low latency, and seamless updates via WiFi. Its enhanced receiver capabilities make it ideal for demanding FPV applications and long-range performance. Compact and versatile, this receiver integrates effortlessly into your setup.
Features:
- Optimized PCB design for better heat dissipation
- Antenna diversity for improved signal stability and range
- LNA for extended receiver range
- PA for enhanced telemetry performance
- Built-in TCXO for precise frequency stability
Specifications:
- MCU: ESP8285
- RF Chip: SX1281
- Telemetry RF Power: Max 100mW
- Antenna: 65mm 2.4GHz T Antenna x 2
- Frequency Range: 2.404 - 2.479 GHz
- Maximum Receive Refresh Rate: 500Hz / F1000Hz
- Working Voltage: DC 5V
- Weight: 0.16oz (4.6g) (Including two antennas)
- Dimensions: 0.87x0.51x0.16in (22x13x4mm)
- Firmware Version: ExpressLRS v3.0 pre-installed
- Bus Interface: CRSF

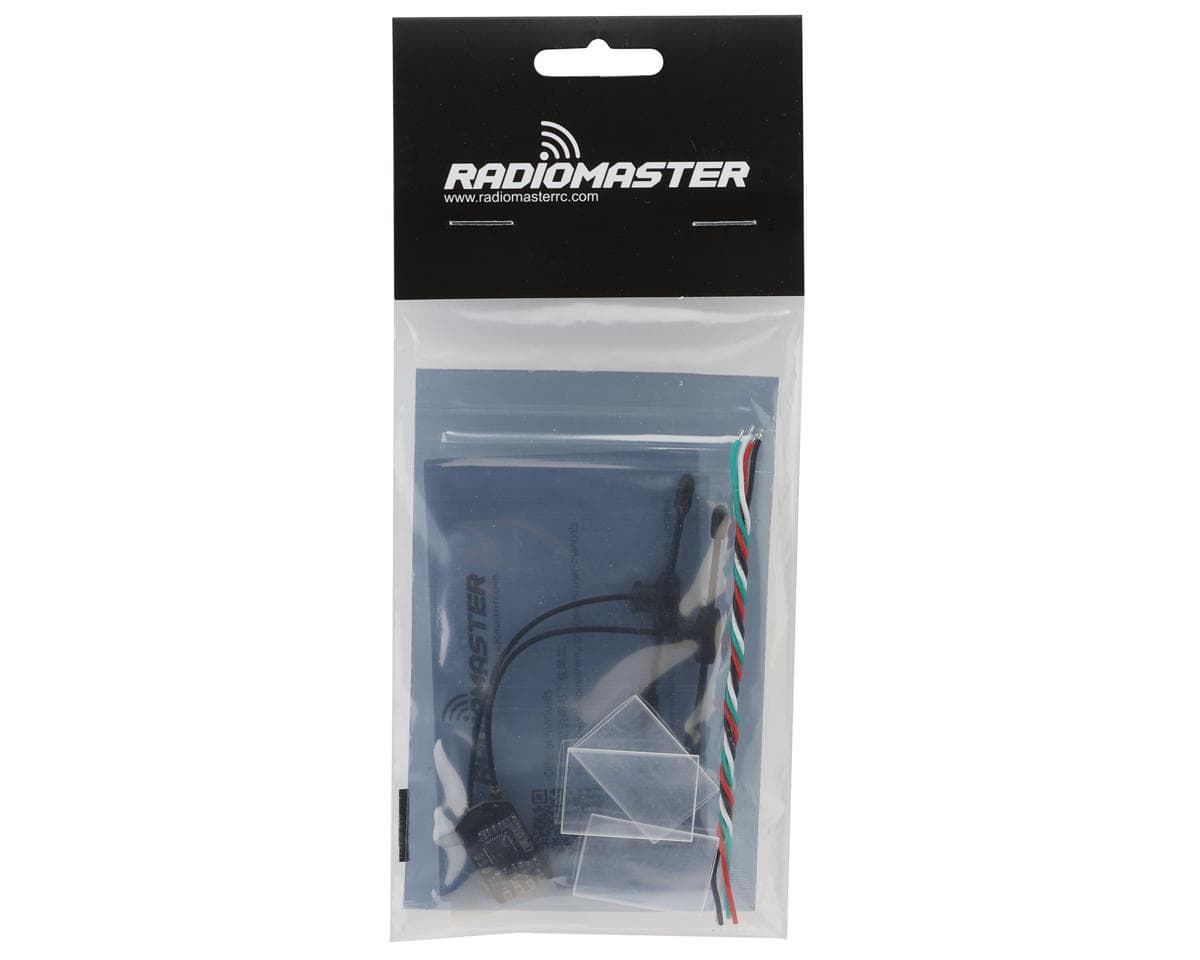

Includes:
- (1) RP3 ExpressLRS 2.4GHz Nano Receiver
- (2) 65mm UFL 2.4GHz T Antennas
- (1) User Manual
- (1) CRSF Wire
