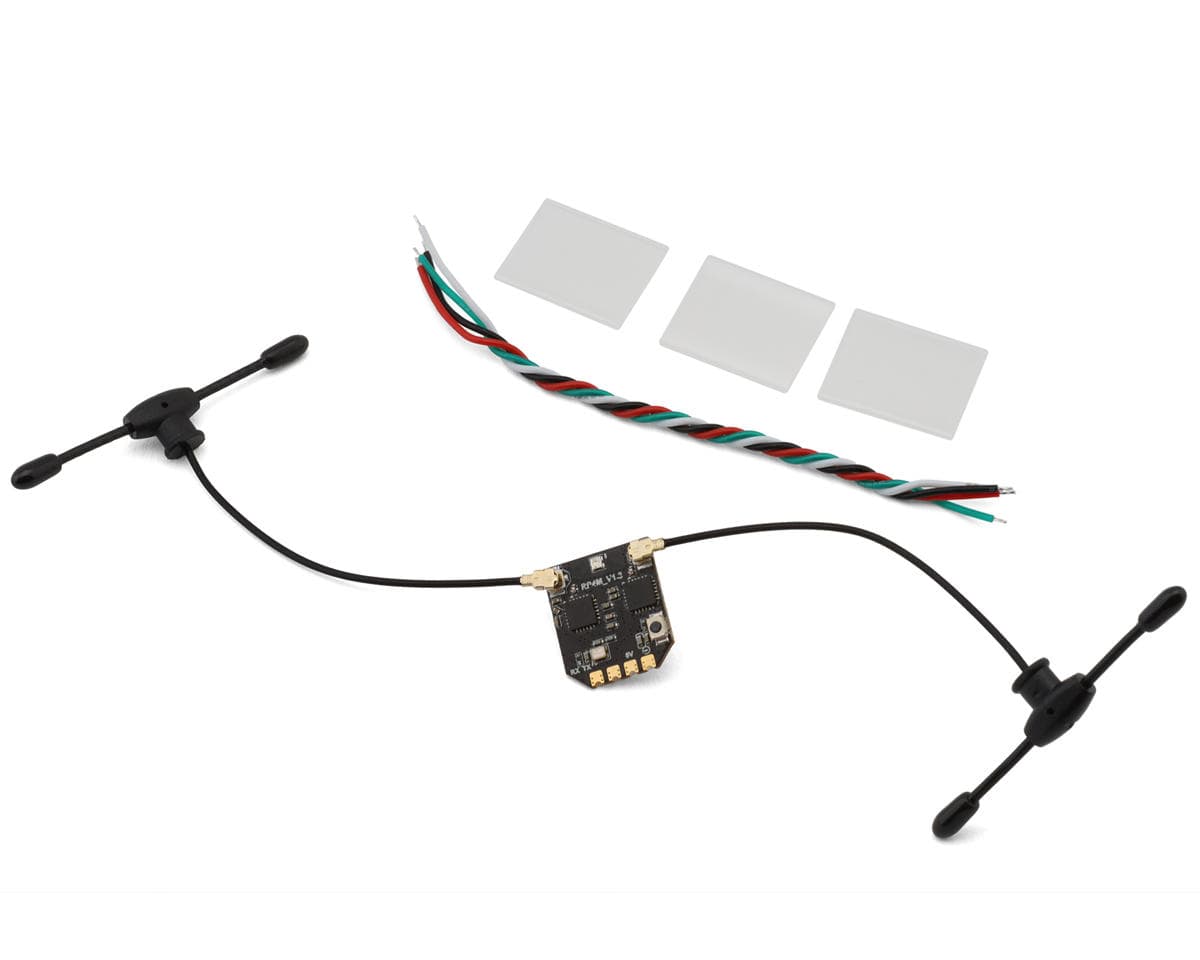

RadioMaster RP4TD-M ExpressLRS (ELRS) 2.4GHz Receiver
Part # RM-HP0157.RX-RP4TD-M
Where to buy
$22.99
Prices are as last seen at the store; stock is not tracked.
About this part
Receiver Overview:
This is the RP4TD-M ExpressLRS 2.4GHz Receiver from RadioMaster. Designed for performance-focused builds, this compact and lightweight receiver features 'Gemini' technology for enhanced interference mitigation and optimized signal performance. With dual-channel 2.4GHz radios, the RP4TD-M ensures exceptional sensitivity and reliability for demanding applications. It is ideal for racing drones or setups requiring minimal weight without compromising quality. Experience class-leading signal-to-noise ratio and RSSI performance in a receiver that meets the needs of cutting-edge pilots.
Features:
- Mini size true diversity Gemini receiver
- Class-leading SNR and RSSI performance
- Built-in TCXO for stable frequency control
- Upgraded antenna with enhanced durability
- Optimized PCB for efficient heat dissipation
Specifications:
- Type: ISM
- MCU: ESP32
- RF Chip: SX1281 x 2
- Antenna: 65mm 2.4GHz T Antenna x 2
- Frequency Range: 2.4GHz
- Maximum Refresh Rate: 500Hz / F1000Hz
- Telemetry RF Power: Max 2x 10mW
- Working Voltage: DC 5.0V
- Wifi Updates: Yes
- Weight: 0.04oz (1.00g) [Without antennas] / 3.30g [With antennas]
- Dimension: 0.71x0.63in (18.10x16.0mm)
- Firmware Version: ExpressLRS V3.4.3 pre-installed
- Bus Interface: CRSF

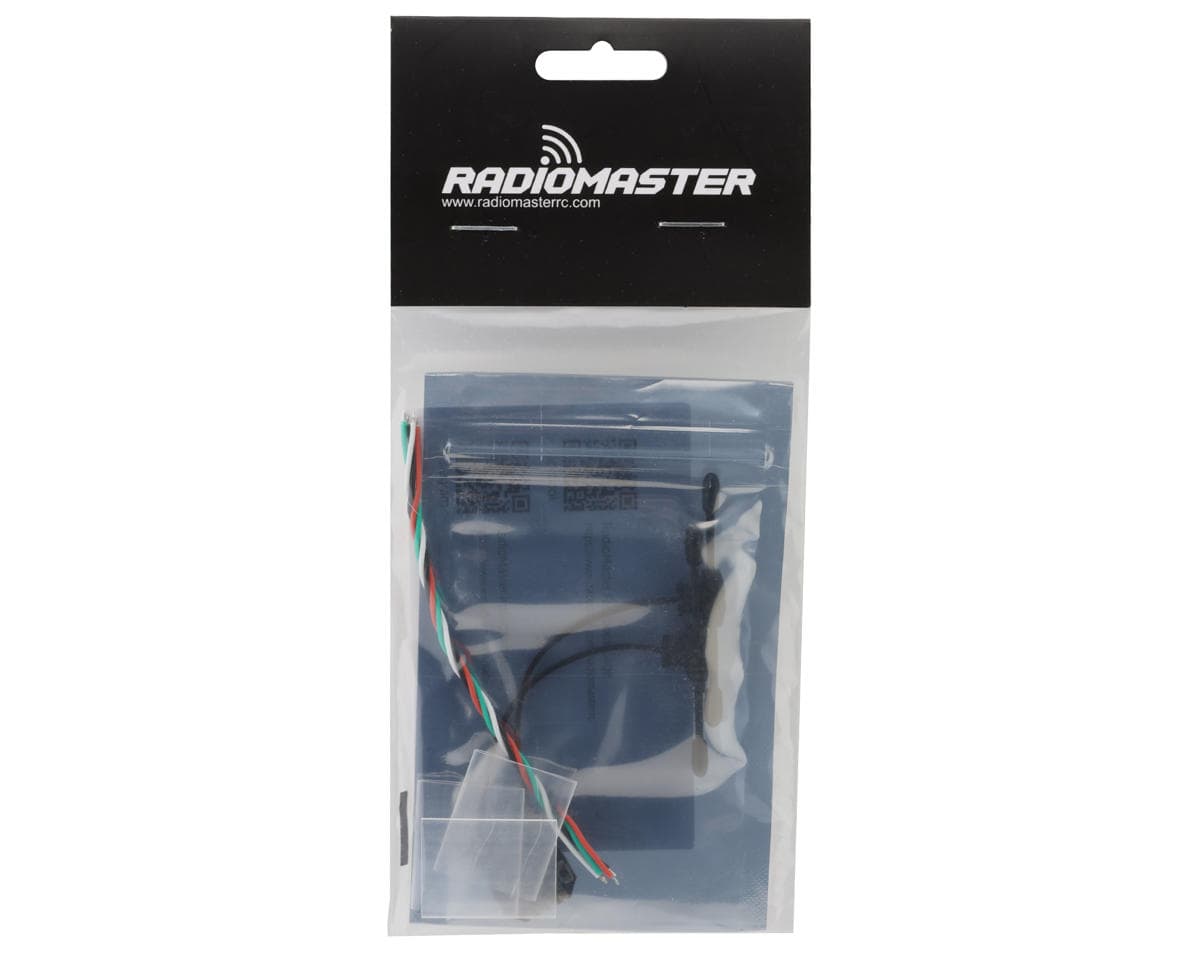

Includes:
- (1) RP4TD-M ExpressLRS True 2.4GHz Diversity Receiver
- (1) CRSF wire
- (3) Heat-shrinkable tubes
- (2) 65mm 2.4GHz T Antennas (Installed on receiver)
- (1) User Manual
