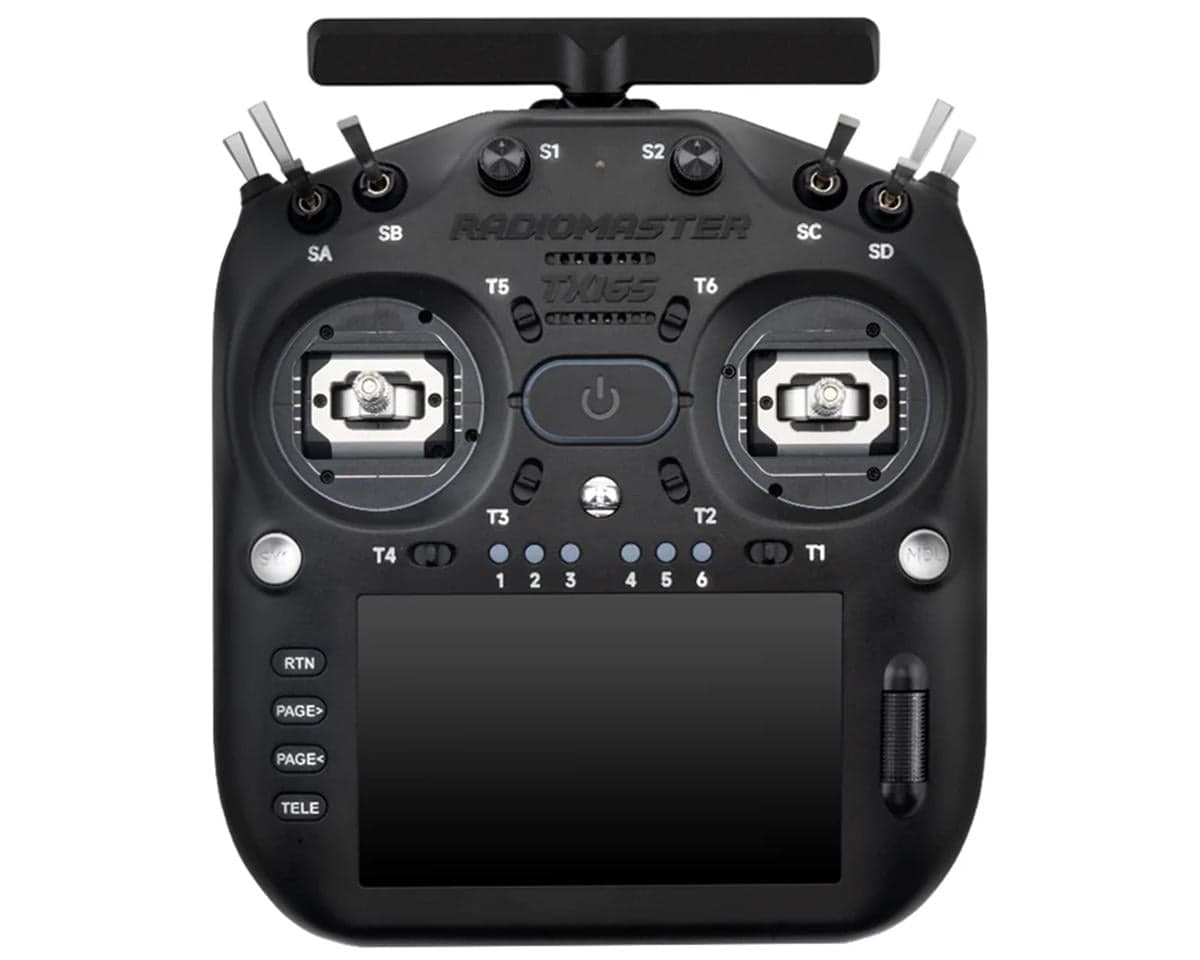

RadioMaster TX16S MK3 Dual Band 2.4GHz/900MHz 16-Channel Radio System (Black) (ELRS) (512MB)
About this part
TX16S MK3 Transmitter with Next-Level Control & Performance
The RadioMaster TX16S MK3 is a powerful and versatile 16-channel radio system designed for pilots who expect advanced performance, smooth control, and deep customization. Built around the high-performance STM32 H7 MCU, it delivers fast response times, stable operation, and reliable handling across a wide range of RC models. With dual-band Gemini 2.4GHz and Sub-G 900MHz capability, premium components, a bright touchscreen, and full EdgeTX support, the TX16S MK3 is engineered to meet both current and future RC demands.
About the TX16S MK3 Radio System
High-Performance Processing Power
At the core of the TX16S MK3 is the STM32 H7 processor, providing the computing power needed for fast input processing, complex mixes, and dependable telemetry performance. This advanced MCU ensures smooth operation even with demanding EdgeTX configurations. Built-in flash memory with external SD card support improves storage flexibility, while a smart balance battery circuit maximizes efficiency for longer sessions. Additionally, a cooling system with low-noise fans and an aluminum heat sink helps maintain stable performance during extended use or hot weather.
Advanced Display & User Interface
The five-inch IPS touchscreen delivers crisp 800x480 resolution with vivid color and excellent outdoor readability. Automatic backlight adjustment improves visibility whether flying indoors or under direct sunlight. Combined with EdgeTX firmware, the interface offers intuitive navigation, fast menu access, and deep customization. Digital audio hardware provides clearer sound output with reduced interference, and a built-in microphone enables future feature expansion.
Precision Control & Customization
V6 quad-bearing Hall sensor gimbals provide smooth, precise control with excellent centering and long-term durability. These updated gimbals use the same high-performance chipset found in the AG02 for improved precision and stability, with external adjustments for travel, centering, and tension. Programmable RGB gimbal light rings offer visual feedback and personalization through LUA scripting. Dual foldable antennas improve portability without sacrificing signal performance, and modular shoulder switch panels allow pilots to tailor the control layout to their flying style. A built-in motion sensor adds even more flexibility for triggering functions through simple radio movements.
Features:
- High-performance STM32 H7 processor
- Dual-band 2.4GHz and Sub-G 900MHz RF system
- ExpressLRS internal RF module
- Five-inch IPS touchscreen display
- V6 Hall sensor gimbals
- Programmable RGB gimbal light rings
- EdgeTX firmware compatibility
- Smart balance battery circuit
- Built-in motion sensor
- JR-compatible module bay
Includes:
- (1) TX16S MK3 Radio Controller
- (1) TX16S MK3 Signature Carry Case
- (1) 18650 Battery Tray
- (2) Replacement Shoulder Panels
- (1) Type-C Cable
- (1) Screen Protector
- (1) 1.5mm Hex Wrench
- (4) Low Tension Gimbals Springs
- (2) Gimbal Stick Set Screws
- (1) Nylon Neck Strap (Lanyard)
- (1) RadioMaster Sticker Set
- (1) TX16S MK3 Manual
- (1) Inventory Card
Needed To Complete:
- (1) ExpressLRS Compatible Receiver
- (2) 18650 Lithium-Ion Cells or (1) 2S LiPo Battery Pack (7.4V/5000mAh)
Specifications:
| Voltage Range | 6.6-8.4V DC |
|---|---|
| Operating Frequency | 2.4GHz & 900MHz |
| Channels | 16 |
| Radio Firmware | EdgeTX |
| Module Firmware | ExpressLRS |
| Memory | 512MB |
| Dimensions (LxWxH) | 7.87x7.01x3.46in (200x178x88mm) |
| Weight | 28.68oz (813g) |
