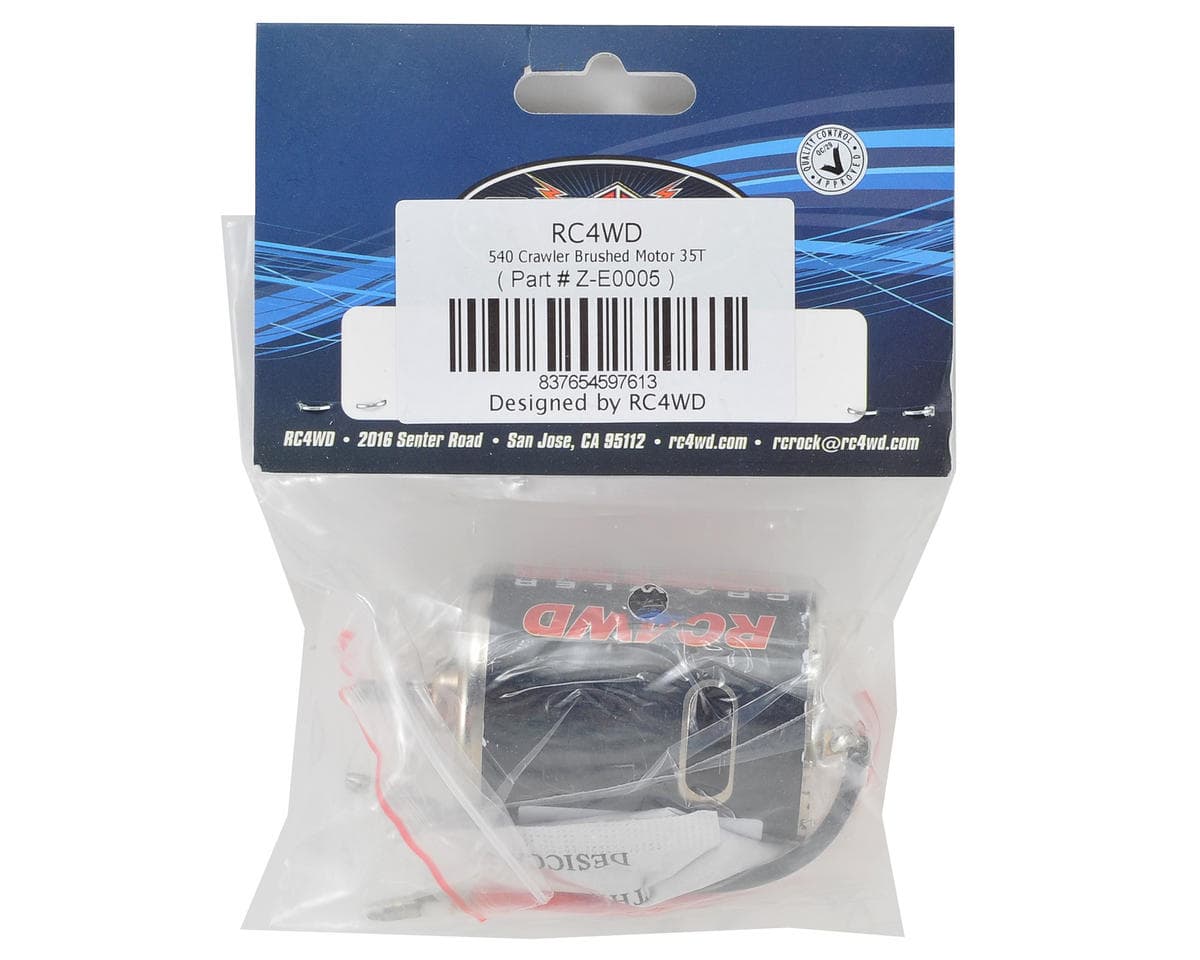

RC4WD 540 Crawler Brushed Motor (35T)
About this part
This is a 35 Turn RC4WD 540 Crawler Brushed Motor. This 35 Turn motor is custom made to fit all popular trucks, such as the Bully, AX10 and Trail Finder.
Features:
- Custom made 540 steel case
- Chrome plated case
- Built in capacitor for minimizing glitches
- High torque magnet and rotor
- Small footprint (50mm long)
- Tuned for rock climbing and scale driving
- Polished Bushings
Specifications:
RPM @7.2V (No Load): 12,500 (+/-10%), 1.25 Amp Current
Max Efficiency RPM @7.2V: 10,400 (+/-10%), 4.62 Amp Current
Operating Temperature Range: 22°F to 176°F (-30°C to +80°C)
Motor End Play: .50mm max
Noise Level: < 60db
Reviews4.0 · 3 reviews
Motor started smoking in less than an hour of driving. I cleaned it with electrical cleaner and took it out again and soon after it was dead. I had the RC4WD 45T motor before this one and it lasted a couple months before dying. Driving conditions were rain, snow and some sand. Not ideal for brushed motors, but I'd still expect them to last a little longer.
Got this a an upgrade over the stock 35t axial motor. overall great improvement. id also recommend the rc4wd 35t boost motor as well..havent had any issues with it yet. i run a 2s lipo
a huge upgrade in performance than the stock 27t on the axial scx10.
Reviewers are divided on the RC4WD 540 Crawler Brushed Motor (35T). Two reviewers rate it 5/5 and report a clear performance improvement over stock Axial motors, one of whom runs it on a 2S LiPo without issues. One reviewer rated it 2/5, reporting the motor smoked and failed within about an hour of driving in rain, snow and sand, and a previous 45T motor from the same brand lasted only a couple of months. Reviews are few and the failure report involves harsh conditions that the reviewer acknowledged are not ideal for brushed motors.
- + clear performance upgrade over stock motor
- + works well on 2S LiPo
- + no issues reported by some owners
- − motor failed quickly in wet, snowy, sandy conditions
- − reported short service life of a prior RC4WD 45T motor
