Name: RC4WD 540 Crawler Brushed Motor (65T)
Brand: RC4WD
SKU: RC4ZE0002
Price: 11.99 USD

RC4WD 540 Crawler Brushed Motor (65T)

AMain Hobbies

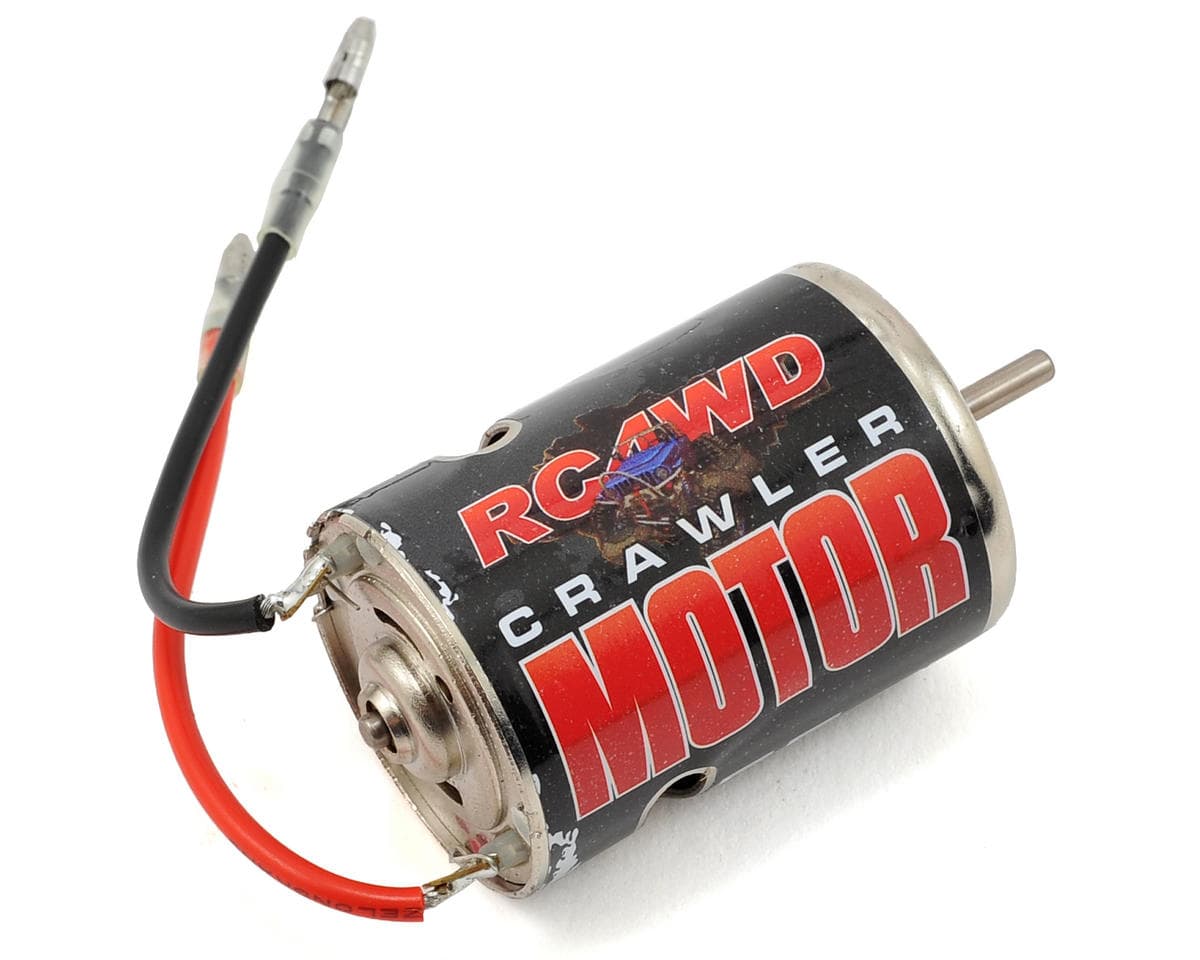

This is an 65 Turn RC4WD 540 Crawler Brushed Motor. This motor was custom made to fit all popular crawler trucks and scale rigs, including the Bully, AX10 and Trail Finder vehicles.


Features:


<ul>
 <li>Custom made chrome plated steel 540 can</li>
 <li>Built in capacitor for minimizing glitches</li>
 <li>High torque magnet and rotor</li>
 <li>Polished Bushings</li>
 <li>Small footprint (50mm long)</li>
 <li>Tuned for rock climbing and scale driving
 </li>
</ul>
Specifications:
 RPM @ 7.2V (no load): 7000 (±10%), .65Amp Current
 RPM Max Efficiency @ 7.2V: 5900 (±10%), 2.79Amp Current
 Designed operating temperature range: -30°C to +80°C
 Motor end play : .50mm max
 Noise level: &lt; 60db&nbsp;

This is an 65 Turn RC4WD 540 Crawler Brushed Motor. This motor was custom made to fit all popular crawler trucks and scale rigs, including the Bully, AX10 and Trail Finder vehicles. Features: Custom made chrome plated steel 540 can Built in capacitor for minimizing glitches High torque magnet and rotor Polished Bushings Small footprint (50mm long) Tuned for rock climbing and scale driving Specifications: RPM @ 7.2V (no load): 7000 (±10%), .65Amp Current RPM Max Efficiency @ 7.2V: 5900 (±10%), 2.79Amp Current Designed operating temperature range: -30°C to +80°C Motor end play : .50mm max Noise level: &lt; 60db&nbsp;
