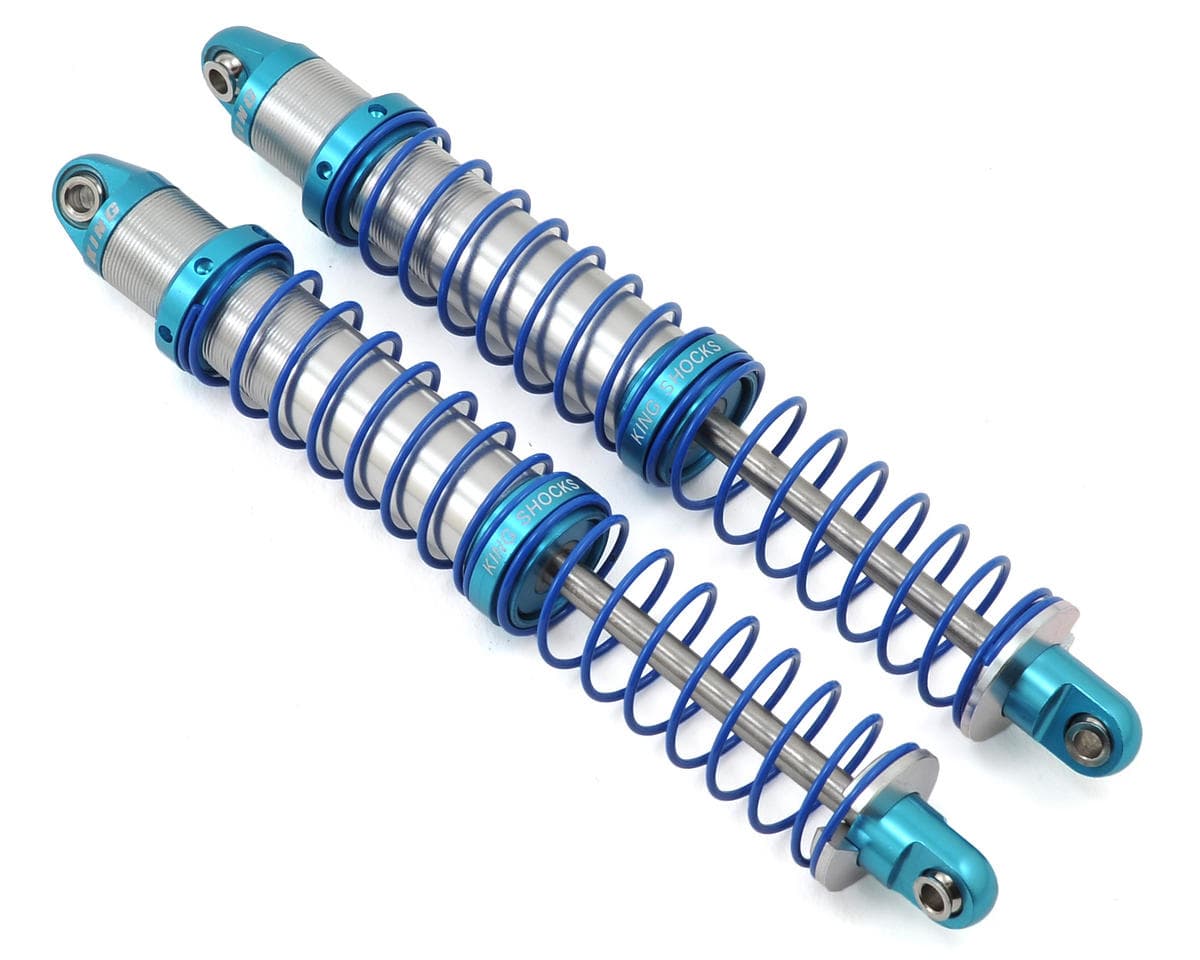

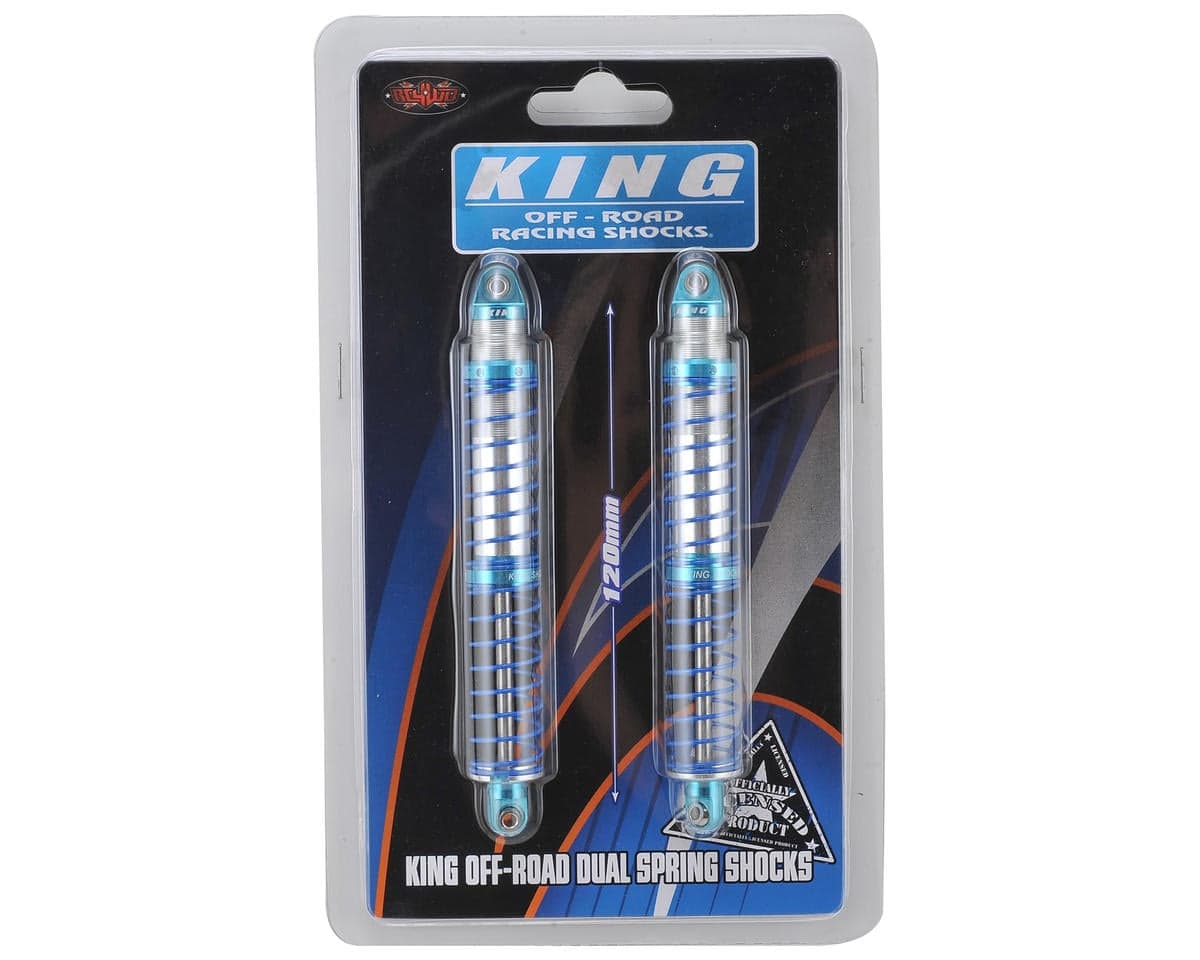

RC4WD King Off-Road Dual Spring Shocks (120mm)
About this part
RC4WD 120mm King Off-Road Scale Dual Spring Shocks are fully licensed King replicas. These shocks have been re-designed from the ground up and are pre-built, ready to fill with the oil of your choice. King Shocks are the perfect way to finish off any scale project that uses a 120mm long shock.
Features:
- Machined Billet Aluminum
- King Logo on Top and Retainer Ring
- Dual Spring Design
- Steel Rod End Ball
Specifications:
Ball Width: 0.25in / 6.3mm
Ball Lip Diameter: 0.19in / 4.8mm
Ball ID: 0.12im / 3mm
Hole to Hole (Compressed): 3.15in / 80mm
Hole to Hole (Uncompressed): 4.72in /120mm
Overall Length: 5.09in / 129.3mm
Travel Length: 1.57in / 40mm
Shock Body OD: 0.49in / 12.6mm
Shaft OD: 0.15in / 3.97mm
Spring Body OD: 0.66in / 16.98mm
Spring Body ID: 0.58in / 14.8mm
Each Weight: 1.05oz / 30g
Reviews1.0 · 1 review
Initially I was impressed with this shock, it looked great, I filled it with 32.5wt oil and it felt good and perfectly damped and were silky smooth with no oil leaks. The first 3 weeks that I ran them I was so happy and I thought about buying more...after that I noticed some graining on the shock shaft and then another few weeks later the coating on all the shock shafts started flaking off which also ruined the rubber O-rings. So these shocks are useless to me now, I am not willing to spend more money on the replacement shock shafts and O-rings only to have the same thing happen again and waste more money. This is the first shock that I have ever owned where I had the shock shaft coating flake off like that.
