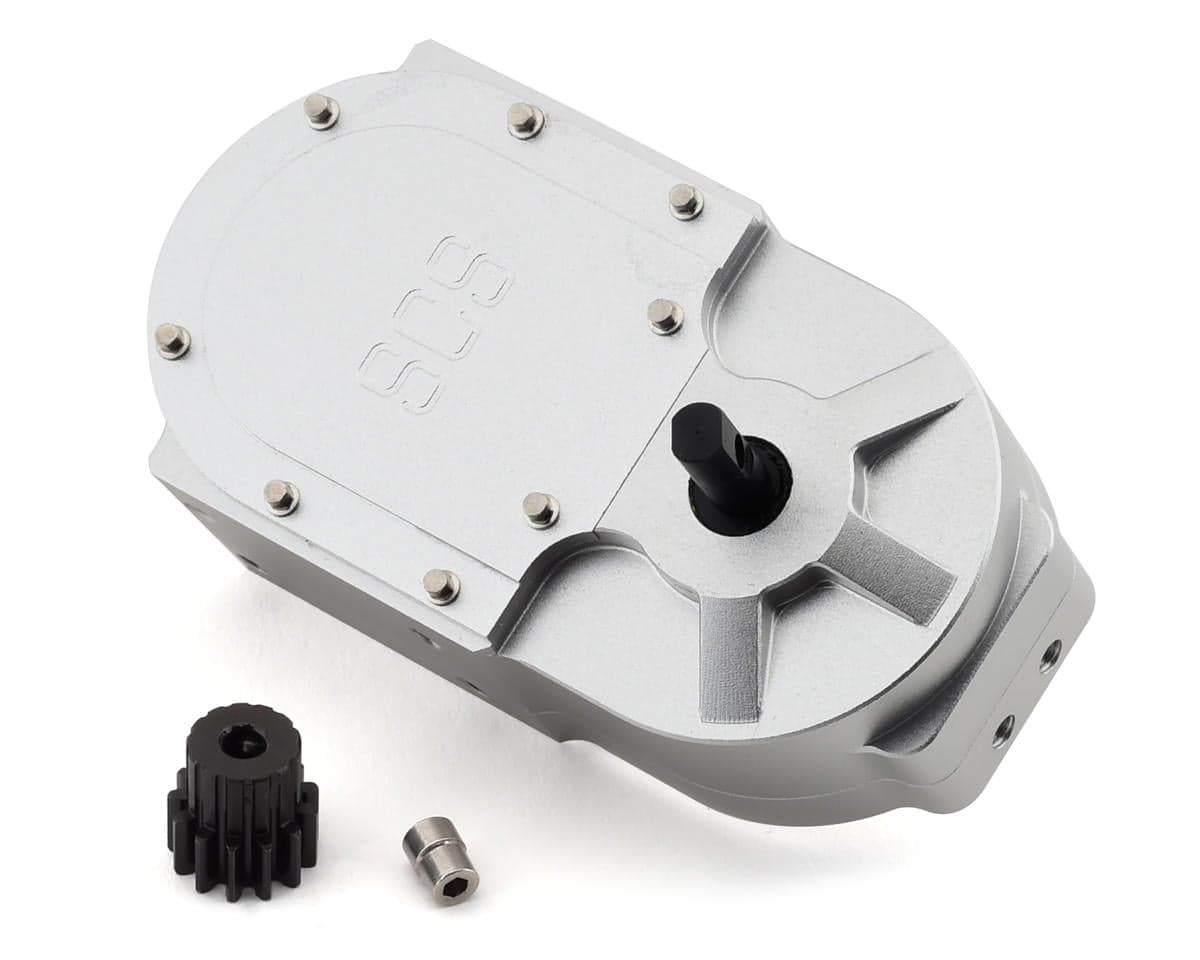

RC4WD SCS Gearbox Monster Drop Transmission

The RC4WD SCS Gearbox Monster Drop Transmission is an officially licensed scale replica of the SCS Gearbox.

NOTE:

• Do not use a pinion larger than 17t 32p. A larger pinion will result in damage to the interior of the case.
• RC4WD recommends using RC4WD 32p gears for this transmission. RC4WD does not guarantee the pitch of other brand gears which may cause damage to the spur gear.


Features:

• CNC Machined
• Billet Aluminum


Specifications:
Body Width: 1.65in / 41.9mm
Body Length: 2.99in / 76.1mm
Body Height: 2.36in / 60mm
Output Shaft Length: 0.47in / 12.0mm
Output Shaft OD: 0.19in / 5mm
Gear Ratio: 9.1:1
Weight: 4.69oz / 132.9g

Includes:

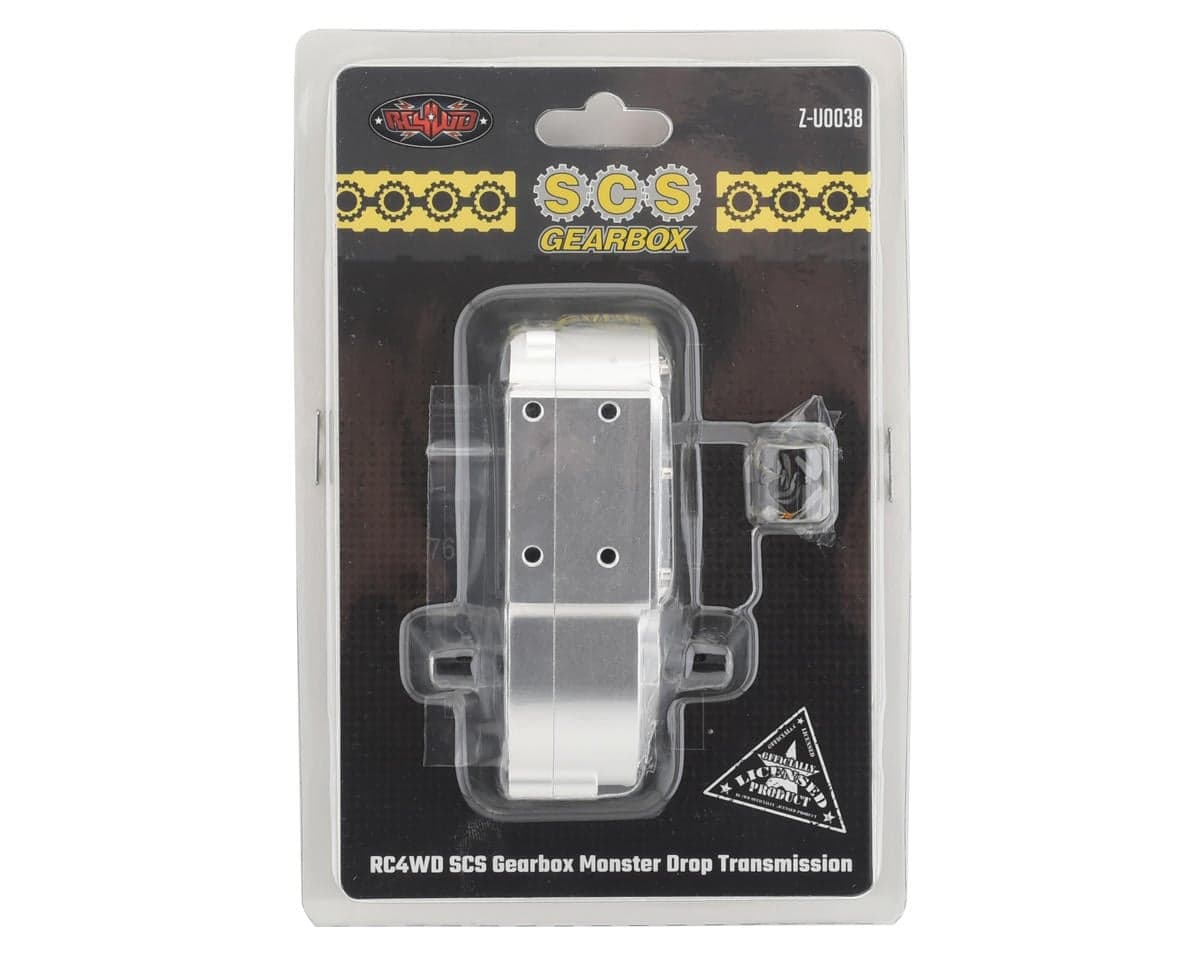

• (1) RC4WD SCS Gearbox Monster Drop Transmission
• (1) Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)
• (1) 13 Tooth 32 Pitch Steel Pinion Gear (Black)
• (1) SCS Decal Sheet
