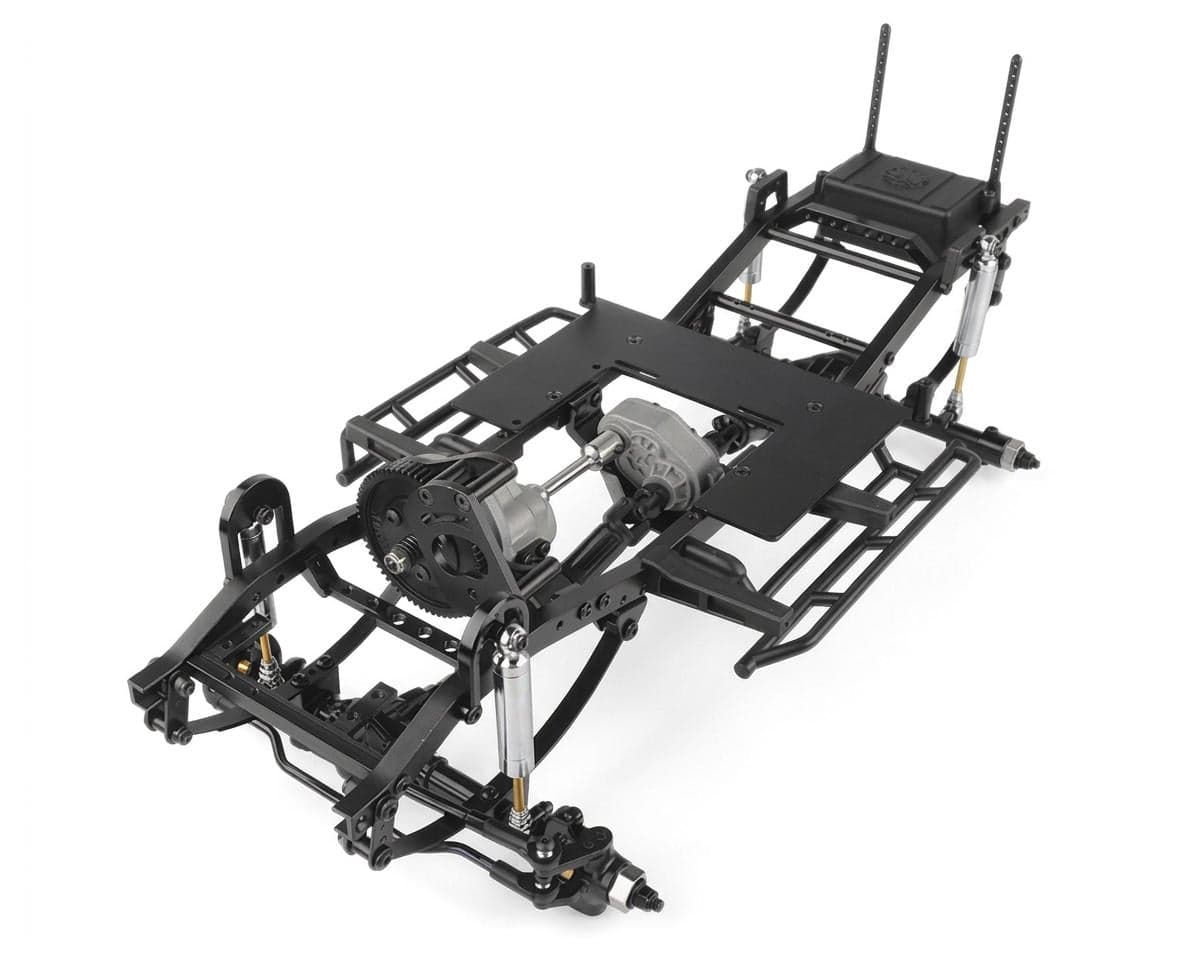

RC4WD Trail Finder 2 1/10 4WD Scale Truck Builders Kit (K44)
About this part
TF2 - The Ultimate Scale Chassis
The RC4WD Trail Finder 2 1/10 4WD Scale Truck Builders Kit (K44) combines realistic scale styling with durable engineering designed for demanding off-road adventures. Built around a CNC-machined billet aluminum ladder frame, this kit features a capable 4WD drivetrain, an R3 Scale Single Speed Transmission, and a rugged Hammer Transfer Case. The K44 Ultimate Scale Cast Axles, upgraded front XVDs, and scale suspension components provide dependable performance and enhanced steering capability across challenging terrain.
About the K44 Scale Truck Builders Kit
Durable Scale Drivetrain

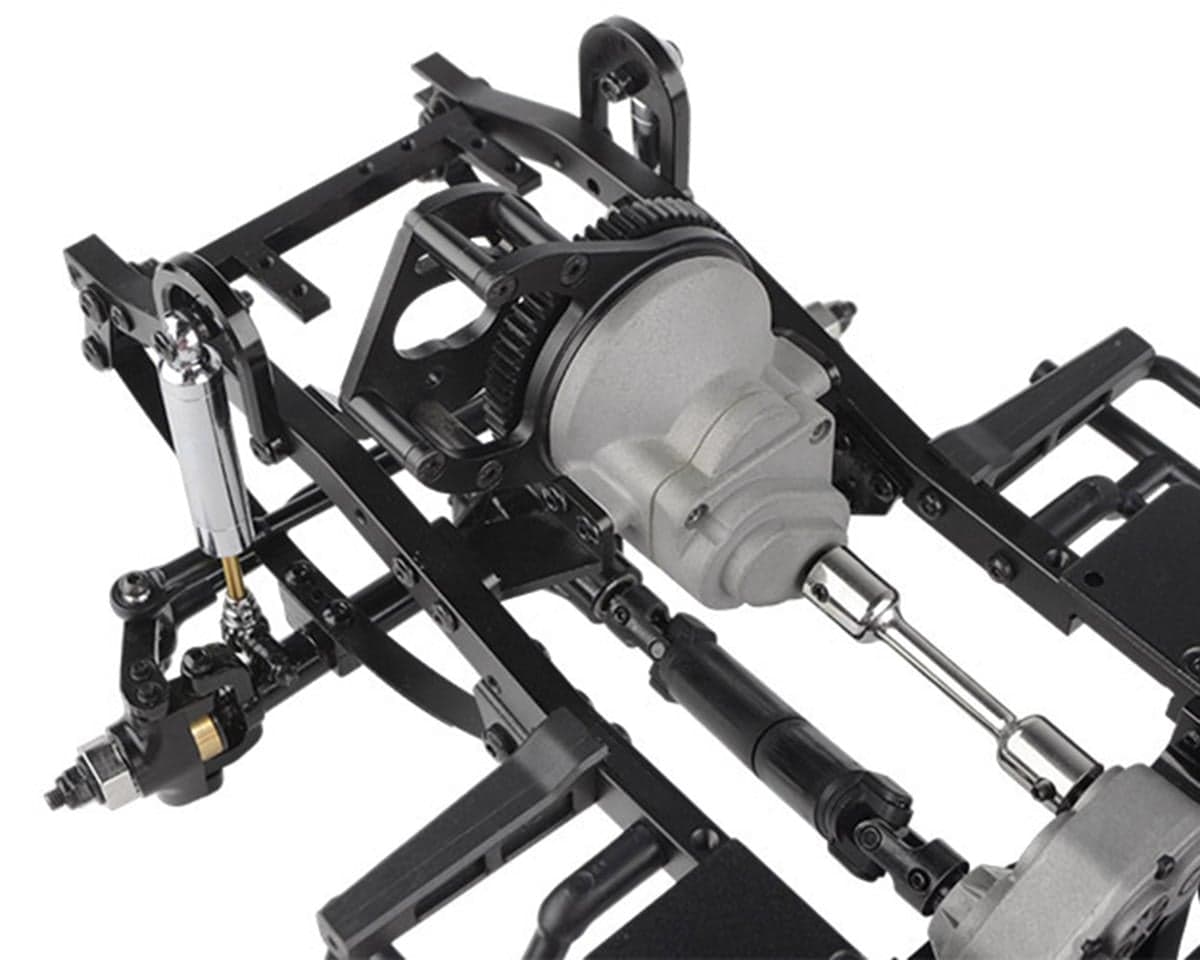

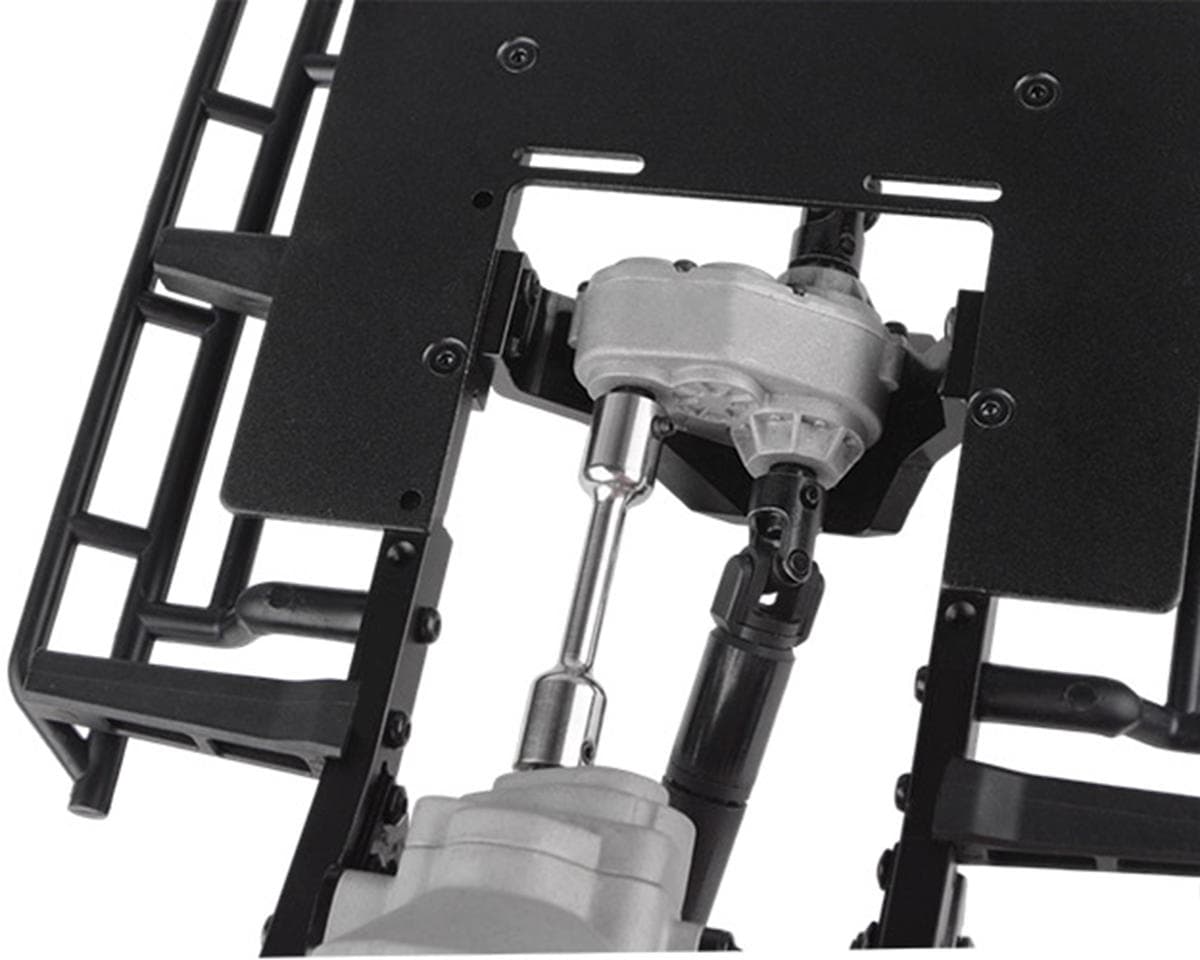

The Trail Finder 2 features an R3 Scale Single Speed Transmission with wide steel gears, a Delrin spur gear, and an integrated slipper clutch for durability and controlled power delivery. The Hammer Transfer Case uses hardened steel gears with a 1.47:1 ratio, while the 2.67:1 K44 axles contribute to a 31.9:1 final drive ratio. Durable driveshafts with steel yokes help maintain reliable power transfer and driveline angles during off-road crawling.
Realistic Chassis and Suspension

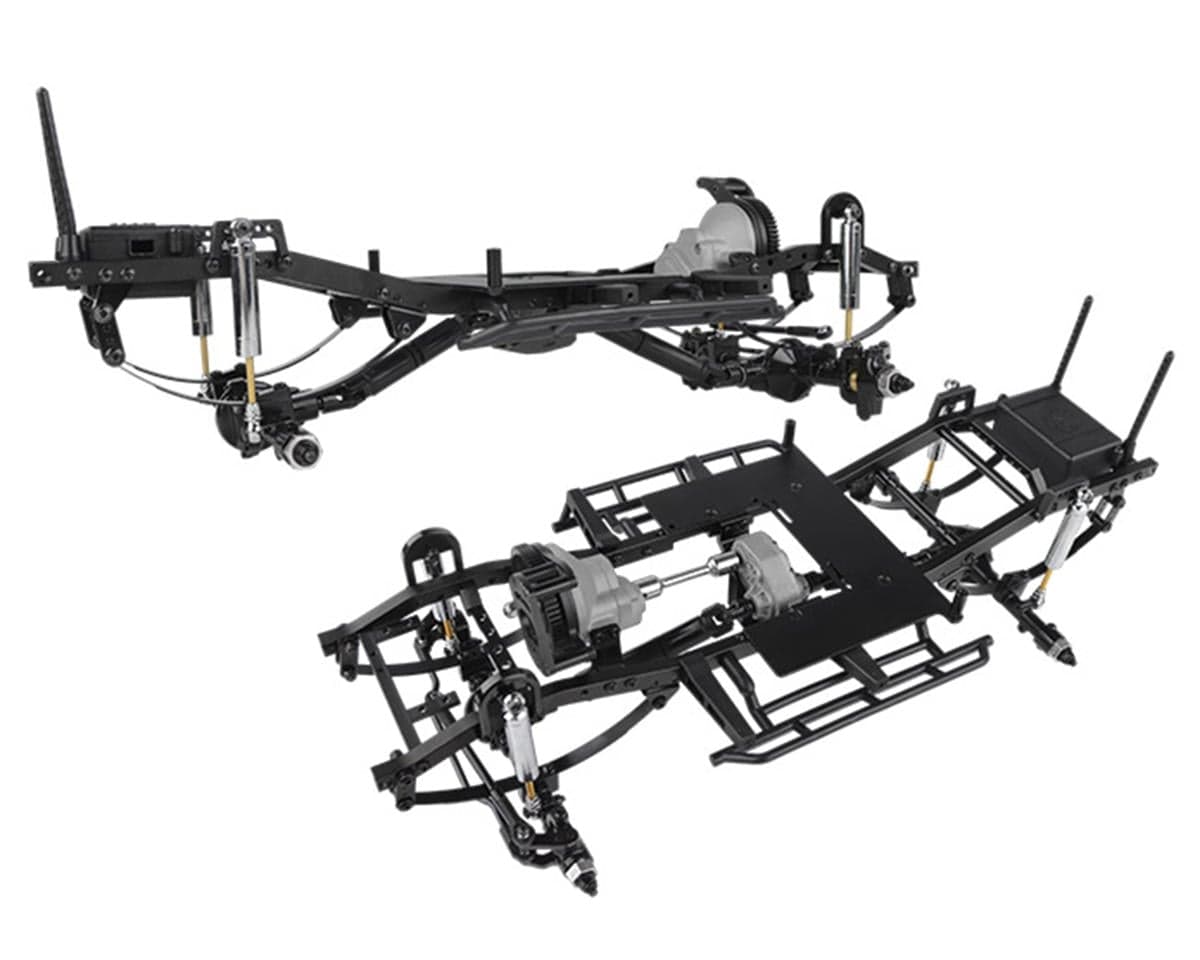

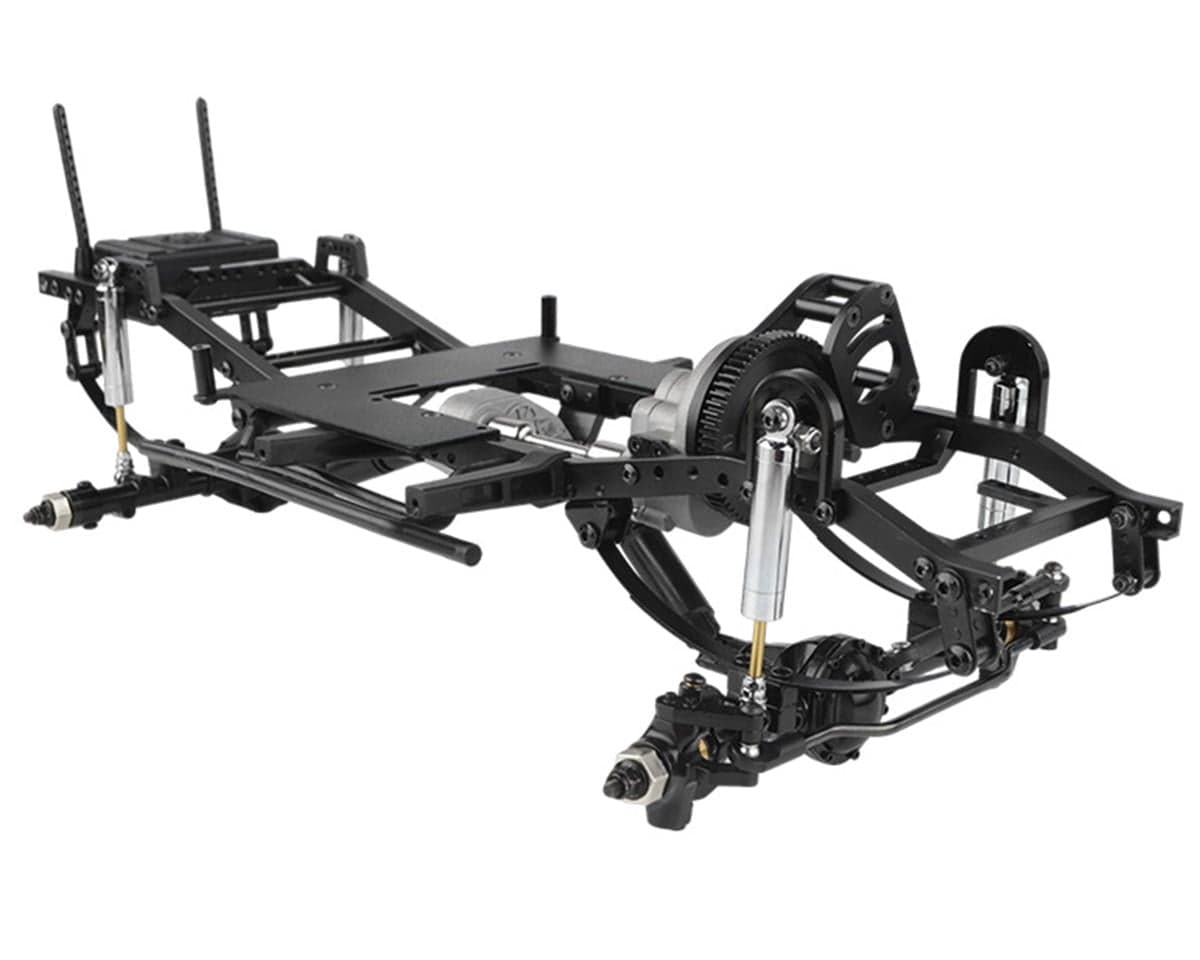

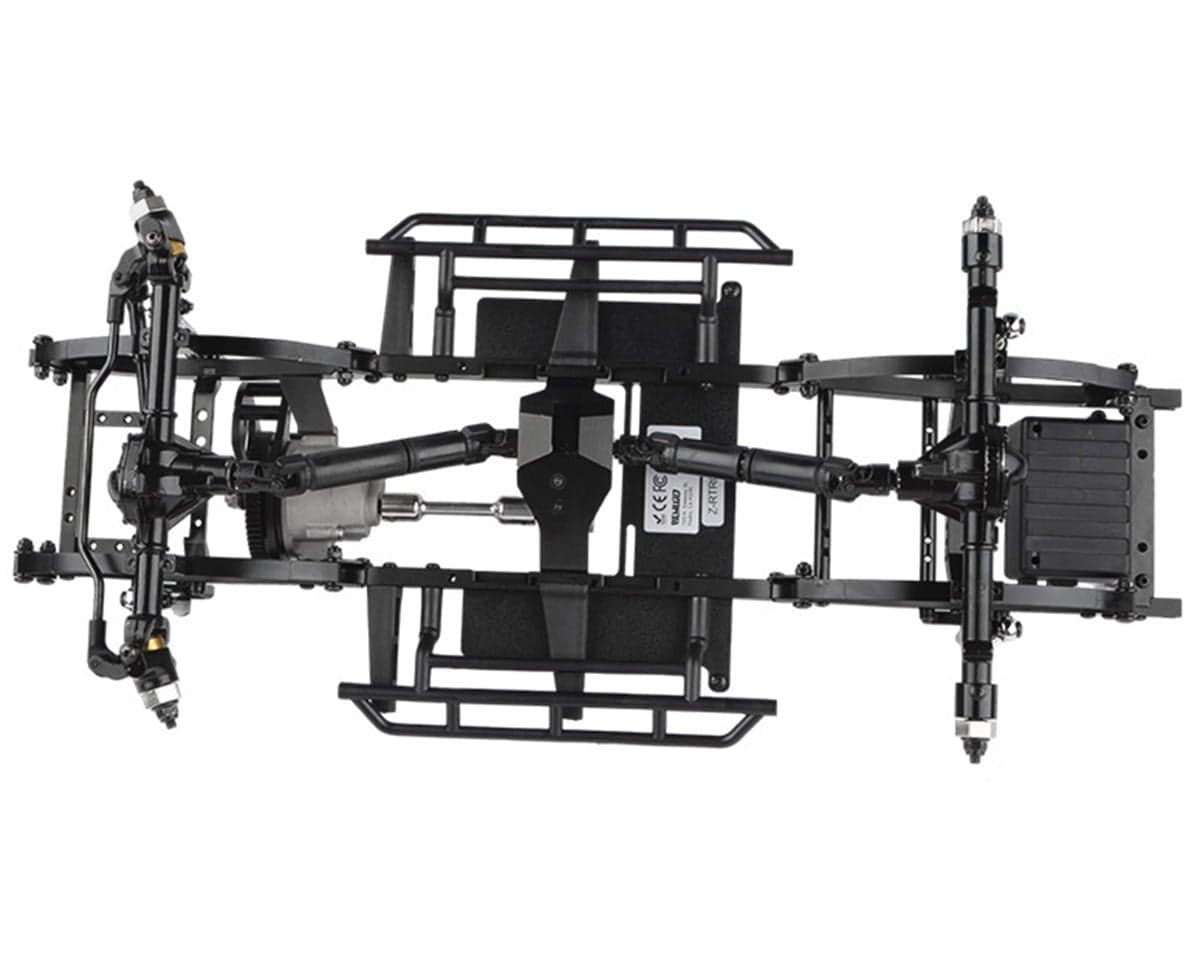

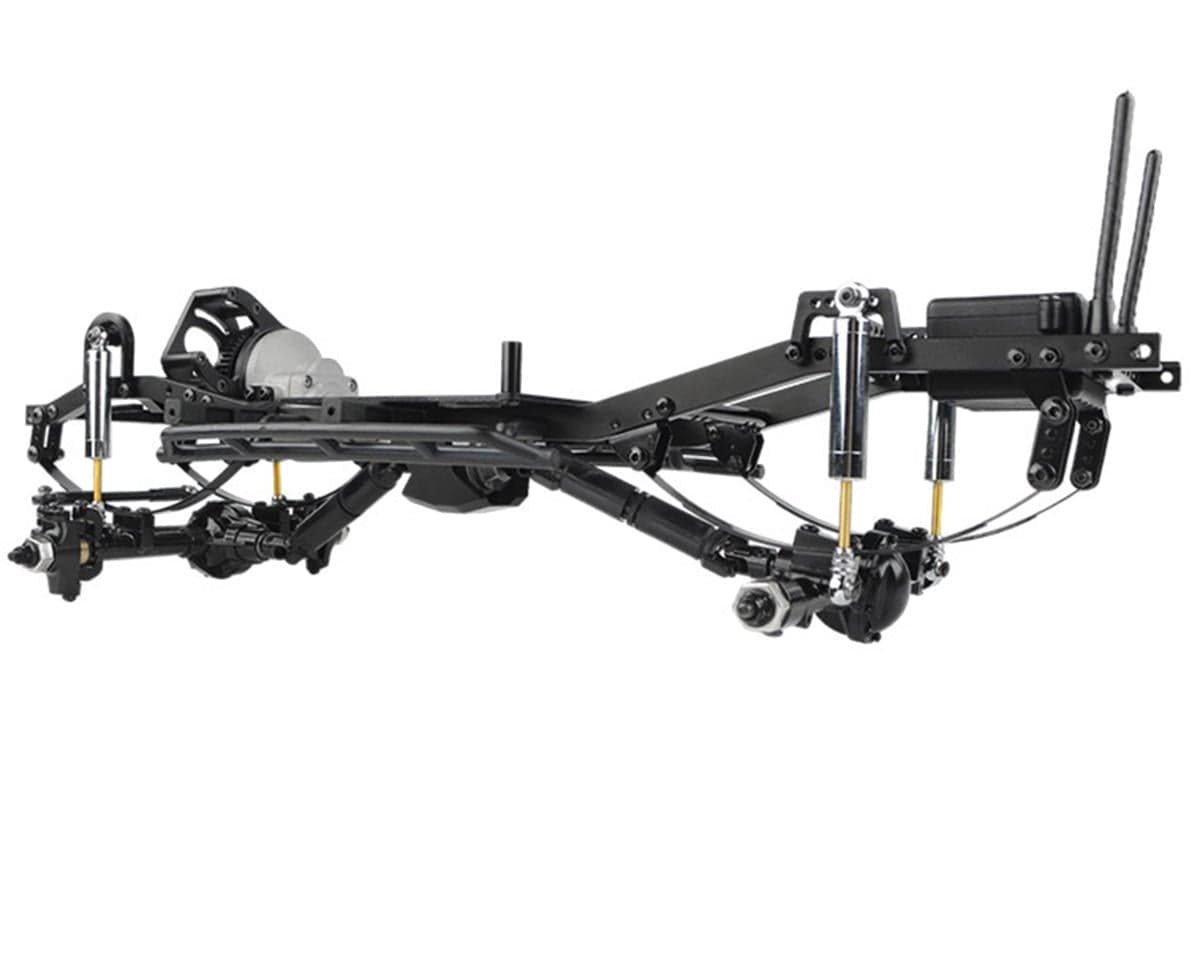

A CNC-machined billet aluminum ladder frame provides a strong foundation with adjustable shock hoops and dedicated mounting points for the transmission, transfer case, and chassis-mounted servo. The suspension includes RC4WD Bilstein SZ Series 80mm shock absorbers, lift blocks, and body mounting components designed for the Chevrolet Blazer Hard Body Set. These components combine functional trail performance with the authentic appearance expected from a detailed 1/10-scale truck.
Enhanced Axles and Trail Capability

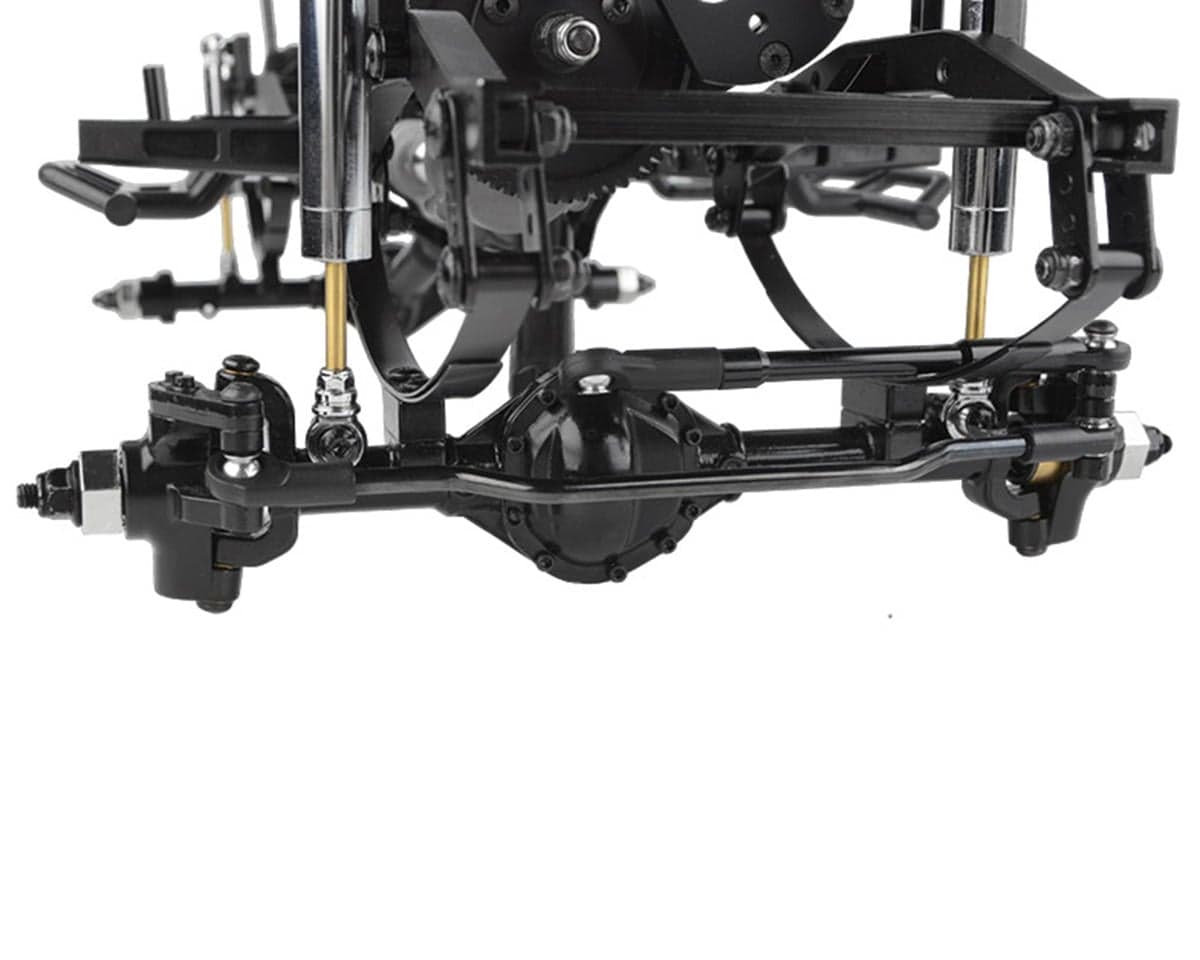

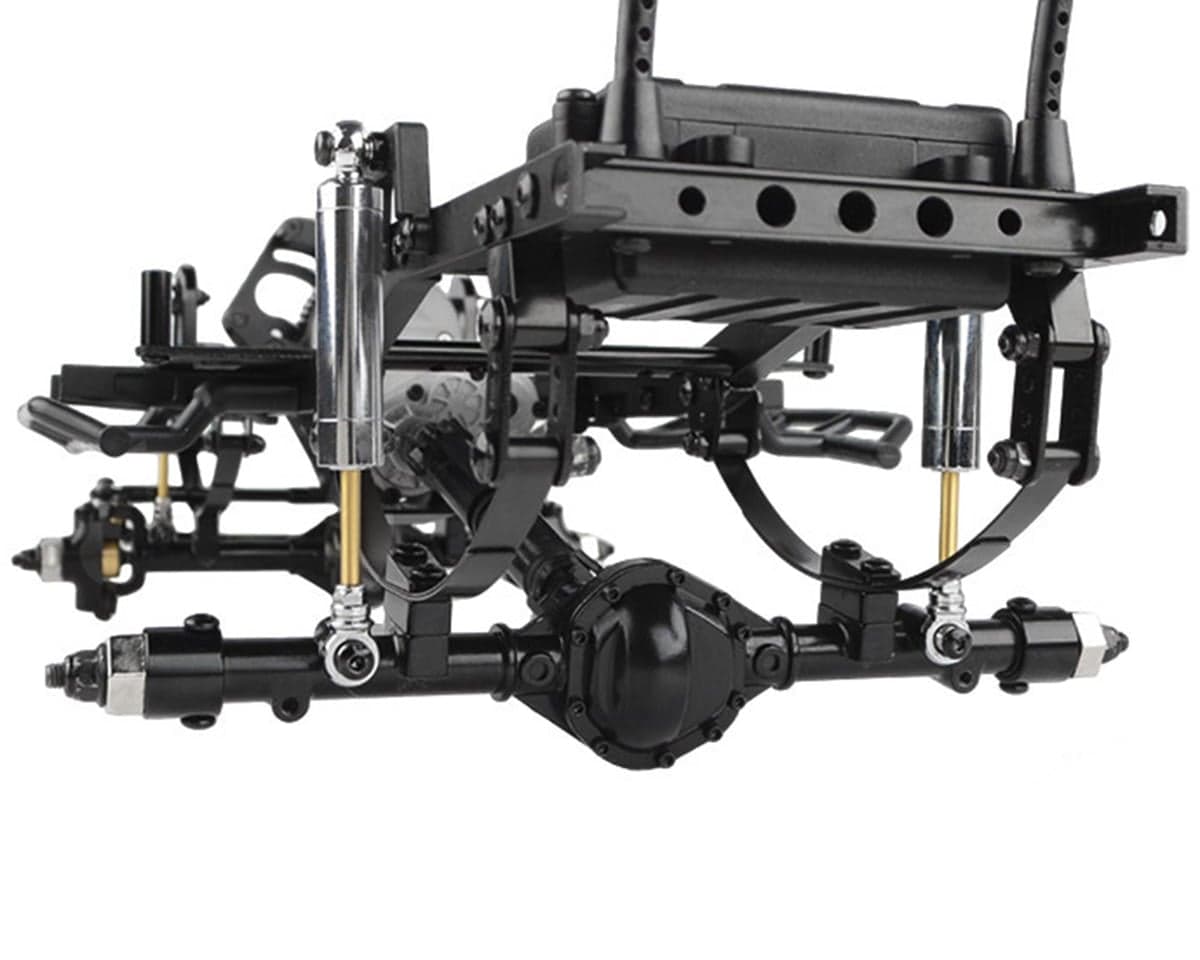

The K44 Ultimate Scale Cast Axles feature high-steer knuckles, compact differential housings, lower mounting points, and front offset pumpkins for realistic proportions and improved clearance. Upgraded front XVD axles provide increased durability and a greater steering angle than standard axle designs. Combined with the truck's 4WD drivetrain and extensive aftermarket upgrade compatibility, these features make the Trail Finder 2 a versatile platform for customizing a capable scale crawler.
Features:
- 1/10-Scale 4WD Scale Truck Builders Kit
- CNC-Machined Billet Aluminum Ladder Frame Chassis
- R3 Scale Single Speed Transmission
- Hammer Transfer Case With 1.47:1 Ratio
- K44 Ultimate Scale Cast Axles With 2.67:1 Ratio
- Upgraded Front XVD Axles for Enhanced Steering
- RC4WD Bilstein SZ Series 80mm Shock Absorbers
- Adjustable Shock Hoops and Scale Suspension Mounts
- Heavy-Duty Steel Gears and Durable Driveshaft Components
- 31.9:1 Final Drive Ratio
Includes:
- (1) RC4WD Trail Finder 2 1/10 4WD Scale Truck Builders Kit (K44)
- (1) R3 Scale Single Speed Transmission
- (1) Hammer Transfer Case
- (2) K44 Ultimate Scale Cast Axles
- (4) RC4WD Bilstein SZ Series 80mm Shock Absorbers
- RC4WD Lift Blocks for Yota & K44 Axles
- Chevrolet Blazer Body Mounts & Shock Towers
- Product Manual
Needed To Complete:
- (1) 2-Channel Transmitter/Receiver System
- (1) High Torque Steering Servo
- (1) 540 Size Motor
- (1) 1/10 ESC
- (1) 2-3S LiPo/6-Cell NiMH Battery
- (1) Compatible Charger
- (1) Body and Paint
- (4) Wheels with 12mm Hex
- (4) Crawler Tires
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2-3S LiPo or 6-7 Cell NiMH (7.4V) |
| Length | - |
| Wheelbase | 11.2in (284.0mm) |
| Width | 7.7in (196.0mm) |
| Height | 5.8in (148mm) |
| Weight | - |
| Assembly Level | Kit* |

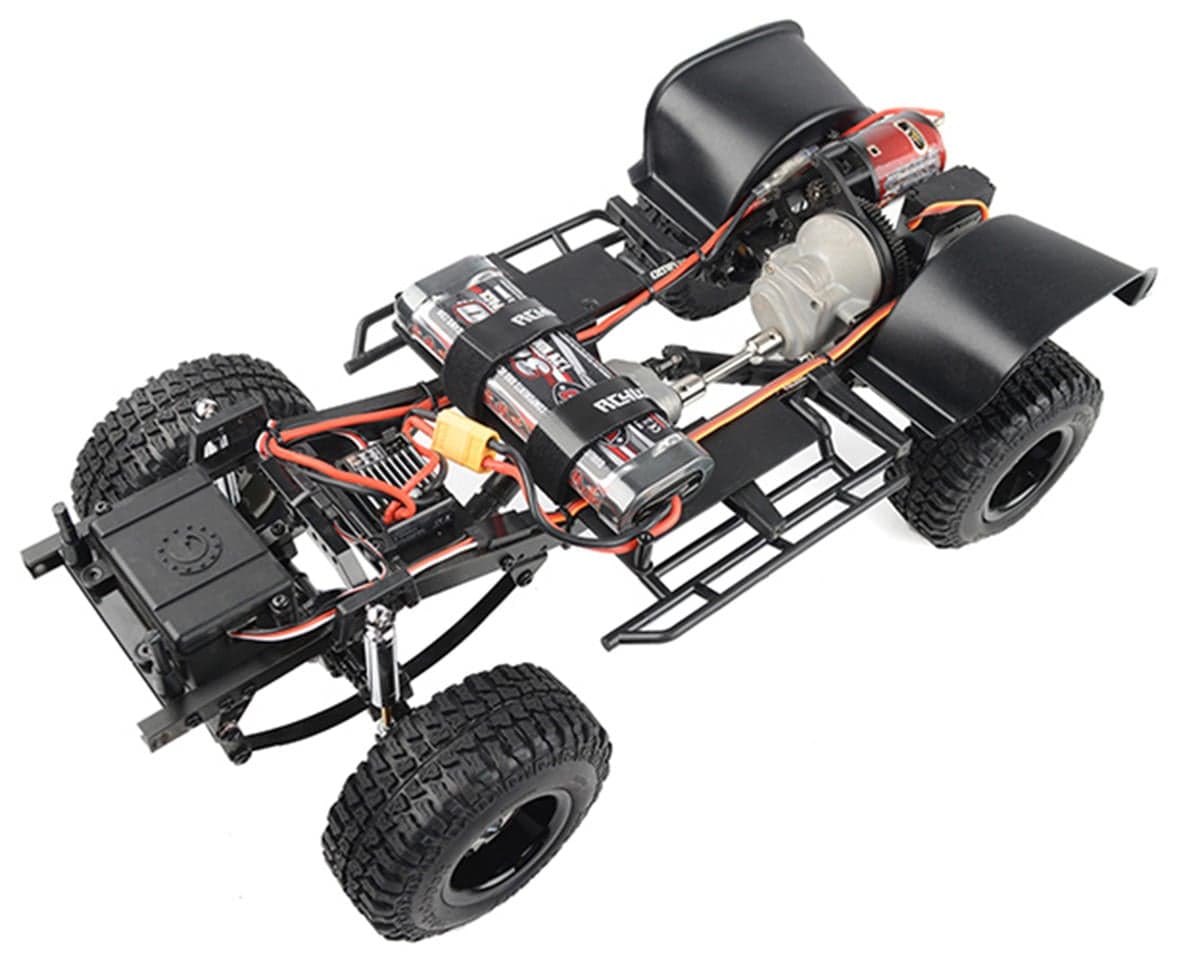

*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, user selected electronics, and other user provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
