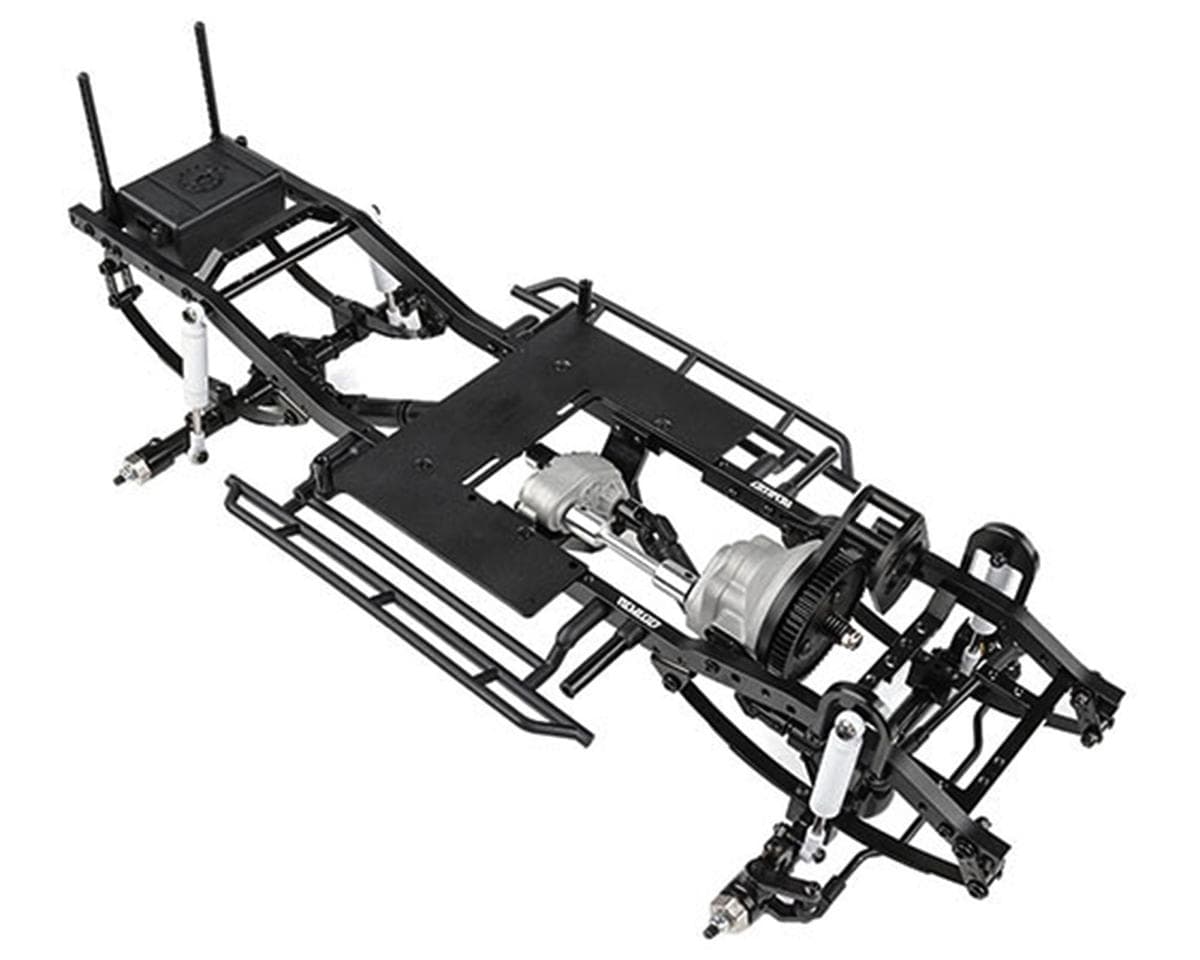

RC4WD Trail Finder 2 "LWB" 1/10 Scale Rock Crawler Builders Kit

TF2 - Scale Realistic Trail Truck Chassis

This is the RC4WD Trail Finder 2 "LWB" Long Wheelbase 1/10 Scale Rock Crawler Builders Kit. Designed with scale builders and hardcore crawlers in mind, the Trail Finder 2 "LWB" is a dream come true that brings both performance and scale worlds together in one solid kit that allows you to build, spec and customize it with your own choice of body, paint color, electronics, wheels, tires and scale accessories!

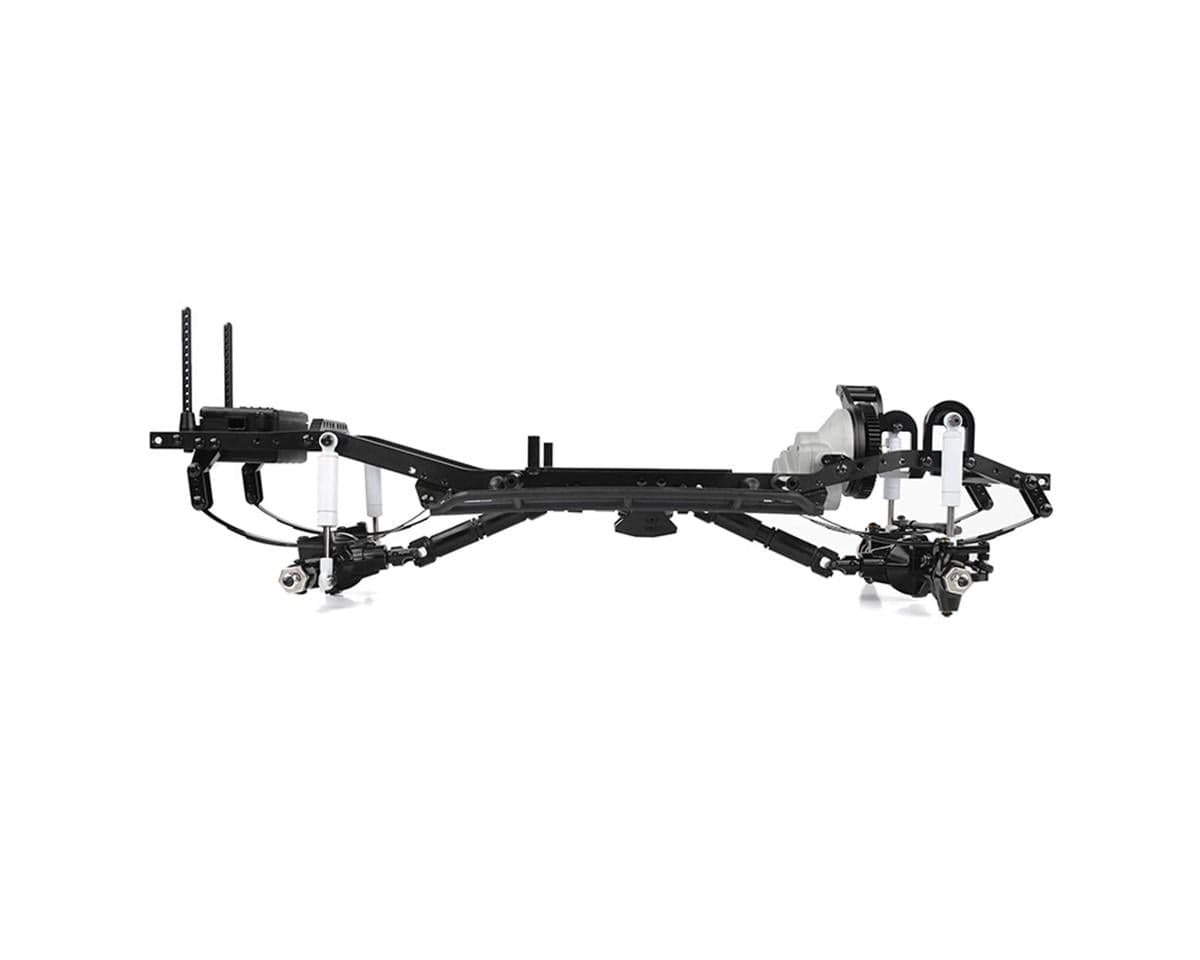

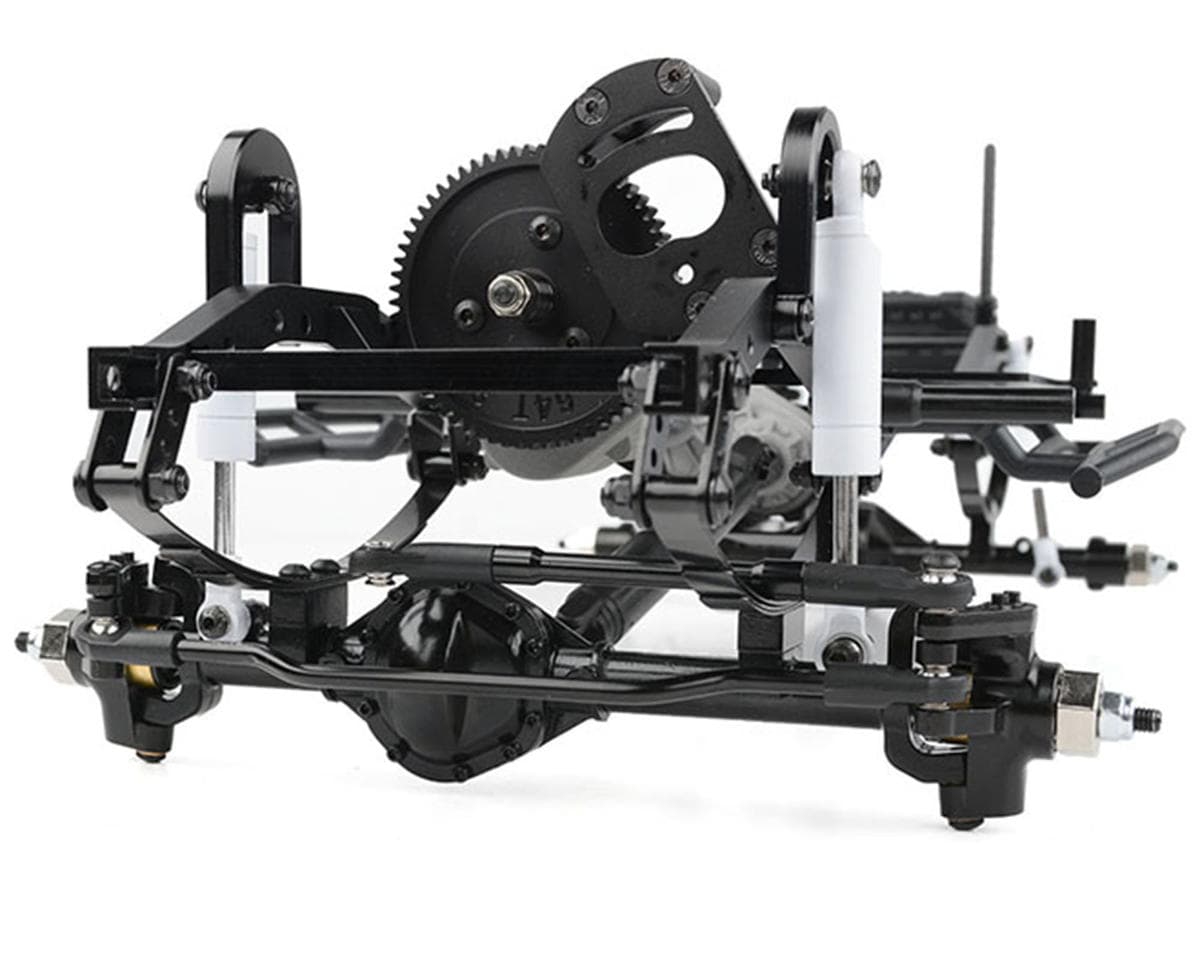

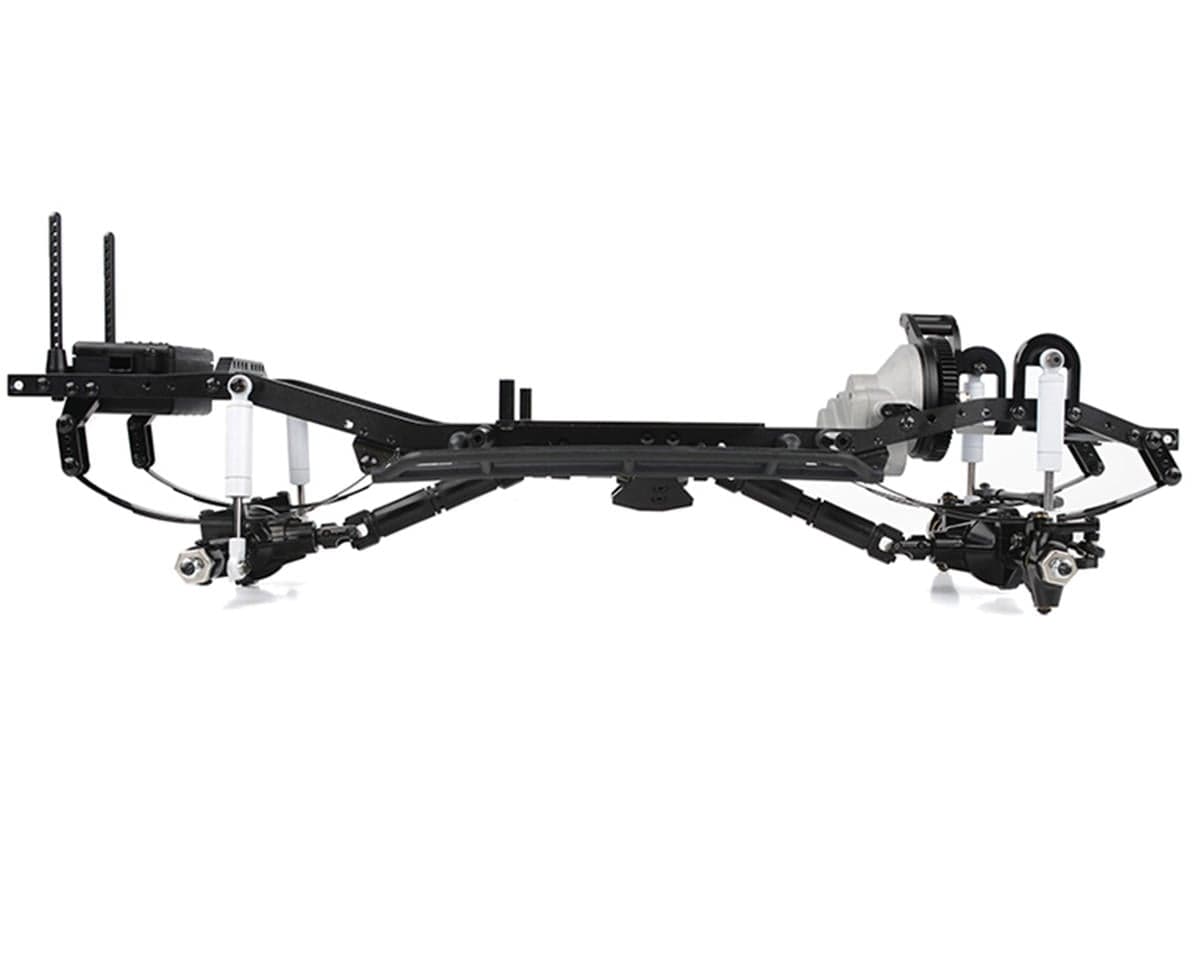

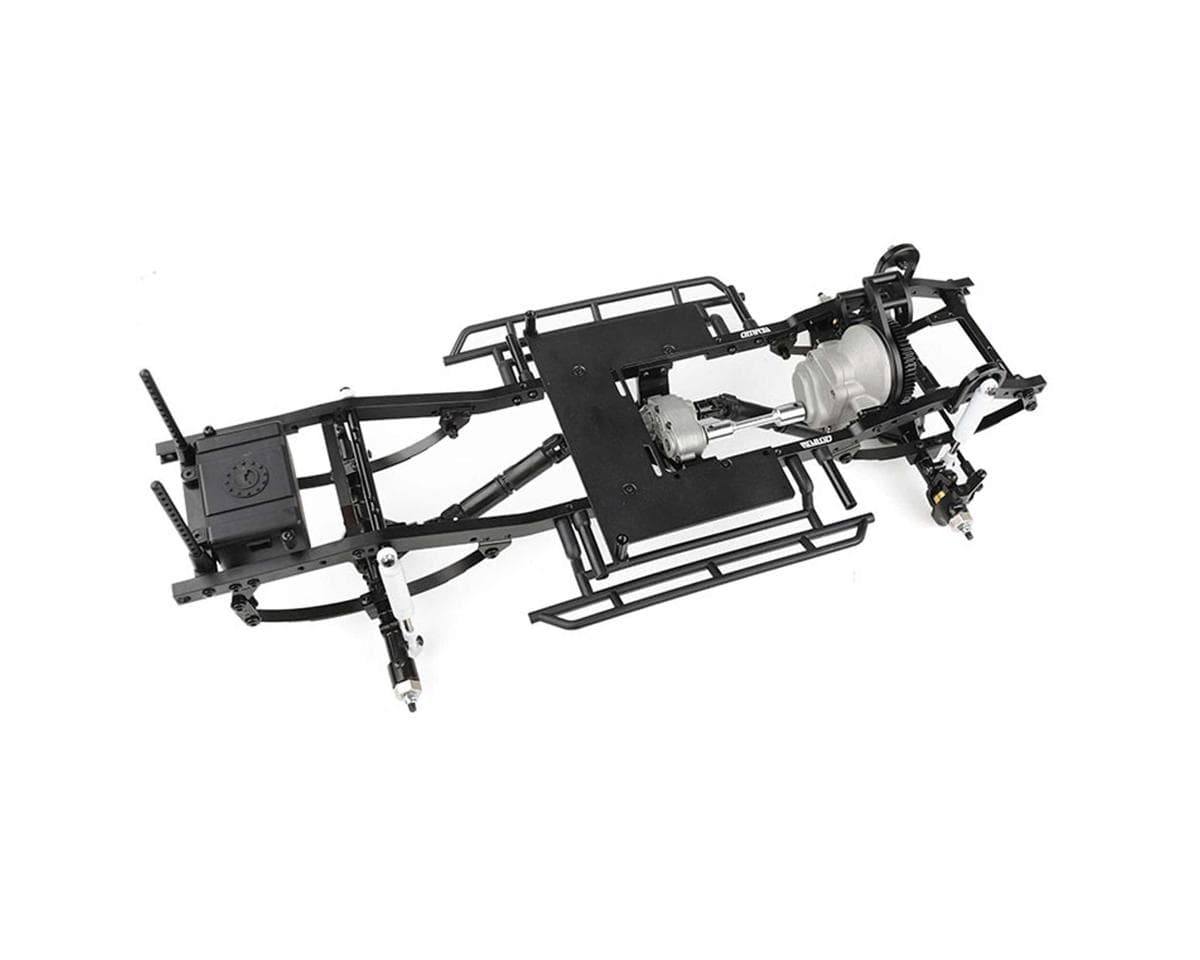

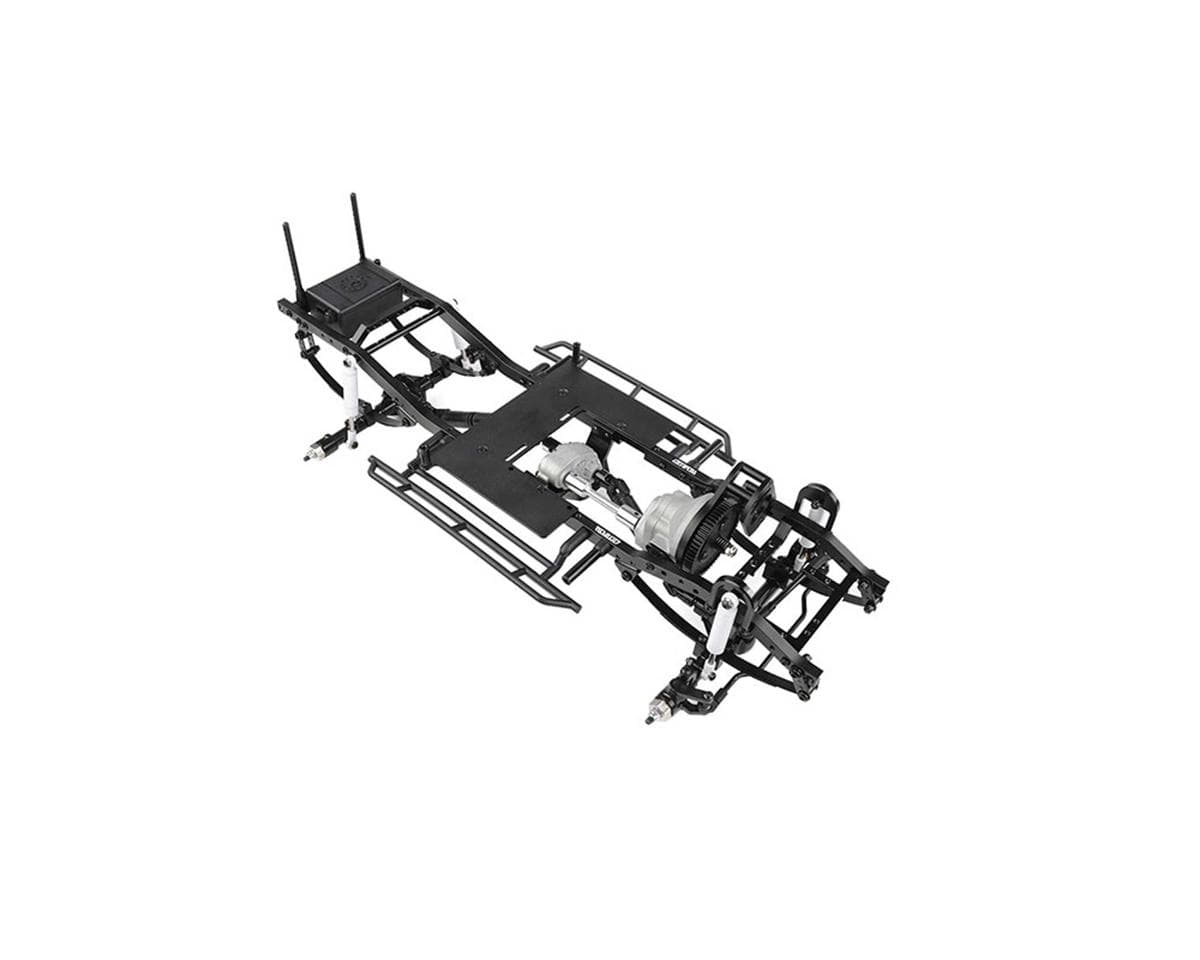

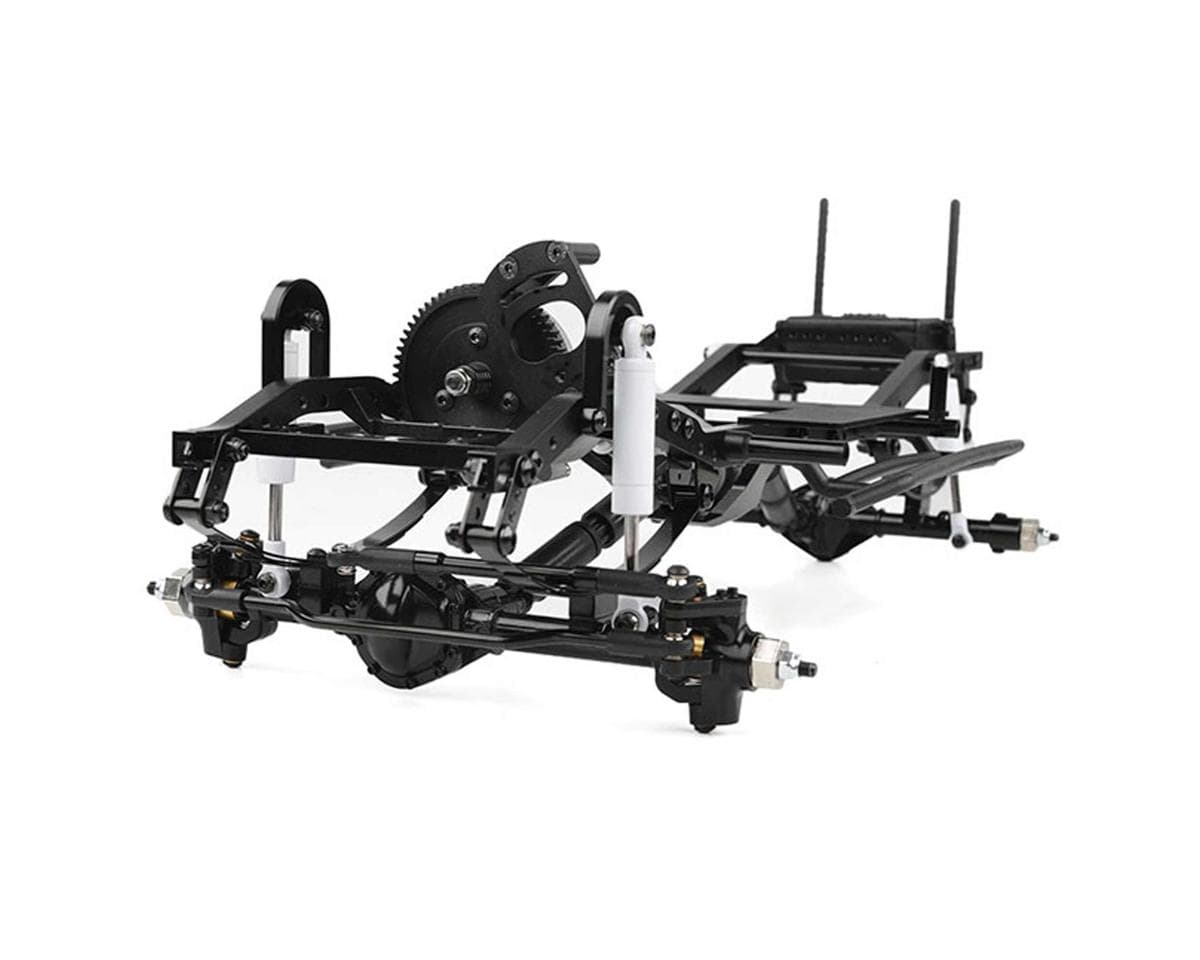

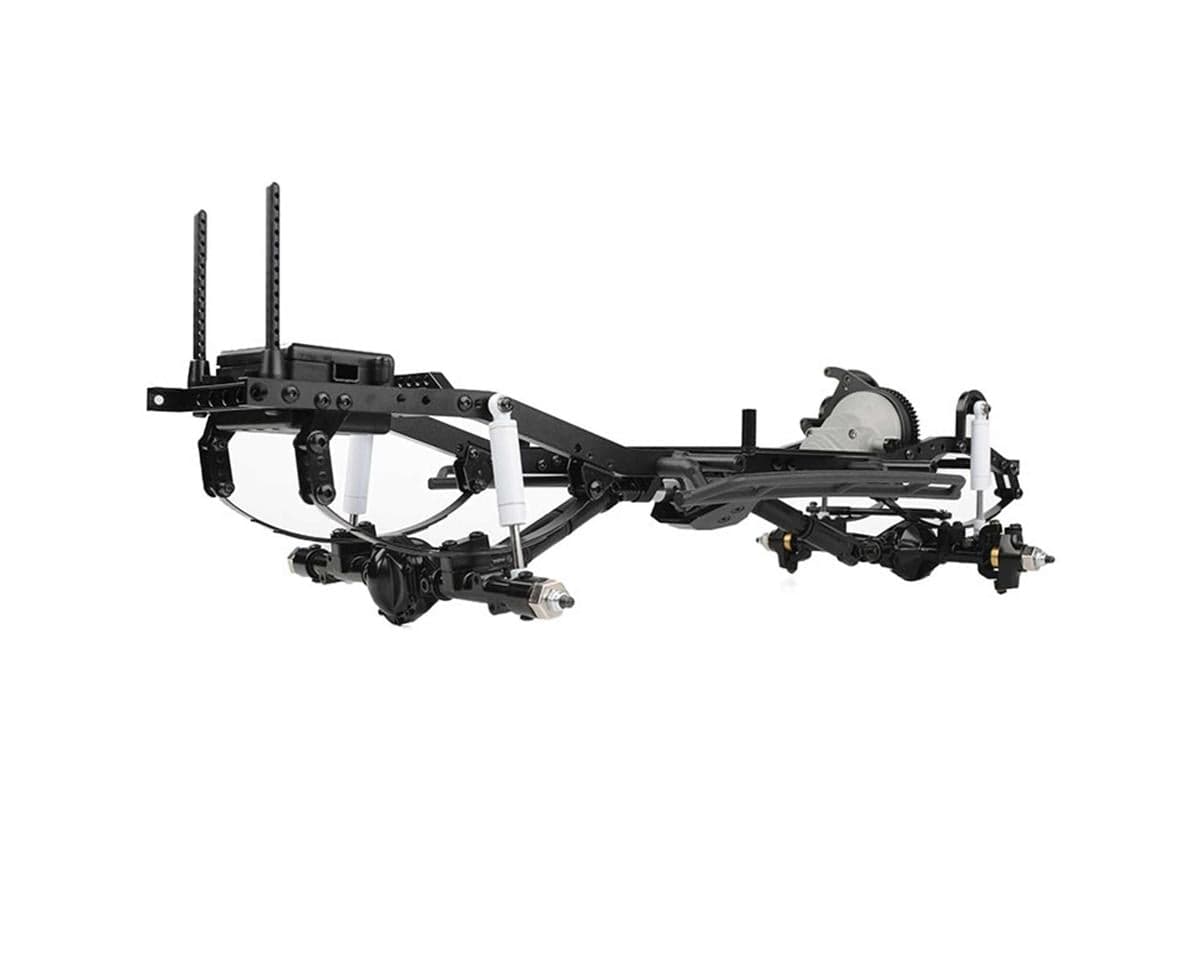

Features a realistic an aluminum ladder frame chassis with adjustable shock hoops, soft steel leaf springs, aluminum Ultimate Scale shocks with internal springs, a molded fuel cell that doubles as a receiver box and a CMS (Chassis Mounted Servo) design, this TF2 chassis screams scale realism! In addition, the K44 Yota II ultimate scale cast axles with upgraded XVD's, center mounted realistic heavy duty metal Hammer transfer case, billet aluminum motor mount and the upgraded driveshafts with steel universals provide the TF2 with a much needed boost in durability that can stand up to the toughest terrains!

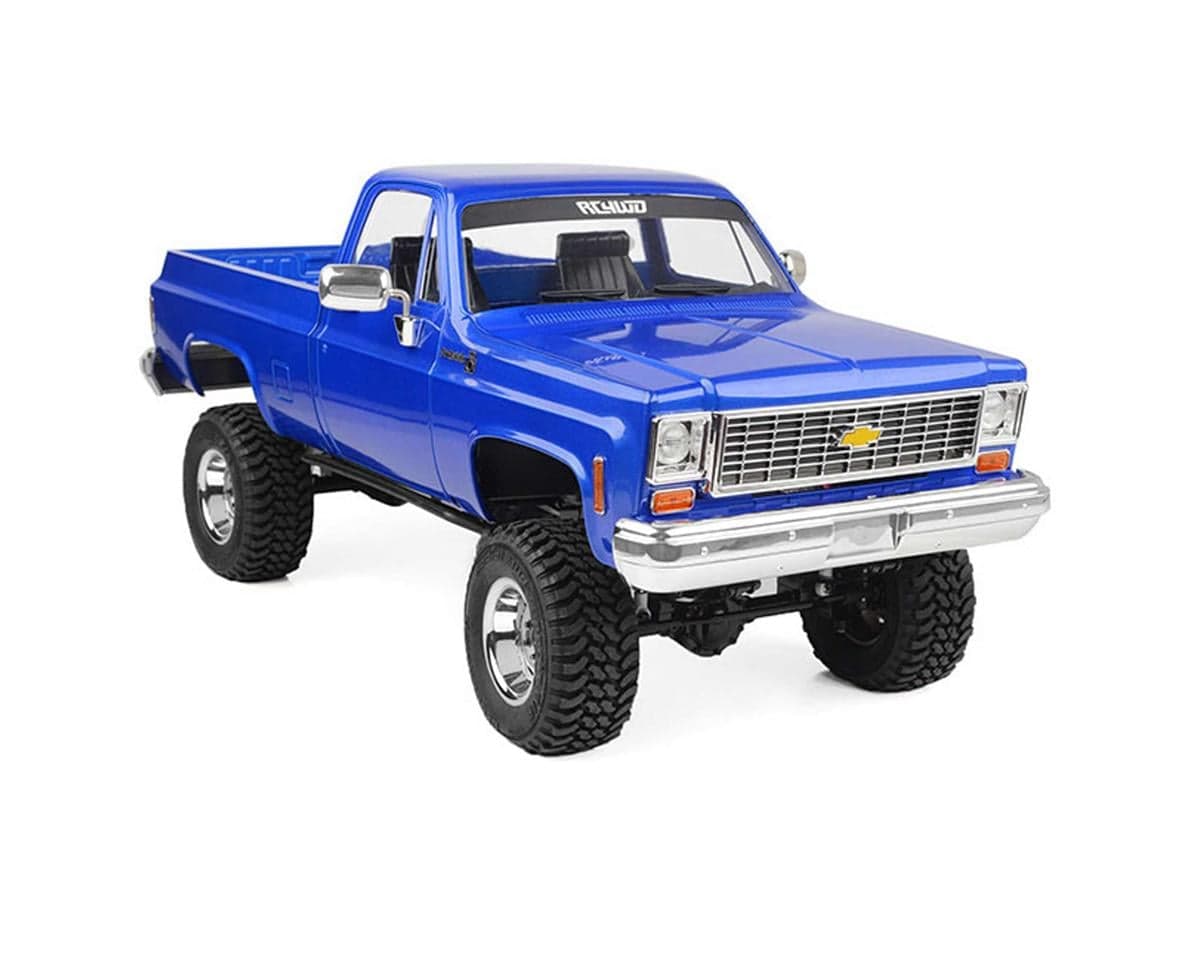

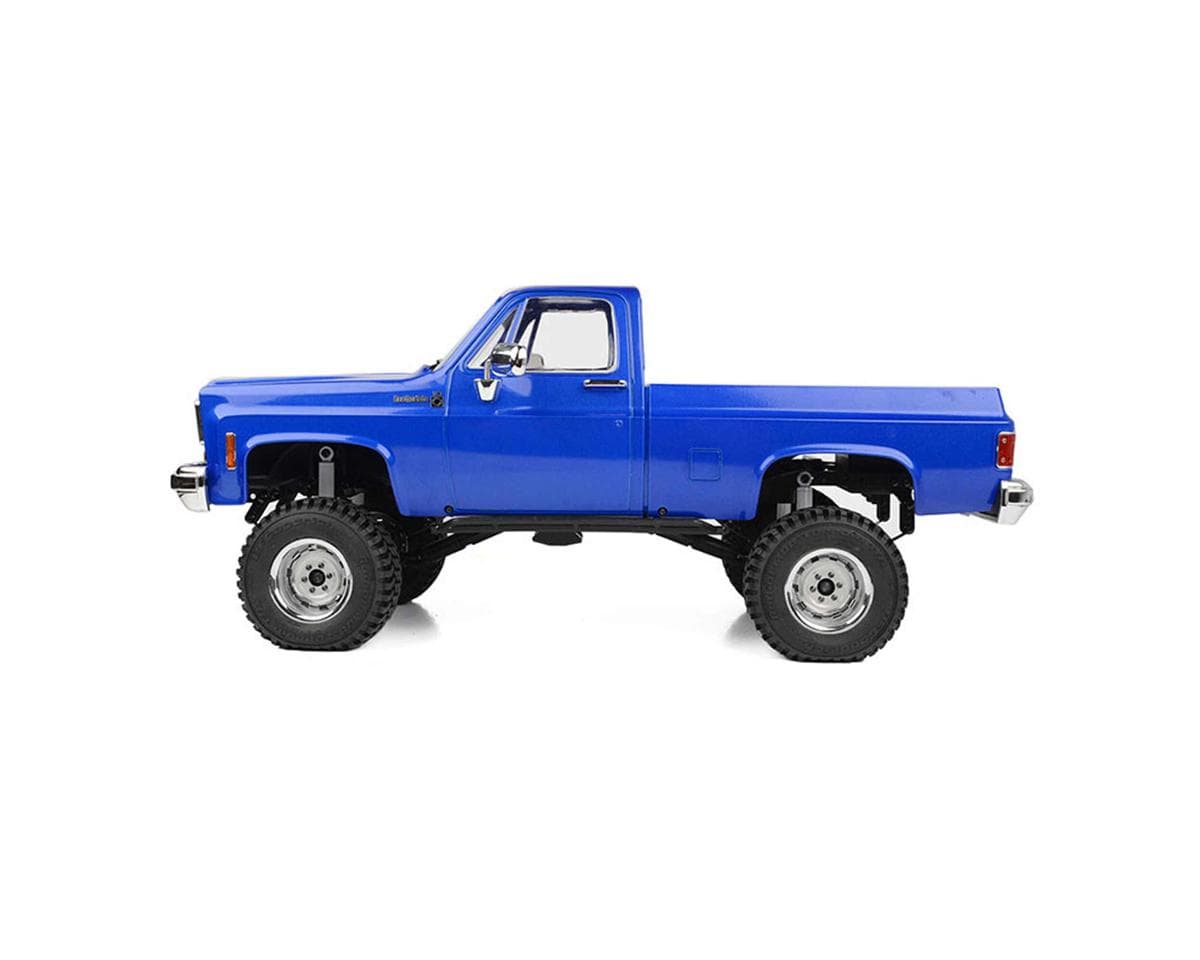

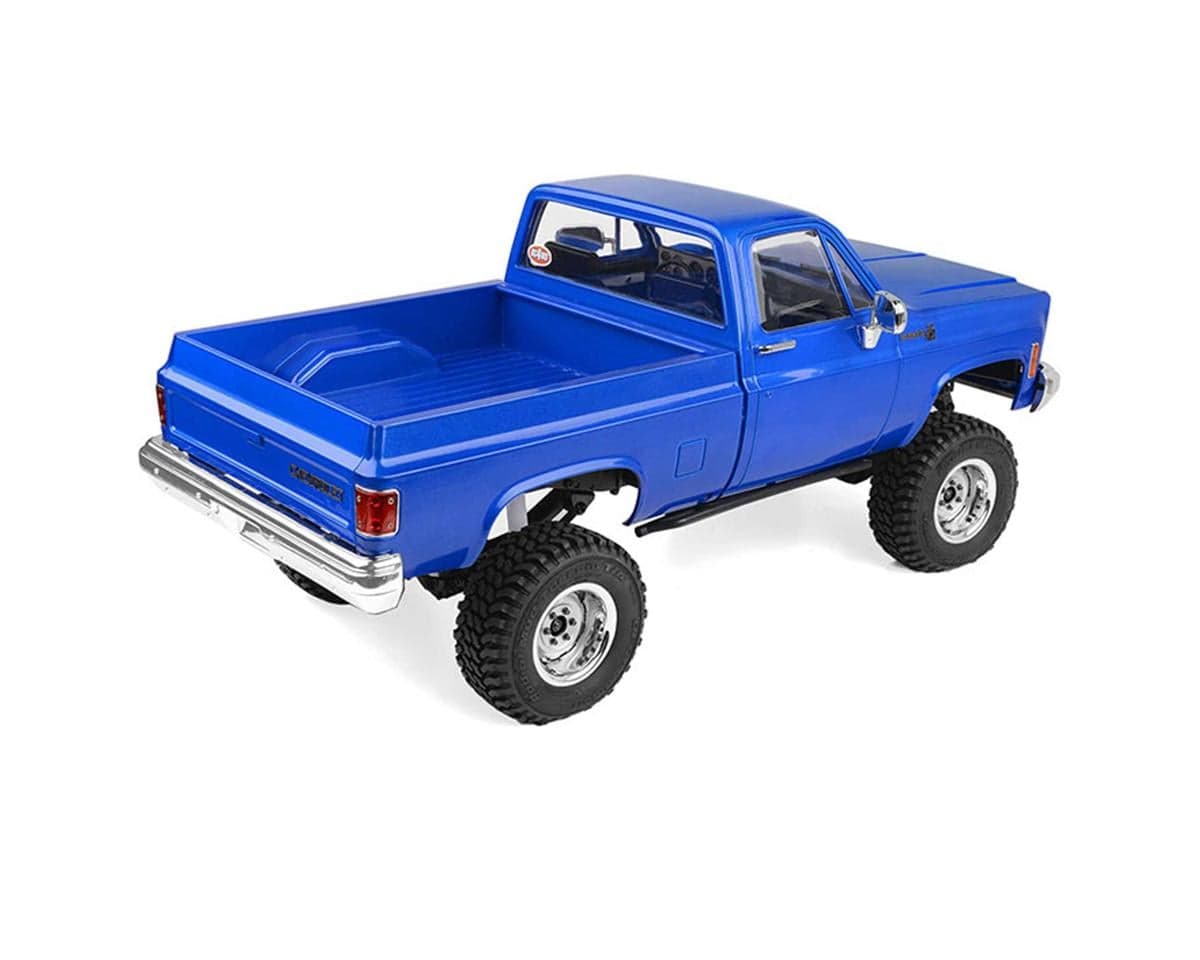

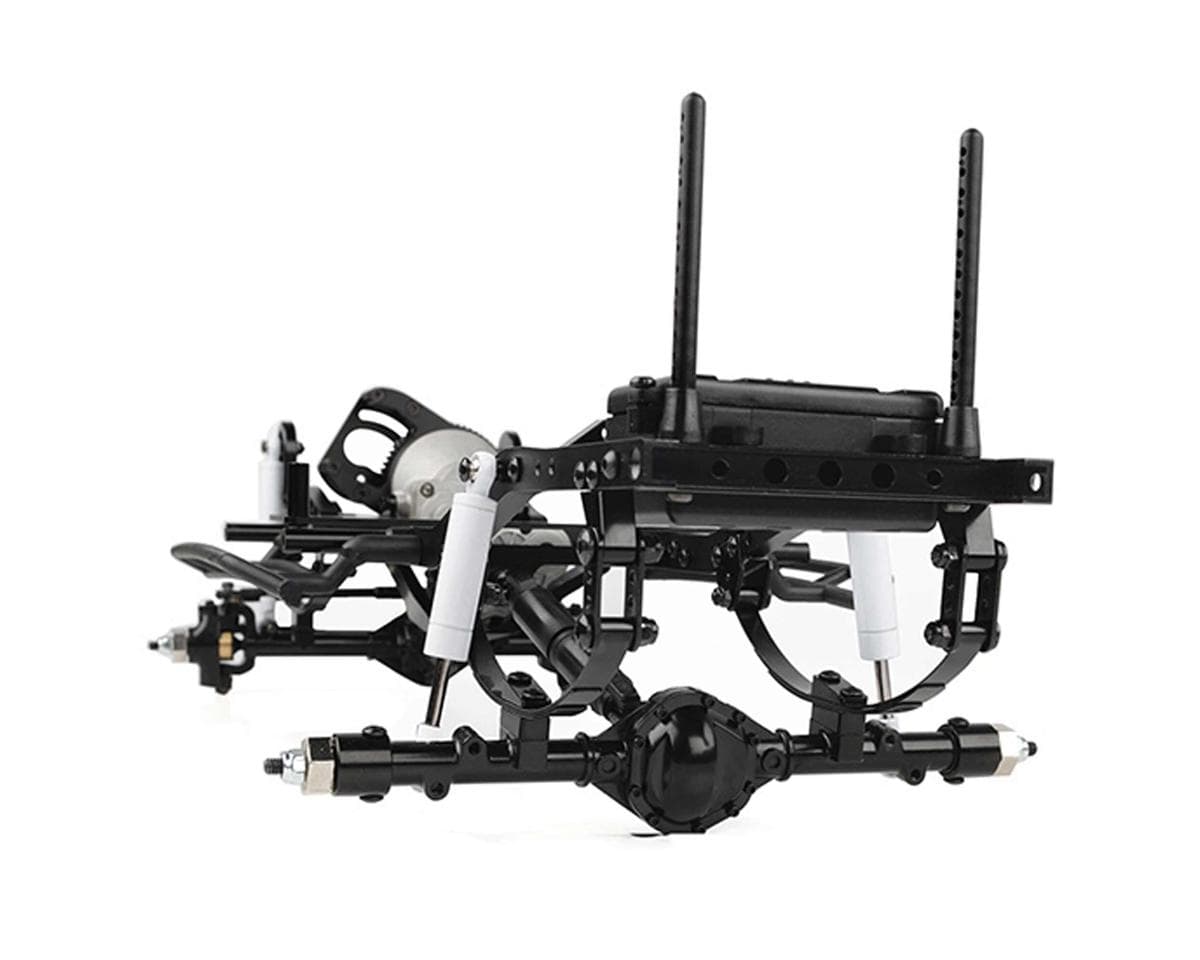

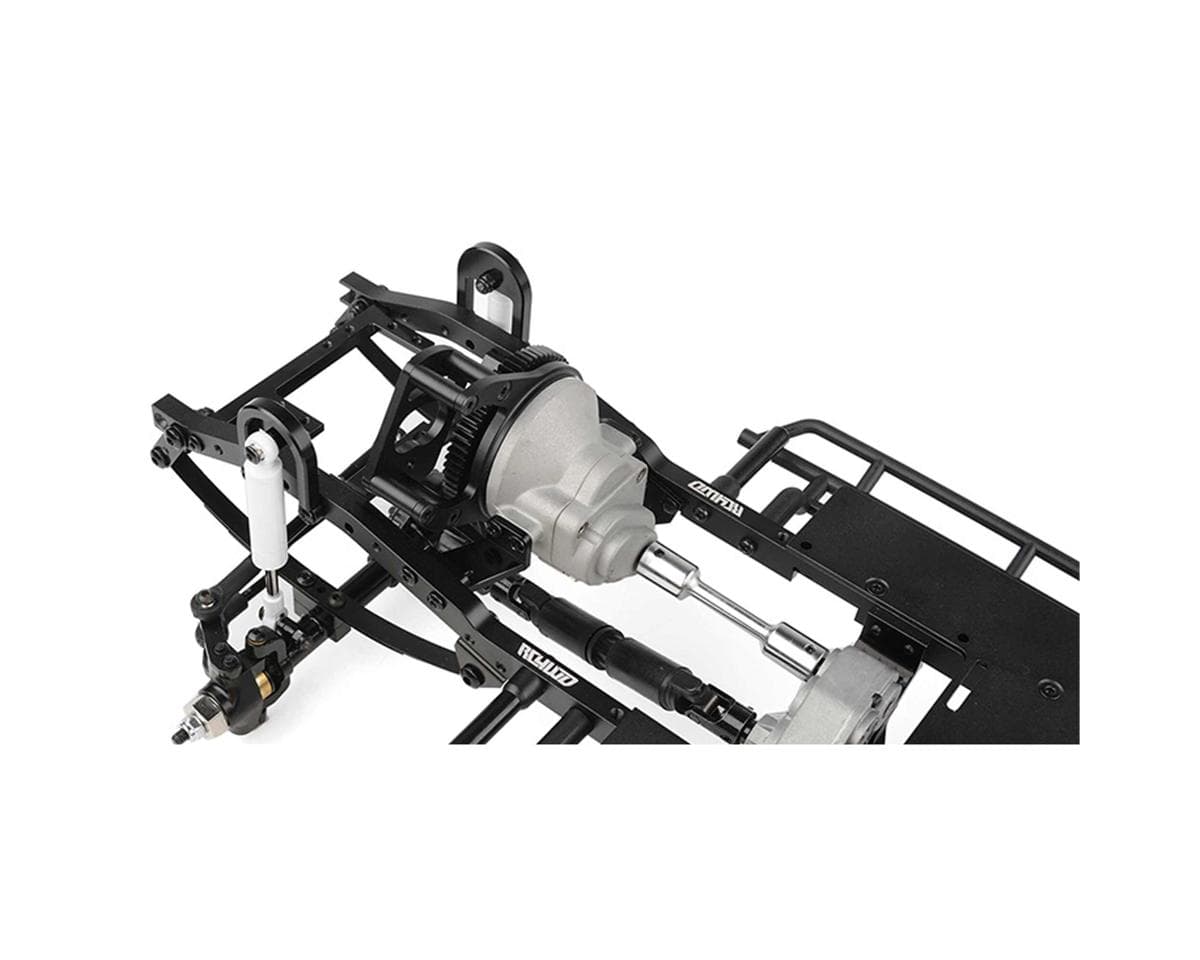

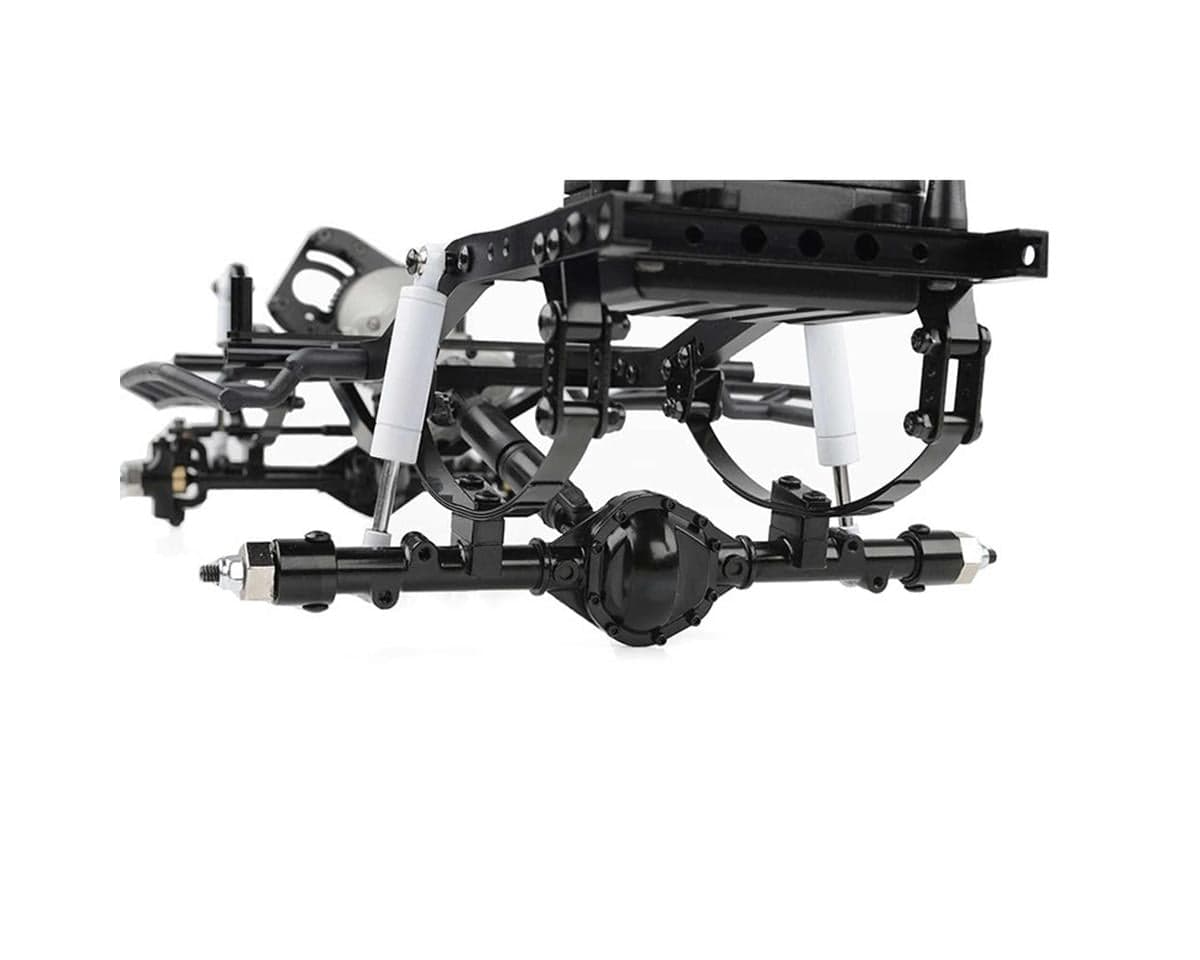

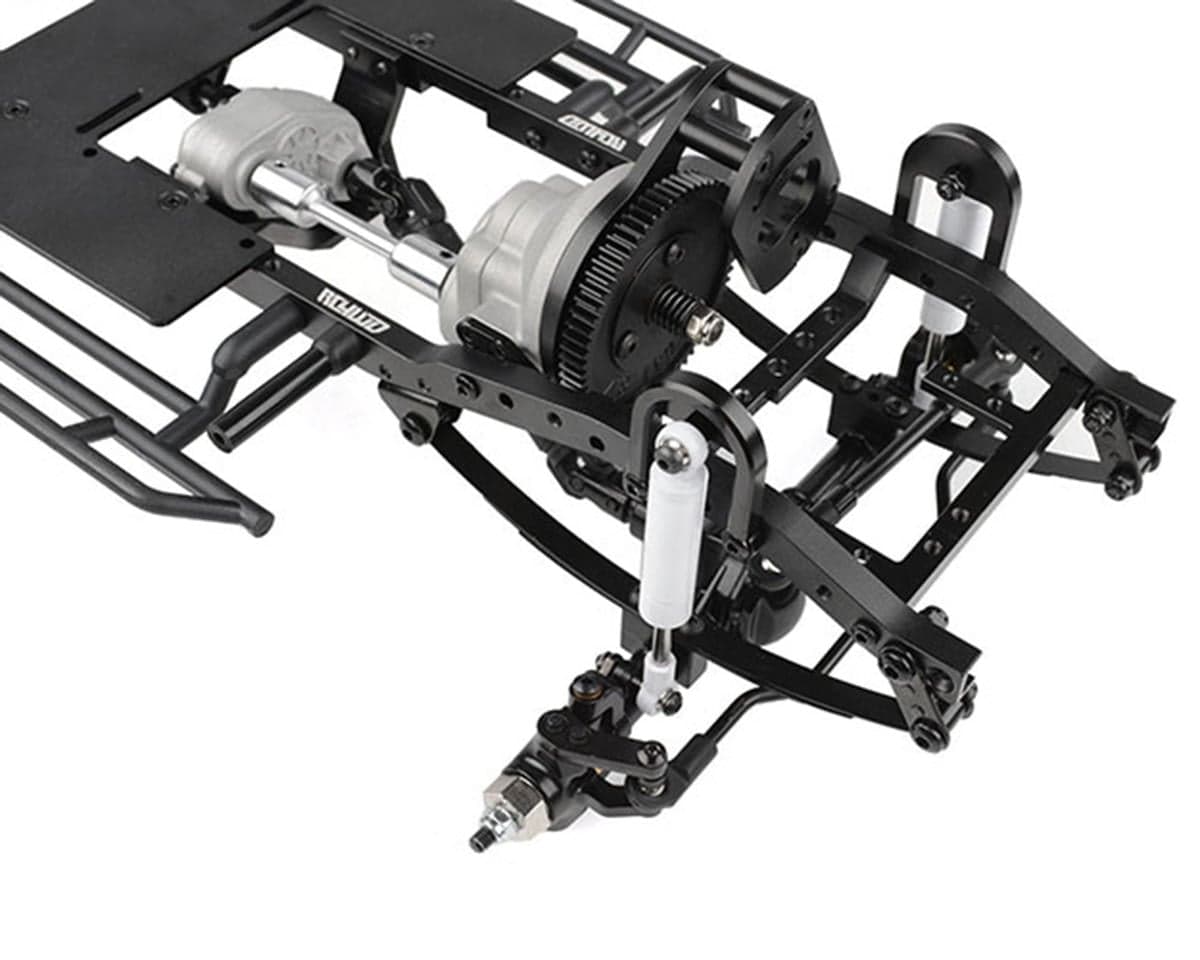

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

• Realistic Aluminum Ladder Frame Chassis with Adjustable Shock Hoops

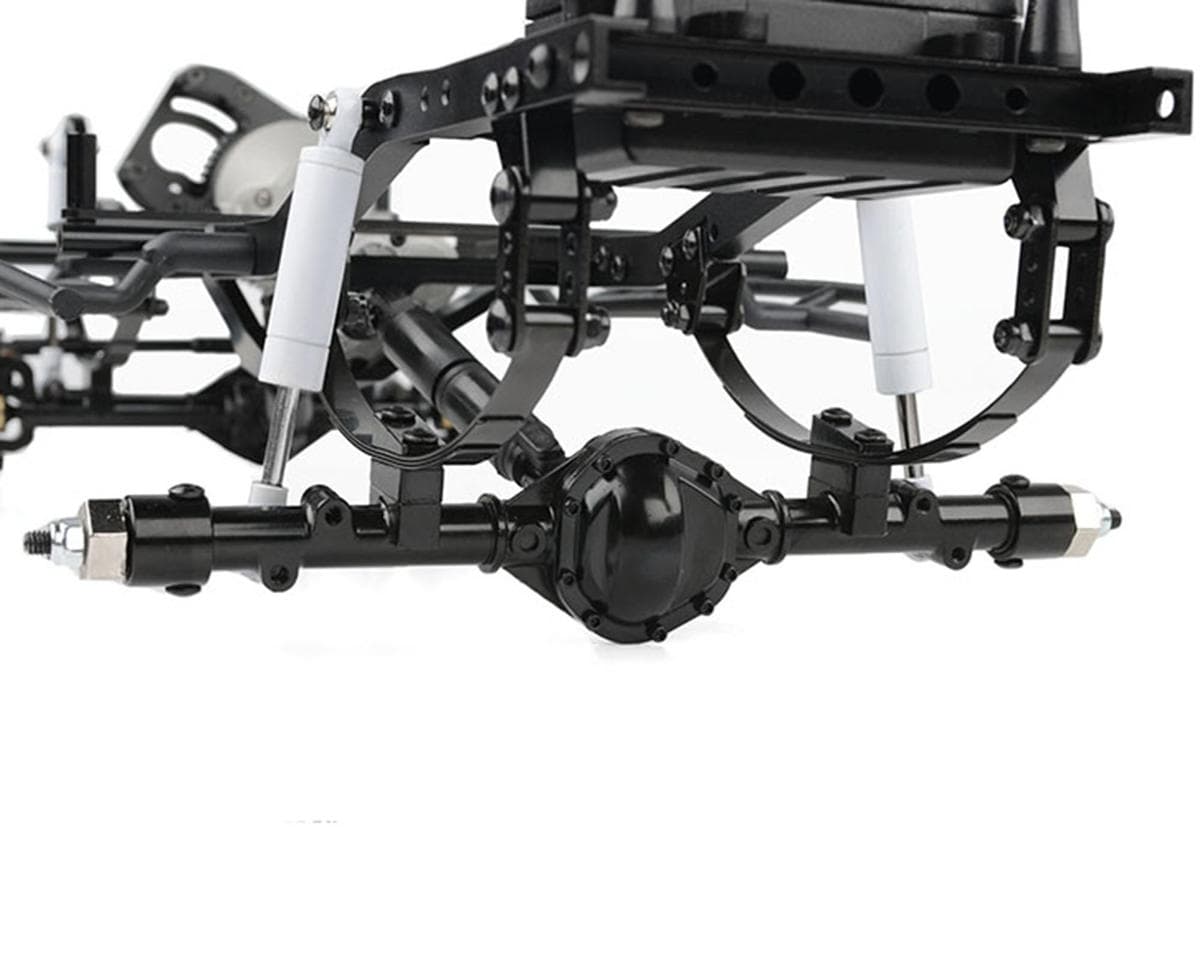

• RC4WD K44 Yota II Ultimate Scale Cast Axles with Upgraded XVD's

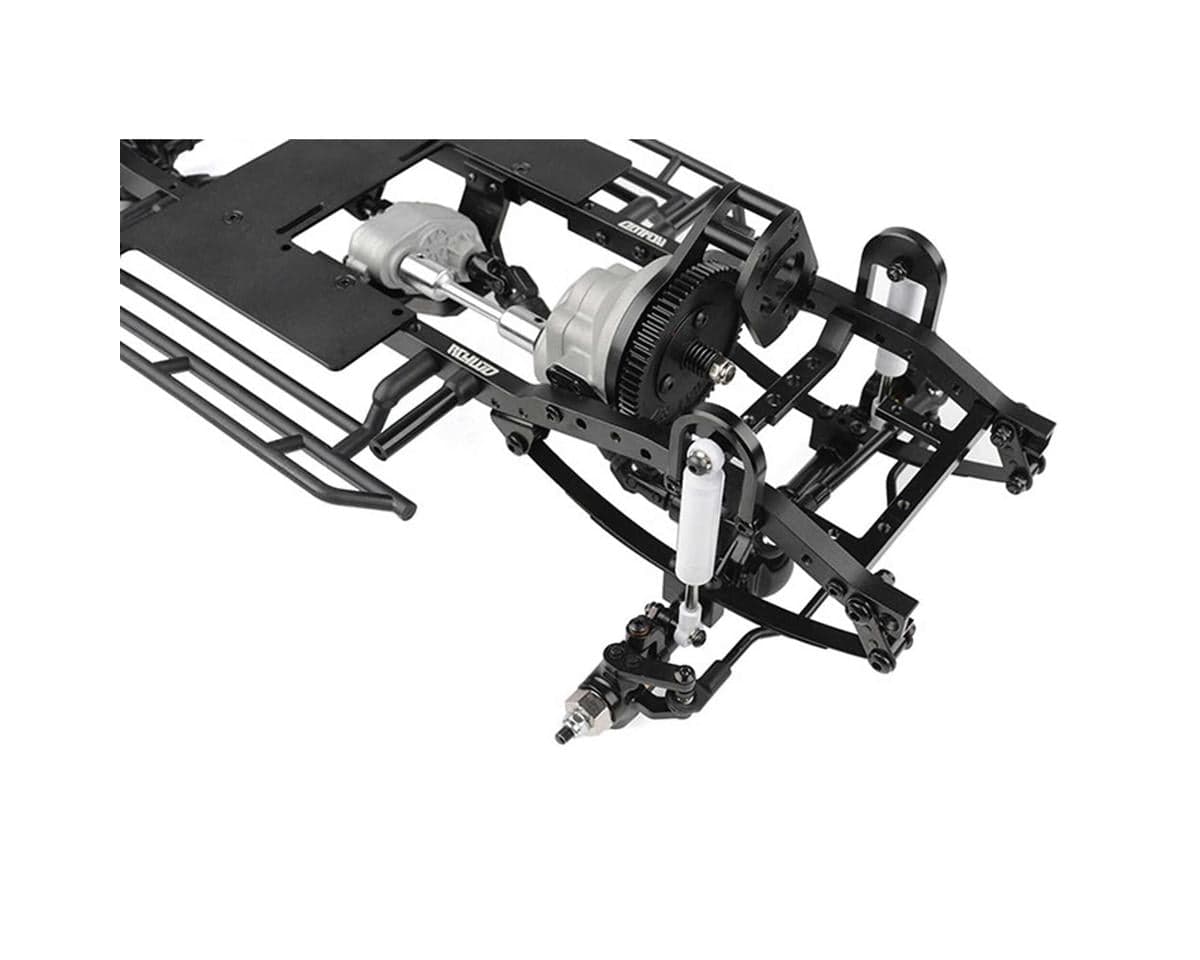

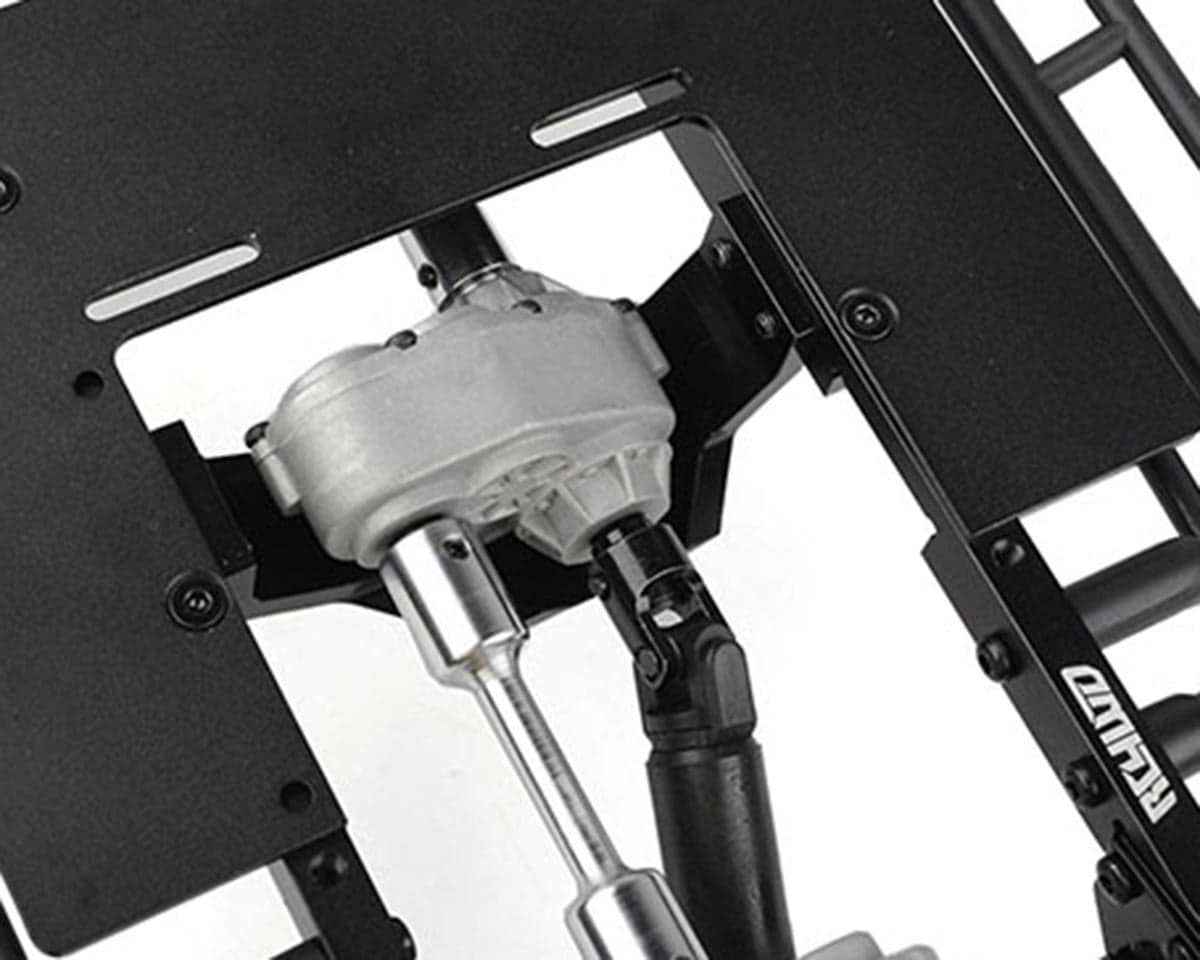

• Center Mounted Realistic Heavy Duty Metal Hammer Transfer Case
• CMS (Chassis Mounted Servo) for extreme scale realism
• Soft Steel Leaf Springs
• Aluminum Ultimate Scale Shocks with Internal Springs
• Billet Aluminum Motor Mount
• Molded Fuel Cell that Doubles as a Receiver Box

Specifications:

• Scale: 1/10
• Width: 193mm (7.6")
• Height: 118mm (4.65")
• Wheelbase: 314mm (12.4")
• Hex To Hex Width: 177mm (6.96")
• Final Drive Ratio: 31.9:1
• Assembly Level: Unassembled

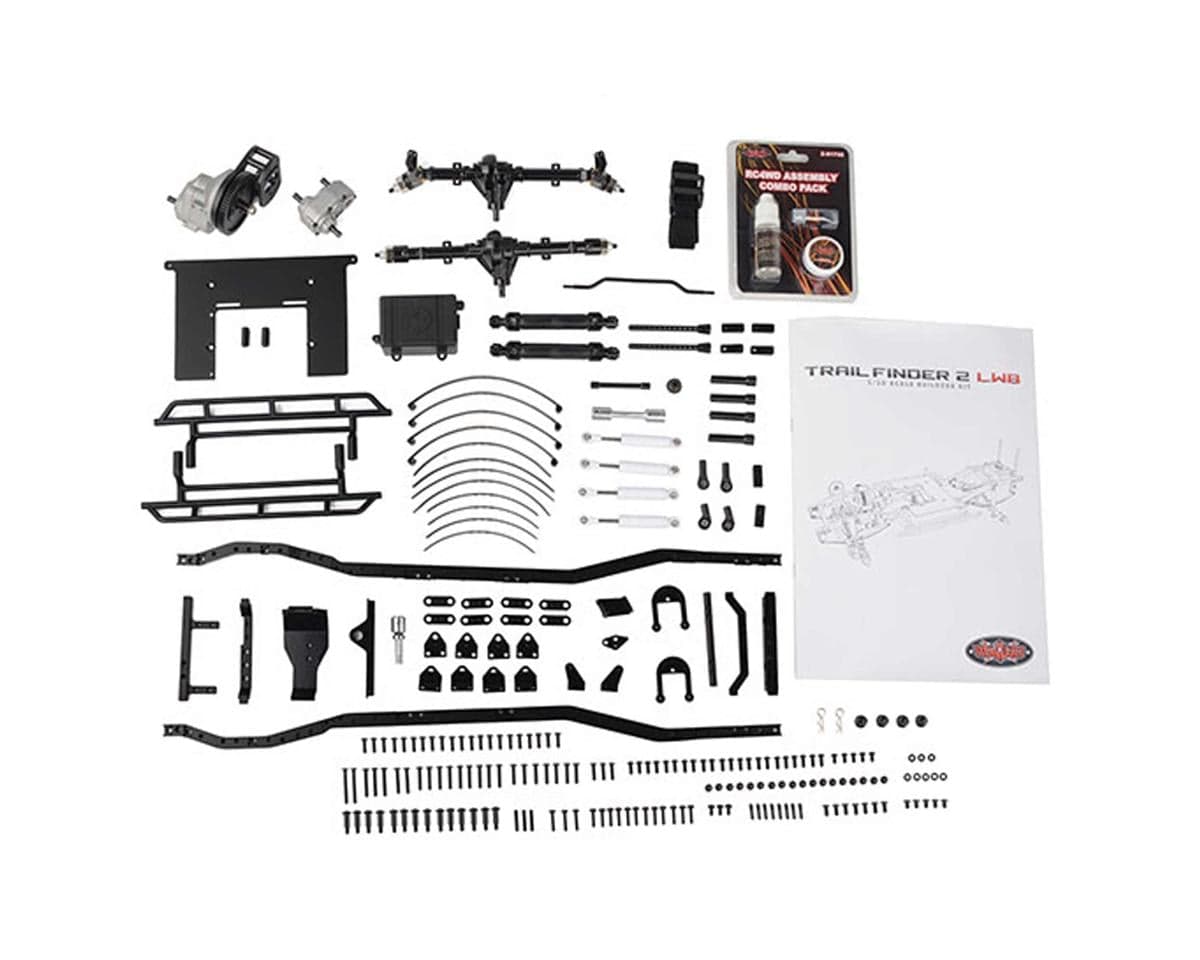

Includes:

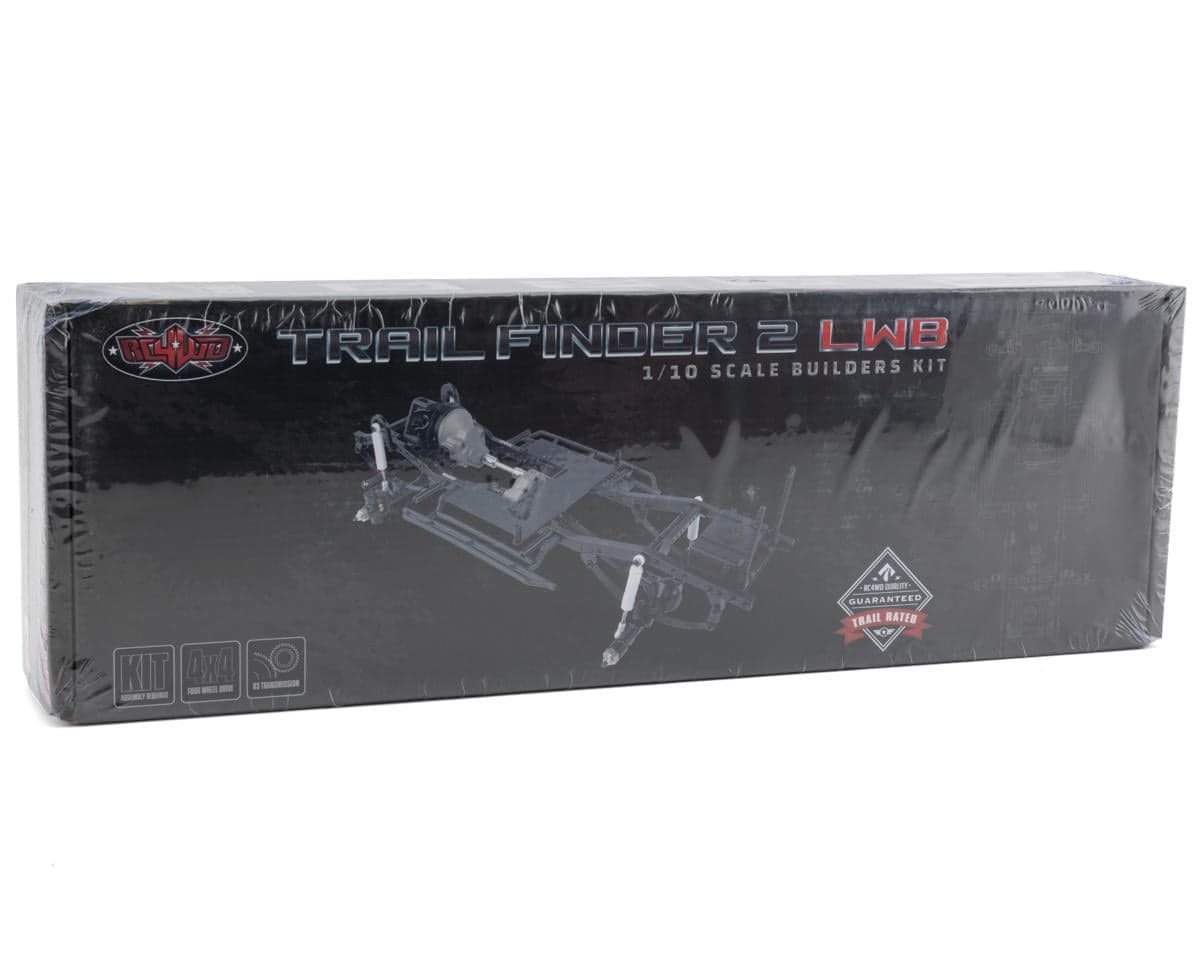

• (1) Trail Finder 2 "LWB" 1/10 Scale Trail Rock Crawler Builders Kit
• (1) Manual

Needed to Complete:

• (1) 2-Channel Transmitter/Receiver System
• (1) High Torque Steering Servo
• (1) 540 Size Motor
• (1) 1/10 ESC
• (1) Battery for Charger
• (1) Compatible Charger
• (1) (314mm) Wheelbase Body and Paint
• (4) Wheels with 12mm hex and Tires
