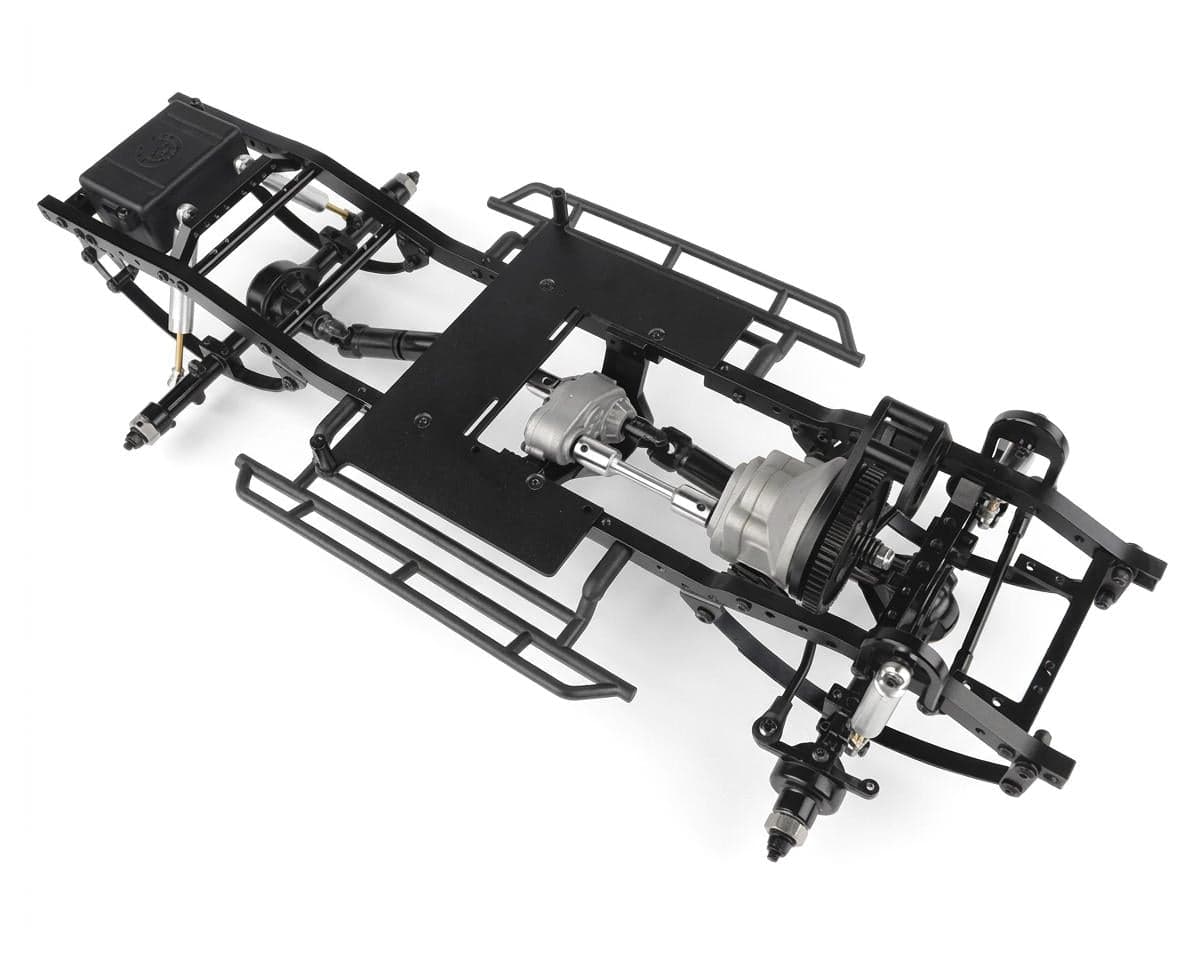

RC4WD Trail Finder 2 "LWB" 1/10 Scale Truck Builders Kit (Yota II)
About this part
TF2 - The Ultimate Scale Chassis
The RC4WD Trail Finder 2 LWB 1/10 Scale Truck Builders Kit combines realistic scale styling with capable off-road performance in a long-wheelbase 4WD platform. Built around a CNC-machined billet aluminum ladder frame, this kit features an R3 Scale Single Speed Transmission, a Hammer Transfer Case, and durable metal drivetrain components. The Yota II Ultimate Scale Cast Axles, upgraded front XVDs, and adjustable suspension components provide dependable trail performance with enhanced steering capability.
About the Trail Finder 2 LWB Builders Kit
Durable 4WD Drivetrain

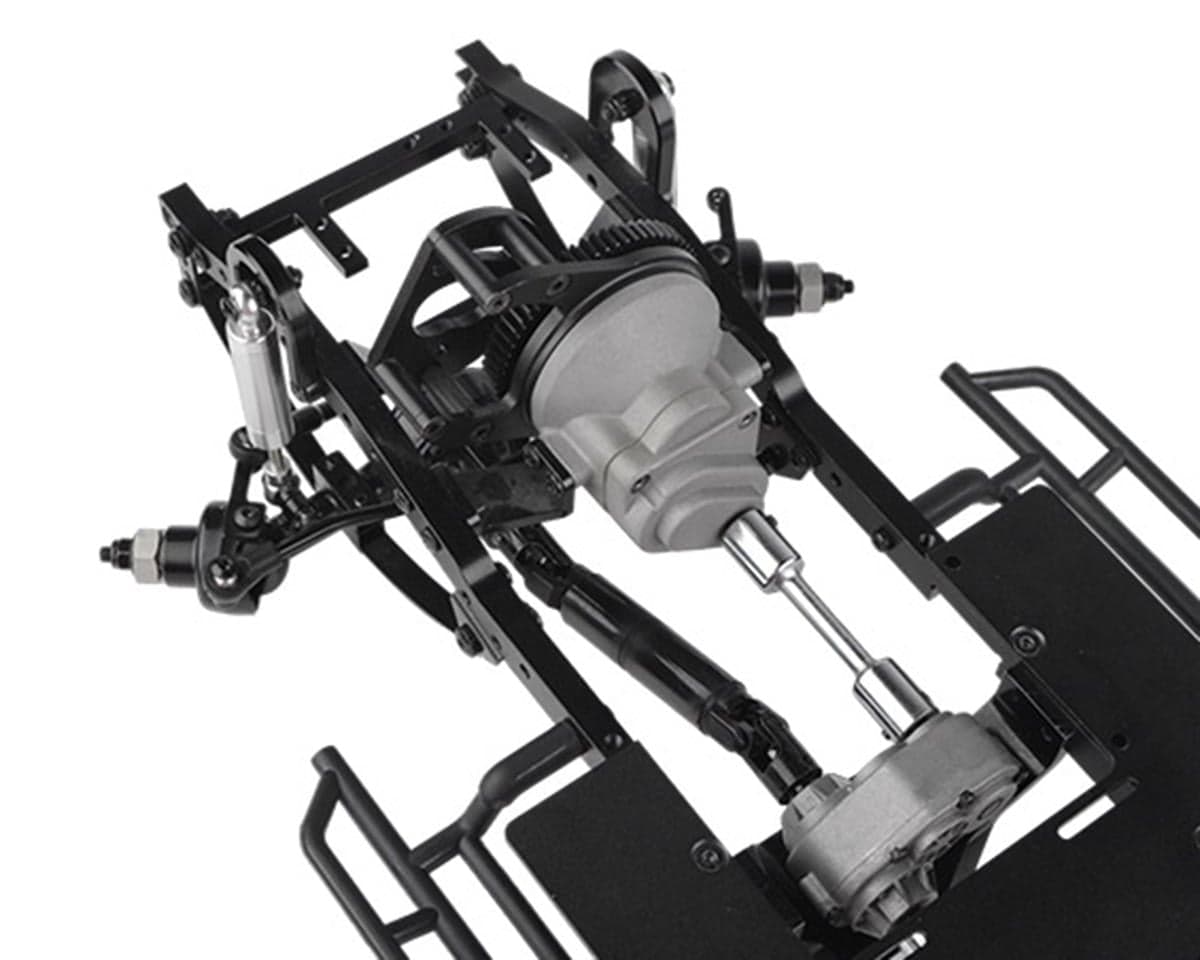

The Trail Finder 2 LWB features an R3 Scale Single Speed Transmission with wide steel gears, a Delrin spur gear, and an integrated slipper clutch for dependable power delivery. The Hammer Transfer Case uses hardened steel gears and an all-metal housing, while the Yota II axles provide a 2.67:1 gear ratio for controlled crawling performance. Durable driveshafts with steel universal joints help maintain reliable power transfer and accommodate the suspension movement encountered on challenging trails.
Long-Wheelbase Chassis and Realistic Suspension

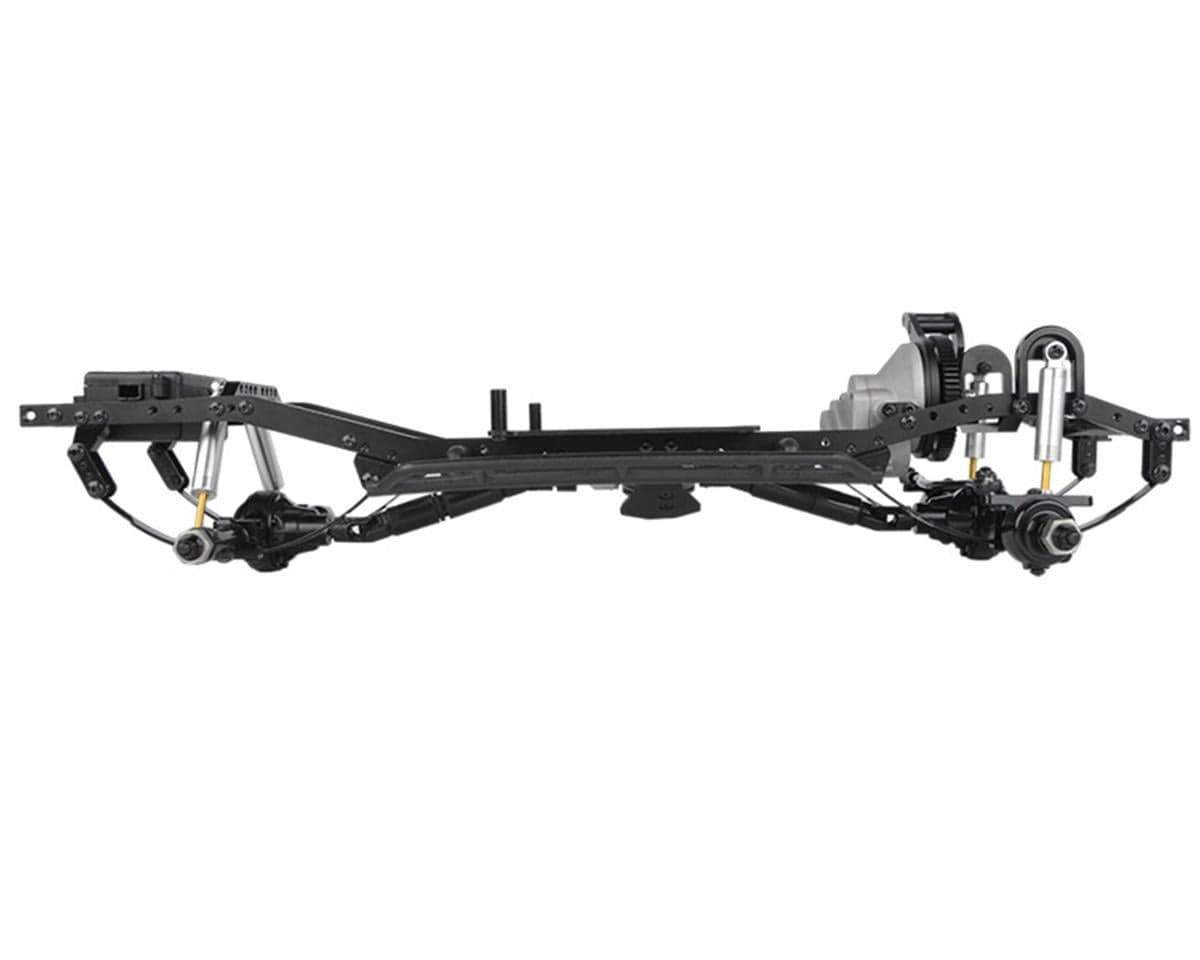

The CNC-machined billet aluminum ladder frame provides a strong foundation for the truck's 310mm wheelbase. Adjustable shock hoops, billet aluminum Ultimate Scale Shocks, and super-soft flex leaf springs combine realistic appearance with functional suspension articulation. The included leaf-under mounts lower the vehicle's stance for a more authentic scale look, while the Marlin Crawler side plastic sliders help protect the sides when navigating rocky terrain.
Scale Axles and Enhanced Steering
The Yota II Ultimate Scale Cast Axles feature realistic cast housings, removable differential covers, lower mounting points, and an offset front differential housing. Upgraded front XVD axles and 8-degree round steering knuckles provide improved steering capability while maintaining the truck's scale appearance. With a 31.9:1 final drive ratio and compatibility with a wide range of RC4WD upgrades, the Trail Finder 2 LWB is well suited to customized trail builds and technical crawling.
Features:
- 1/10-Scale 4WD Long-Wheelbase Truck Builders Kit
- CNC-Machined Billet Aluminum Ladder Frame Chassis
- R3 Scale Single Speed Transmission With Slipper Clutch
- Hammer Transfer Case With 1.47:1 Ratio
- Yota II Ultimate Scale Cast Axles
- Upgraded Front XVD Axles With 8-Degree Steering Knuckles
- Ultimate Scale Shocks With Internal Springs
- Super-Soft Flex Leaf Springs With Leaf-Under Mounts
- Marlin Crawler Side Plastic Sliders
- 310mm Wheelbase With 31.9:1 Final Drive Ratio

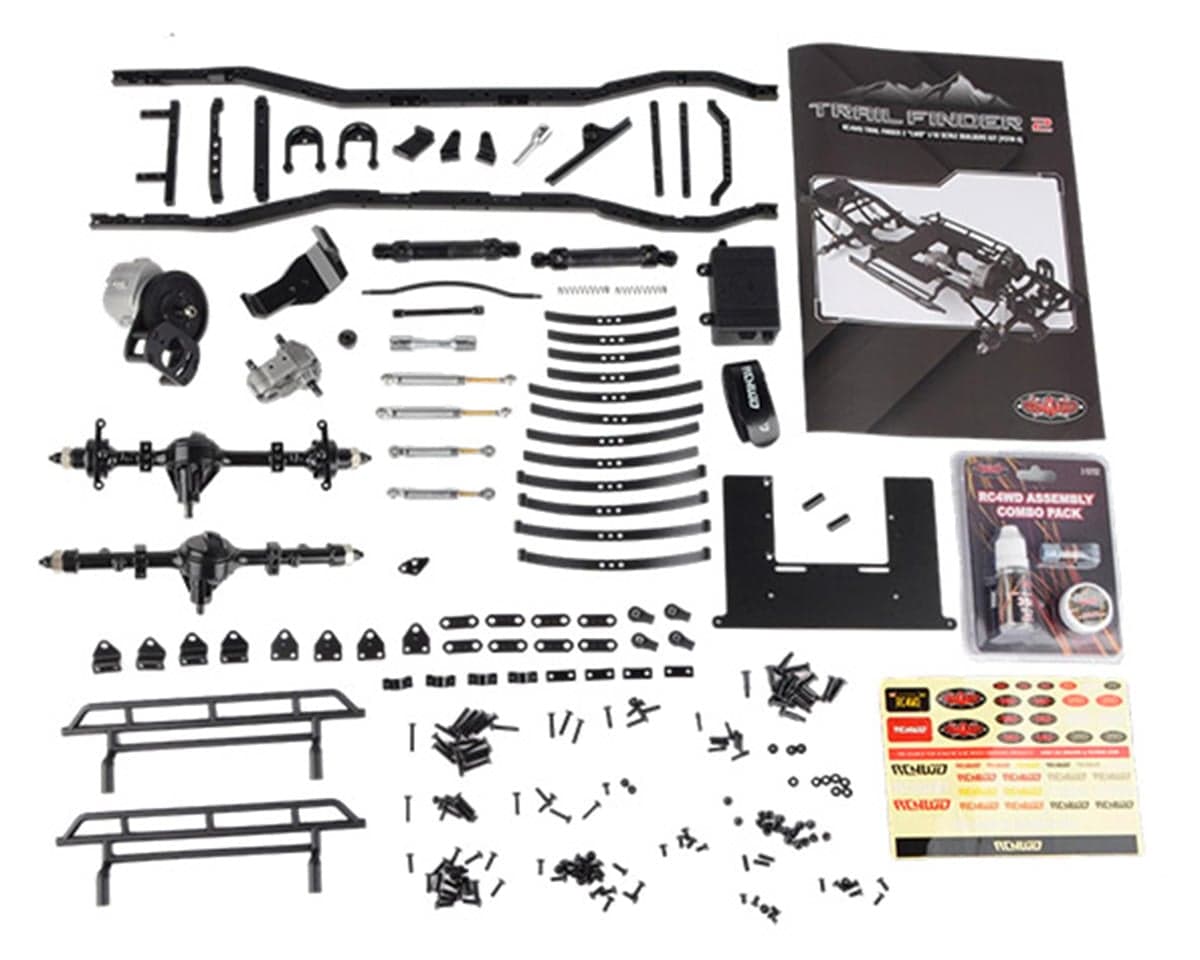

Includes:
- (1) RC4WD Trail Finder 2 LWB 1/10 Scale Truck Builders Kit (Yota II)
- (1) Billet Aluminum Ladder Frame Chassis
- (1) R3 Scale Single Speed Transmission
- (1) Hammer Transfer Case
- (1) Yota II Ultimate Scale Cast Axles — Front With XVDs
- (1) Yota II Ultimate Scale Cast Axle — Rear
- (4) Ultimate Scale Shocks (60mm/80mm)
- (2) Marlin Crawler Side Plastic Sliders for TF2 LWB
- (4) Super Soft Flex Leaf Springs for TF2
- (4) Leaf-Under Mounts for Yota II Axles
- (2) Driveshafts With Steel Universal Joints
- Product Manual
Needed To Complete:
- (1) 2-Channel Transmitter/Receiver System
- (1) High Torque Steering Servo
- (1) 540 Size Motor
- (1) 1/10 ESC
- (1) 2-3S LiPo/6-Cell NiMH Battery
- (1) Compatible Charger
- (1) Body and Paint
- (4) Wheels with 12mm Hex
- (4) Crawler Tires
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2-3S LiPo or 6-7 Cell NiMH (7.4V) |
| Length | - |
| Wheelbase | 12.2in (310.0mm) |
| Width | 7.7in (196.0mm) |
| Height | 4.17in (106mm) |
| Weight | - |
| Assembly Level | Kit* |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, user selected electronics, and other user provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
