About this part

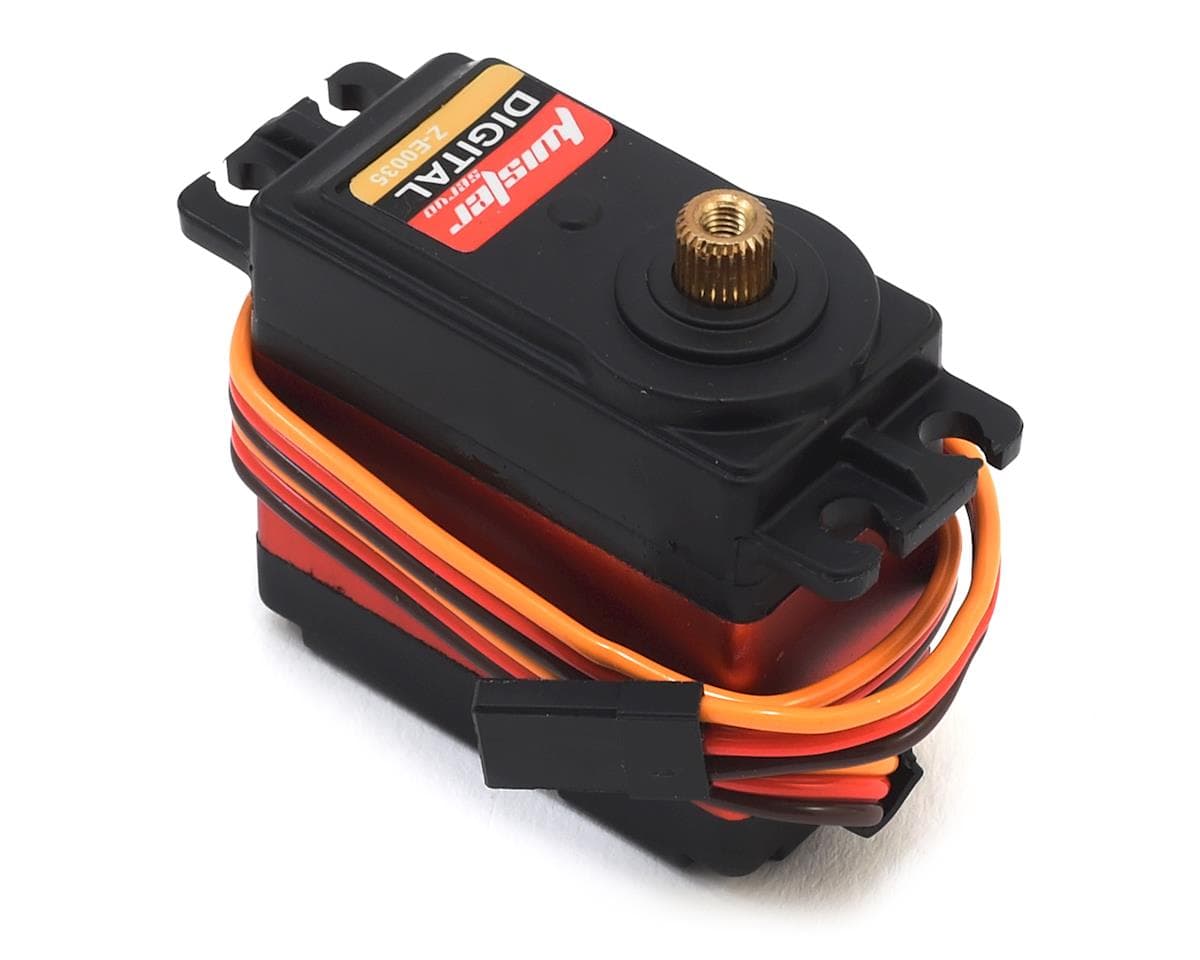

The RC4WD Twister High Torque Metal Gear Digital Servo is built to provide the help you need with many different applications. Can be used for Steering, Throttle, Winch and other areas. Metal gears to give you worry free construction. The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Features:
- Aluminum Center Case
- Servo-motor lock-rotor protection
- High efficiency, low power consumption
- Metal gears ensure long life and durability
- Waterproof
- 4.8-6.0V operation
Specifications:
- Dimensions (mm): 40.8 x 20.1 x 40.0 / (inch): 1.6 x .80 x 1.57
- Weight (g): 62 / (oz): 2.18
- Speed
- @4.8V sec/60: .15
- @6.0V sec/60: .13
- Torque
- @4.8V oz-in: 118
- @6.0V oz-in: 153
- Current (4.8v to 6.0v)
- Unload Current: 300mA / 4.8V; 400mA/6V
- Full Load Current: 1000mA / 4.8V; 1200mA/6V
- Gear: Metal
- Bearing: 2BB

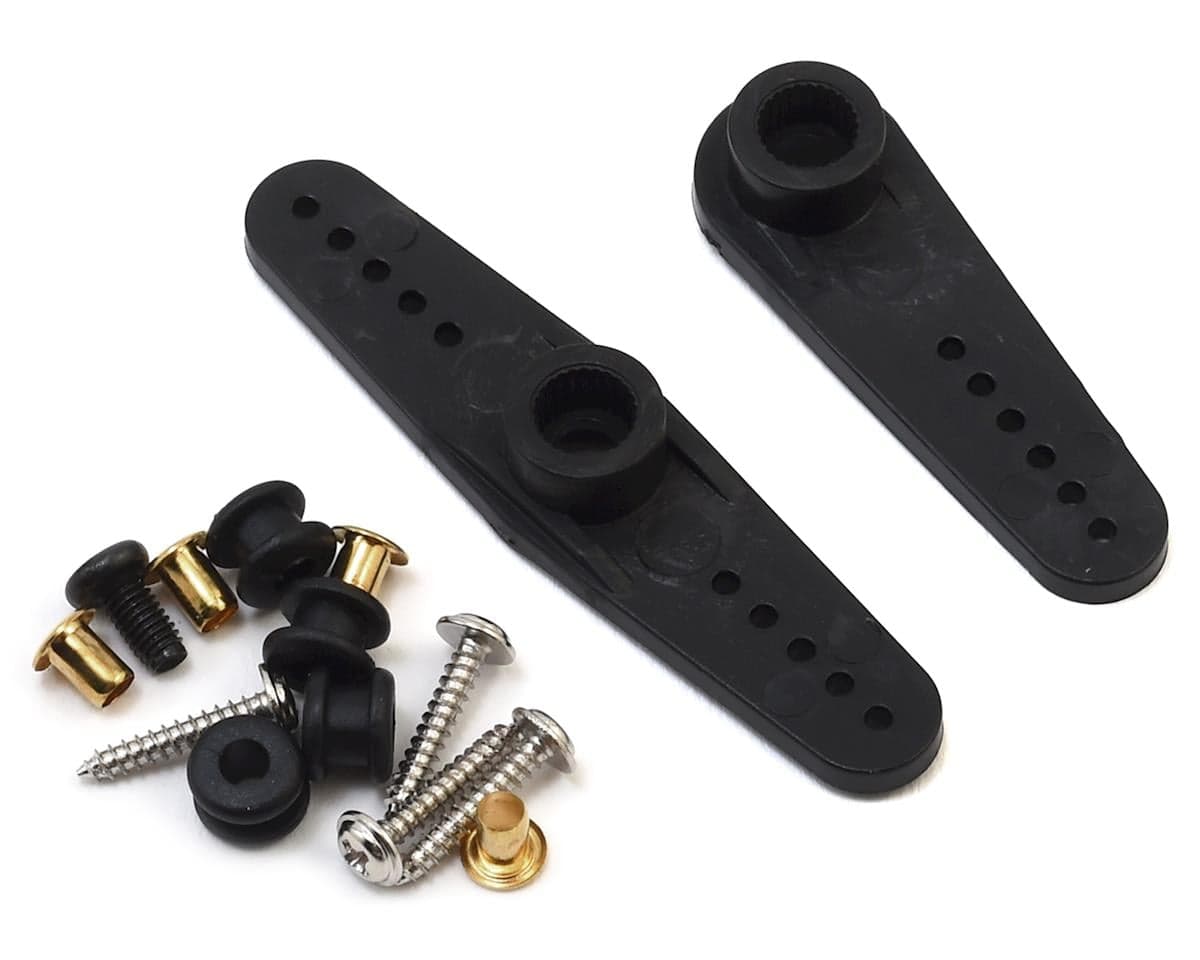

Includes:
- (1) Twister High Torque Metal Gear Digital Servo
- (2) Servo Arms
- (4) Mounting Screws
- (1) Servo Horn Screw
- (4) Brass Mount Bushings
- (4) Rubber Mounting Tabs
