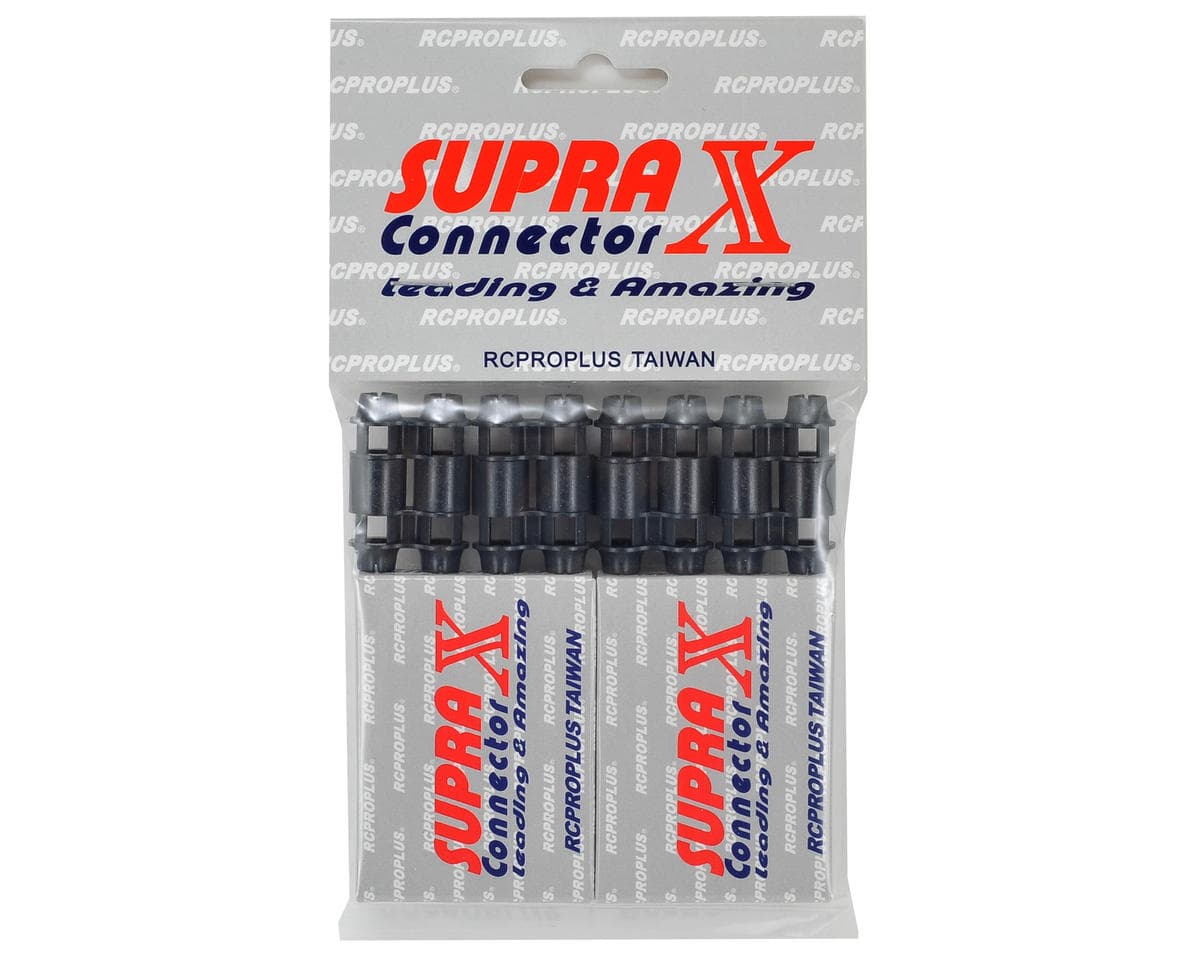

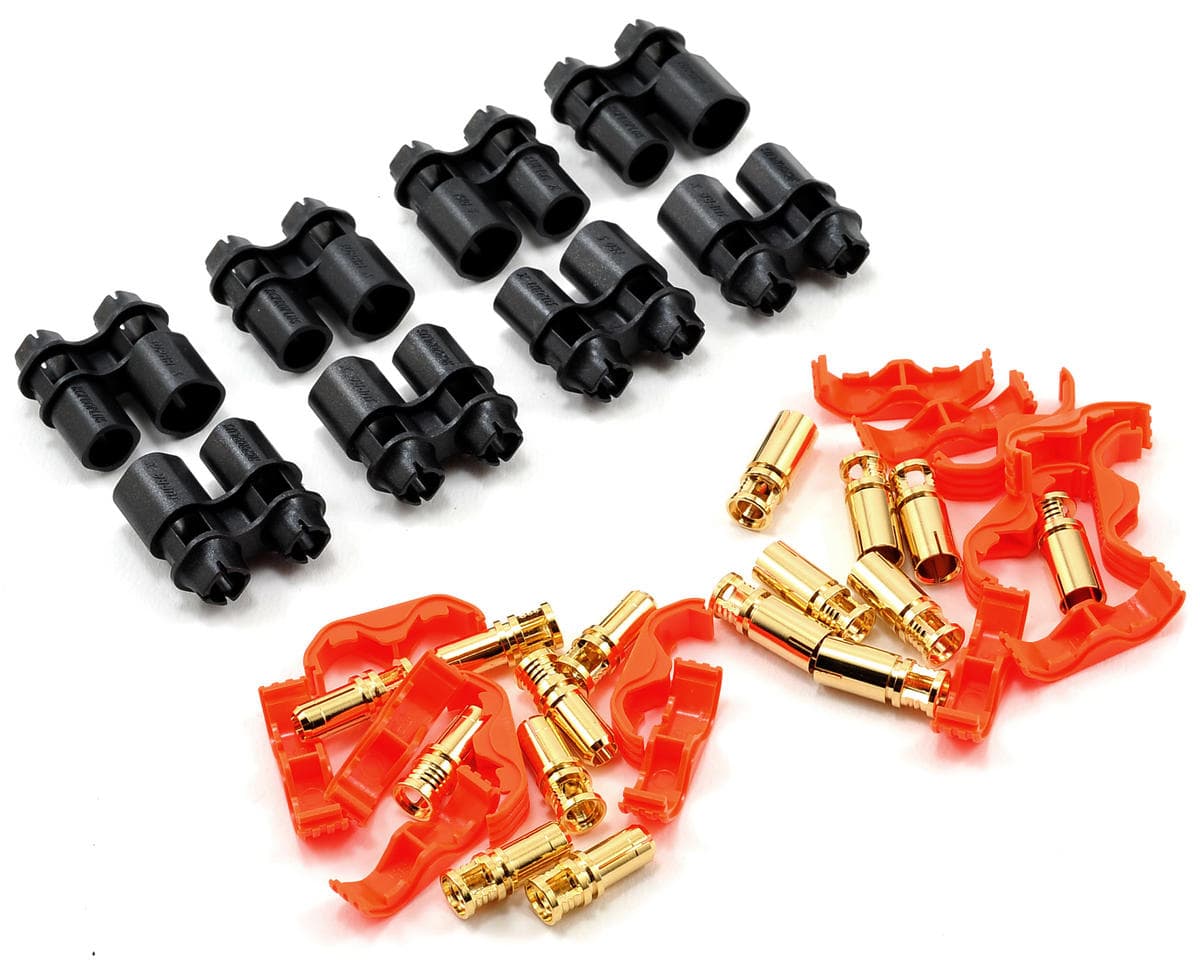

RCPROPLUS Pro-D5 Supra X Battery Connector (8 Pair) (10~12AWG)
About this part
This is the RCPROPLUS Pro-D5 Supra X Battery Connector Set. Featuring a unique patented banana plug lock design, these Pro-D5 connectors securely lock in place handling quick movements and vibrations, commonly found during extreme 3D flights, without coming apart. The stronger jacket and snaps extends the advantages of the previous generation of Supra X Connectors and makes them better.
These connectors are a great solution for your high current and high voltage demands offering a large, low resistance surface patch for efficient power transfer. The 24K Gold Plated bullet plugs feature a recessed wire cavity and solder windows making assembly hassle free, while the sheath uses high temperature capable, impact-resistant plastic imported from Japan.
Features:
- Patented lock design eliminates separation

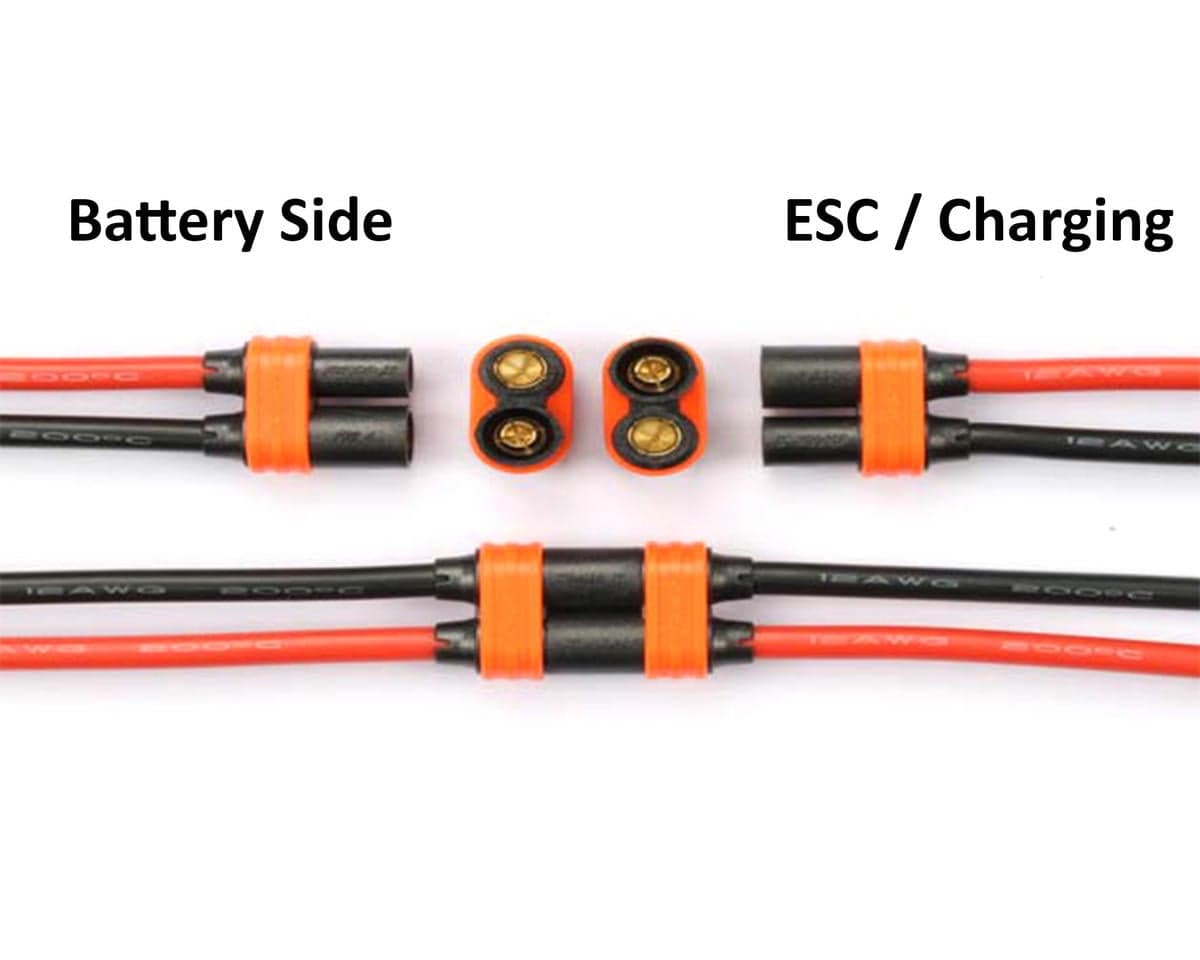

- Use with batteries, speed controllers and chargers
- Recessed plug cavity and solder windows
- Large, low resistance contact patch
- Hassle free assembly
Specifications:
Peak Current: 140A
Continue Current: 100A
Applicable Wire: 10~12AWG
Finish Type: 24K Gold Plated 3u"
Reviews2.5 · 4 reviews
Just finished swapping my RC car from Deans Ultra to the D5 plugs. These are great connectors - very easy to solder, very sturdy design, polarity cannot be reversed, solid connection, and 120 A continuous current rating. They are a bit more expensive, but they are well worth it.
I've used these before without a problem but just recently opened a pack I bought at the end of February 23 and couldn't get clips to come together and was thinking it was me. Upon ordering another set I found that the grey connector was molded incorrectly and parts from new set work as they should. Just be aware.
They do assemble rather easily but watch your polarities. These things are beefy and bulky. They are HARD to pull apart especially while the battery is in the car. I will not be using these due to that fact (think about when your battery is about to pop) however they are robust and do look and feel high quality. 2.5 stars
I thought the EC5 connectors were hard to unplug. After a try with some D5 connectors result they are harder if not impossible to pull apart. Unlike the D4 connectors work well.
Four reviews of the RCPROPLUS Pro-D5 Supra X Battery Connector (8 Pair, 10~12AWG). Reviewers agree the connectors feel sturdy and high quality, with one describing a solid connection and a 120 A continuous rating. Opinions diverge on ease of separation: one reviewer found them very easy to solder and hard to reverse in polarity, while others found them very hard to pull apart, one stating they would not use them in a car because of this. One reviewer reported that a batch with a grey connector was molded incorrectly and would not clip together, while a replacement set worked. One reviewer noted that polarity should be watched during assembly. The reviews are few and mixed, so the overall picture is limited.
- + Sturdy, high-quality build
- + Solid connection
- + 120 A continuous current rating
- + Easy to solder
- − Very hard to pull apart
- − Bulky and beefy design
- − Possible molding defect in some batches
- − Polarity needs care during assembly
