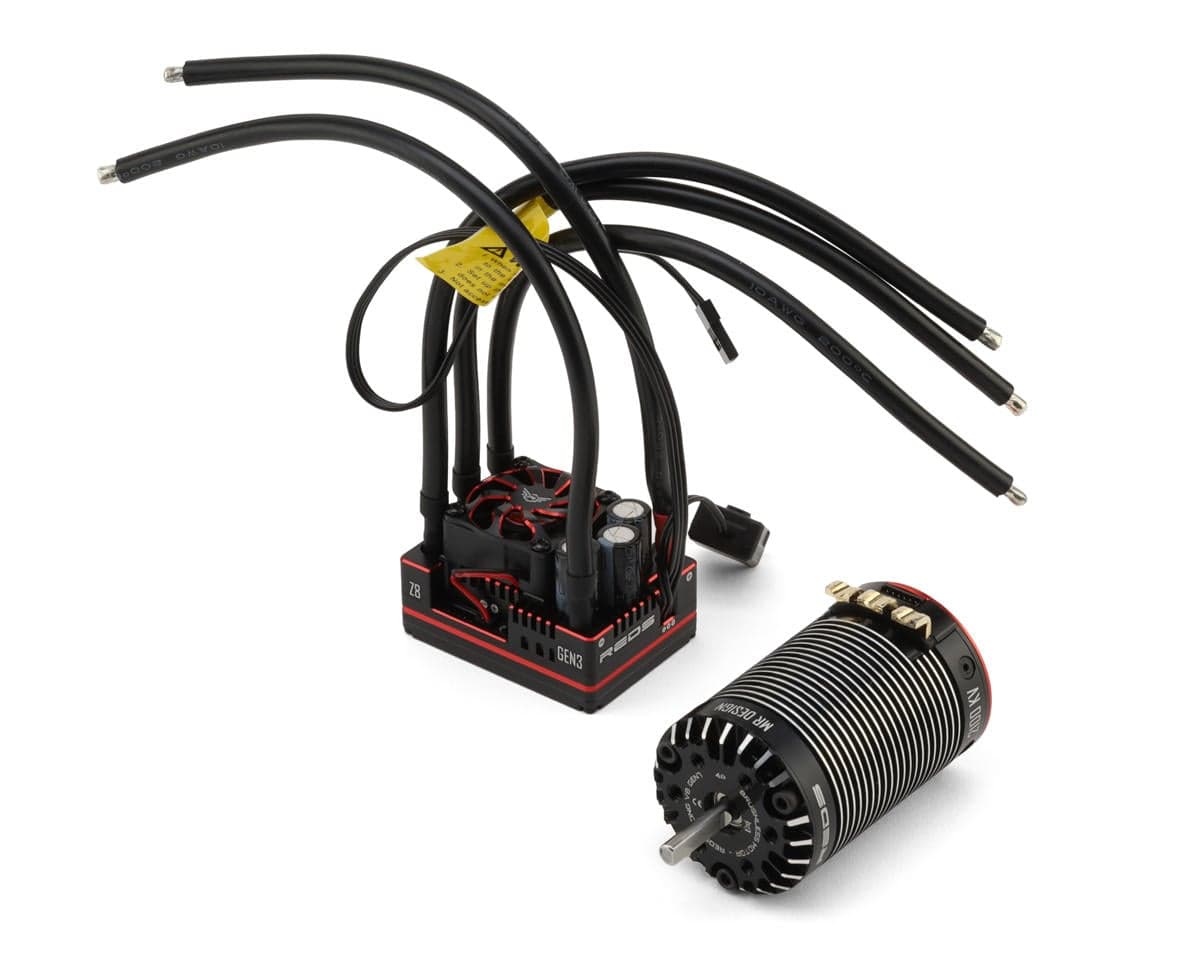

REDS Z8 Pro Gen3 ESC & Gen7 V8 1/8 Brushless Motor Combo (2200kV)

ESC & Motor Combo Overview:

The REDS Z8 Pro Gen3 ESC & Gen7 V8 1/8 Brushless Motor Combo combines high-output electronic control with the latest generation of REDS Racing brushless motor technology. Designed for demanding 1/8-scale racing applications, the 220A Z8 Pro Gen3 ESC delivers fast response, efficient operation, and precise control. The Gen7 motor builds on the proven Gen6 platform with improved durability, efficiency, thermal management, and smoother power delivery.

About the Brushless Combo

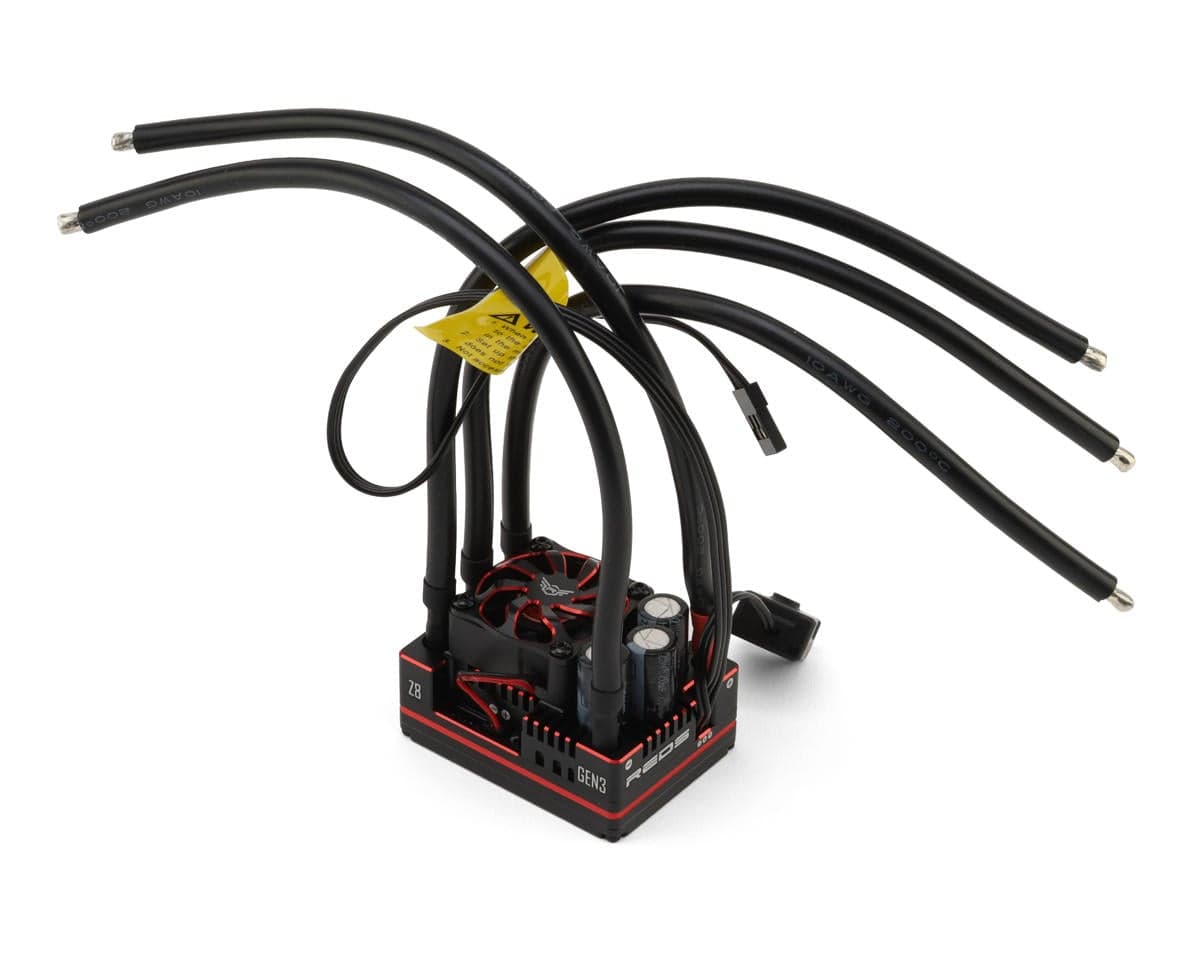

Advanced 220A ESC Performance

The Z8 Pro Gen3 ESC is built around a powerful 32-bit CPU and ultra-low-resistance FET board to provide efficient, responsive power delivery. With a 220A capacity and compact design, it is suited for 1/8-scale buggies, truggies, GT cars, and on-road applications where reliable high-current performance is essential.

Smartphone Connectivity and Tuning

Built-in Bluetooth and communication technology allow the ESC to connect directly to the REDS Racing App on iOS and Android devices. Drivers can adjust settings, monitor operating data, review data logs, and perform firmware updates without relying on a traditional programming card.

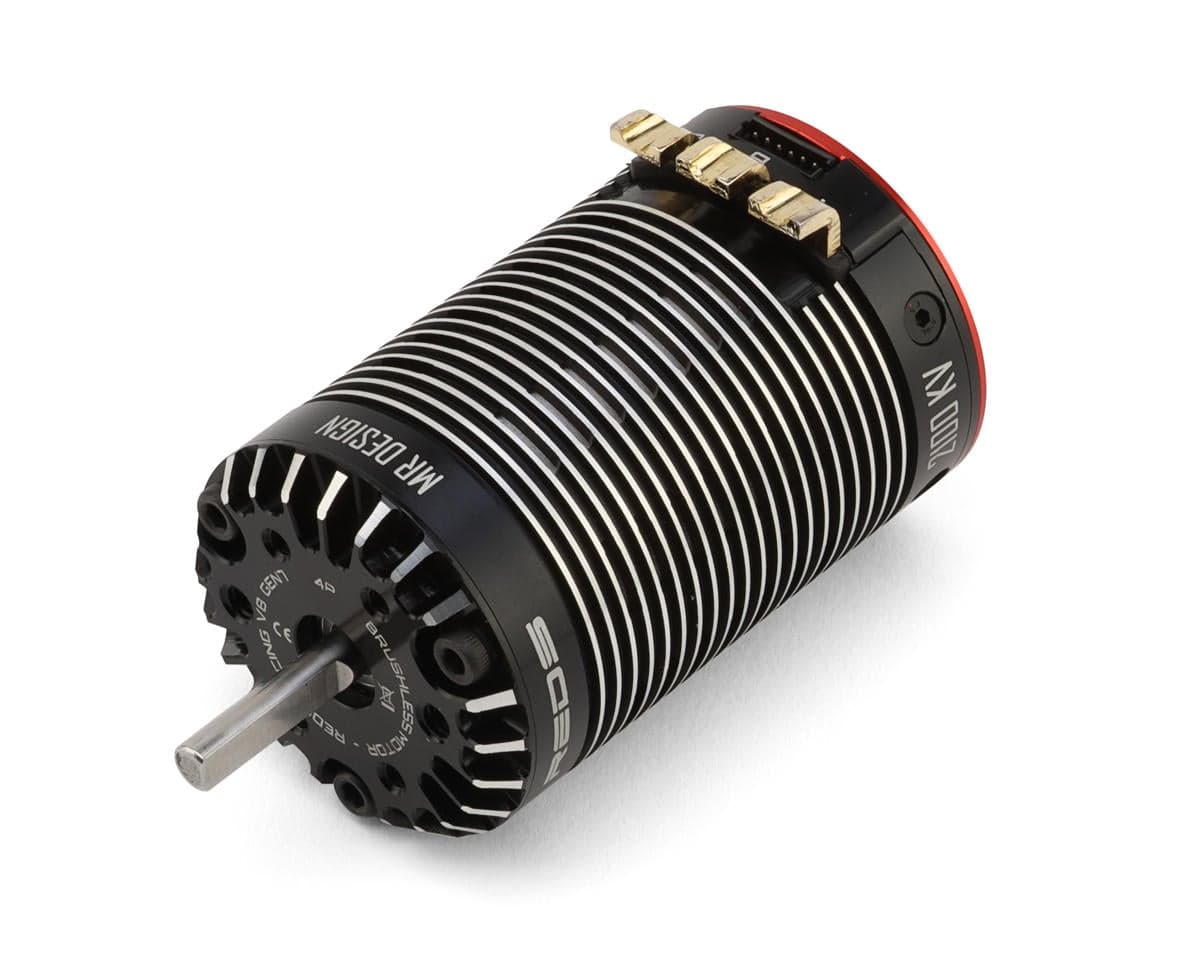

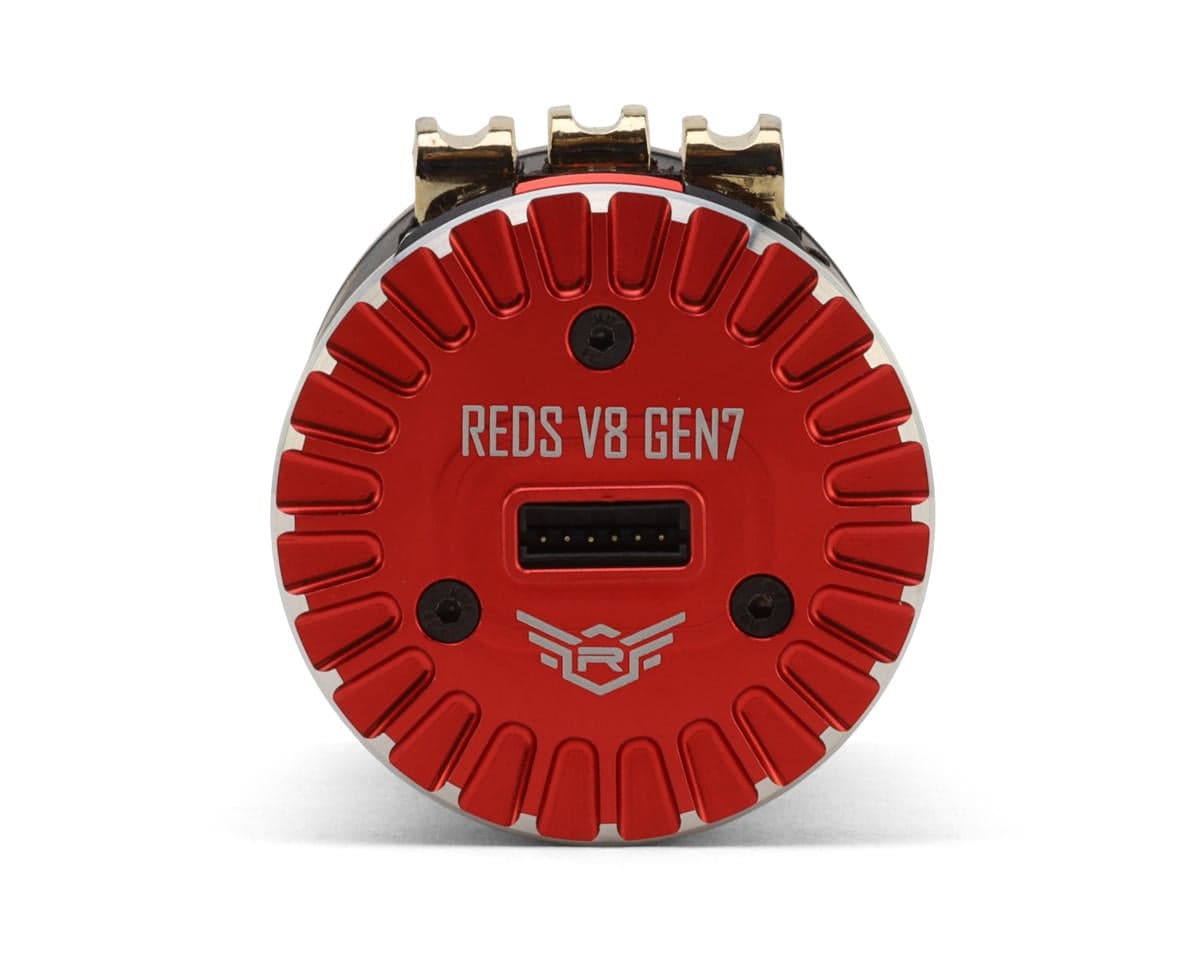

Gen7 Motor Durability and Power Delivery

The Gen7 1/8 brushless motor features improved IP5X dust protection, oversized bearings, high-temperature motor wire, and an updated stator material. Redesigned CNC-machined components and improved thermal management help provide consistent operation, while the refined internal design delivers smoother throttle response, strong acceleration, and controllable power throughout a race.

Features:

• 220A Z8 Pro Gen3 ESC
• 32-bit ESC CPU
• Ultra-low-resistance FET board
• Built-in Bluetooth connectivity
• REDS Racing App compatibility
• Real-time performance monitoring
• ESC data logging
• Firmware update capability
• IP5X dust-protected Gen7 motor
• Oversized motor bearings
