ESC Overview:

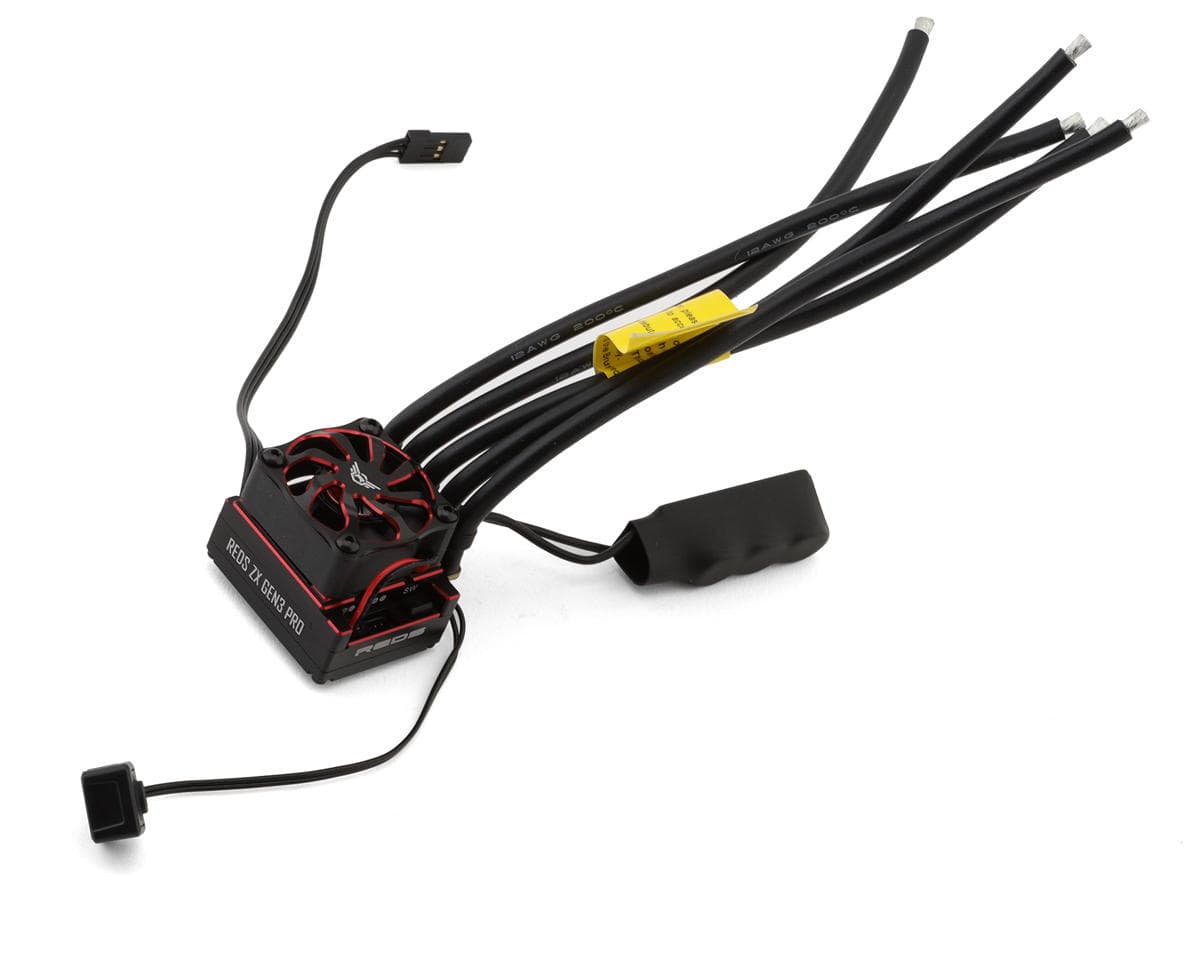

REDS ZX Pro Gen3 Brushless 1/10 ESC. This beautifully designed ESC is the pinnacle of rigorous commitment to pushing the boundaries of performance and reliability. The ZX Pro Gen3 ESC embodies Reds Racing's unwavering dedication to excellence. They have established a higher benchmark in ESC technology by drawing inspiration through driver feedback and extensive testing.
With the inclusion of a 32-bit microprocessor enabling the ESC to process complex data operations with ease, the ZX Pro Gen3 Brushless ESC has a lightning-fast response time. This ESC was crafted with a continuous current rating of 160A, ensuring stability and powerful power output throughout the race. REDS has redesigned the algorithm firmware to give you exceptional throttle control and precise braking, giving you the control that you need to outmaneuver the competition. REDS has also introduced a wireless communication protocol. With the optional Wireless ESC Program Box sold separately (REDSPCS0023), REDS' iOS and Android apps make controlling your ESC in real-time effortless. From throttle management to monitoring voltage, temperature, and RPM, you can stay in control with ease. Developed in accordance with ROAR, BRCA, and EFRA regulations, you can rest assured that the ZX Pro Gen3 meets the demanding standards of competitive racing organizations.
Features:
- Aluminum case and heat sink design engineered for maximum durability and efficient heat dissipation
- Redesigned algorithm firmware allows for more precise braking and throttle control
- Low voltage cut-off protection, overheat protection, and throttle signal loss protection
- Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V
- 32-bit Microprocessor for rapid response times and ultimate racing performance
- Continuous current rating of 160A ensures stable and high power output throughout the race
- Equipped with a cooling fan for ultimate performance
- Optional wireless connectivity lets you control your ESC in real-time with (REDSPCS0023) sold separately
- Developed in accordance with ROAR, BRCA, and EFRA regulations
Specifications:
- Suggested Application: 1/10
- Motor Type: Brushless-Sensored
- Input Voltage: 2-3S LiPo
- Continuous Current: 160A
- Burst Current: -
- Dimensions: 1.46x1.5x1.24in (37x38.2x31.5mm)
- Weight: 3.35oz (95g)
- Motor Limits: >3.5T
- BEC Voltage: 6V-7.4V
- BEC Continuous Current: -
- BEC Peak Current: 10A
- Motor Connector: Bare Wire
- Battery Connector: Bare Wire
- Motor Wire: 12AWG
- Battery Wire: 12AWG
- Throttle Wire: 12AWG
- Programming: Transmitter/WiFi Module (REDSPCS0023)
Includes:
- (1) ZX Pro Gen3 Brushless 1/10 ESC
- Product Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
I run this with a 6.5t motor in a tekno et410. Runs a bit hot with such a low turn motor, but the power is smooth and reliable. Set up was easy; and I can tune it quick since I also got a Bluetooth tuner.
