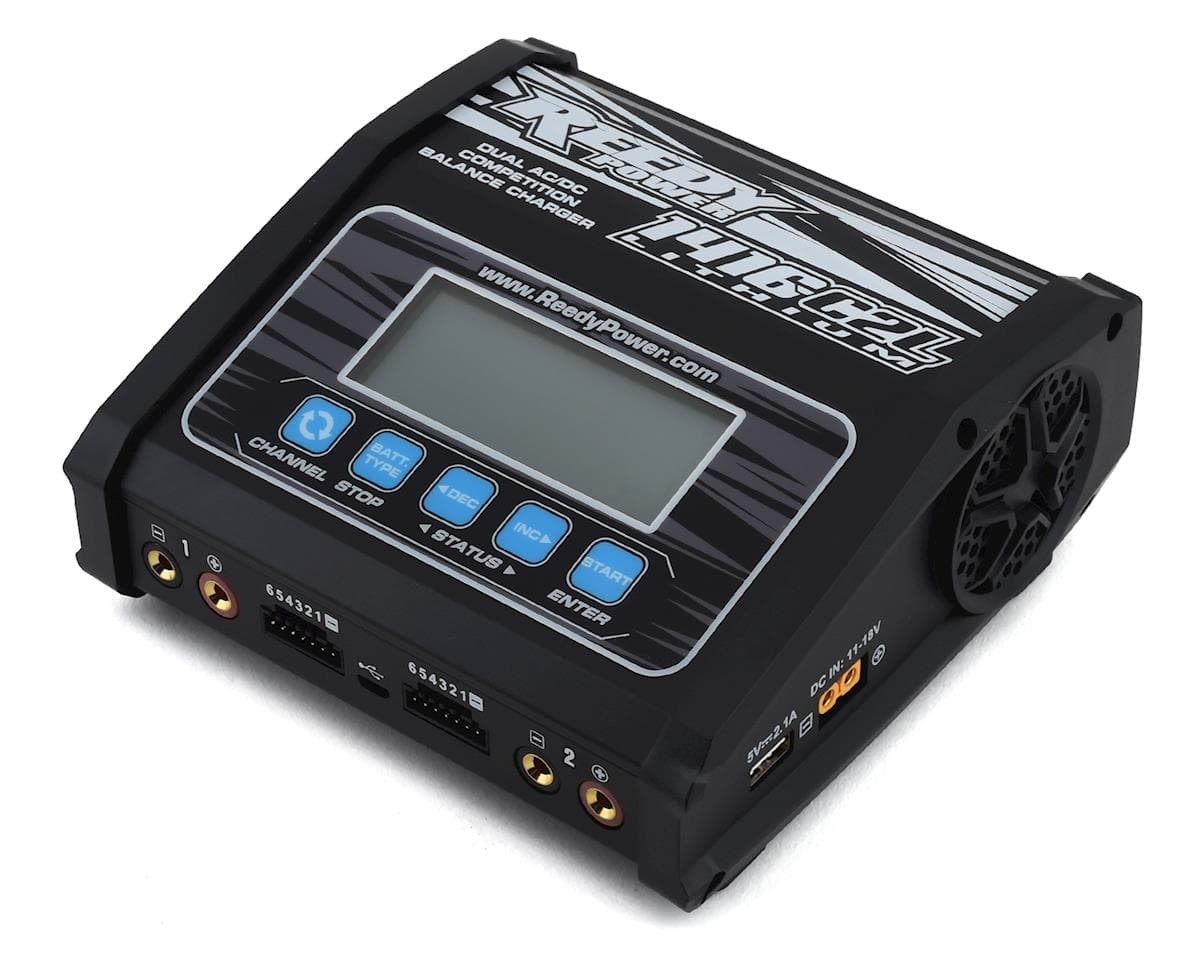

Reedy 1416-C2L Dual AC/DC Competition LiHV/LiPo Battery Balance Charger (6S/14A/130Wx2)
About this part
Simultaneous charging of two batteries at up to 14A is possible thanks to a powerful integrated power supply. Storage of up to 10 different charge profiles (per channel) allows for easy access to your most commonly used settings. End Voltage Control (EV) gives racers an added option to regulate power output and calibrate voltage, while 1S Balance Mode results in accurate voltage readings when charging 1S batteries.
Safety has not been overlooked with the 1416-C2L thanks to its lithium-specific charging scheme that requires balance charging in modes appropriate for lithium batteries. Nitro racers haven't been overlooked thanks to a specific mode designed for single-cell NiMH igniter batteries. In addition to its long list of powerful features, the 1416-C2L features an attractive exterior with a compact footprint and front-facing outputs to maximize pit space.
Features:
- 130W x2 Digital AC/DC Balance Charger
- 1-6S LiPo, LiHV, Lilo, and LiFe compatible
- Maximum 14A Charge/2A Discharge
- 10-Profile Charger Memory
- DC Power Supply Function
- End Voltage Control (EV)
- Igniter Mode
- 1S Balance Mode
- Backlit LCD Screen
- Heavy-Duty Cooling Fan
- 5V/2.1A USB Charge/Accessory Port
- Power Switch
- Firmware Updateable
Specifications:
Input Voltage: AC100-240V, DC 11-18V
Charge/Discharge Power: Max 130W/10W (x2)
Charge/Discharge Current: 0.1-14.0A/0.1-2.0A
LiPo/LiHV/LiFe/LiIo Cell Count: 1-6 series
Power Supply Output: 5-25V, 2x130W
Igniter Mode: 1-cell NiMH
Dimension: 160 x 150 x 71mm
Weight: 896g
WARNING NOTE: This charger is not recommended for use with Traxxas batteries with ID connectors or Spektrum Smart batteries with IC connectors. Charging batteries equipped with ID or IC connectors may require additional steps in order to safely balance charge your Lipo batteries. Please refer to your vehicle or aircraft owner’s manual for recommended batteries and charging equipment.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.3 · 4 reviews
Not what I had expected from Reedy! Considering there are no actual videos to show the specific functioning of this charger, I took a chance to see for myself. Highly dissatisfied with what I evaluate to be a bad and outdated design for the screen display! The operational buttons are quality based however the ease of navigation to select detail sections is poorly arranged. Would have been a bonus if it actually had a color screen with an updated format! I will have to return it for a better updated lipo charger.
This is a fantastic charger! It's got enough power to push a little over 1c into my largest (6000mah) 4s packs which is all I need it to do. It'll do this from AC wall power or DC power if you want to run it from a seperate power supply. The discharge rate seems a little more powerful than the other chargers I have so if I have to pull a pack down to storage it doesn't take so long. Navigating the menus couldn't be easier and it's got all the charge programs I could ever need. Even if I get into nitro! It's got a specific program for glow igniters. The charger also has a USB port rated for 2.1 amps which, I bet if you're crafty you could make up a pit light that would run off of it. This is a nice compact package that will keep two or three race cars going for the day yet it doesn't take up too much real estate. That's especially nice for a pit table where it seems like you can never have enough space!
I have had this charger for a little over a week and so far it is great. This is what I was looking for 2 years ago when I got back into RC. The closest I could find then was the Orion Touch Duo at a much higher price. I bought that but was never quite satisfied with it. It is big, heavy, too shiny and fragile to take to the track, plus I hate touch screens on chargers. This Reedy is compact, well built, priced appropriately, and provides 14A per channel. The LCD is basic but gives you the information you need. The only thing I don't care for is the membrane buttons. I wish it had real buttons like the Dynamite and HiTec chargers. If it ends up being reliable then this is the perfect charger for me. There is no NiMH setting but I was able to revive a dead cell in a 2S LiPo pack by using the power supply function followed with a 1S charge on that cell. I designed a base for the charger and you can find it on Thingiverse.
Awesome charger, does exactly what it needs to do!
Four reviews with mixed ratings (two 5/5, one 5/5 unverified, one 2/5). Reviewers largely agree the charger has sufficient power, a compact build, and menus that are easy to use with a full set of charge programs. The 2/5 reviewer found the display outdated and the button navigation poorly arranged, and planned to return the unit. A 5/5 reviewer who owns it for about a week described the LCD as basic but adequate, and disliked the membrane buttons, preferring physical buttons. One reviewer praised the discharge speed and the USB port. Long-term reliability is not yet established, as the reviews are short-term.
- + Compact, well-built design
- + Adequate power (about 1C on 4S packs)
- + Easy menu navigation and full charge program set
- + Fast discharge for storage
- − Outdated, basic LCD display
- − Membrane buttons criticised
- − Button layout for navigation poorly arranged for one reviewer
- − Long-term reliability not yet proven
