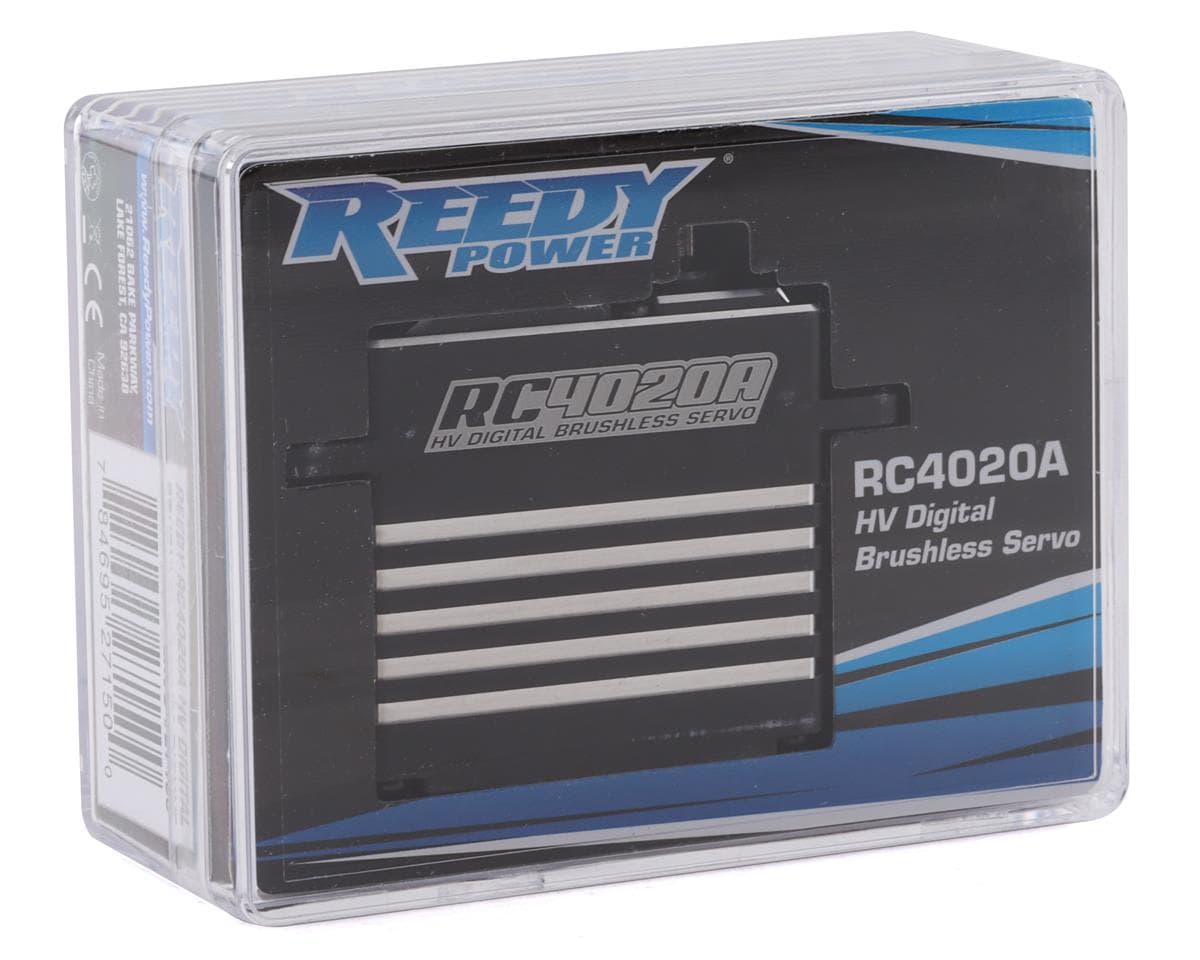

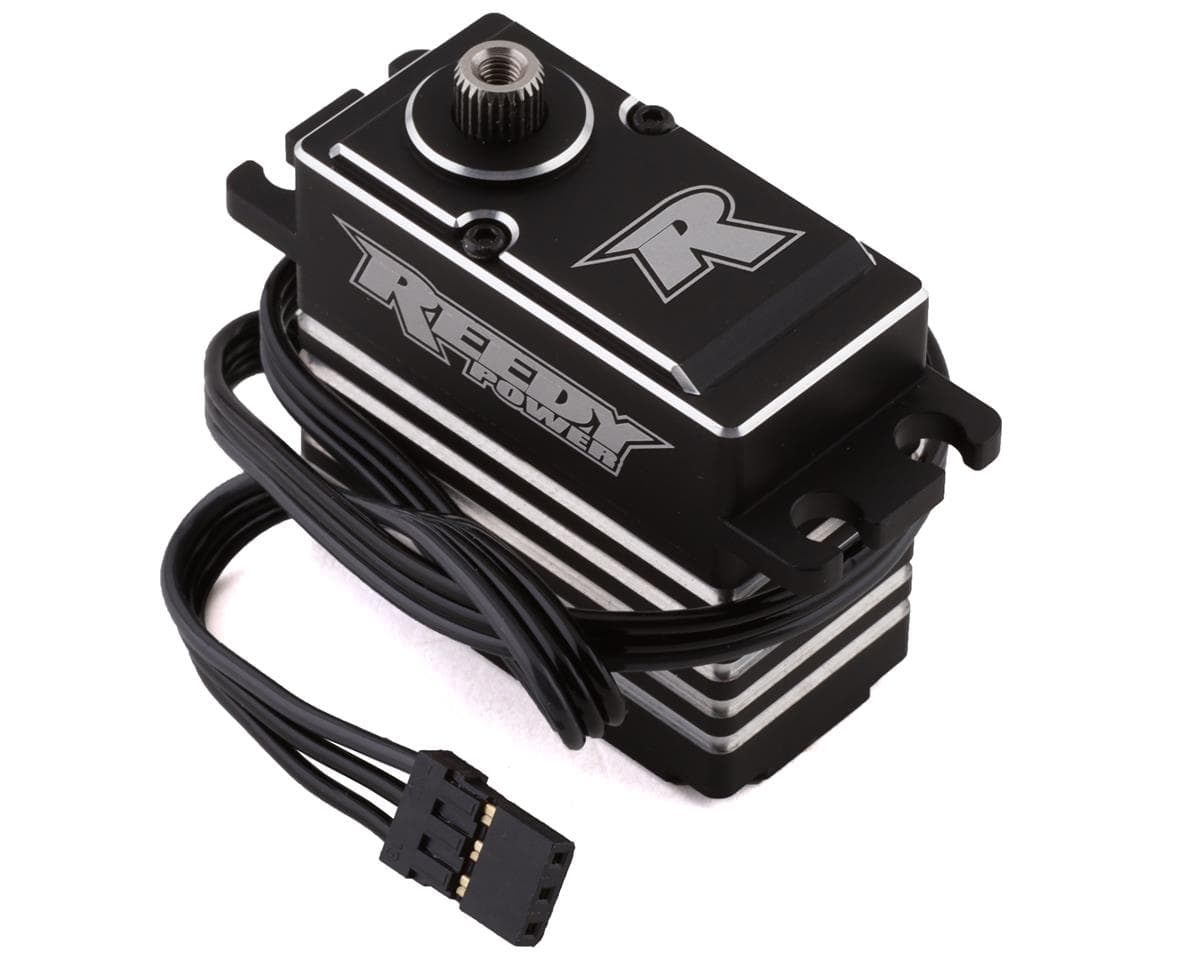

Reedy RC4020A Digital Competition Crawler Metal Gear Servo (High Voltage)
Part # ASC271505.0(2)
Where to buy
$137.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Reedy RC4020A Digital Competition Crawler Metal Gear Servo is trail-tested and engineered for use in competition-level trail trucks, crawlers, and monster trucks. A powerful motor creates incredible torque without sacrificing speed, while an advanced microprocessor provides precision steering control.
An all-metal gear set is designed for strength and durability while a CNC-machined full-aluminum case reduces operating temperatures for fade-free operation. Thanks to HV 8.4V compatibility, external BEC units can be utilized to create an incredible 50 kg-cm (695 in-oz) of torque.
Specifications:
Input (V): 4.8 - 8.4
Motor: Brushless
Speed (sec/60deg), 6.0V: .150
Speed (sec/60deg), 7.4V: .135
Speed (sec/60deg), 8.4V: .12
Torque (kg-cm/oz-in), 6.0V: 37/514
Torque (kg-cm/oz-in), 7.4V: 44/612
Torque (kg-cm/oz-in), 8.4V: 50/695
Dimensions (mm): 40x20x37.5
Weight (g): 82
Spline: 25
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
Darin Fisheron Reedy RC4020A Digital Competition Crawler Metal Gear Servo (High Voltage)
Running this servo in My Element Enduro very fast very strong with zero fade, one of the best servos I have ever used!
EricVerified ownerMay 6, 2023on Reedy RC4020A Digital Competition Crawler Metal Gear Servo (High Voltage)
I have been very happy with this servo thus far I've had it for about a year now with no issues. Excellent quality, very smooth and quiet operation. I'm currently using it at 7.4V and it has plenty of power and speed for this voltage level.
