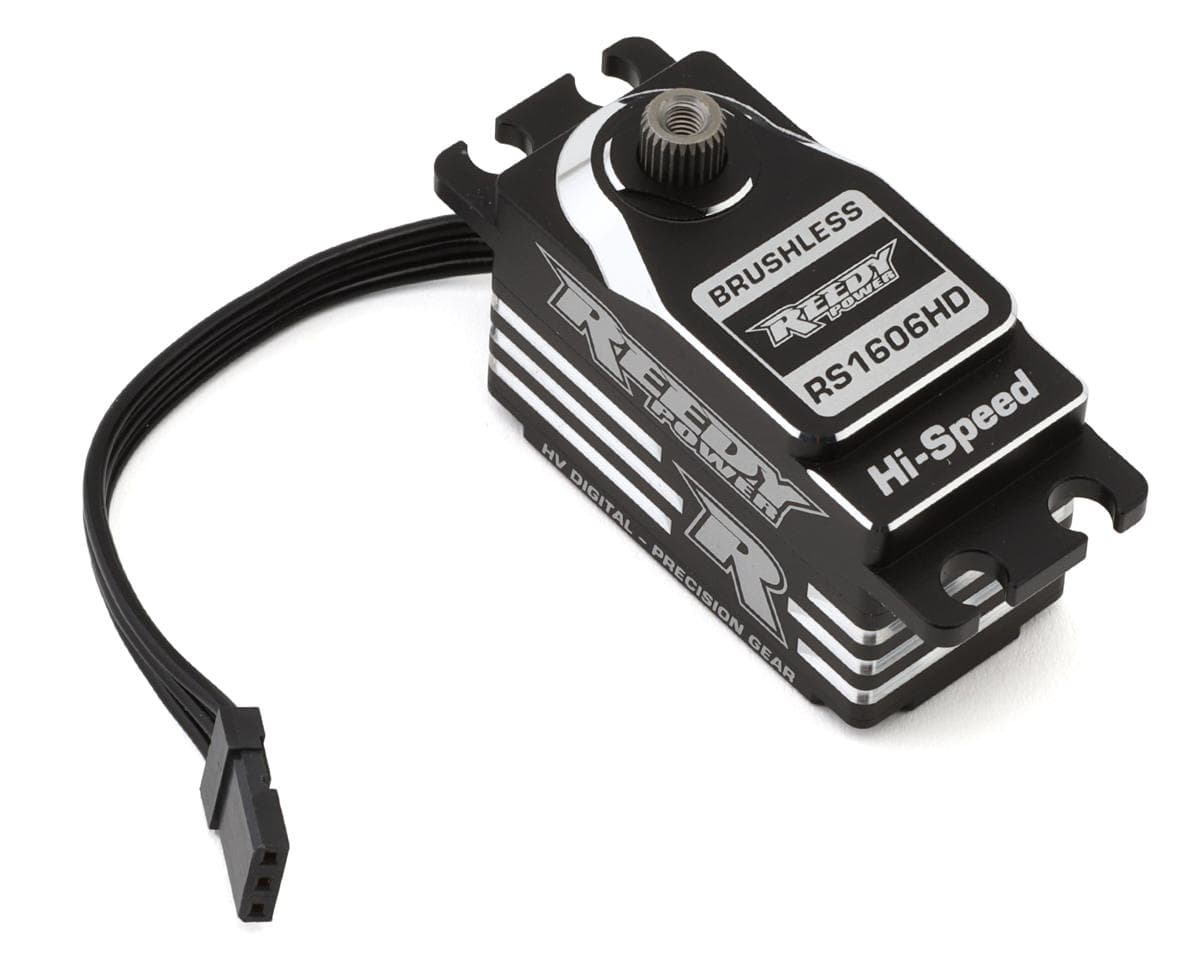

Reedy RS1606HD Low-Profile Brushless Hi-Speed Aluminum Servo (High Voltage)
About this part
Servo Overview:
Push your performance to the limit with the Reedy RS1606HD Low-Profile Brushless Hi-Speed HV Servo — a race-bred powerhouse engineered for blistering speed, relentless torque, and steel-gear durability that stands up to the toughest high-stress conditions without sacrificing precision or control.
About the RS1606HD Low-Profile Servo
Extreme Speed and Durability
The Reedy RS1606HD Low-Profile Brushless Hi-Speed HV Servo combines lightning-fast 0.058 sec/60° speed with a powerful 222 oz-in torque output at 8.4V, delivering precise, race-winning control for demanding on- and off-road applications. Its ultra-precise all-steel gears resist impact and fatigue to prevent stripping under high stress, while the brushless motor and advanced microprocessor enhance efficiency, responsiveness, and driver feel. A CNC-machined full aluminum case with integrated cooling fins improves rigidity and dissipates heat for fade-free performance, and waterproof construction, dual ball bearings, 25-tooth spline compatibility, and full high-voltage capability up to 8.4V make it a durable, versatile, and competition-ready upgrade.
Features:
- Powerful and efficient brushless motor
- Provides high torque for better control
- Offers very fast response speed
- Durable all steel gears
- Aluminum case keeps it strong and cool
- Cooling fins to maximize heat dissipation
- Waterproof design
- Supports high voltage up to 8.4V
Includes:
- (1) RS1606HD Low-Profile Brushless Hi-Speed Servo (High Voltage)

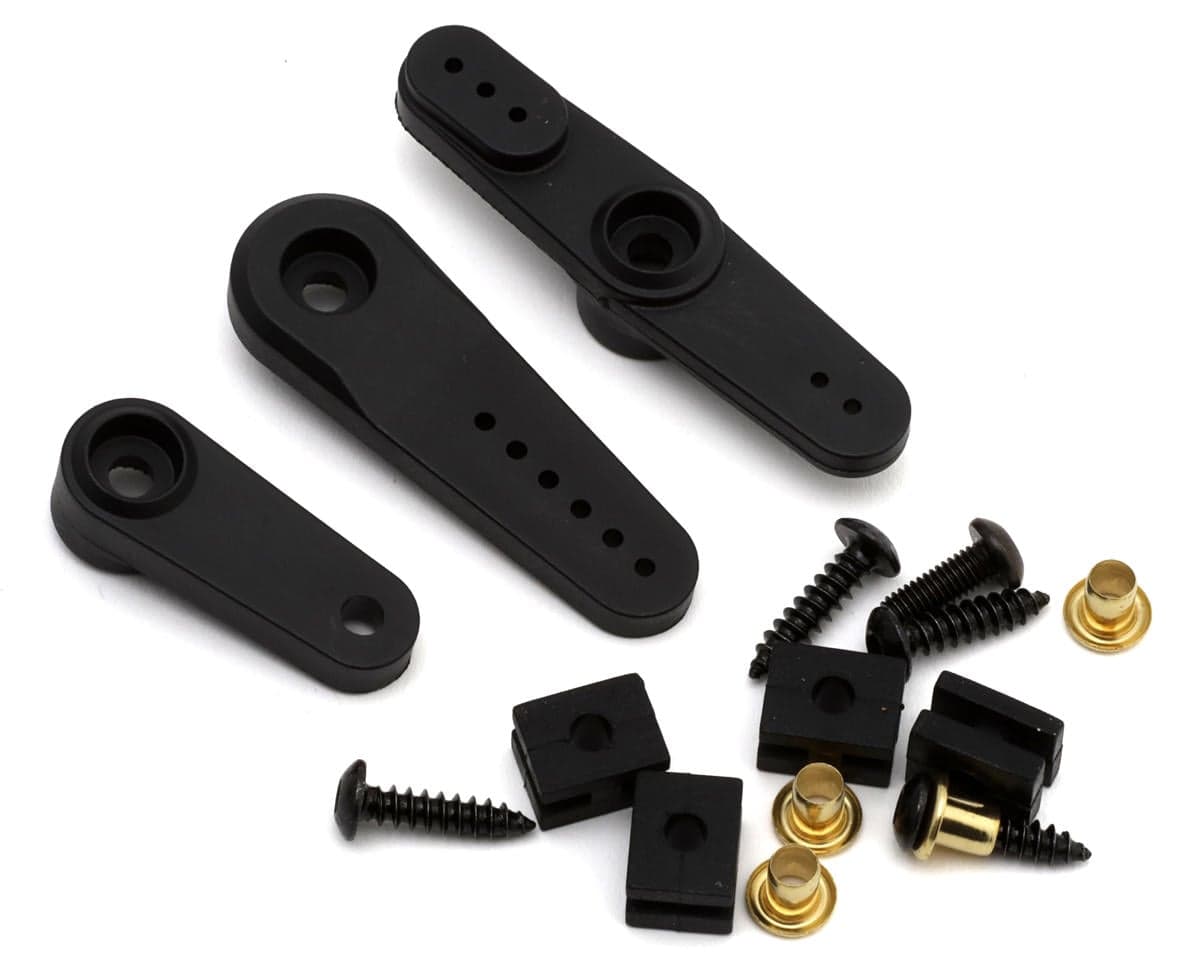

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 7.4V | 0.065 sec/60° |
| Operating Speed @ 8.4V | .058 sec/60° |
| Dynamic Torque @ 7.4V | 201 oz-in (14.5 Kg-cm) |
| Dynamic Torque @ 8.4V | 222 oz-in (16 Kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.6x0.80x1.04in (40.8x20.2x26.5mm) |
| Weight | 2.05oz (58.2g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 4 reviews
Great product works as expected very vast servo im stuck with reedy and I won't change it
Great servo. Super smooth steering and great feel back to the radio. Very clean look in the car.
First servo worked so good I got another one Huff hjiuyg
Super fast, Very strong servo. Redi products are highest quality servos on the market. No one else even comes close.
All four reviewers are verified owners of the high-voltage variant and rate it 5 out of 5. Reviewers describe smooth, fast and strong steering, a clean low-profile look in the car, and a good feel back to the radio. One reviewer says they will keep buying Reedy servos, and another says they bought a second one after the first performed well. Reviews are brief and mostly general, with no reported problems or comparisons beyond one reviewer's claim that rival brands do not match this product. The sample is small, so the picture is limited.
- + Smooth steering
- + Fast response
- + Strong performance
- + Clean low-profile look
