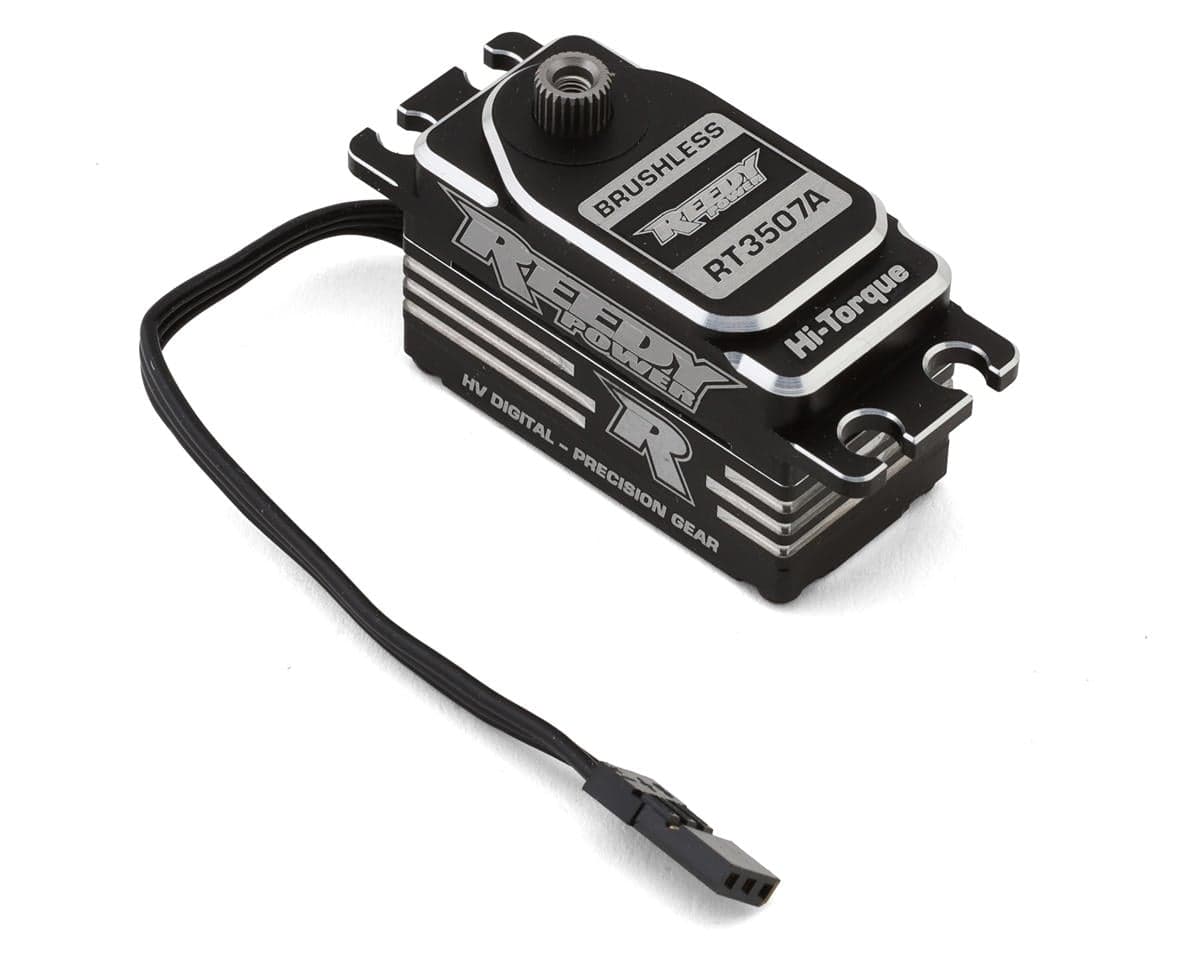

Reedy RT3507A Low-Profile Brushless Hi-Torque Aluminum Servo (High Voltage)
About this part
Servo Overview:
Push your performance to the limit with the Reedy RT3507A Low-Profile Brushless Hi-Torque Aluminum Servo — a race-bred powerhouse engineered for extreme torque, lightning-fast response, and CNC aluminum durability that stands up to demanding high-stress conditions without sacrificing precision or control.
About the RT3507A Low-Profile Servo
Extreme Torque and Durability
The Reedy RT3507A Low-Profile Brushless Hi-Torque Aluminum Servo combines lightning-fast 0.065 sec/60° speed with an incredible 486 oz-in torque output at 8.4V, delivering precise, high-performance control for demanding applications. Its durable steel gears and precision ball bearings provide smooth, reliable operation, while the brushless motor delivers efficient and responsive performance. A full CNC-machined aluminum case with integrated heat sink improves rigidity and dissipates heat, while high-voltage capability up to 8.4V, low-profile dimensions, and 25-tooth spline compatibility make it a powerful and versatile upgrade.
Features:
- High-voltage operation up to 8.4V
- Low-profile design for space-saving installation
- 25-tooth spline compatibility
- Durable steel gears
- Precision ball bearings for smooth operation
- Powerful and efficient brushless motor
- Full CNC aluminum case with integrated heat sink
- Ultra-fast response down to 0.065 sec/60°
- Extreme torque up to 486 oz-in
Includes:
- (1) RT3507A Low-Profile Brushless Hi-Torque Aluminum Servo (High Voltage)
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 6.0V | 0.1 sec/60° |
| Operating Speed @ 7.4V | 0.08 sec/60° |
| Operating Speed @ 8.4V | 0.065 sec/60° |
| Dynamic Torque @ 6.0V | 305.5 oz-in (22 kg-cm) |
| Dynamic Torque @ 7.4V | 389 oz-in (28 kg-cm) |
| Dynamic Torque @ 8.4V | 486.1 oz-in (35 kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.60x0.80x1.01in (40.8x20.2x25.6mm) |
| Weight | 1.87oz (53g) |
