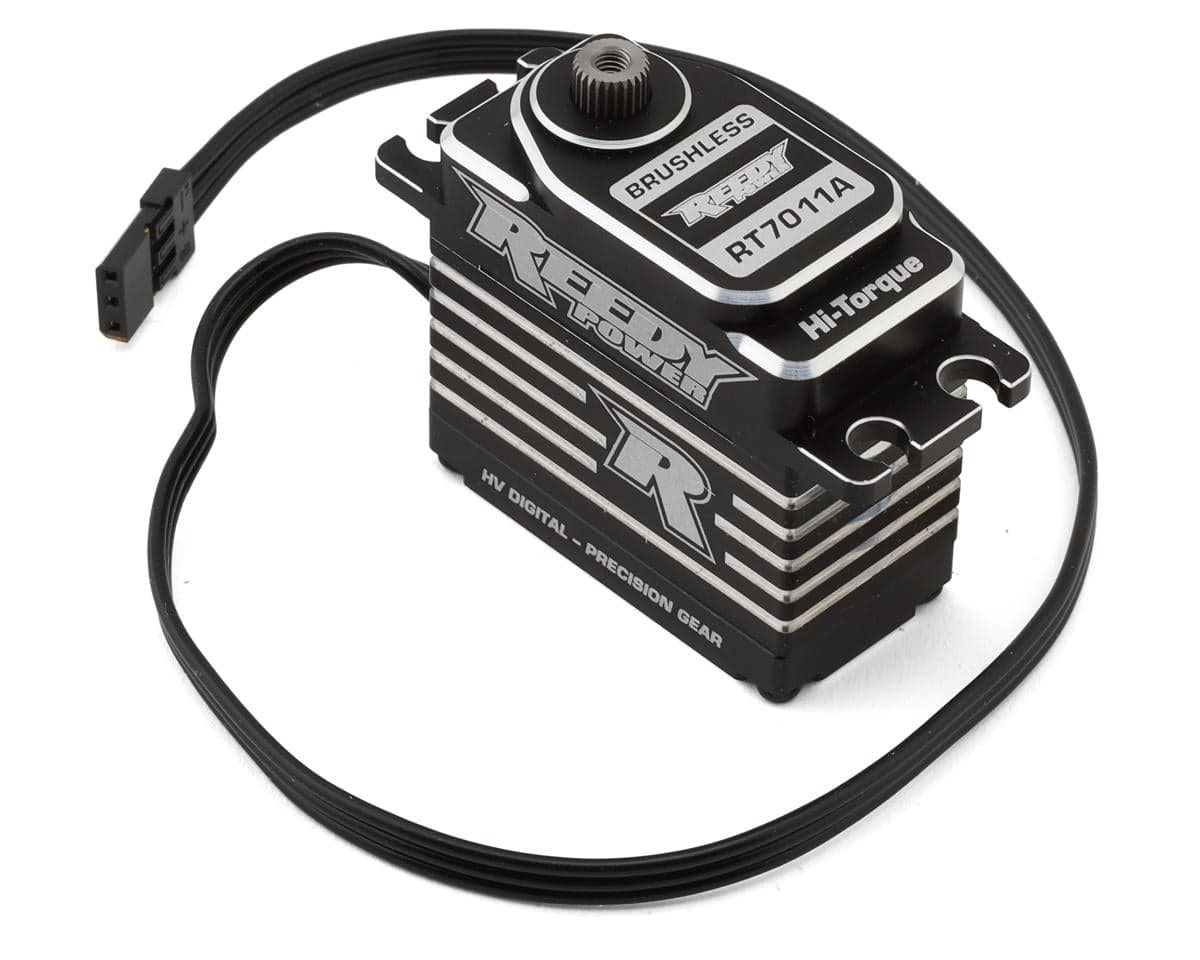

Reedy RT7011A Brushless Hi-Torque Aluminum Servo (High Voltage)
About this part
Servo Overview:
Push your performance to the limit with the Reedy RT7011A Brushless High-Torque HV Servo — a race-bred powerhouse engineered for extreme torque, efficient power delivery, and steel-gear durability that stands up to demanding racing conditions without sacrificing precision or control.
About the RT7011A Brushless High-Torque Servo
Extreme Torque and Durability
The Reedy RT7011A Brushless High-Torque HV Servo combines fast 0.11 sec/60° speed with an incredible 972 oz-in torque output at 8.4V, delivering precise control for demanding 1/8 and 1/10 racing applications. Its durable steel gears and precision ball bearings provide smooth, reliable operation, while the brushless motor delivers efficient and responsive power for steering, throttle, and brake applications. A full CNC-machined aluminum case with integrated heat sink improves rigidity and dissipates heat, while high-voltage capability up to 8.4V, standard-size dimensions, and 25-tooth spline compatibility make it a powerful, versatile, and competition-ready upgrade.
Features:
- Powerful and efficient brushless motor
- Provides extreme torque for demanding applications
- Offers fast response speed
- Durable steel gears
- Precision ball bearings for smooth operation
- Full CNC aluminum case with integrated heat sink
- Standard-size design for easy installation
- Supports high voltage up to 8.4V
- 25-tooth spline compatibility
Includes:
- (1) RT7011A Brushless High-Torque Servo (High Voltage)
Specifications:
| Application | 1/8, 1/10 |
|---|---|
| Input Voltage | 6.0-8.4V |
| Operating Speed @ 6.0V | 0.16 sec/60° |
| Operating Speed @ 7.4V | 0.13 sec/60° |
| Operating Speed @ 8.4V | 0.11 sec/60° |
| Dynamic Torque @ 6.0V | 624.9 oz-in (45 kg-cm) |
| Dynamic Torque @ 7.4V | 763 oz-in (55 kg-cm) |
| Dynamic Torque @ 8.4V | 972.1 oz-in (70 kg-cm) |
| Gear Material | Steel |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.80x1.48in (40.3x20.2x37.6mm) |
| Weight | 2.86oz (81g) |
