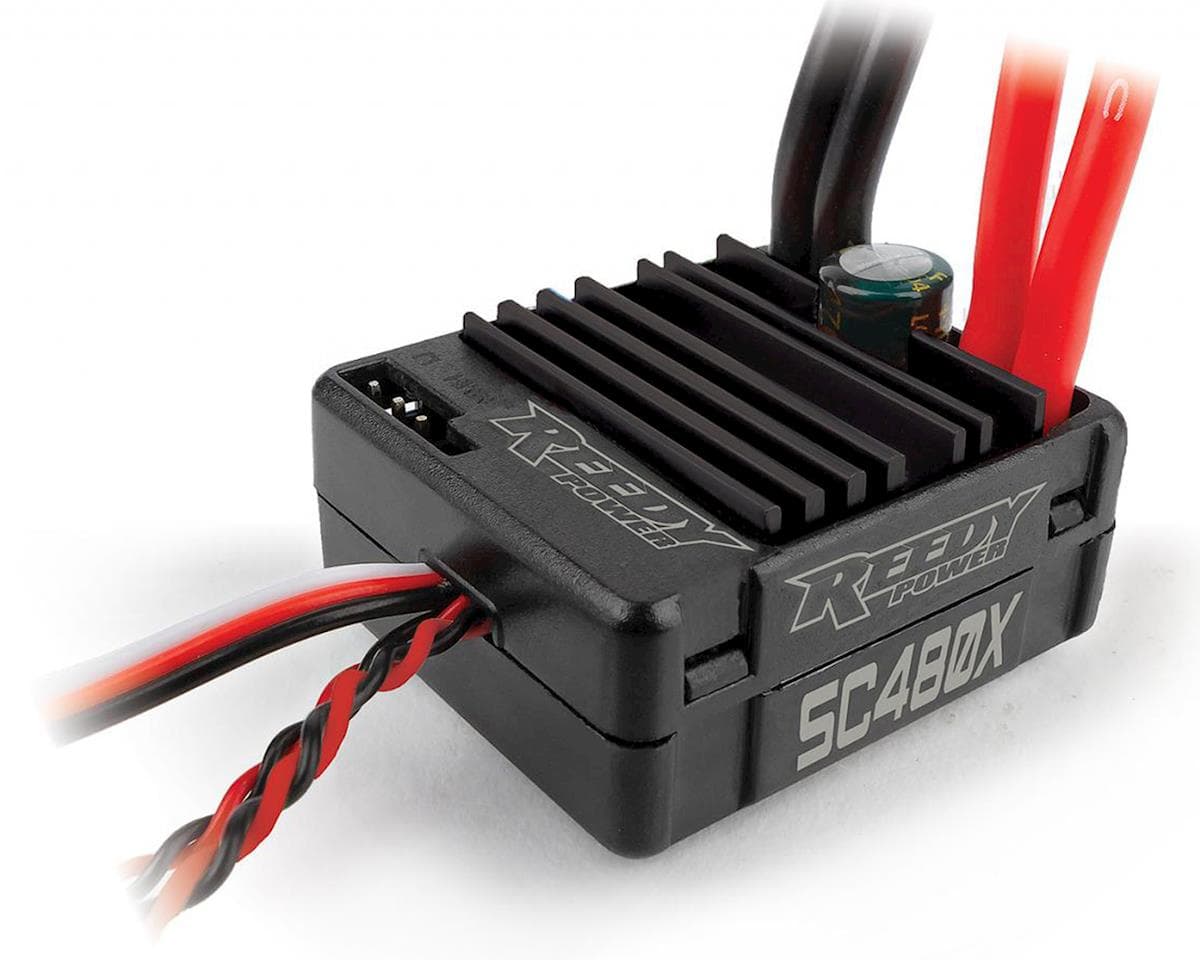

Reedy SC480X 1/10 Scale Brushed Crawler ESC
About this part
The Reedy SC480X 1/10 Scale Brushed Crawler ESC is a trail tested and proven, simple to use, economical, and powerful ESC for trail truck and crawler enthusiasts. This ESC offers excellent forward/reverse/brake feel, a wide range of adjustability, and robust hardware make the SC480X suitable for both trail truck and crawler applications.
The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using optional Program Card (#27034). The following settings can be changed using the Program Card:
- Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range.
- Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery.
- Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position.
- Max Reverse Power: The maximum reverse speed allowed relative to the forward speed.
- Punch Control: The aggressiveness of the application of throttle.
- ESC:
- Crawler/Trail Truck operation
- Dual auxiliary power leads
- Durable case with aluminum heat sink
- Water-resistant and dust proof
- Precision throttle, reverse, and brake control
- Fully adjustable brake and throttle functions (requires program card #27034)
- LiPo low-voltage protection
- Heavy-duty silicone wires
- Low-resistance T-plug battery connector
- Bullet motor connectors
- ESC:
- Cells: 2-3 LiPo, 5-9 NiMH
- Current (A): 80 cont./320 burst
- Resistance: 0.0014
- Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12T 3-slot; 8T 5-slot
- Motor Limit, 3S LiPo/7-9 NiMH: 540/550 15T 3-slot; 10T 5-slot
- Low-Voltage Cutoff: Yes
- Dimensions (mm): 32 x 37 x 18
- Weight (g): 43
- BEC: 7.4V/5A
- Power Wires: 16-gauge
- Connector: Battery: T-plug. Motor: Bullet. Aux: FUT-J.
- Programming Value (*Default setting):
- Initial Drive: 2%, 5%*, 10%, 15%
- Low Voltage Cutoff (V/cell): 3.2, 3.3, 3.4*
- Drag Brake: 0%, 50%, 75%, 100%*
- Max Reverse Power: 50%, 75%*, 100%
- Punch Control: Soft*, Medium, Strong
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
Lets face it we all are trying to get a economical ESC for our crawlers. Well this is it. Add the tuning card and it's a great crawling combo. I have them in 9 of my crawlers. pair with a Reddy 5 slot 16 t motor and you have a winning combo of performance that is easy on the wallet.
I purchased mine directly from Associated. Super smooth in forward & reverse, 7.4V BEC, simple easy installation. It's a winner
nice esc. wish the program card allowed adjustment for bec voltage between 6v/7.4v.
Reviewers consistently rate the Reedy SC480X brushed crawler ESC highly and describe it as an affordable option for crawlers. Owners report smooth forward and reverse operation, a 7.4V BEC, and simple installation. One owner says it performs well once the tuning card is added and pairs well with a 5-slot 16T motor. A single reviewer would like the program card to allow BEC voltage adjustment between 6V and 7.4V. All reviews are for the same variant, and the sample is small.
- + Affordable price for crawlers
- + Smooth forward and reverse operation
- + 7.4V BEC
- + Simple installation
- − BEC voltage not adjustable to 6V via program card
