About this part

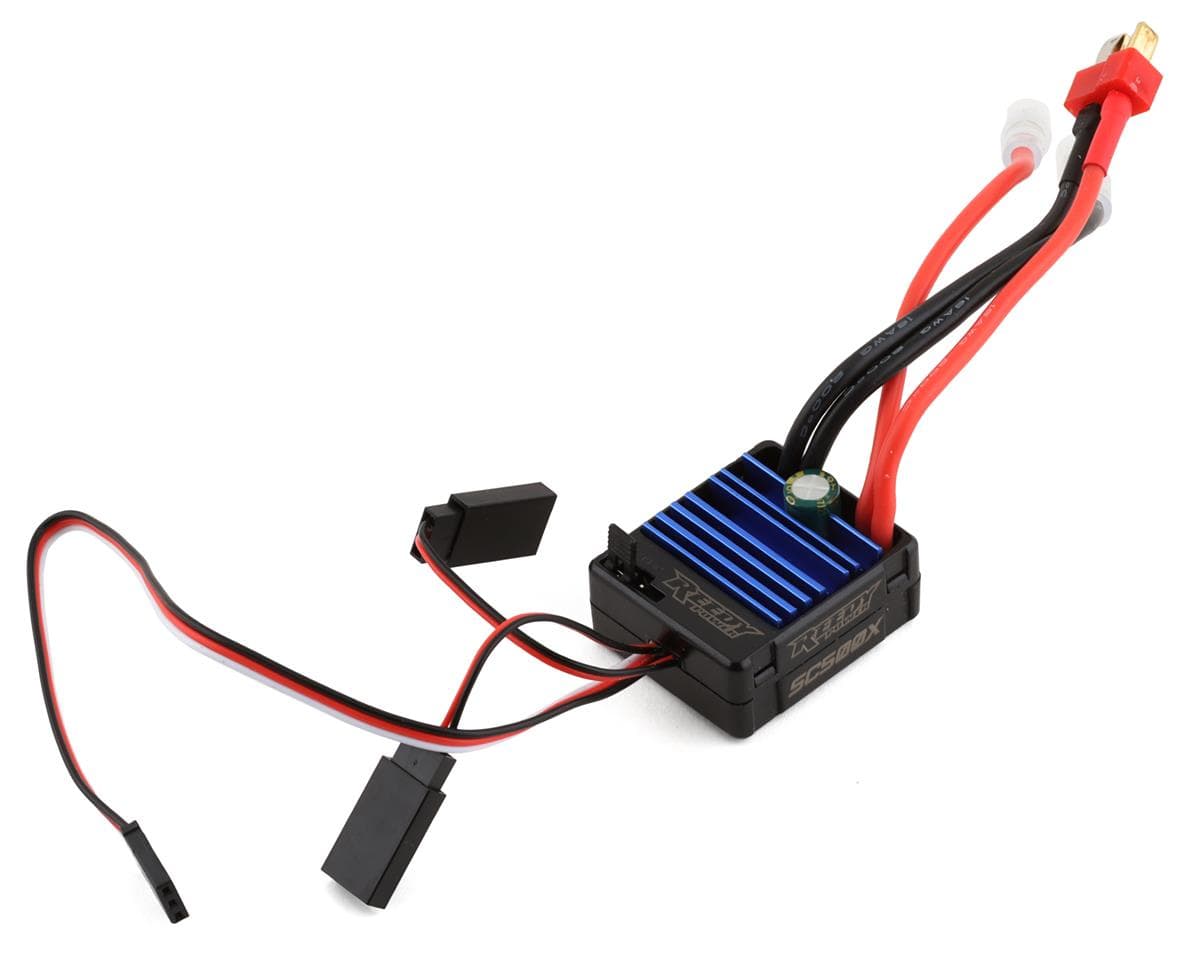

The Reedy SC500X Brushed ESC is a powerful ESC at a great value. Designed for most 1/10 scale brushed motor applications this ESC excels at rock crawling. The SC500X has excellent throttle feel along with a wide array of adjustable features. Also featuring water resistant and dust proof construction this ESC is ready for adventure!
NOTE: Additional programming features can only be accessed by using the ASC27034 programming card.
Features:
NOTE: Additional programming features can only be accessed by using the ASC27034 programming card.
Features:
- Dual auxiliary power leads
- Durable case with aluminum heat sink
- Water-resistant and dust proof
- Precision throttle, reverse, and brake control
- Adjustable brake and throttle functions (Requires program card ASC27034)
- LiPo low-voltage protection
- Heavy-duty silicone wires
- Low-resistance T-plug connector
- Bullet motor connectors
Voltage: 2-3SLiPo, 5-9 NiMH
Current (A): 80 cont./320 burst
Resistance (Ohms): 0.0014
Operation: Forward/Brake/Rev
Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12T 3-slot; 8T 5-slot
Motor Limit, 3S LiPo 7-9 NiMH: 540/550 15T 3-slot; 10T 5-slot
Low-Voltage Cutoff: Yes
Dimensions (mm): 32 x 37 x 18
Weight (g): 43
BEC: 7.4V/5A
Power Wires: 16-gauge
Connector: Battery-T-plug, Motor-Bullet, Aux-FUT-J
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.0 · 1 review
Jake BrakeVerified owneron Reedy SC500X Brushed ESC
This is a decent esc but there is no way this is an 80A esc. This thing is identical to my hobbywing 1060. Performs exactly the same, same physical size, same wire gauge as the 1060. If you are looking for an 80A esc get a 1080 because this one is not an 80a esc. This is a great over priced 60A esc with the reedy name.
